Duratec

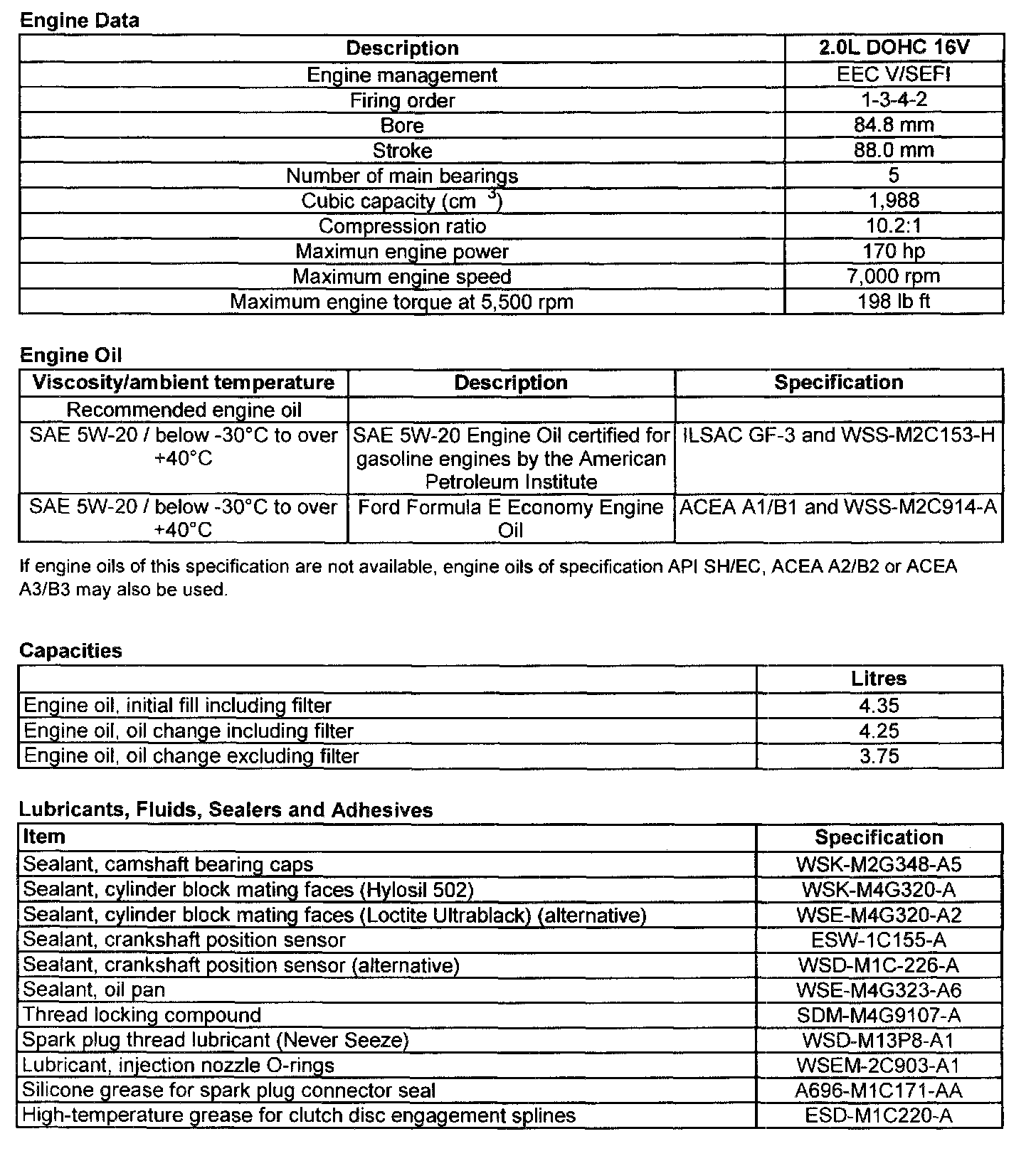

General Service Information:

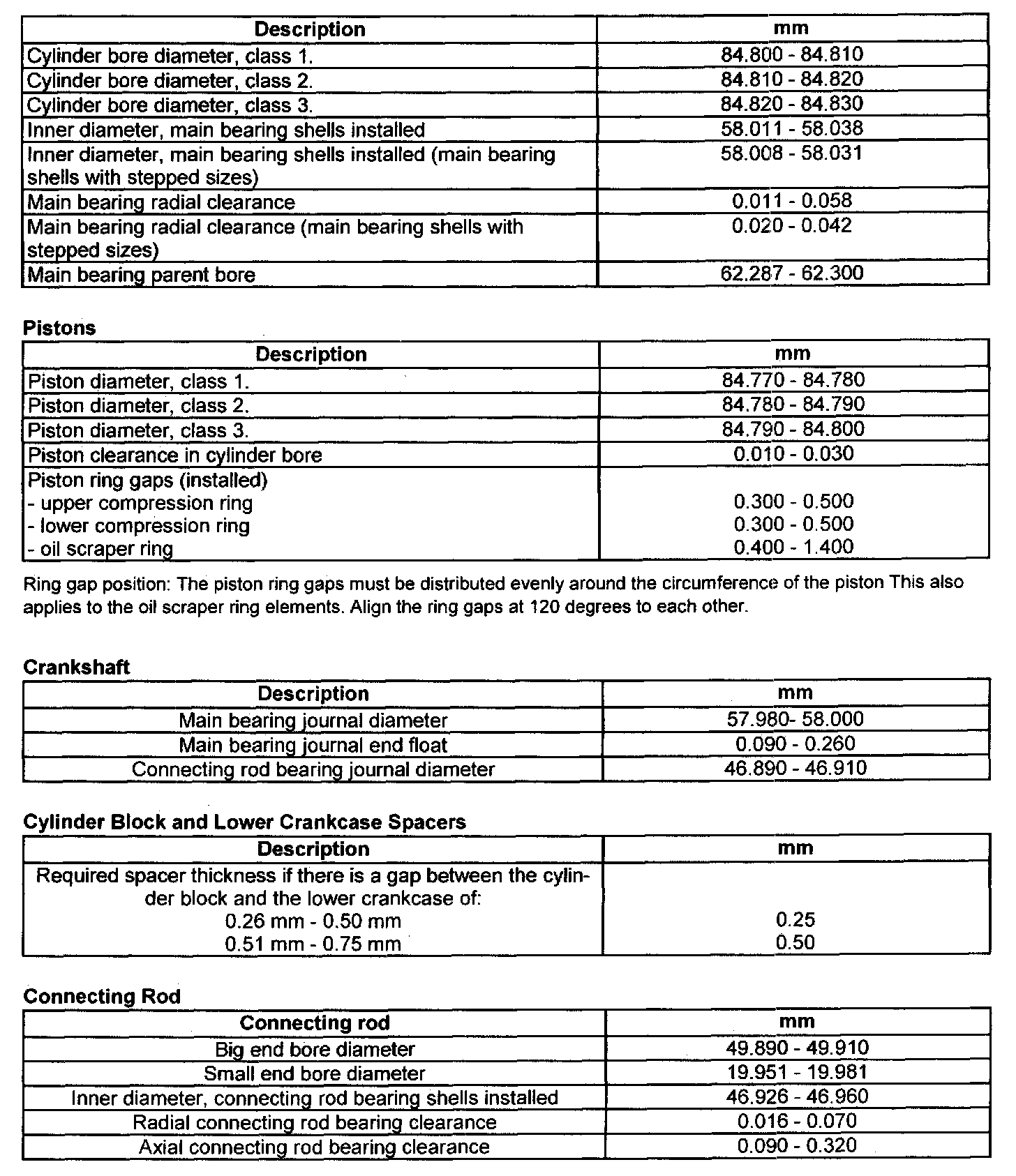

Cylinder Block, Pistons, Crankshaft & Connecting Rod Dimensions:

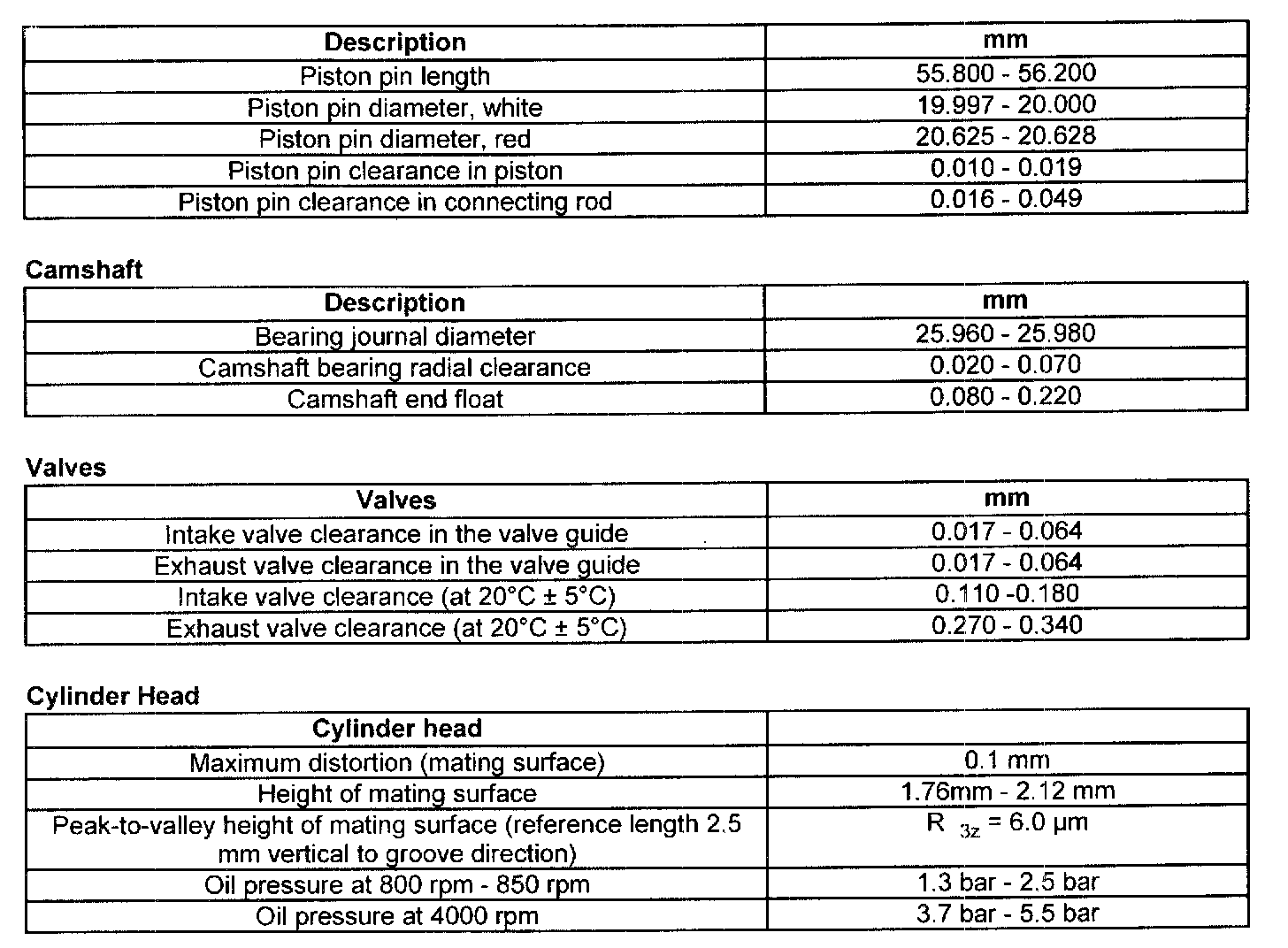

Piston Pin, Camshaft, Valves & Cylinder Head Dimensions:
