Duratec

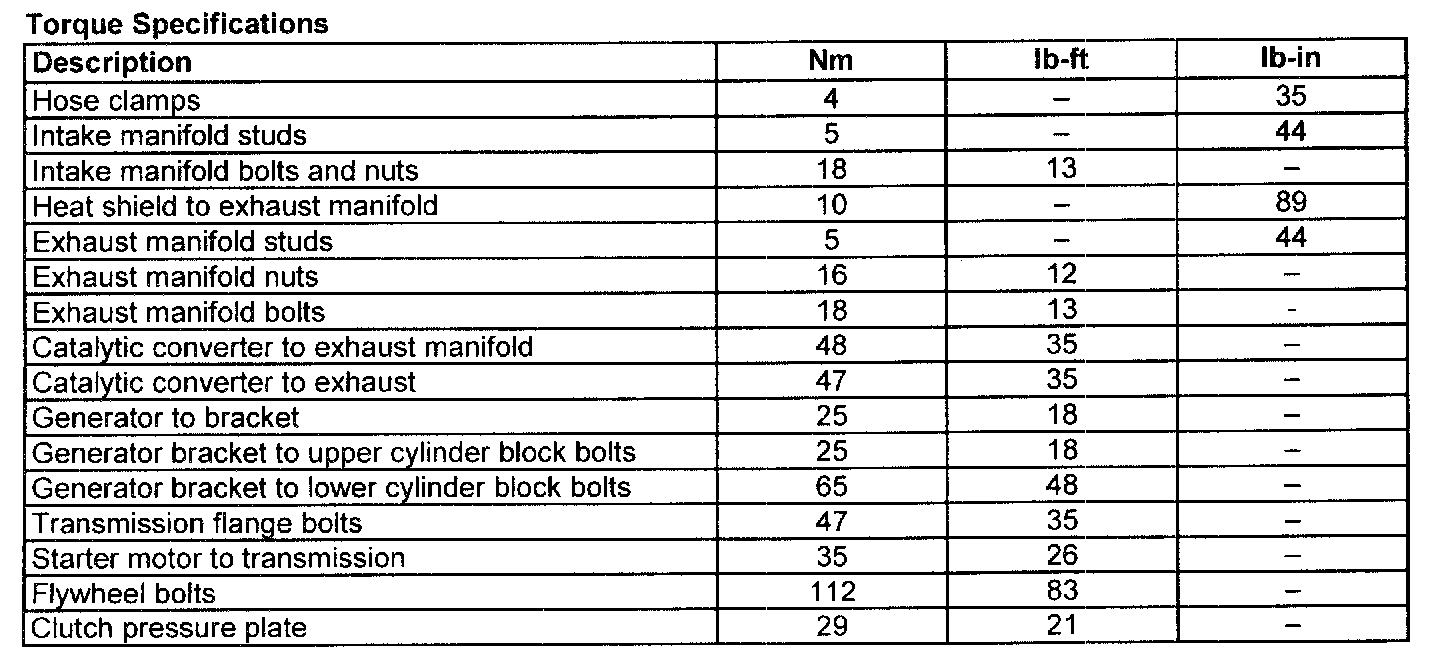

Torque Specifications - 1 0f 2:

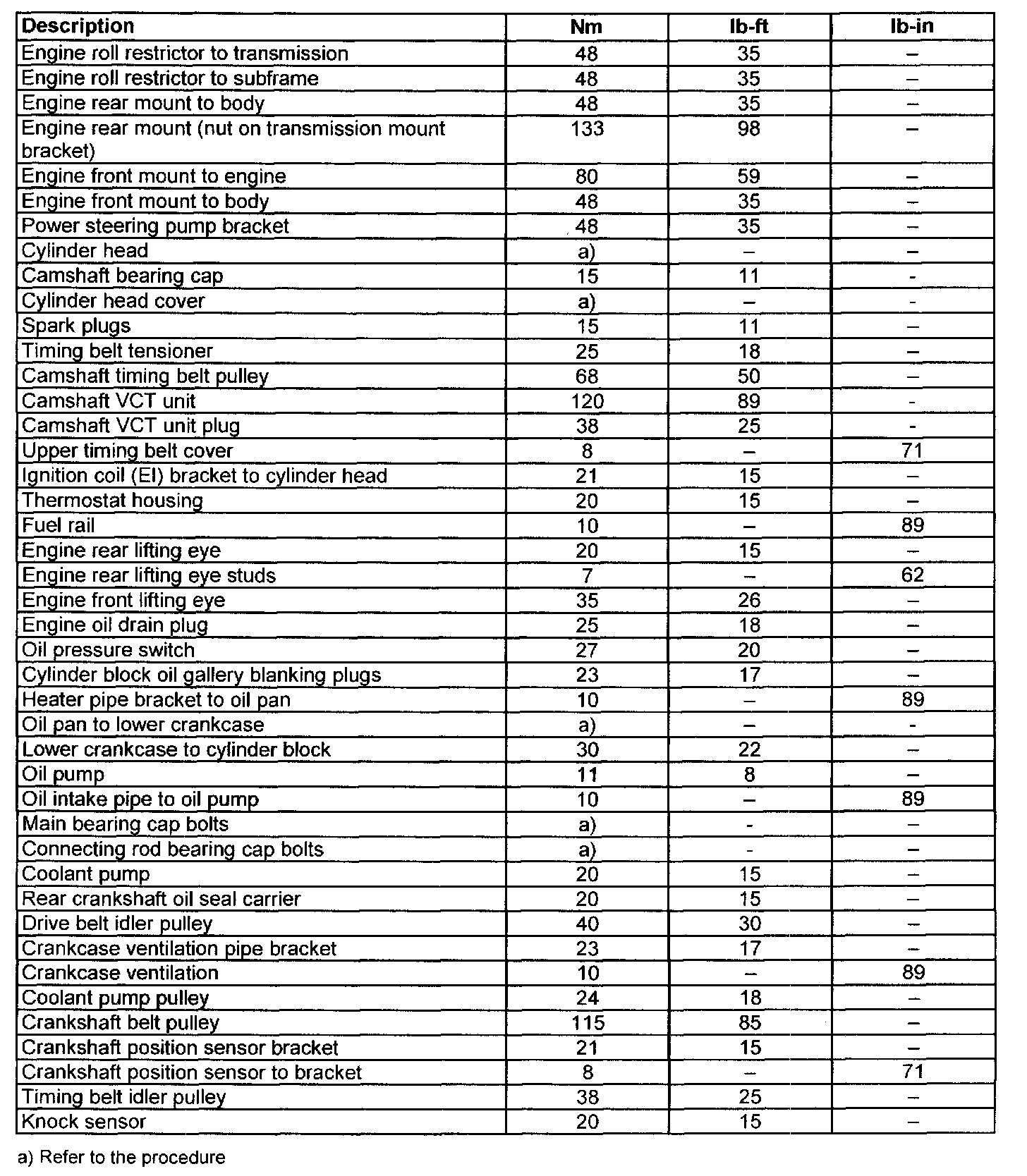

Torque Specifications 2 0f 2:

Note: Screw in the camshaft bearing cap bolts evenly, in the sequence shown, a half turn at a time and tighten them in two stages.

Tighten the bolts of the camshaft bearing caps.
- Stage 1: 10 Nm
- Stage 2: 19 Nm

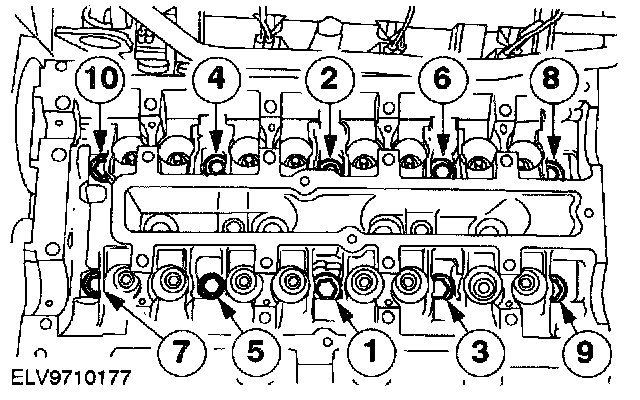

Cylinder Head Torque Sequence:

Tighten the cylinder head bolts in three stages in the sequence indicated.
^ Stage 1: 20 Nm
^ Stage 2: 40 Nm
^ Stage 3: 90 degrees.





Install the five lower crankshaft main bearing caps.






Tighten the main bearing and connecting rod bearing bolts.
1. Tighten the main bearing bolts in two stages.
^ Stage 1: 25 Nm.
^ Stage 2: 60 degrees.
2. Tighten the connecting rod bearing bolts in two stages.
^ Stage 1: 35 Nm.
^ Stage 2: 90 degrees
