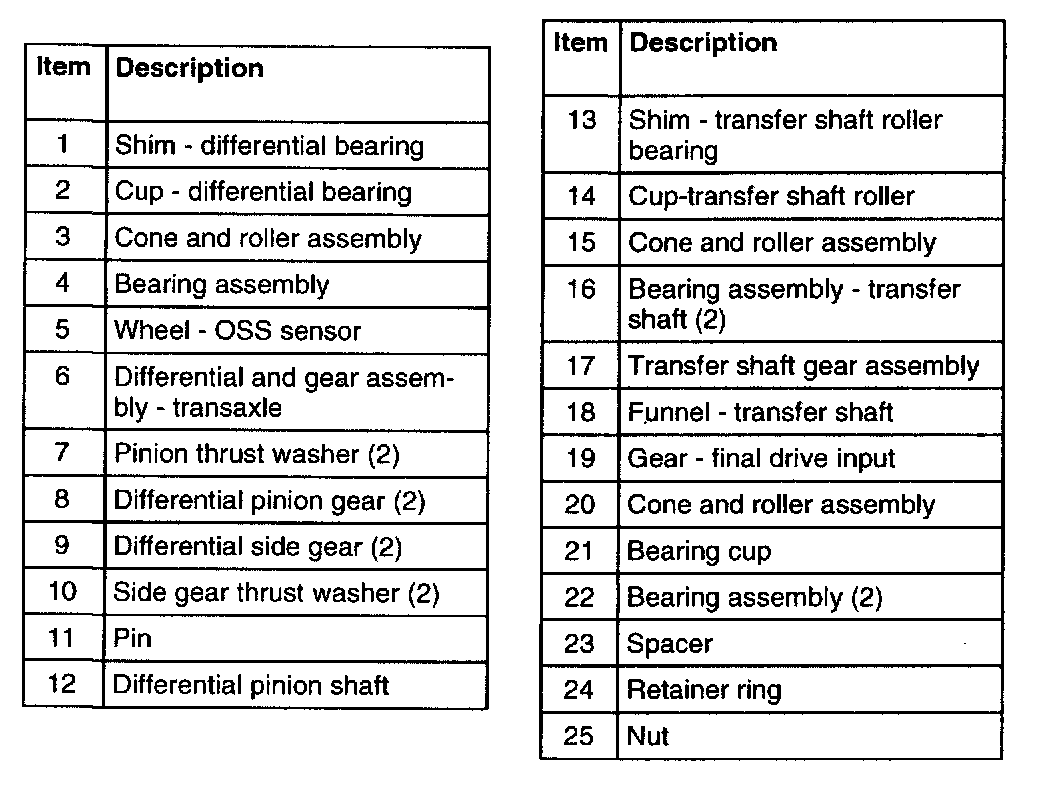

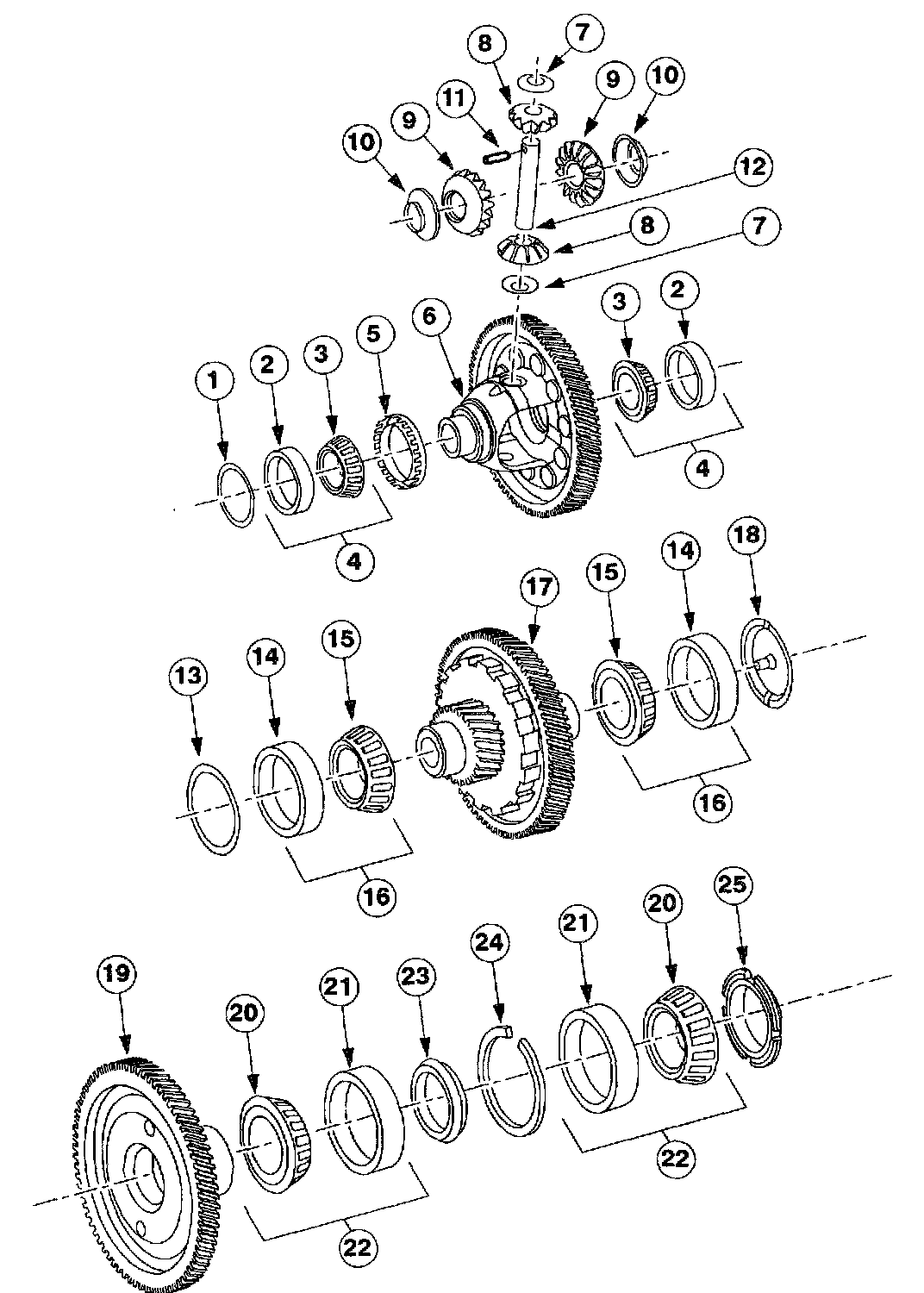

Differential Assembly and Final Drive Input
Differential assembly
and final drive input
Part 1 of 2
Part 2 of 2
