Lower End

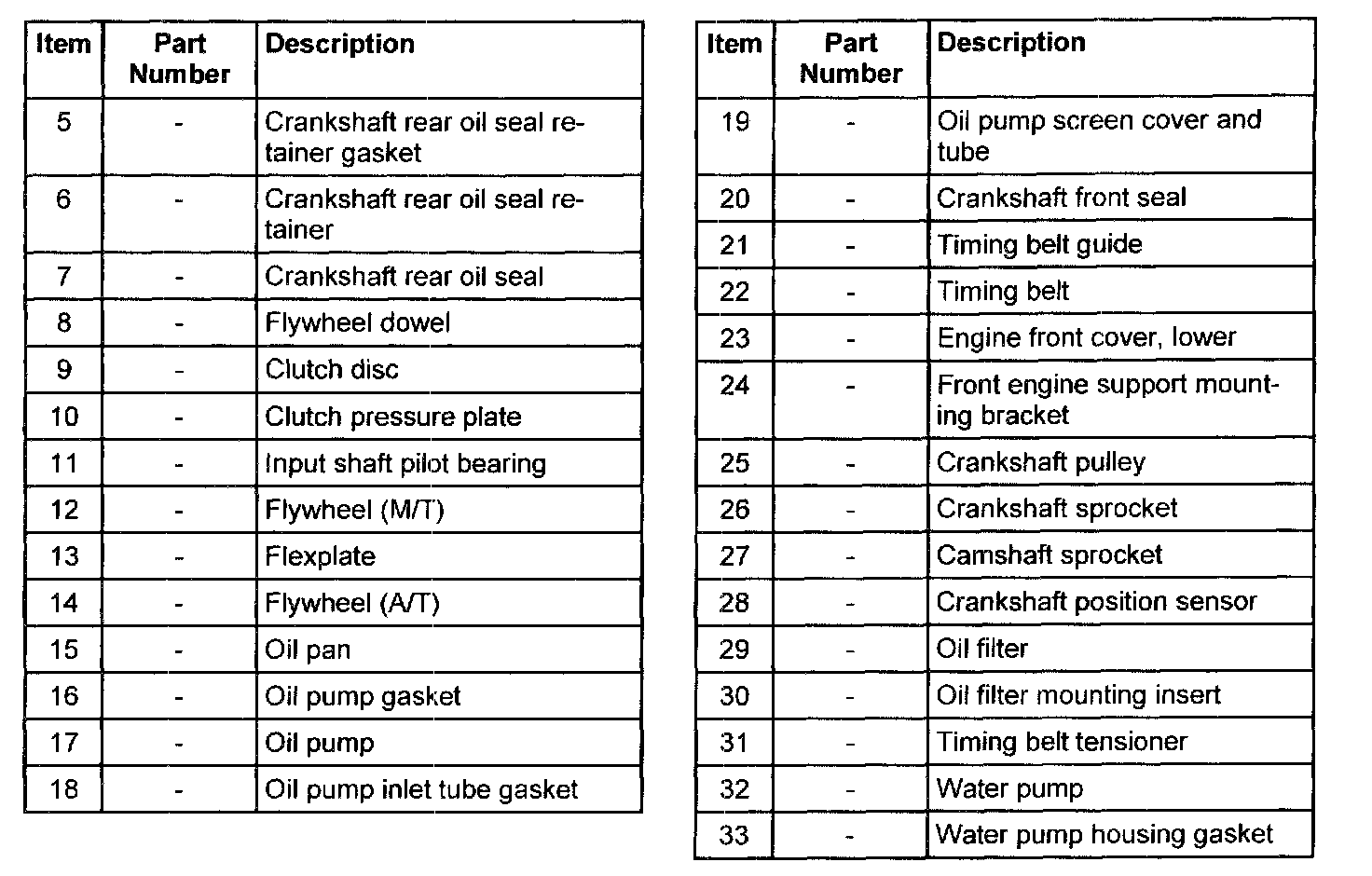

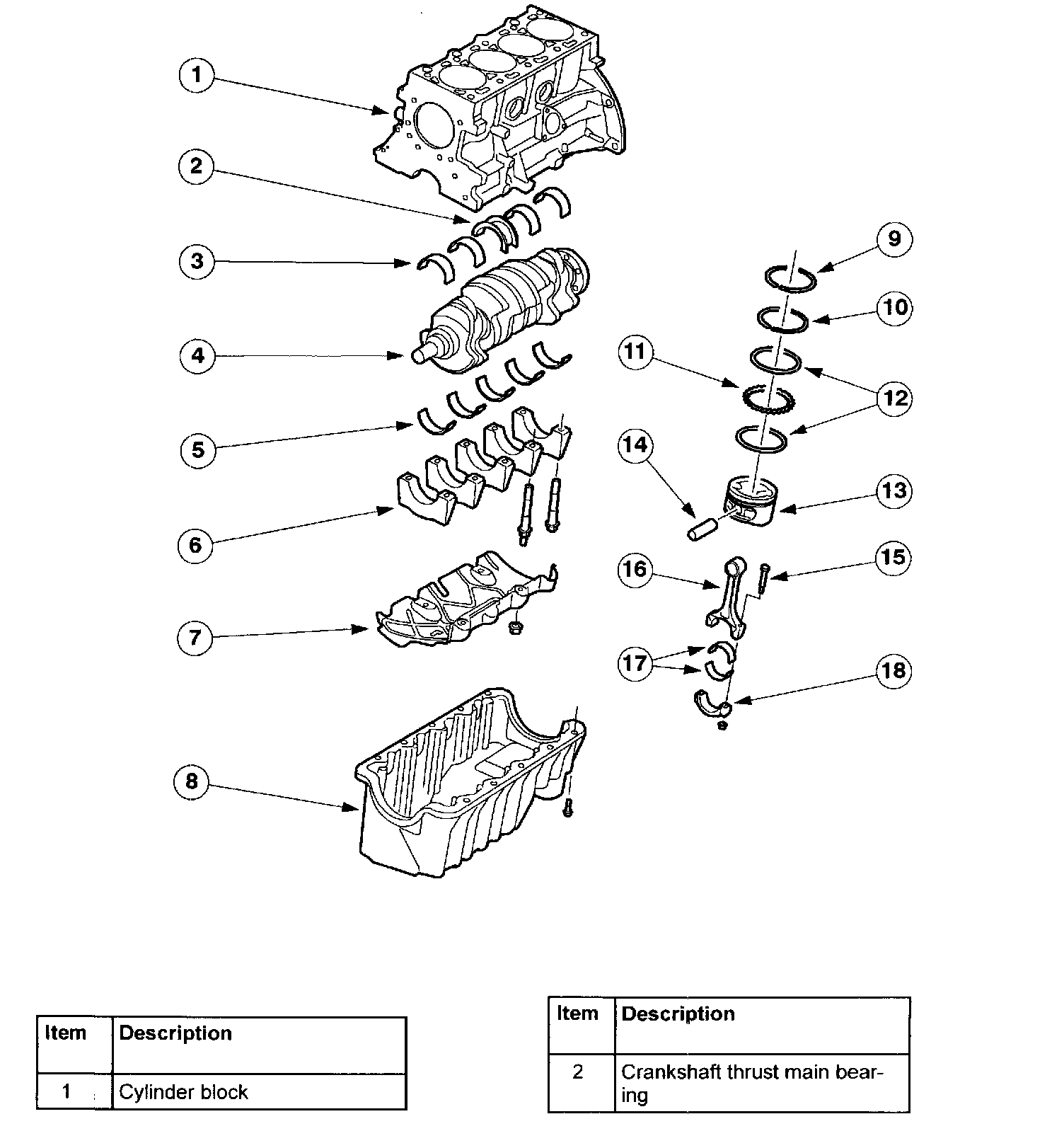

Lower Engine Components





Part 1 of 2





Part 2 of 2

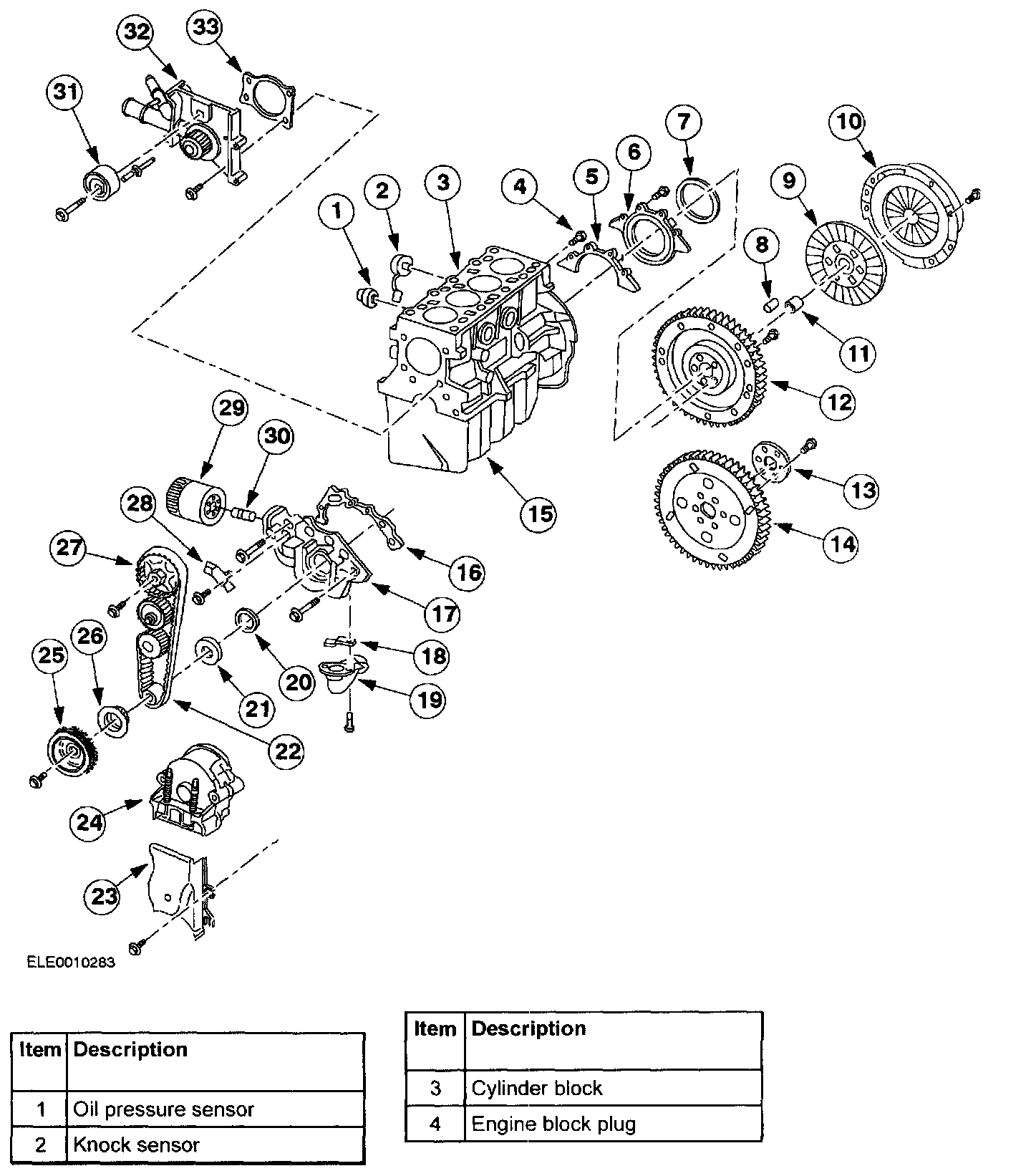

Lower Engine Components Con't





Part 1 of 2





Part 2 of 2
