Test H: No Module/Network Communication
H1:

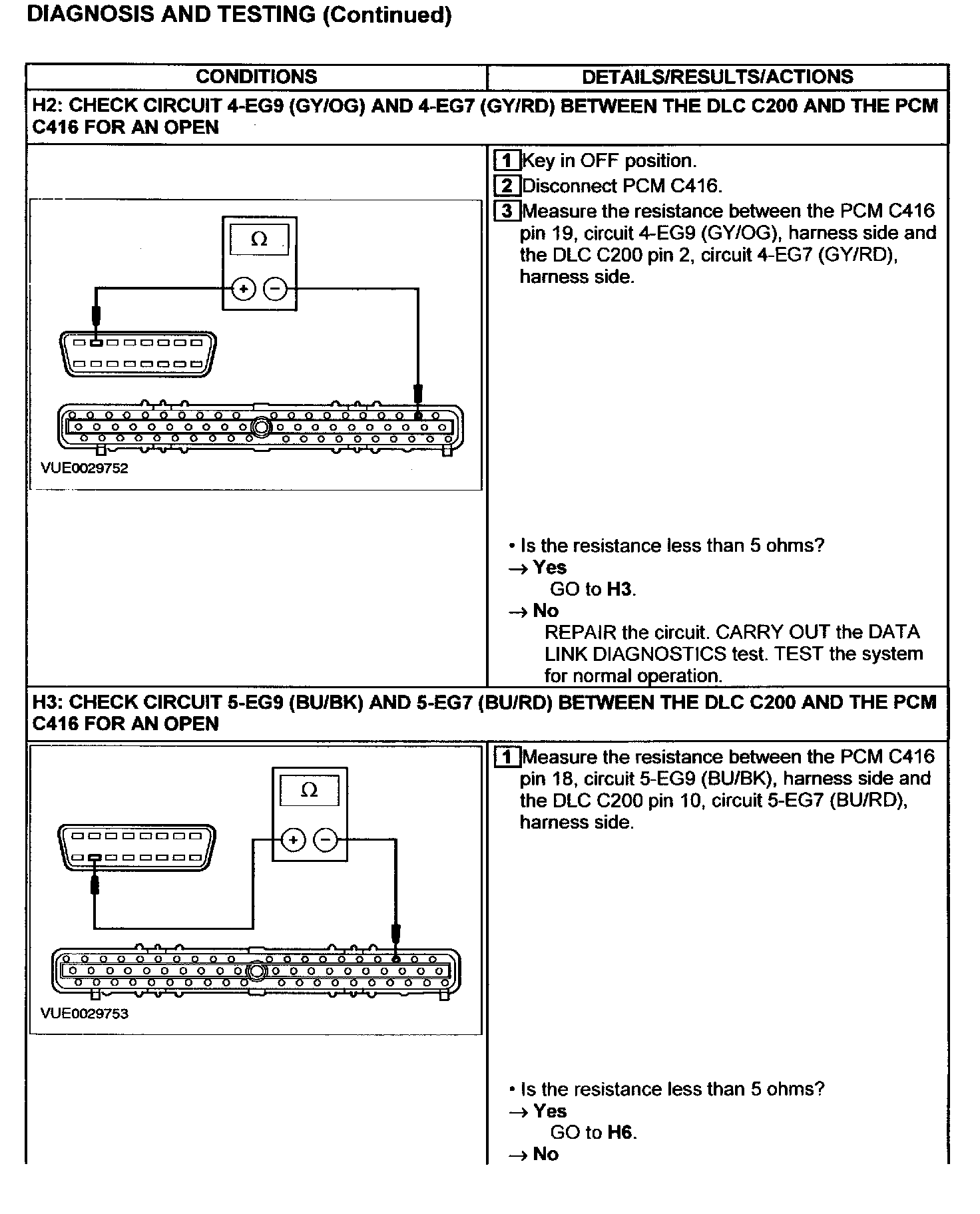

H2 - H3:

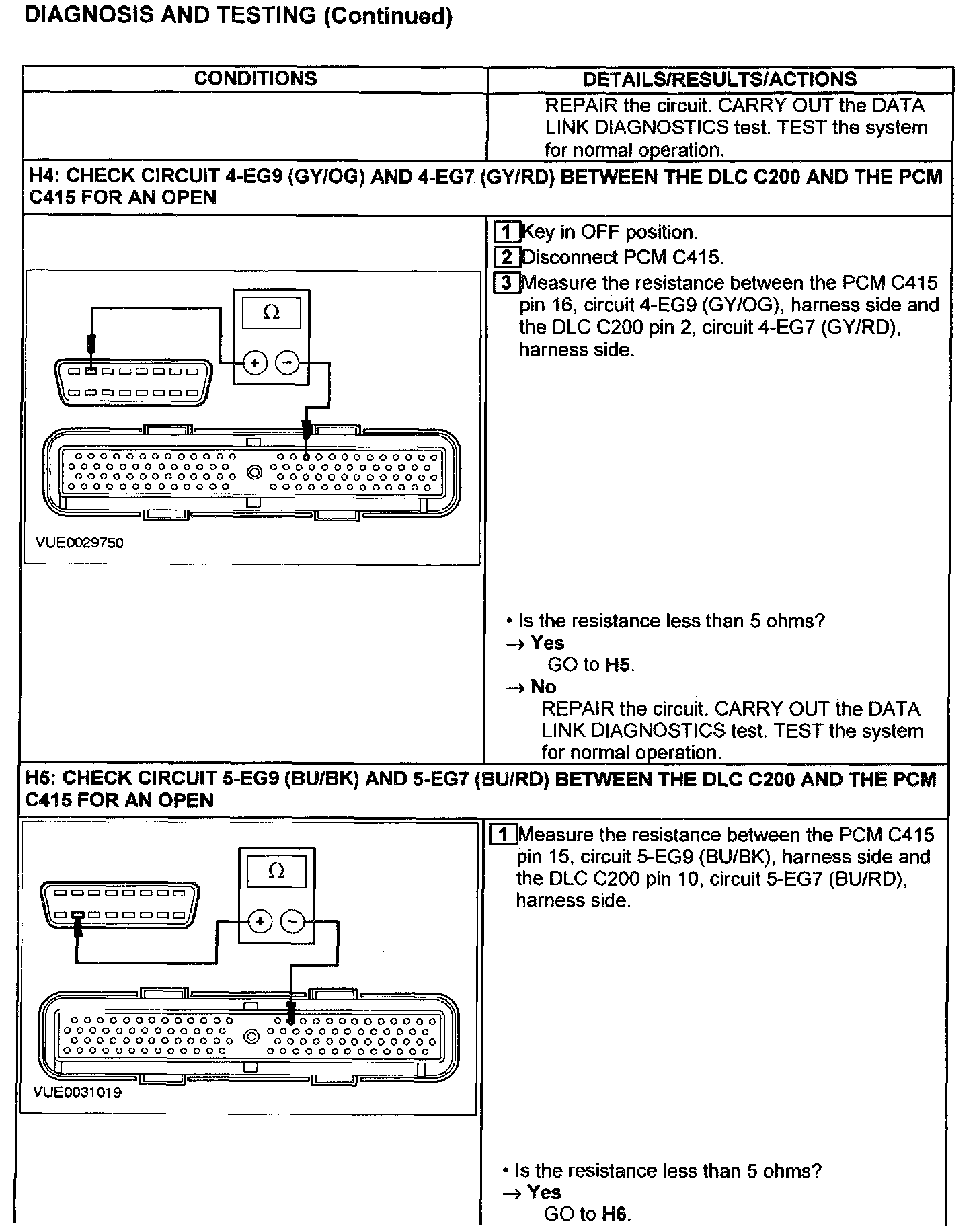

H3 - H5:

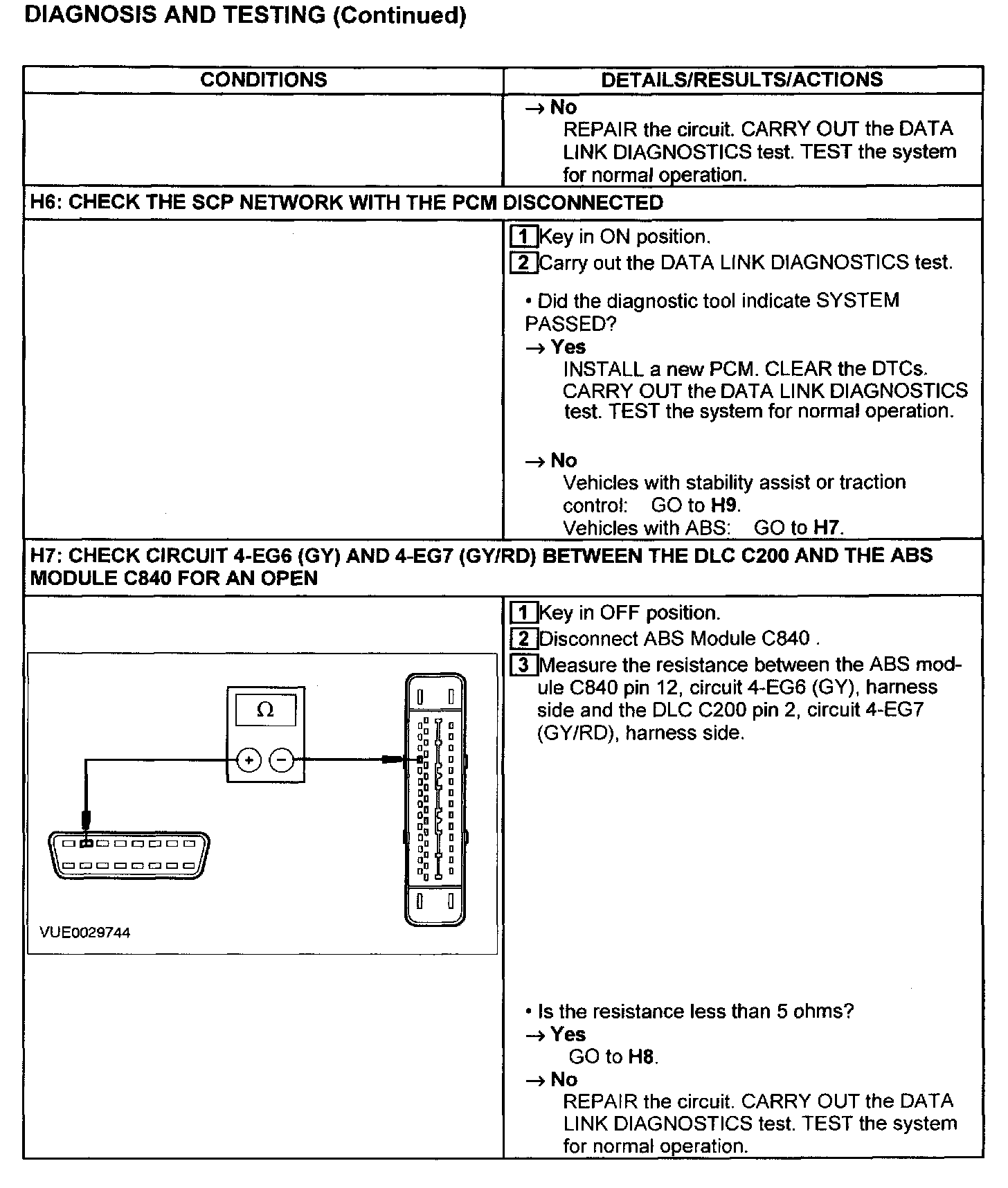

H5 - H7:

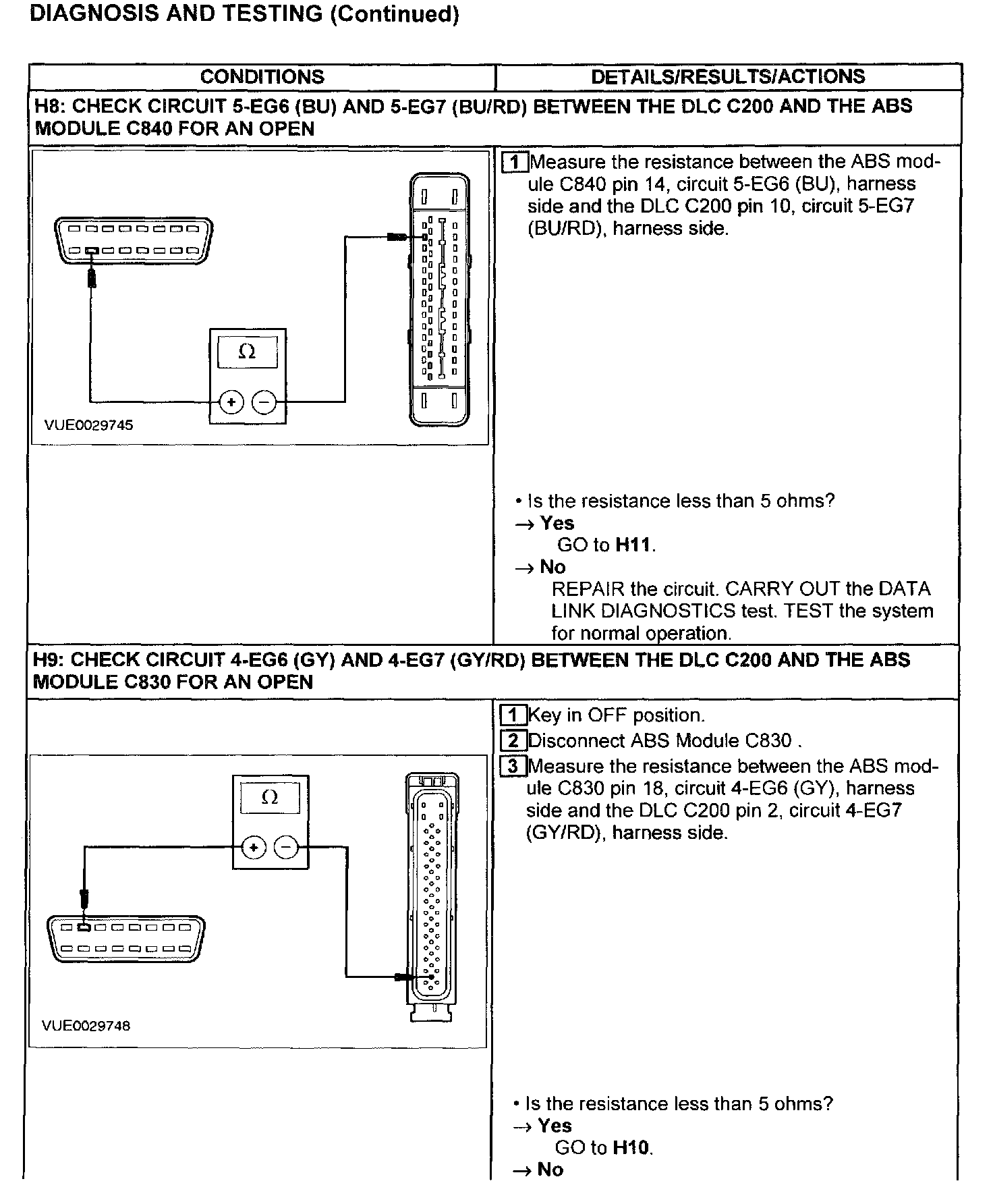

H8 - H9:

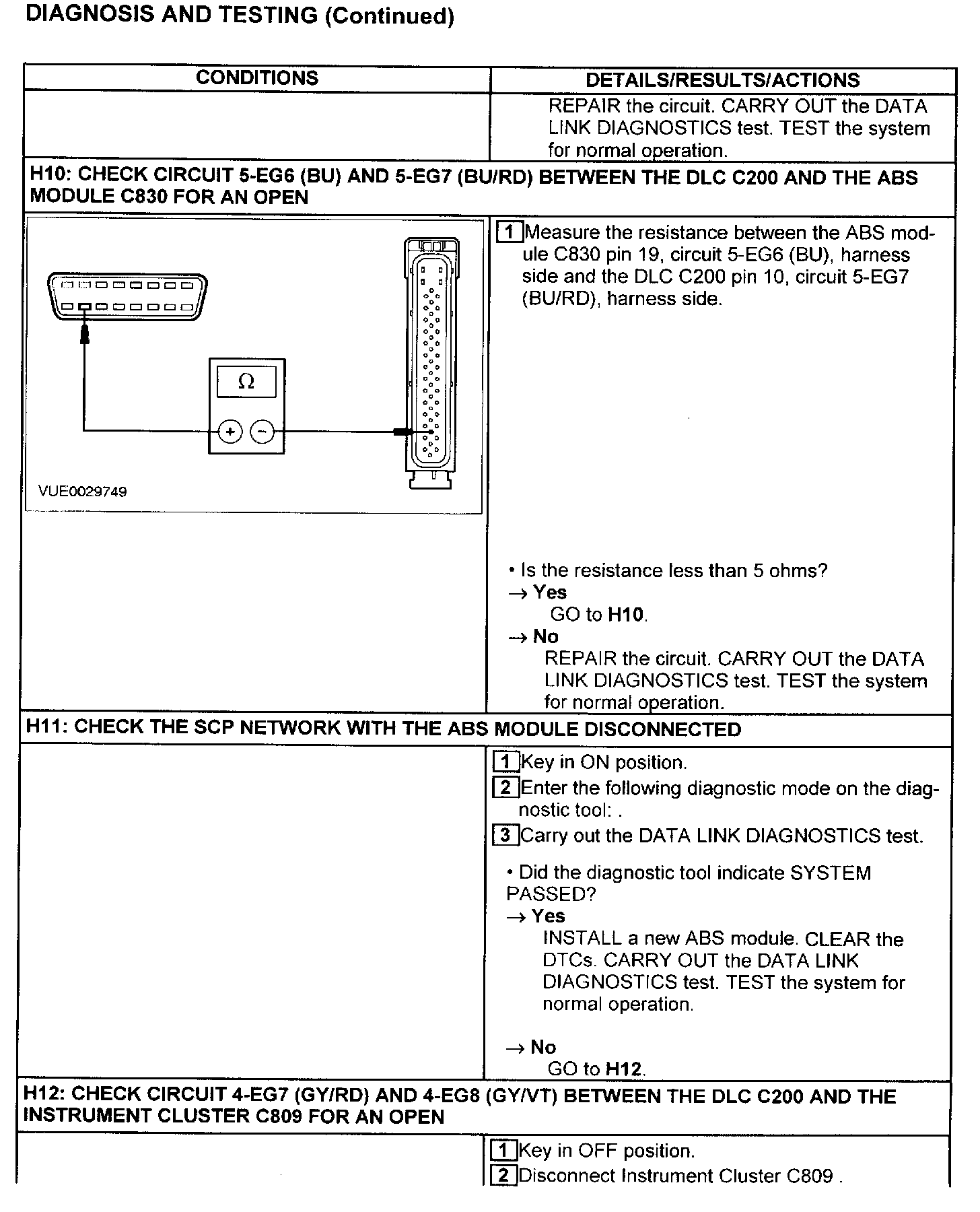

H9 - H12:

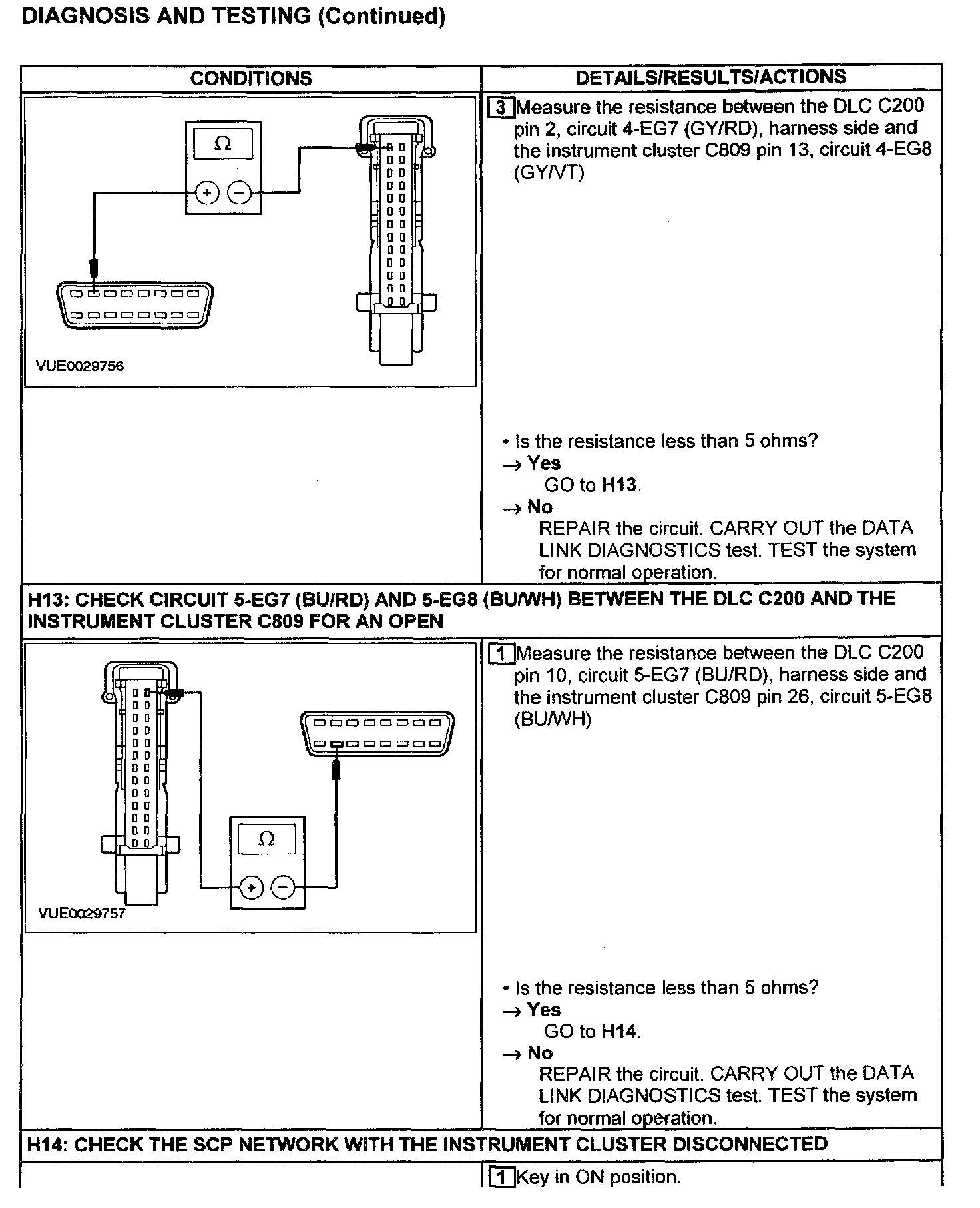

H12 - H14:

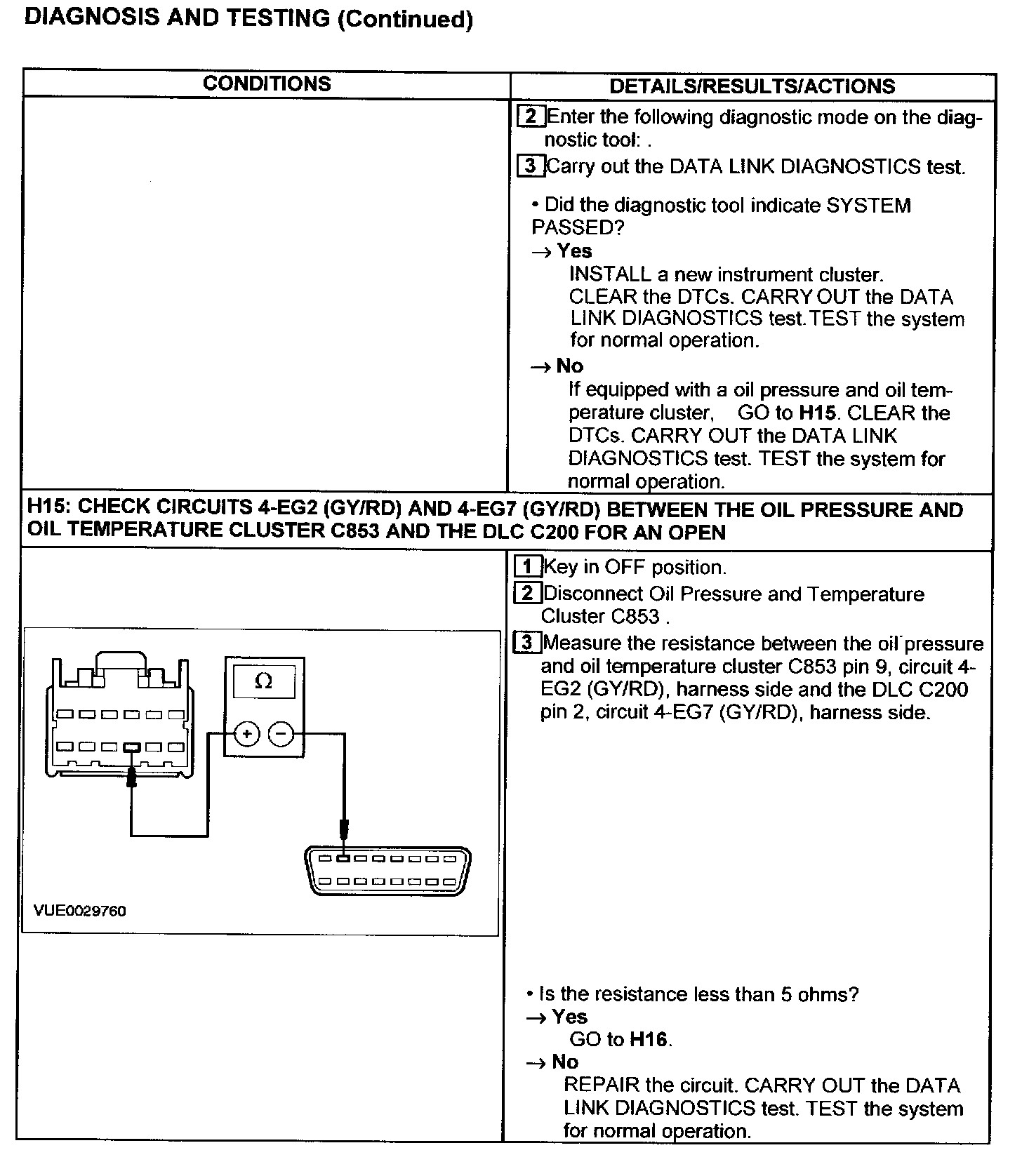

H14 - H15:

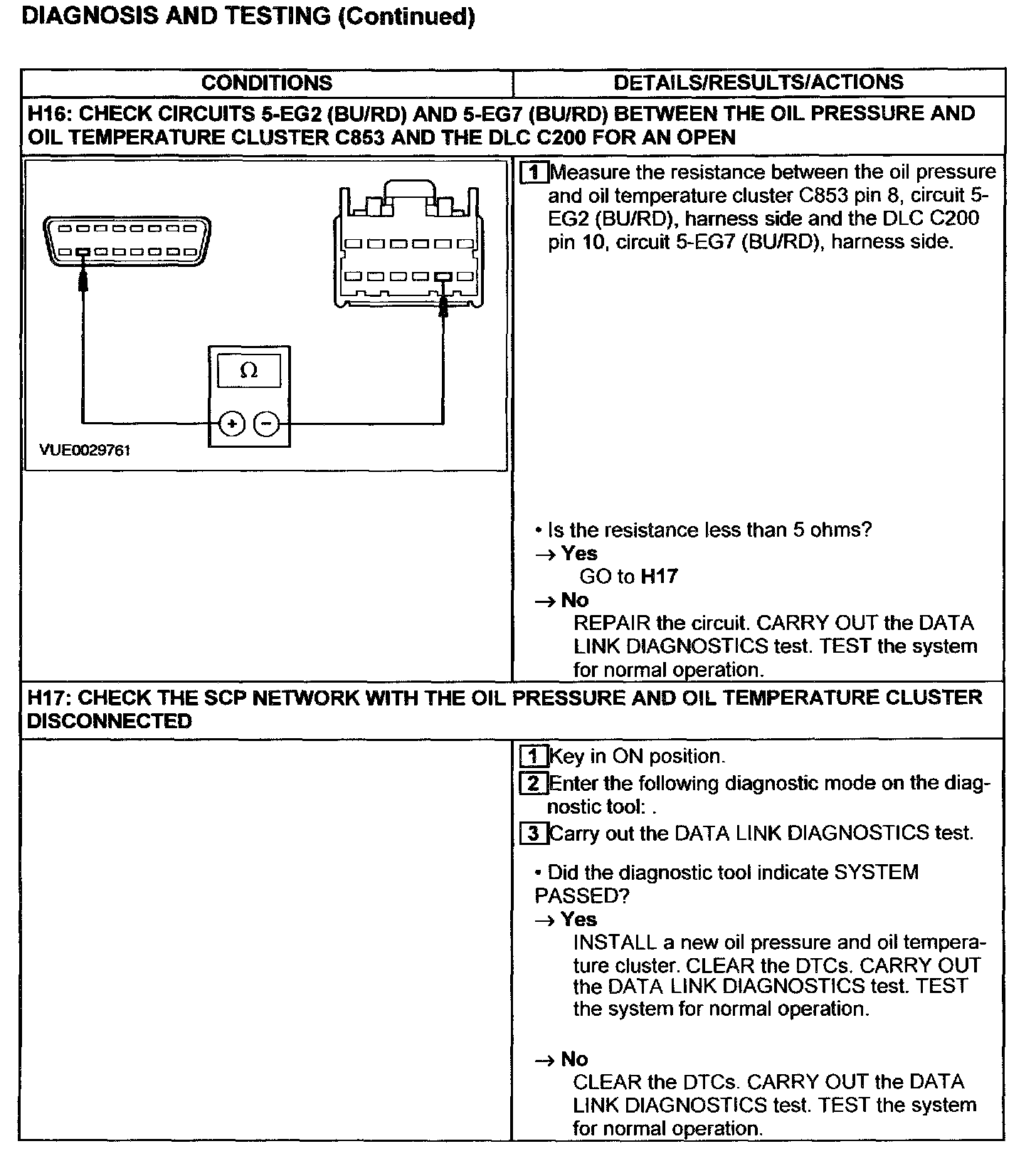

H16 - H17:
