Disassembly And Assembly Of Subassemblies: Piston: Assembly

WARNING: This page is about a different variant/trim than selected.

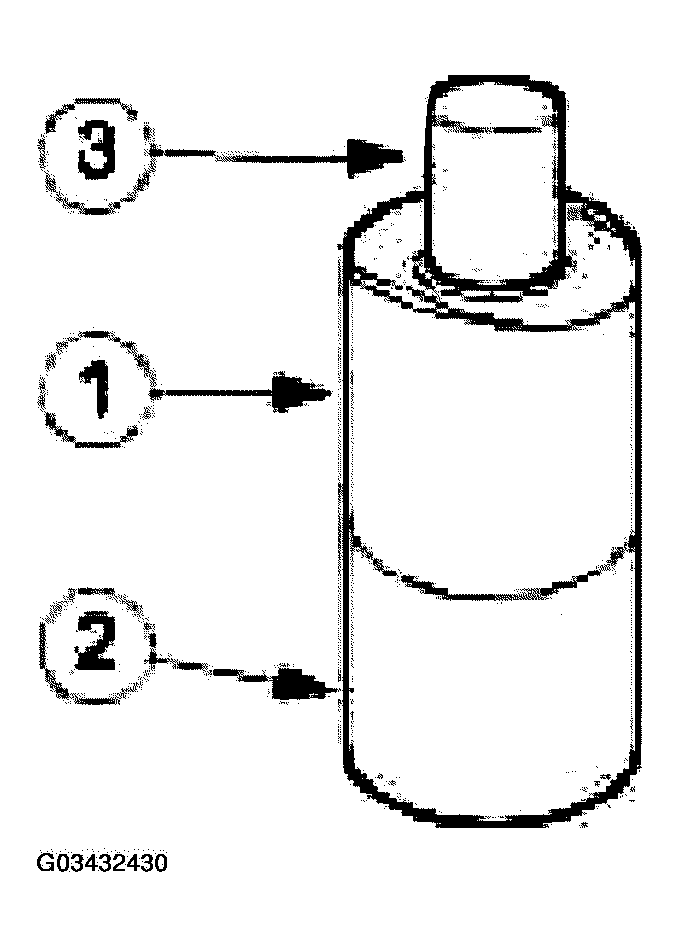

Place (1) sleeve in (2) and position (3) pin locator into the center hole of sleeve.

Fig 1: Placing Sleeve In And Positioning Pin Locator Into Center Hole Of Sleeve
Courtesy of FORD MOTOR CO.

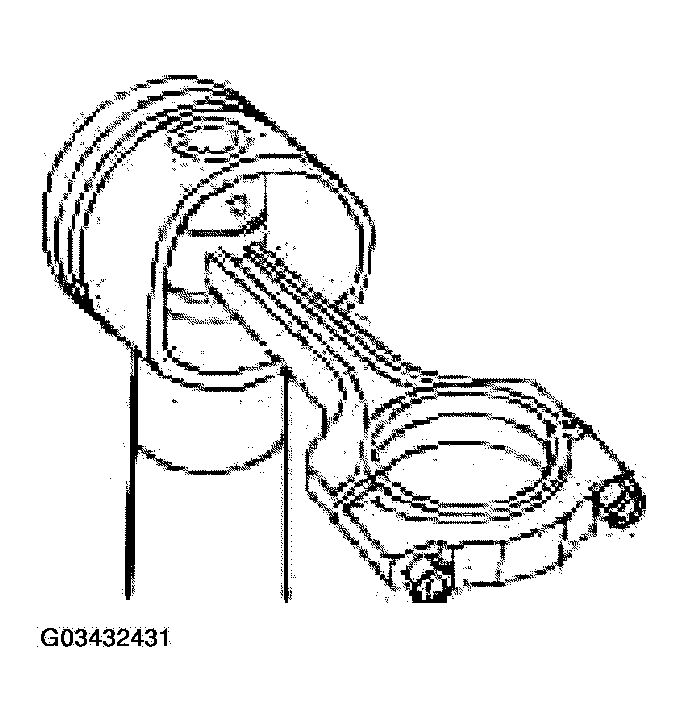

Position the piston to be assembled onto the locator.

Fig 2: Assembling Piston Onto Locator
Courtesy of FORD MOTOR CO.

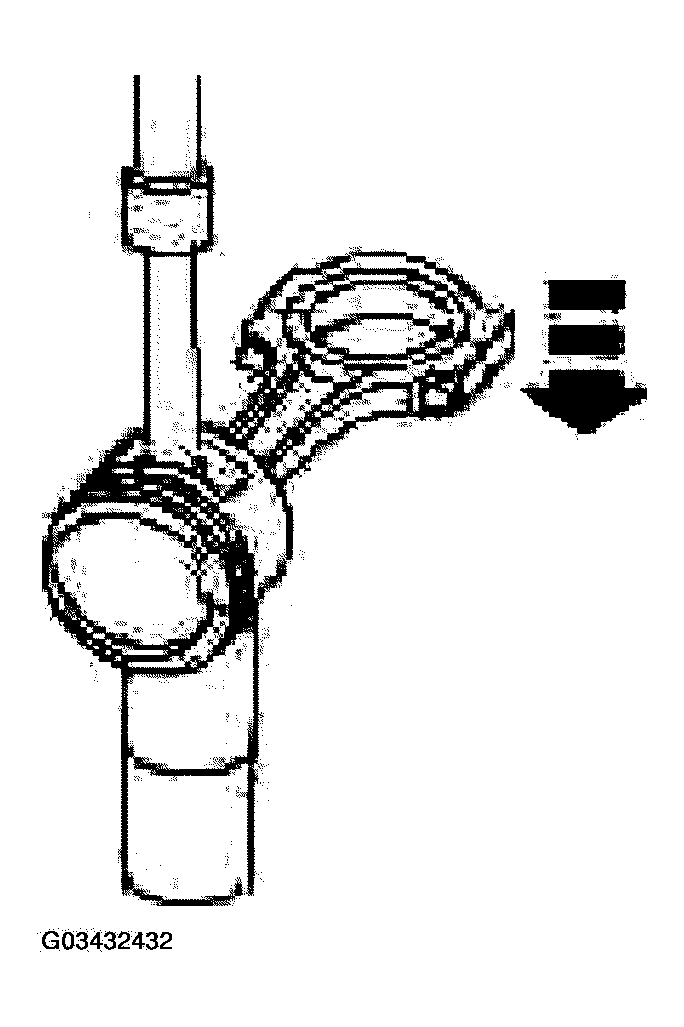

Press the pin into the piston and the connecting rod with driver.

Fig 3: Pressing Pin Into Piston And Connecting Rod With Driver
Courtesy of FORD MOTOR CO.

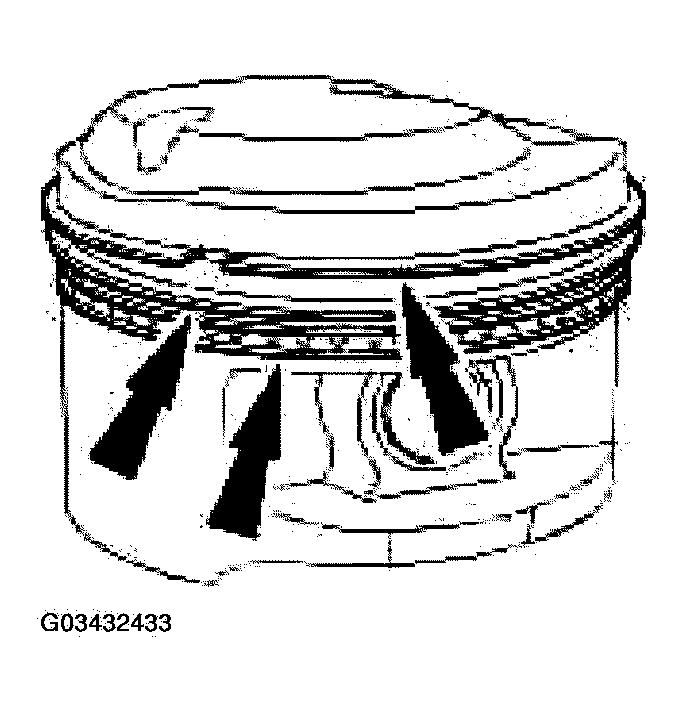

Install the piston rings using a suitable expander. The compression ring is to be installed with the grooved side facing down.

Fig 4: Installing Piston Rings
Courtesy of FORD MOTOR CO.

NOTE: The connecting rod bearings are selective fit to provide the necessary clearance. Refer to ENGINE SYSTEM-GENERAL INFORMATION article to measure the clearance and select the proper connecting rod bearing.

NOTE: When installing the connecting rod bearings, ensure that the tab on the bearing engages the slot in the connecting rod and the rod cap and that the bearings are fully seated.

Install a connecting rod bearing in the connecting rod and the rod cap.
Check the connecting rod to crankshaft clearance. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION article .
