Upper Engine Components

WARNING: This page is about a different variant/trim than selected.

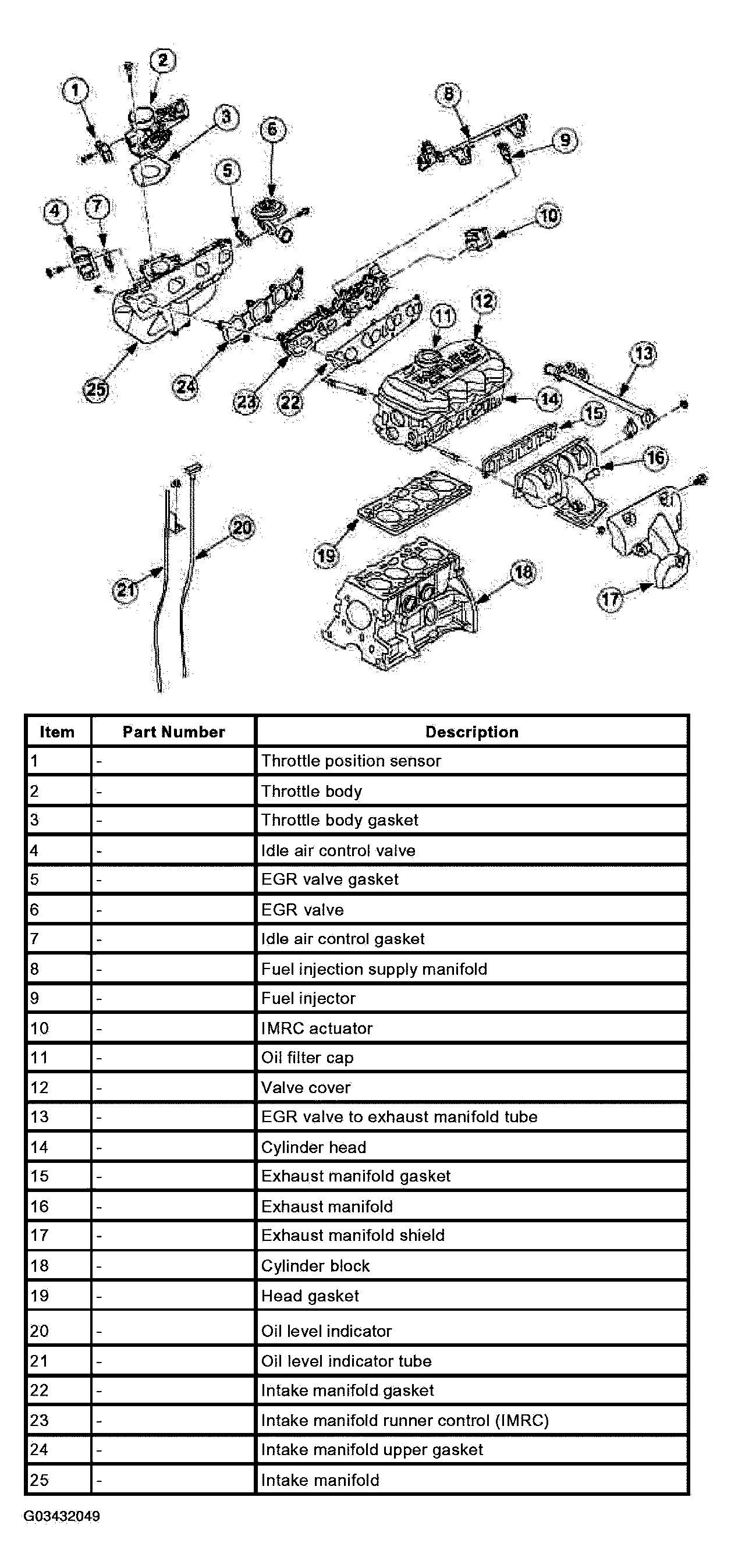

Fig 1: Identifying Engine - 2.0L SPI Upper Components
G03432049Courtesy of FORD MOTOR CO.
