Gearshift Lever: Disassembly

Remove the floor console.
Shift the gearshift lever into the third gear.
Detach the gearshift cable from the gearshift lever (gearshift linkage shown removed for clarity).

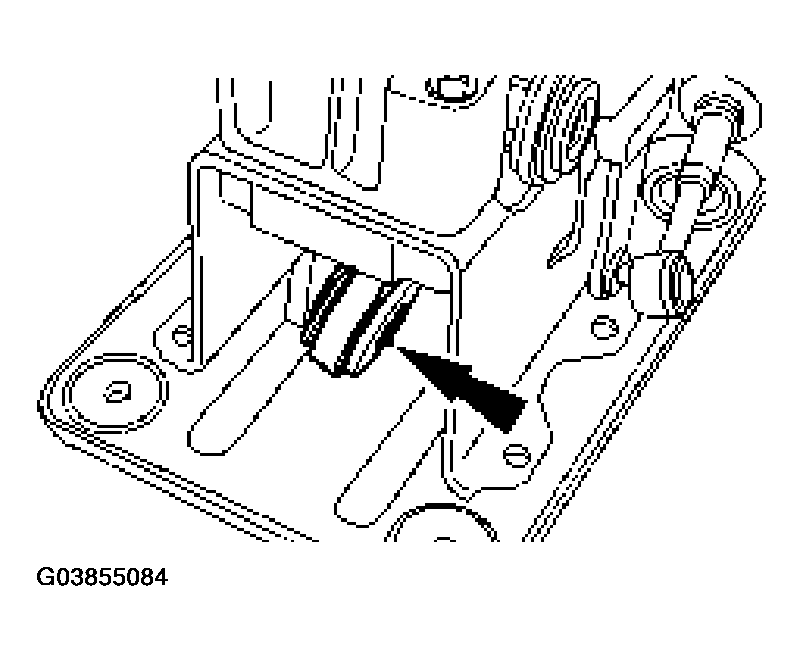

Fig 1: Detaching Gearshift Cable From Gearshift Lever
Courtesy of FORD MOTOR CO.
Detach the selector cable from the selector lever (gearshift linkage shown removed for clarity).

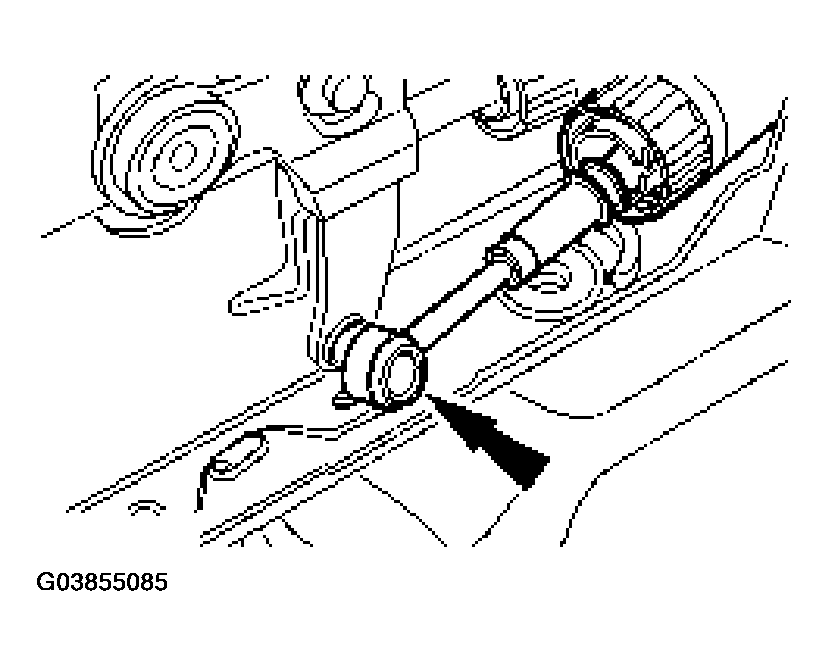

Fig 2: Detaching Selector Cable From Selector Lever
Courtesy of FORD MOTOR CO.
Remove the gearshift linkage upper housing retaining bolts (gearshift linkage shown removed for clarity).

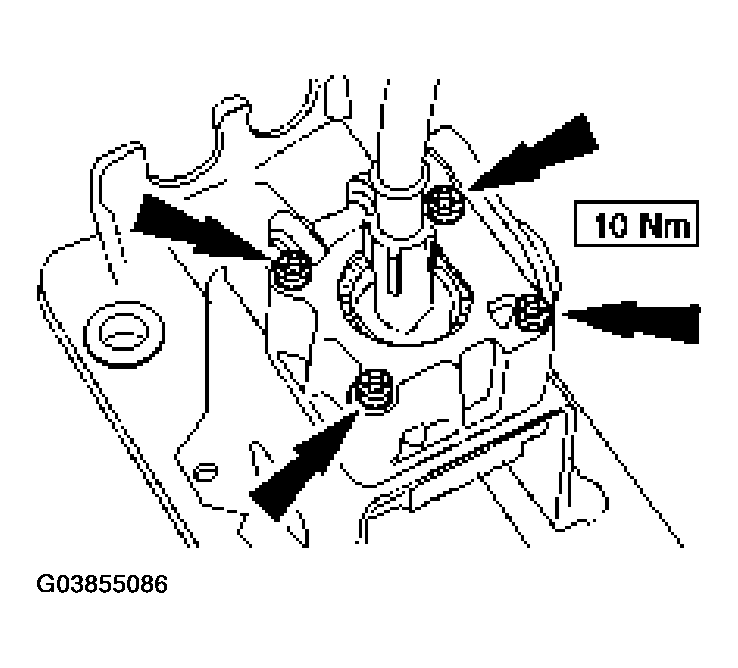

Fig 3: Removing Gearshift Linkage Upper Housing Retaining Bolts
Courtesy of FORD MOTOR CO.

NOTE: Note the position of the retaining plate.

Fig 4: Removing Gearshift Linkage Upper Housing

Courtesy of FORD MOTOR CO.

Remove the gearshift linkage upper housing (gearshift linkage shown removed for clarity).
Remove the selector lever circlip.
- Discard the circlip.
- Remove the washer.
Fig 5: Removing Washer
Courtesy of FORD MOTOR CO.
Remove the selector lever.

Fig 6: Removing Selector Lever
Courtesy of FORD MOTOR CO.
