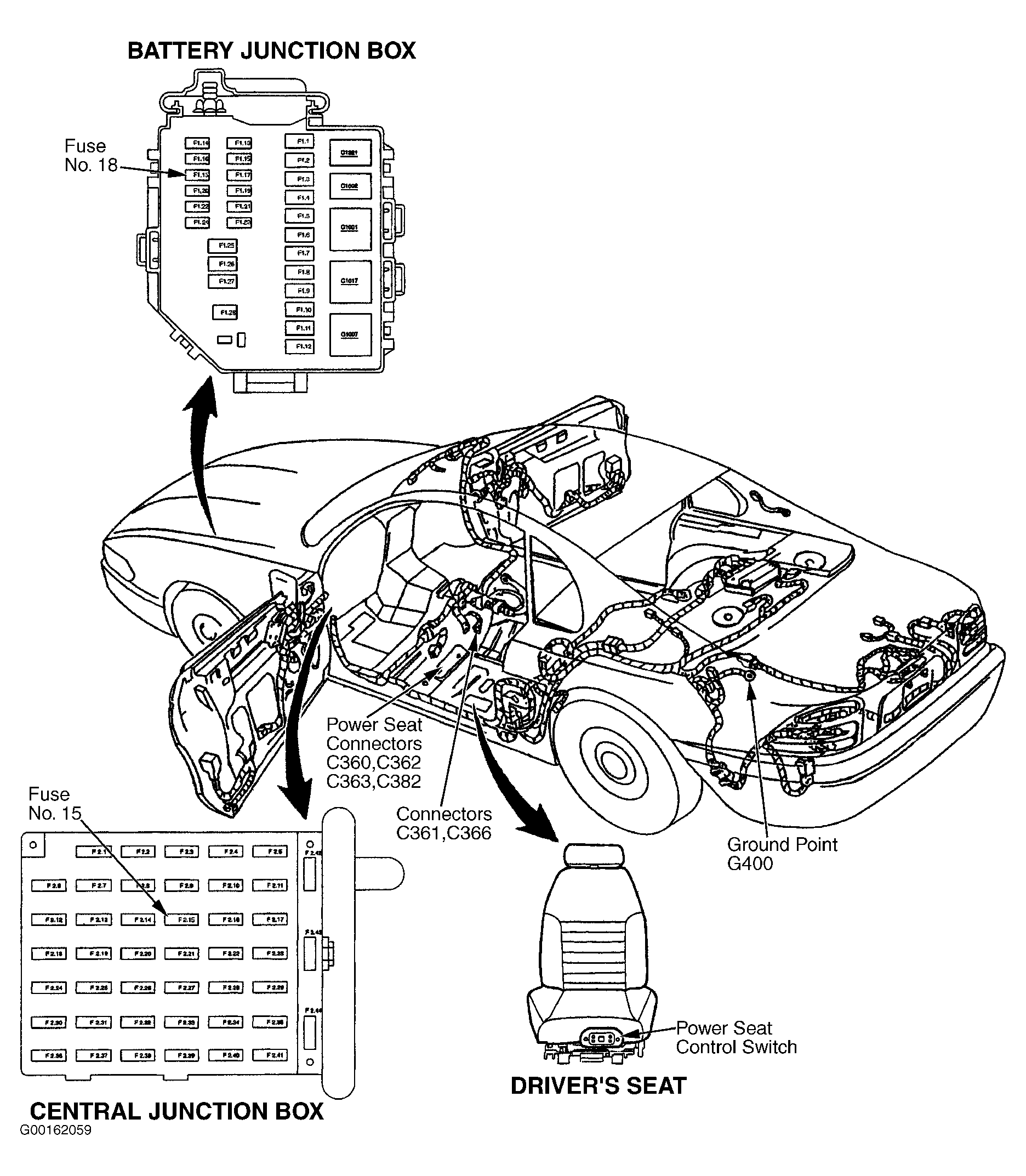

Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Battery Junction Box | Left Side Of Engine Compartment, Forward Of Strut Tower |
| Central Junction Box | Behind Left Side Of Instrument Panel, Next to Generic Electronic Module |
| Data Link Connector | Under Instrument Panel, Between Steering Column & Radio |
| Generic Electronic Module | Behind Left Side Of Instrument Panel, Next To Central Junction Box |
| Master Window/Door Lock Switch | Center Of Driver's Door Trim Panel Armrest |
