Manifold Pressure/Vacuum Sensor: Locations

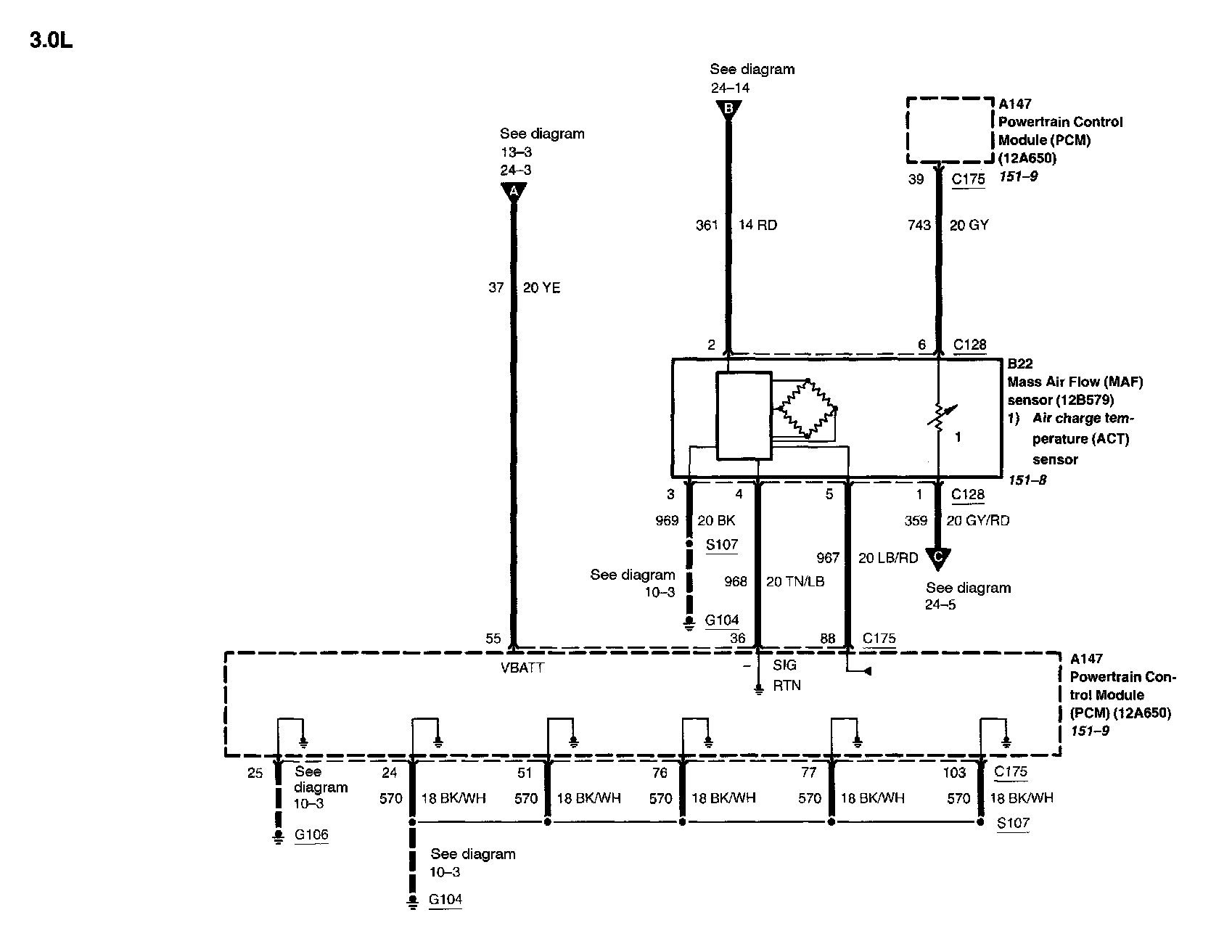

Diagram 24-4:
The 2002 Ranger is not equipped with a Mass
Air Flow Sensor Relay.
