System Specifications

Driveline System-General Information

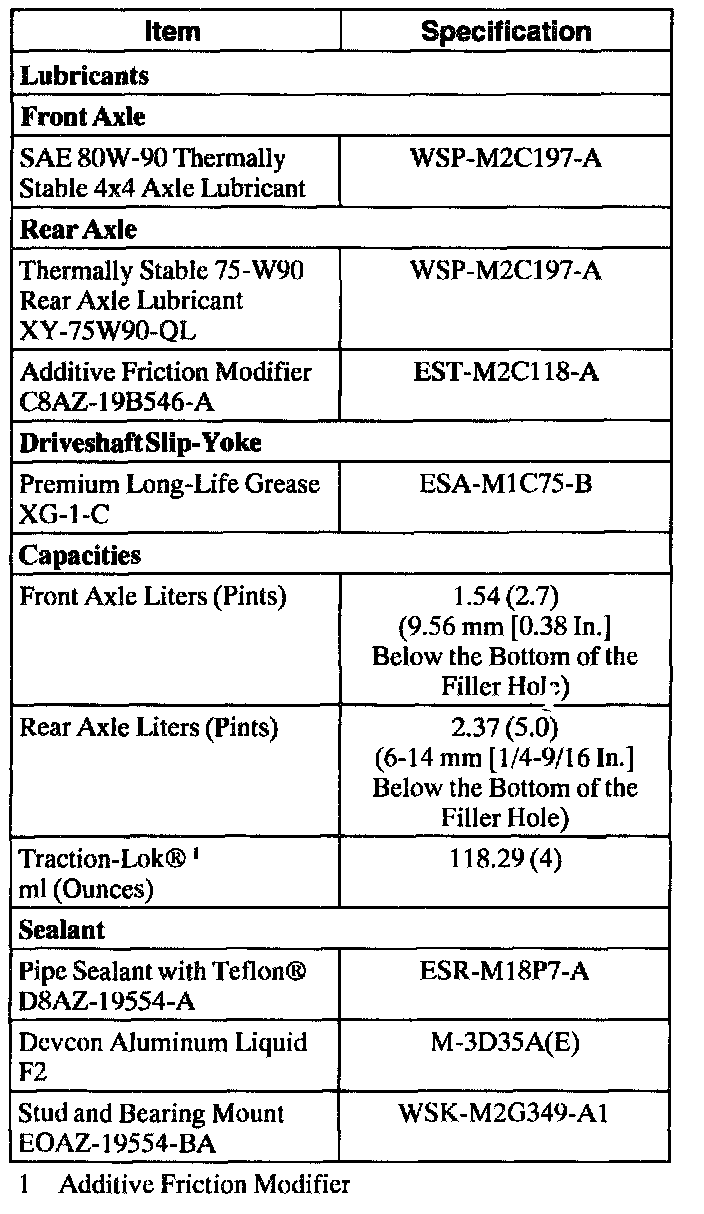

General Specifications

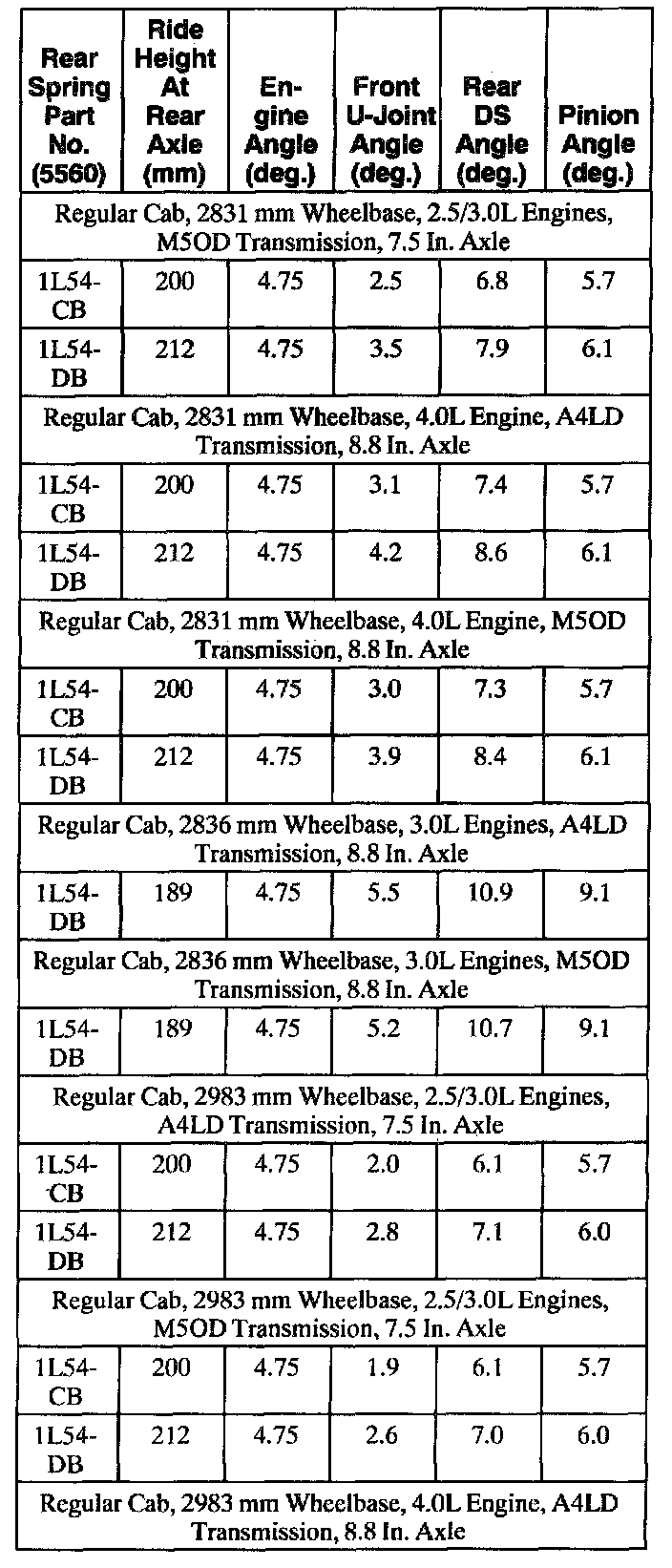

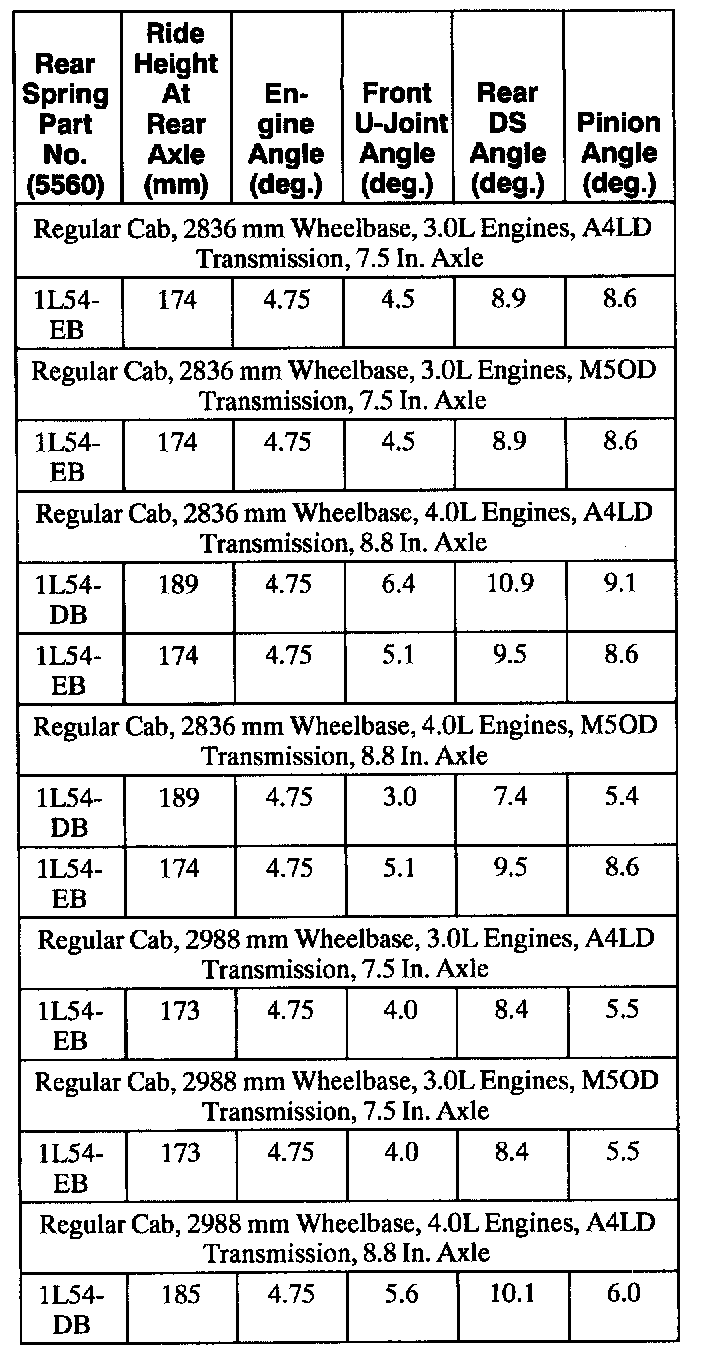

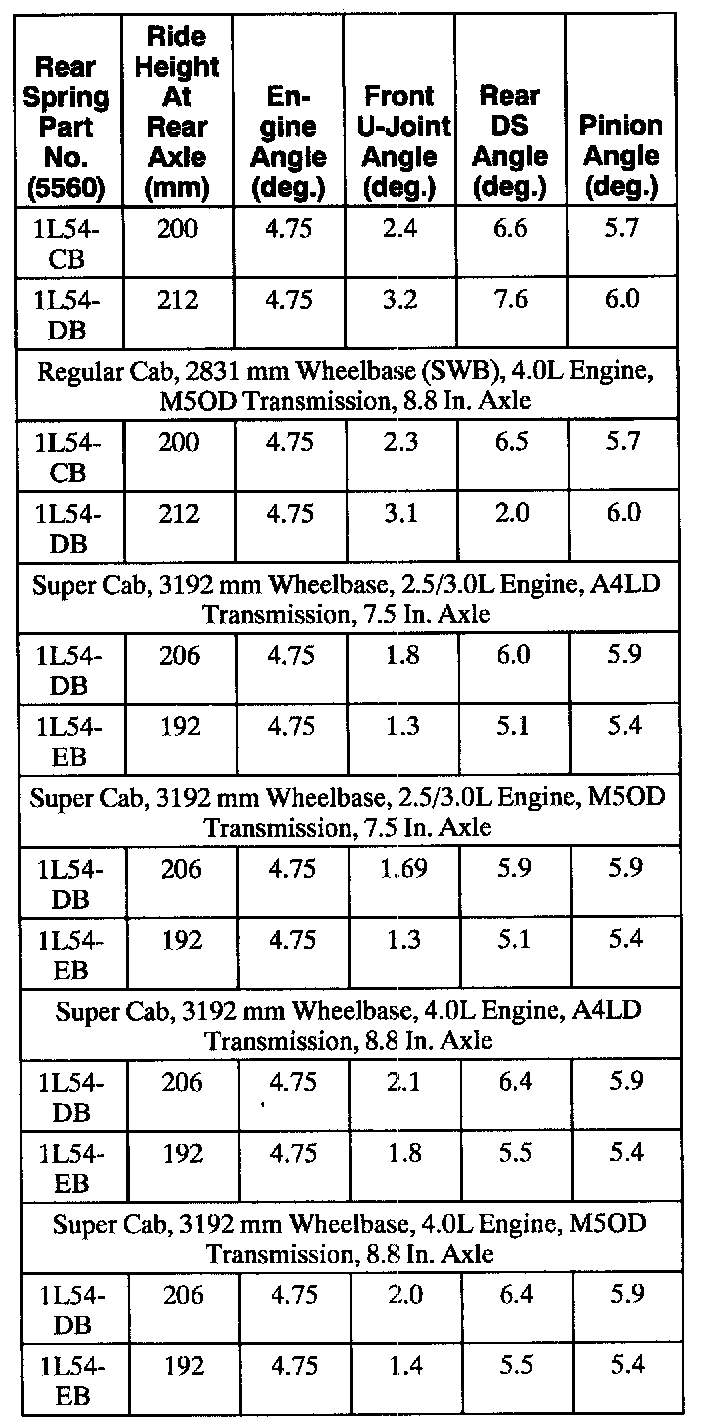

4x2, Rear Driveline Angles @ Curb Specifications











4x4, Rear Driveline Angles @ Curb Specifications
