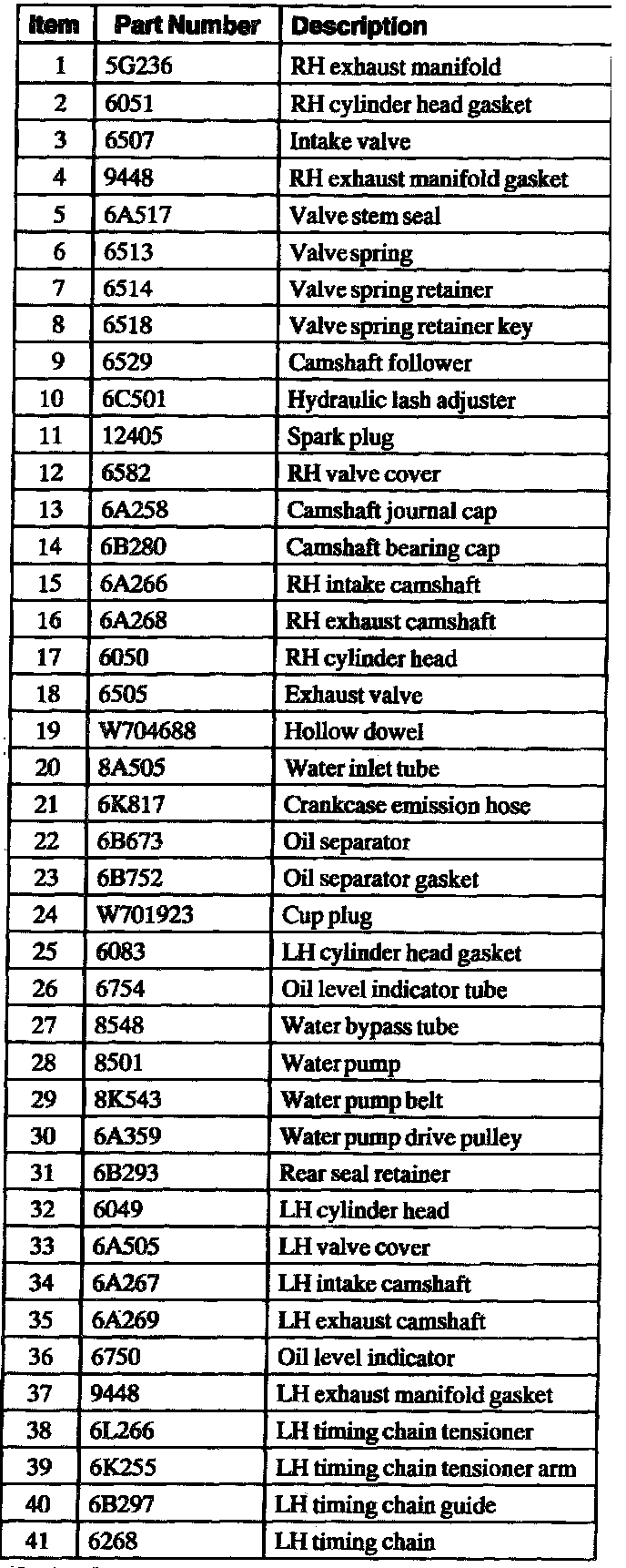

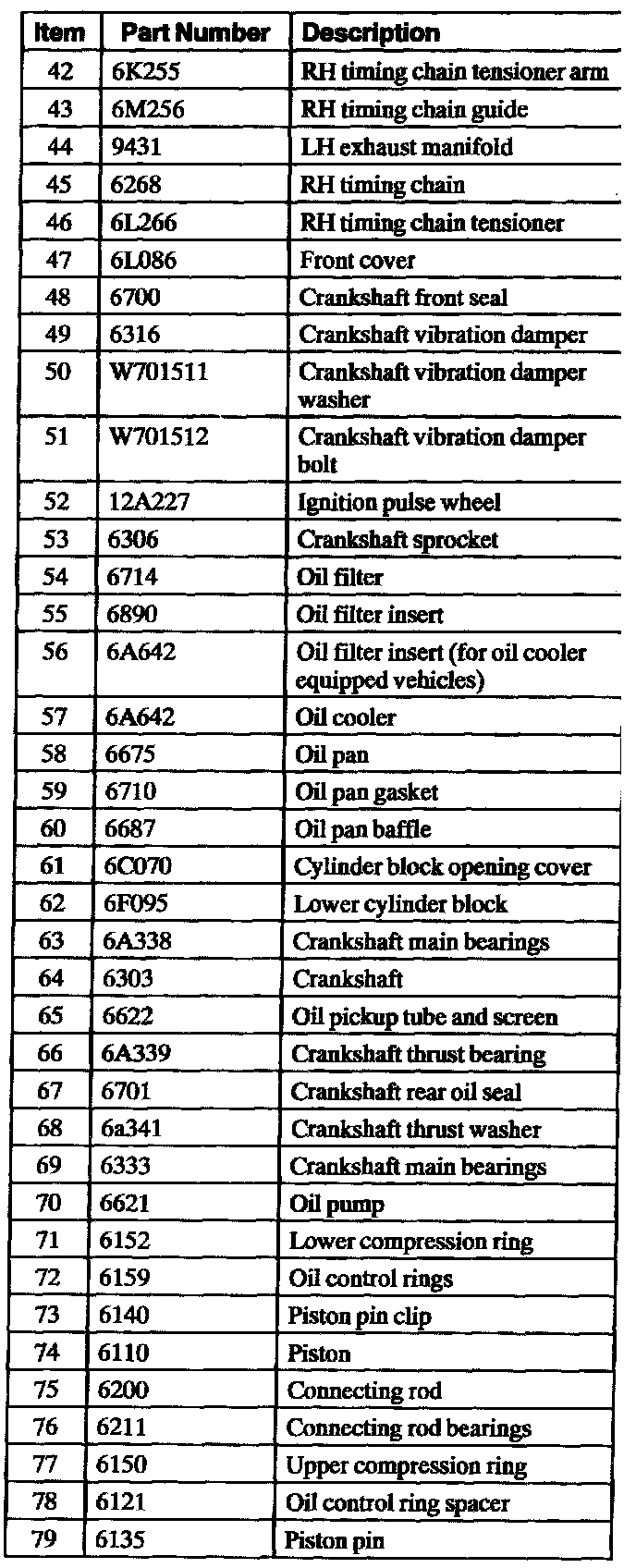

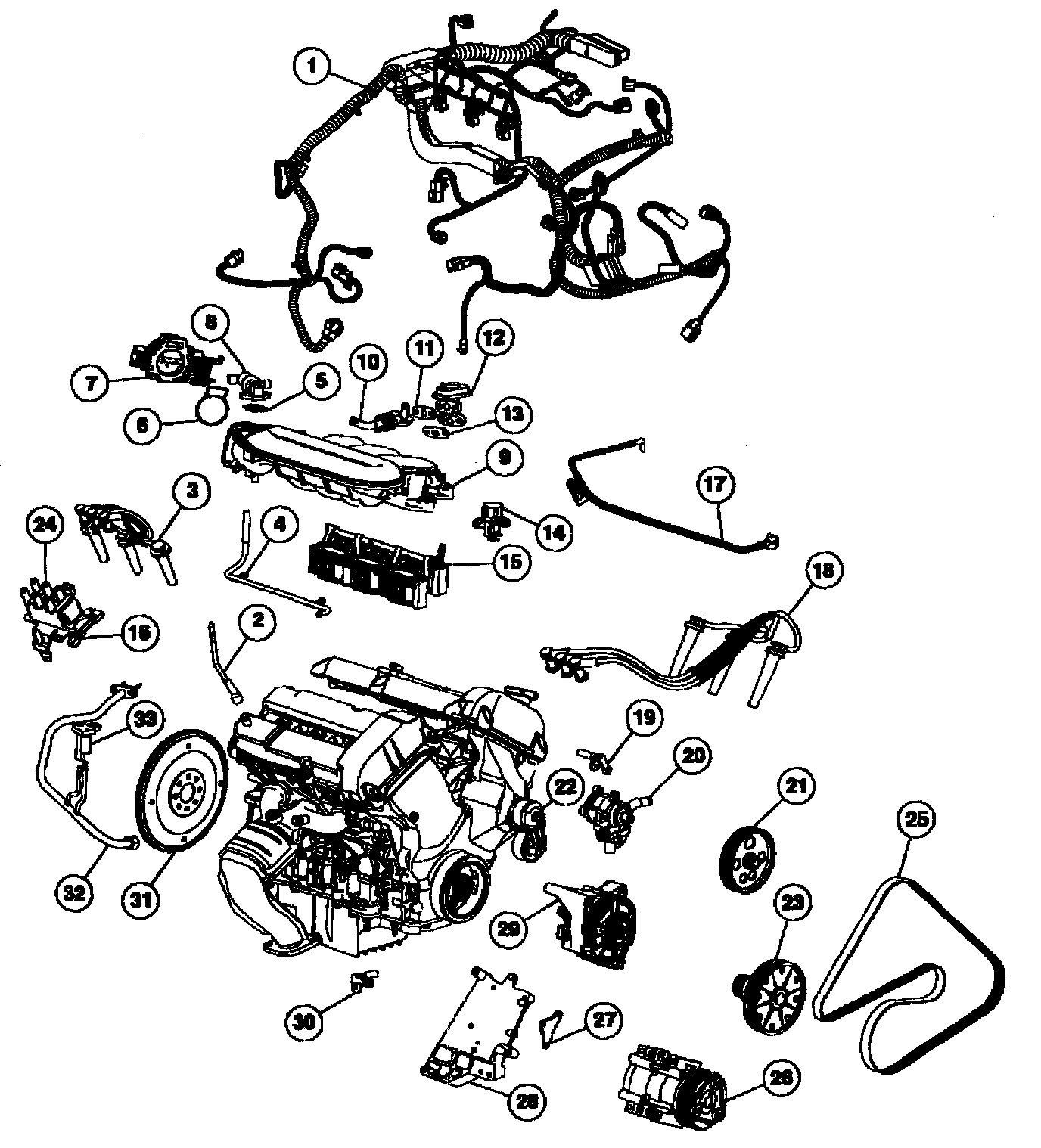

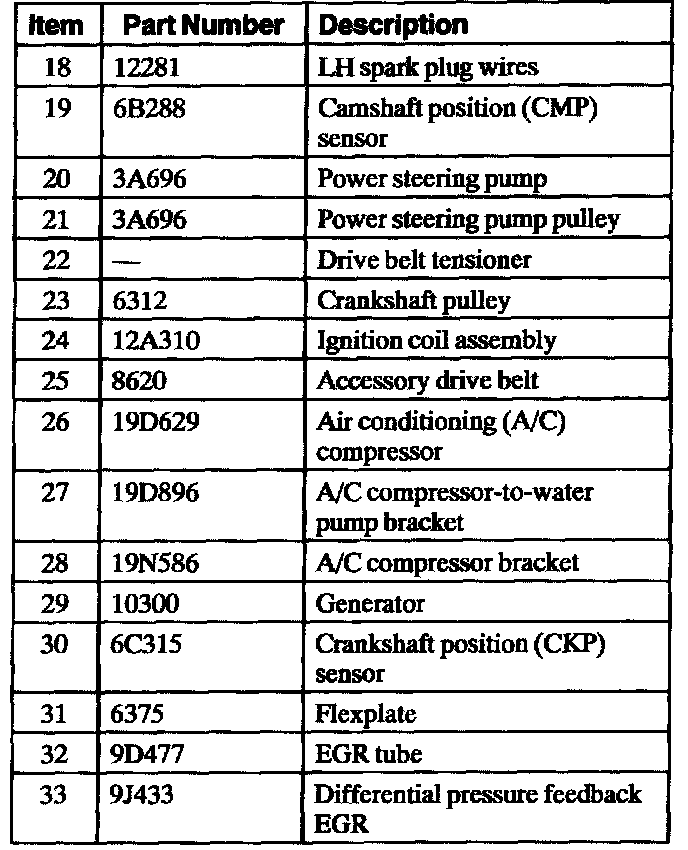

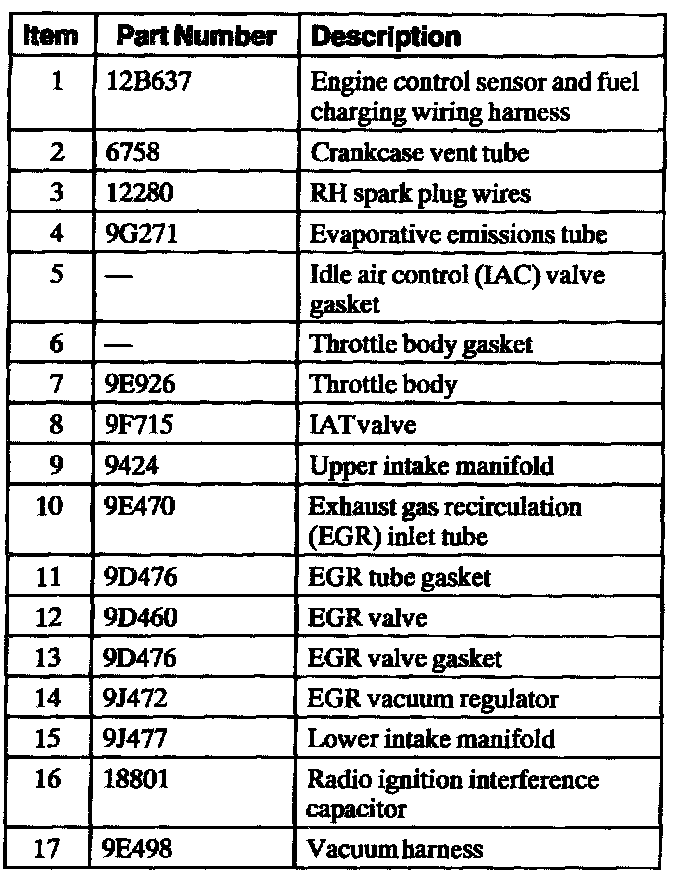

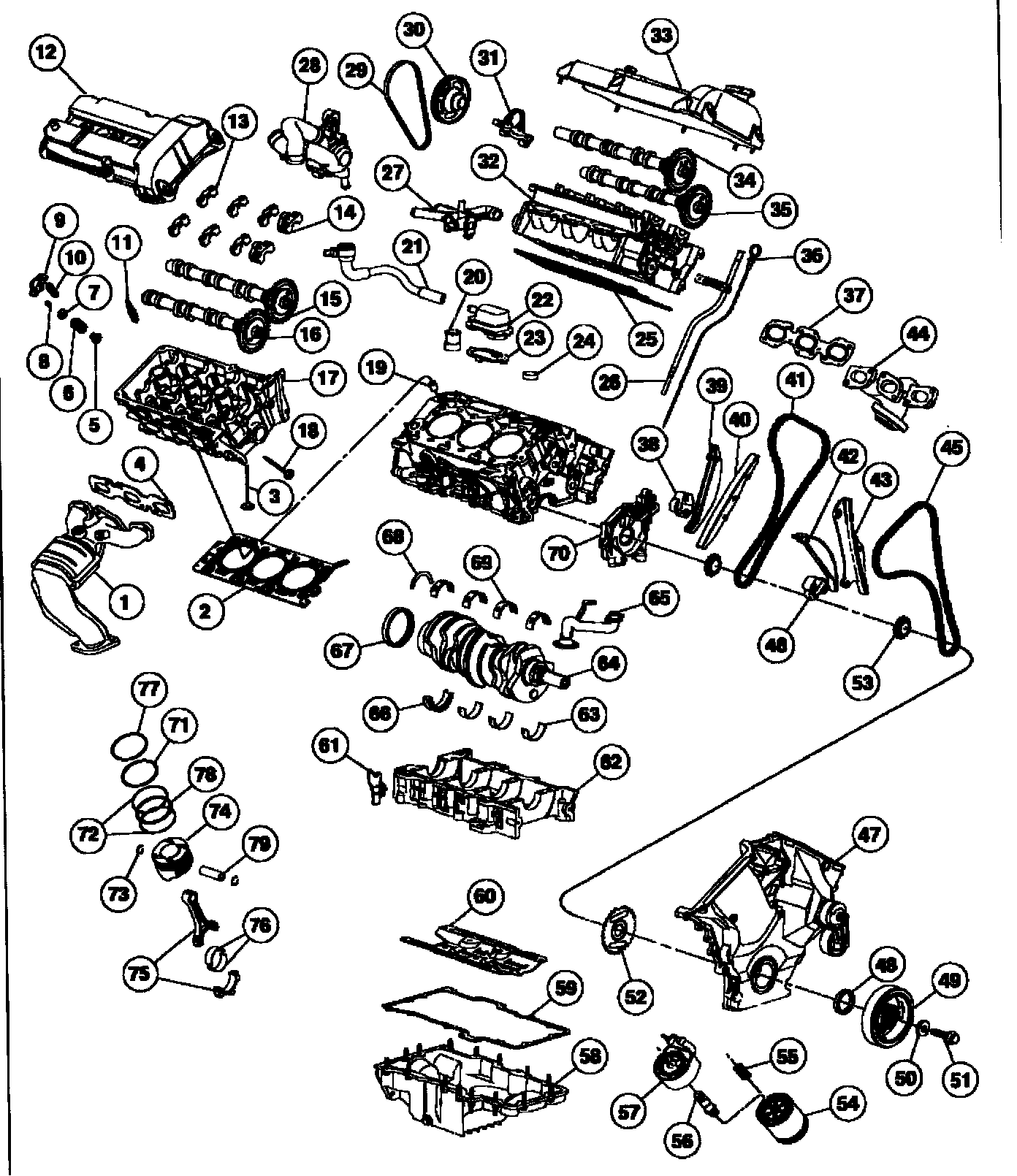

Engine





Part 1 of 6





Part 2 of 6





Part 3 of 6





Part 4 of 6





Part 5 of 6





Part 6 of 6
