Removal and Installation

Raise and support the vehicle. For additional information, refer to JACKING & HOISTING .
Disconnect the rear wheel speed sensor electrical connector.

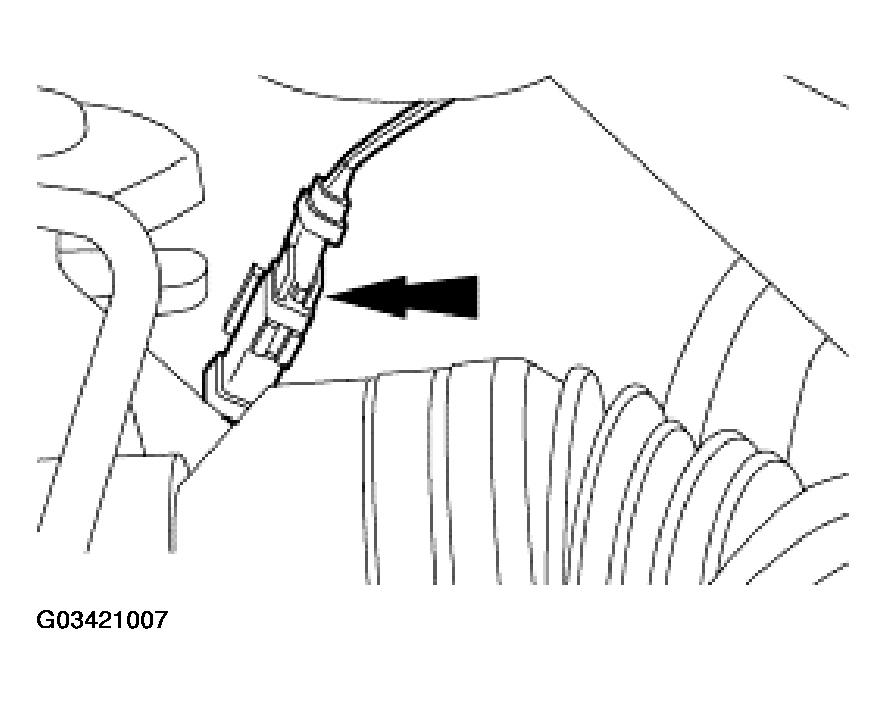

Fig 1: Disconnecting Rear Wheel Speed Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the rear wheel speed sensor harness from the control arm clips.

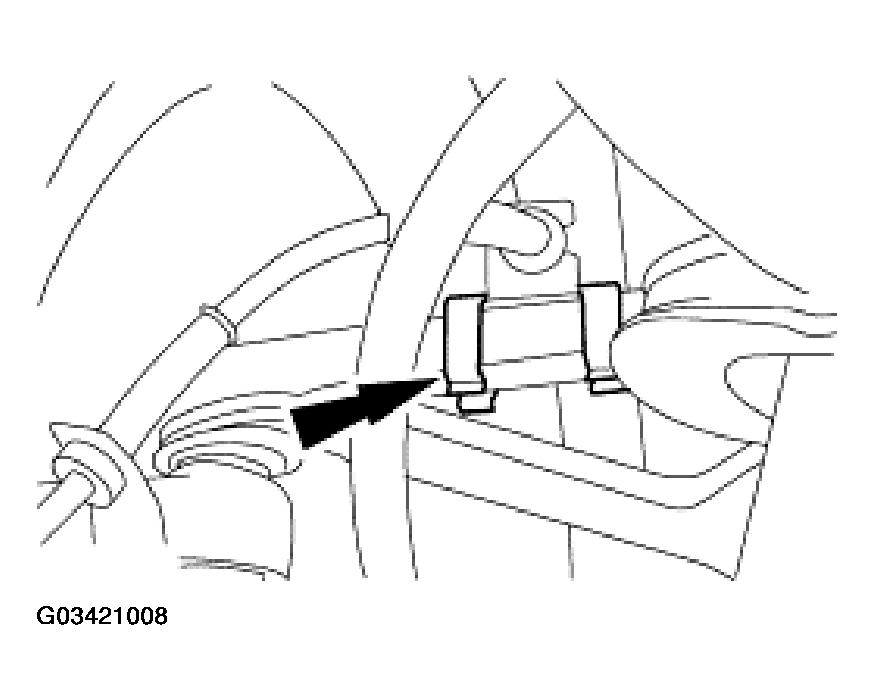

Fig 2: Removing Rear Wheel Speed Sensor Harness
Courtesy of FORD MOTOR CO.

NOTE: Clean off dirt and foreign material that may have collected around the rear wheel speed sensor before removal.

Remove the rear wheel speed sensor.
1. Remove the wheel speed sensor bolt.
2. Remove the wheel speed sensor.

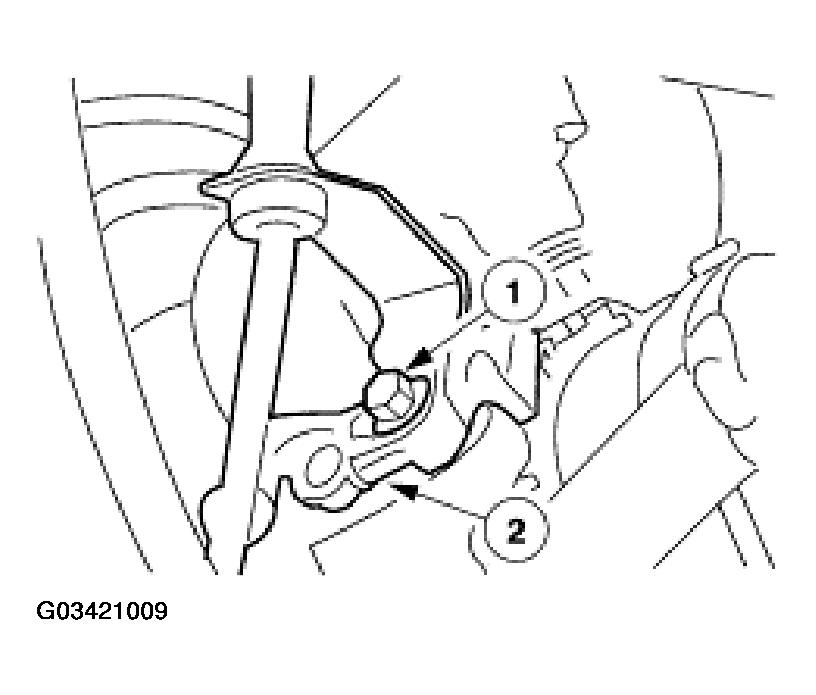

  Fig 3: Removing Wheel Speed Sensor
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

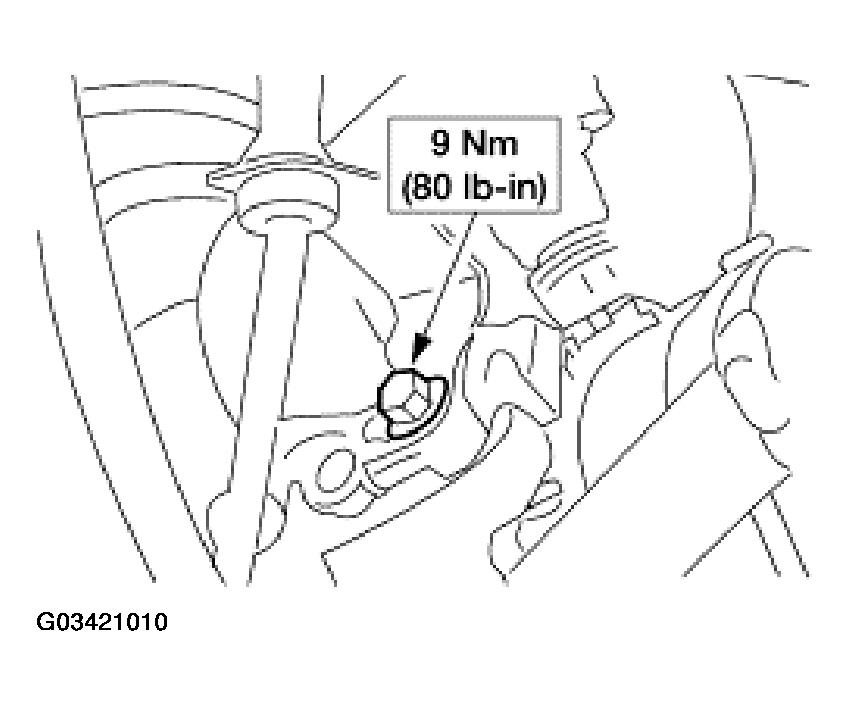

Fig 4: Installing Wheel Speed Sensor
Courtesy of FORD MOTOR CO.
