Specific System Conditions

WARNING: This page is about a different car, the 2002 Saturn LW300, 2002 Saturn LW200, 2002 Saturn L300, 2002 Saturn L200, and 2002 Saturn L100. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The suction pipe will be cold and the discharge pipe will be hot.

NOTE: Statements in the following table illustrations contain additional information to help you confirm your diagnosis and lead you to a corrective action. For 2.2L models, see Fig 1 -Fig 5 . For 3.0L models, see Fig 6 -Fig 10 . When all pressure and temperature readings fall within the ranges of a given table, use that table to repair the vehicle.

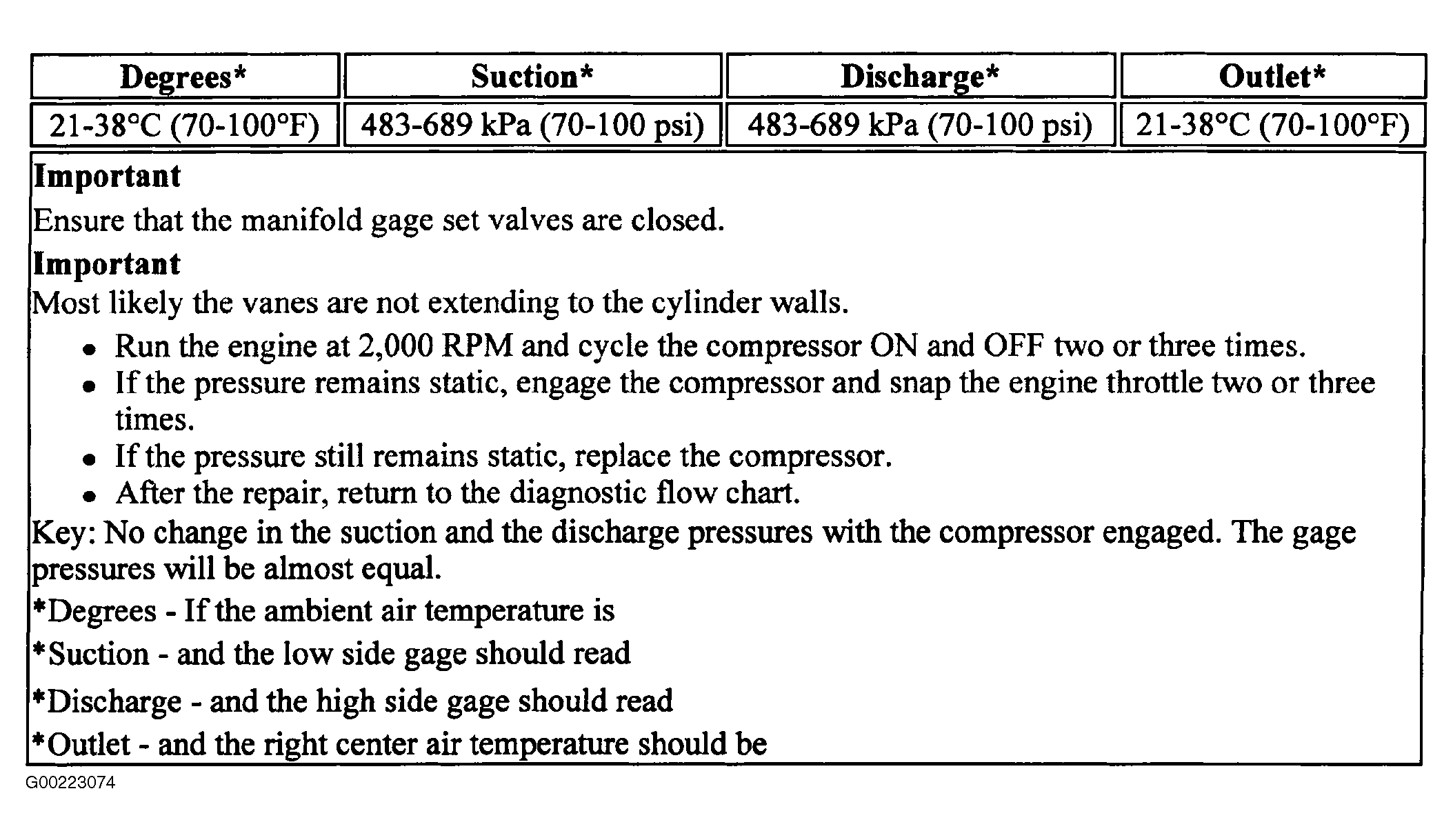

Fig 1: Compressor Engaged/Pressures Remain Static Specifications - 2.2L

G00223074

Courtesy of GENERAL MOTORS CORP.

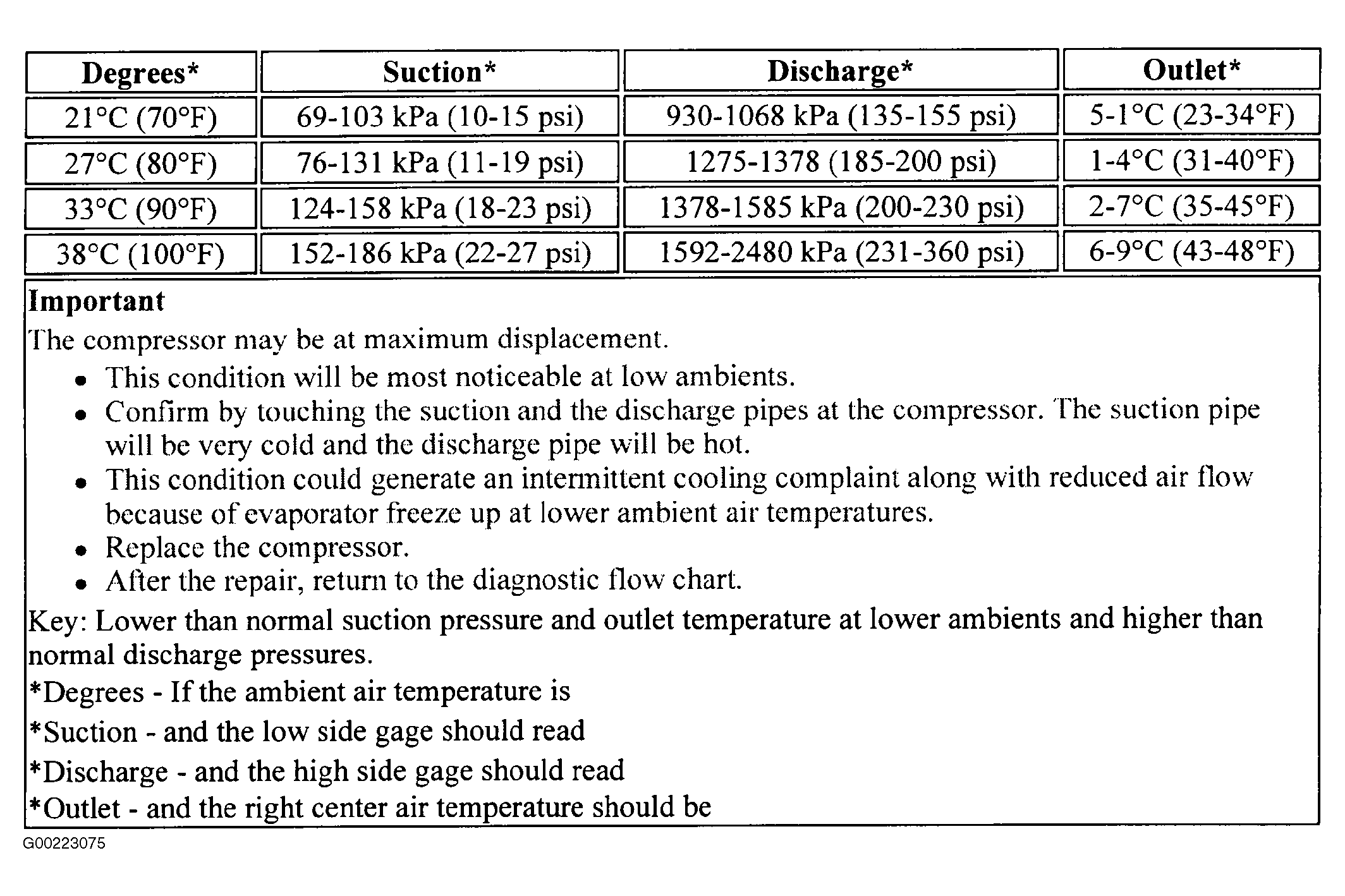

Fig 2: Compressor At Maximum Displacement Specifications - 2.2L

G00223075

Courtesy of GENERAL MOTORS CORP.

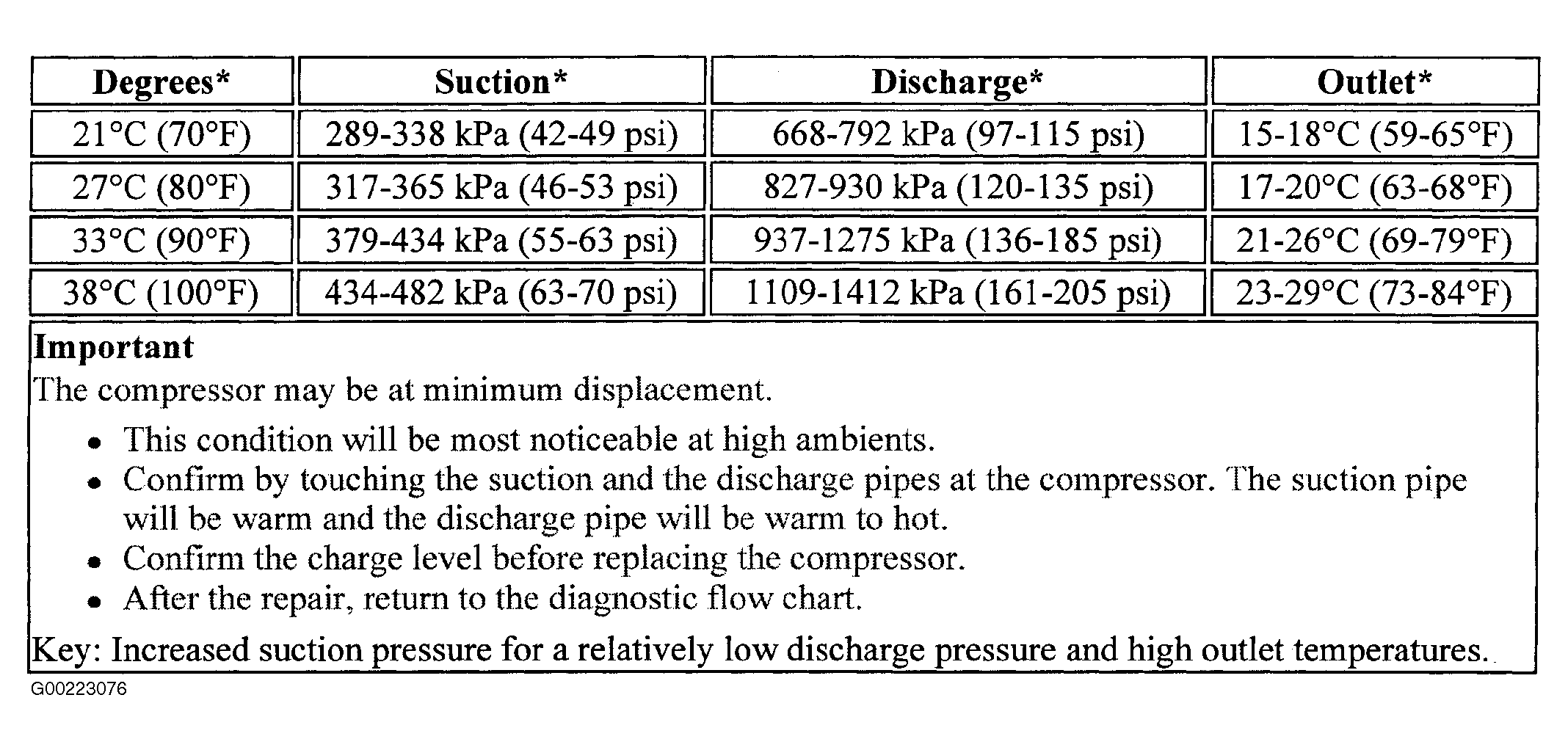

Fig 3: Compressor At Minimum Displacement Specifications - 2.2L

G00223076

Courtesy of GENERAL MOTORS CORP.

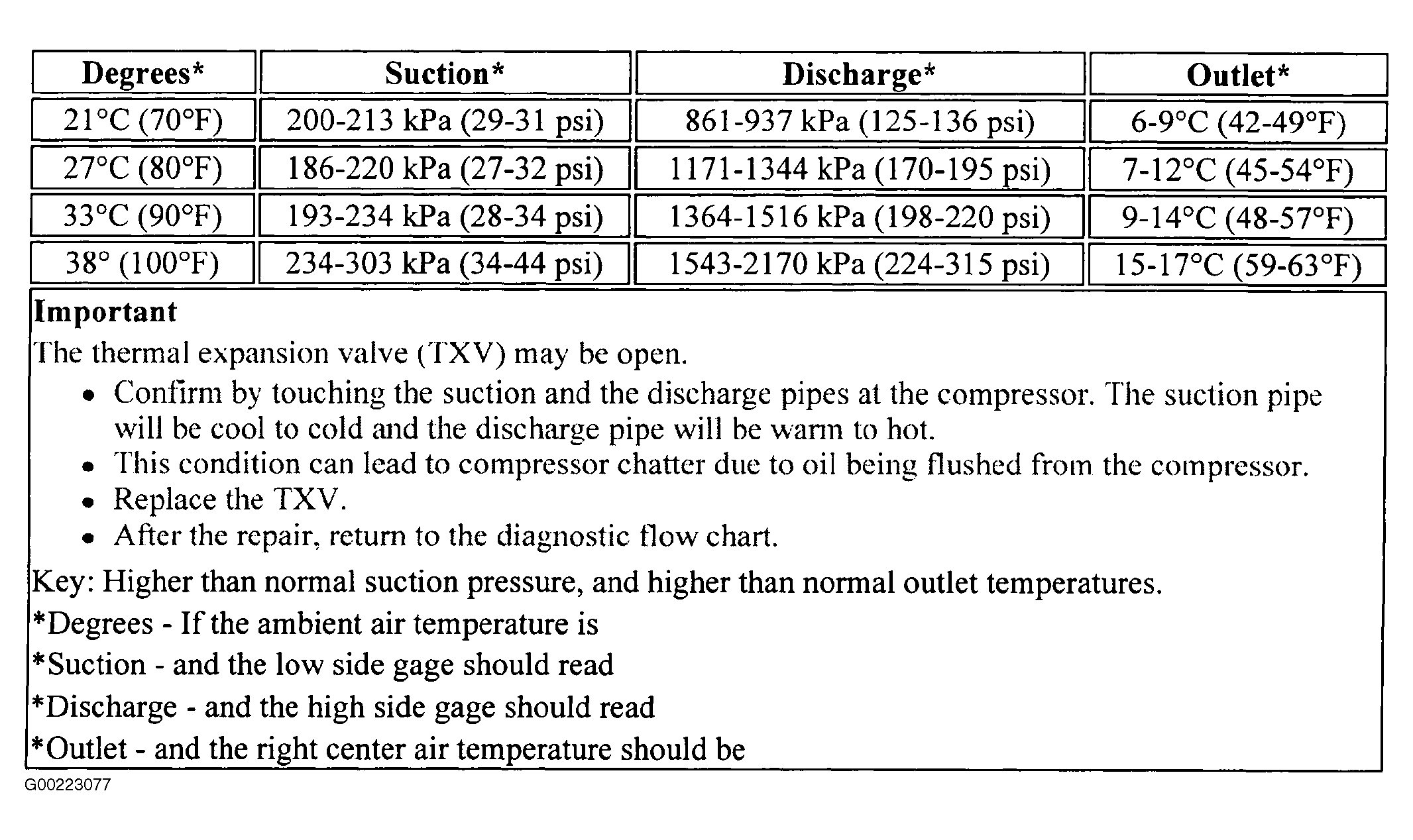

Fig 4: Thermal Expansion Valve Open Specifications - 2.2L

G00223077

Courtesy of GENERAL MOTORS CORP.

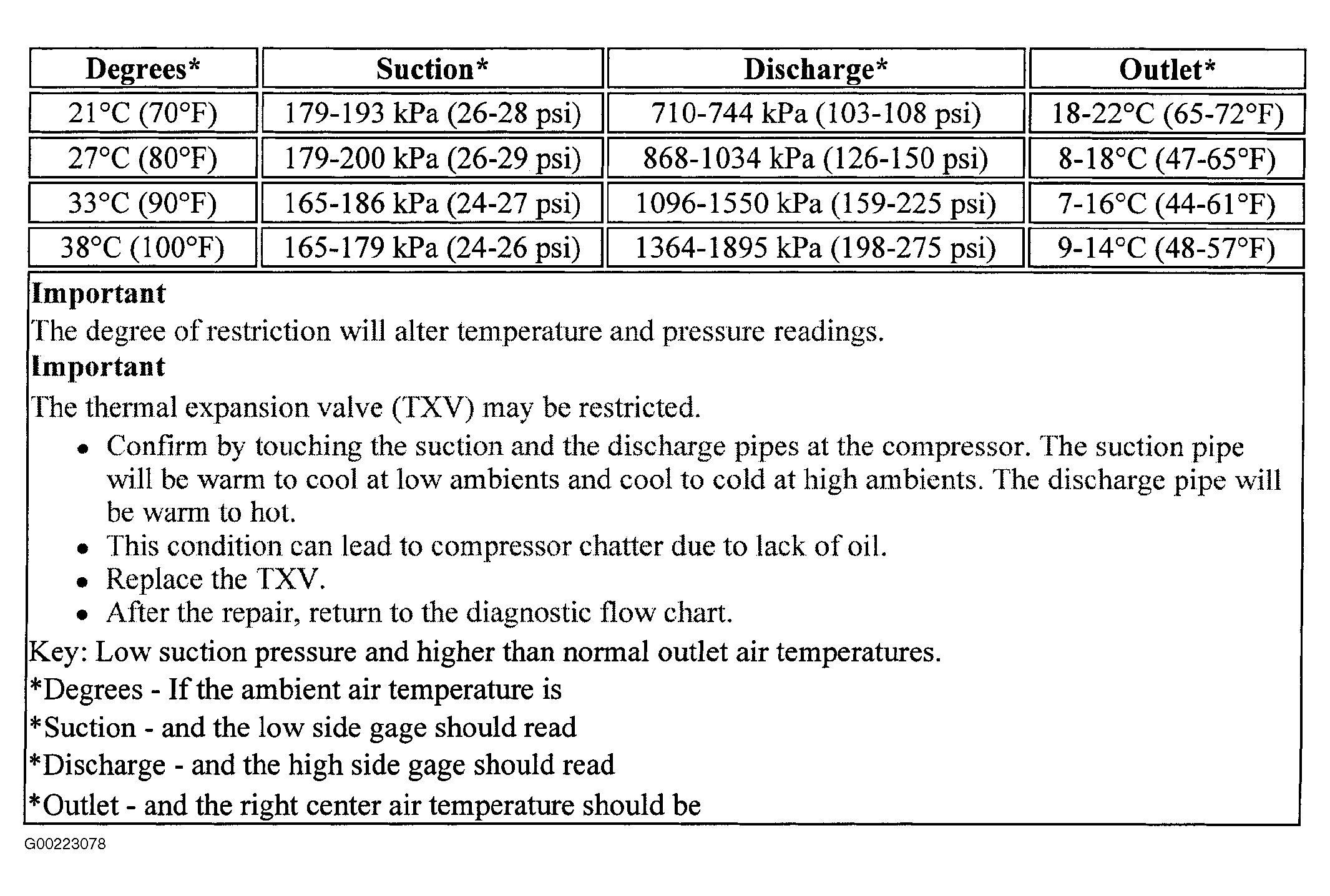

Fig 5: Thermal Expansion Valve Restricted Specifications 2.2L

G00223078

Courtesy of GENERAL MOTORS CORP.

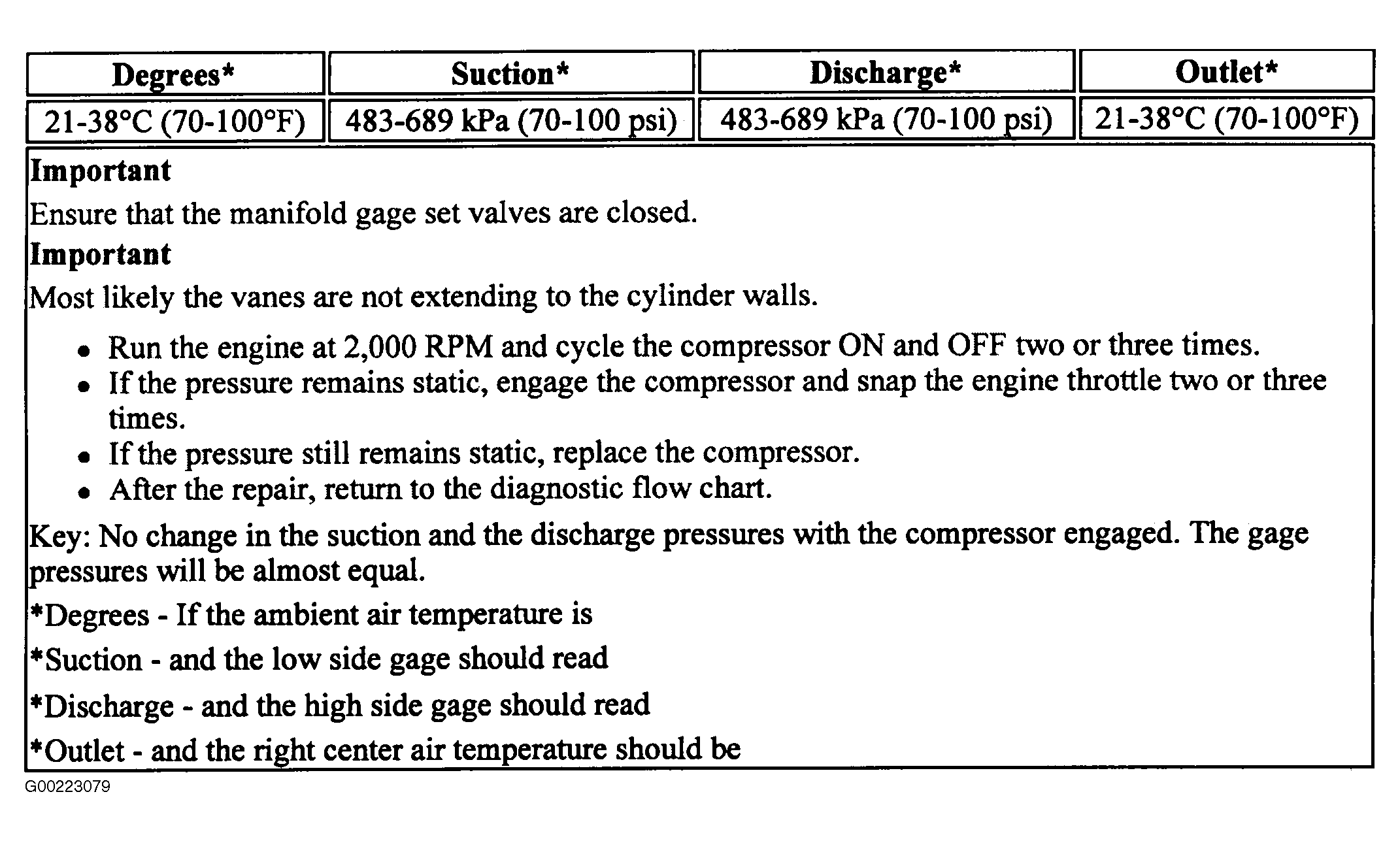

Fig 6: Compressor Engaged/Pressures Remain Static Specifications - 3.0L

G00223079

Courtesy of GENERAL MOTORS CORP.

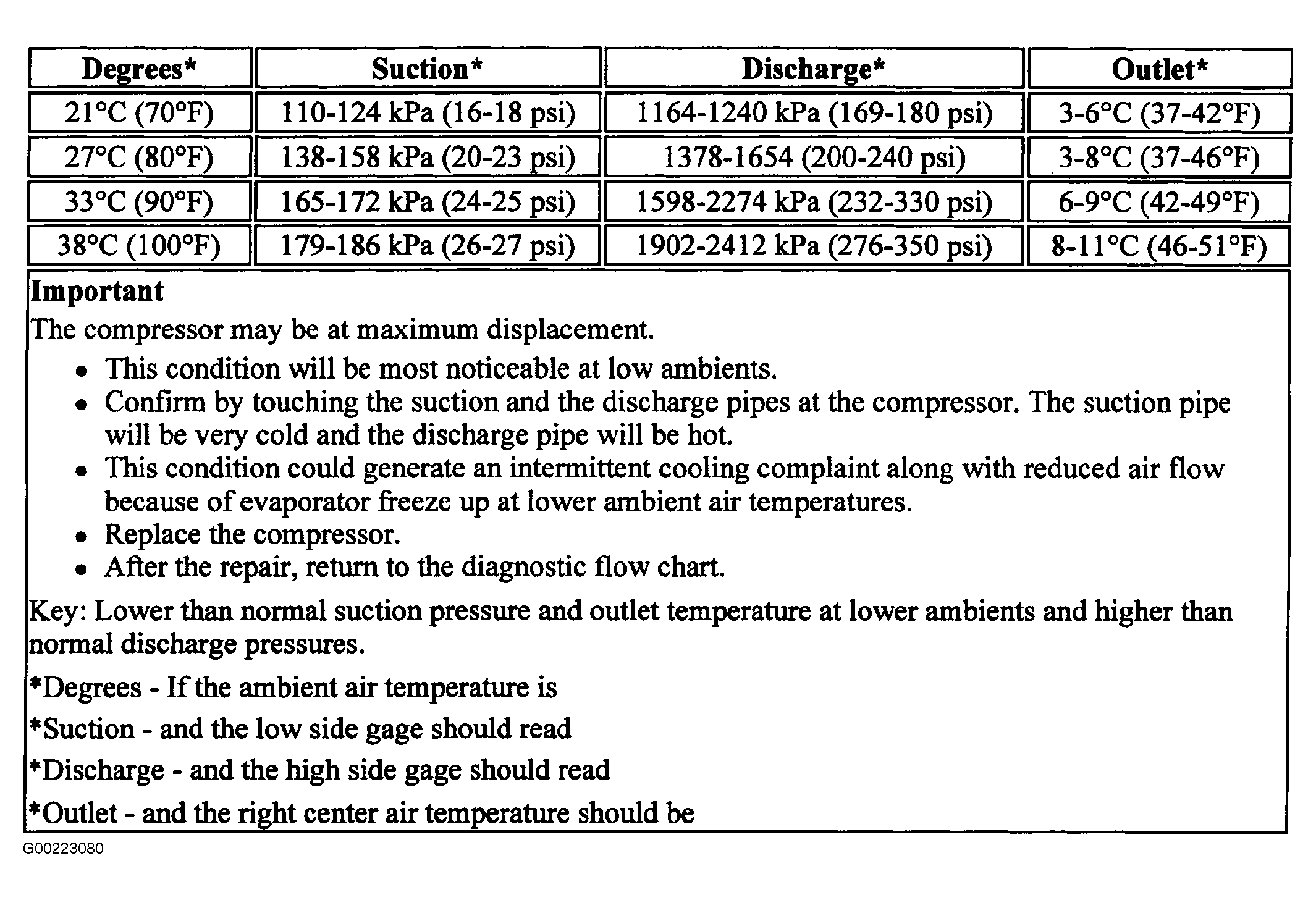

Fig 7: Compressor At Maximum Displacement Specifications - 3.0L

G00223080

Courtesy of GENERAL MOTORS CORP.

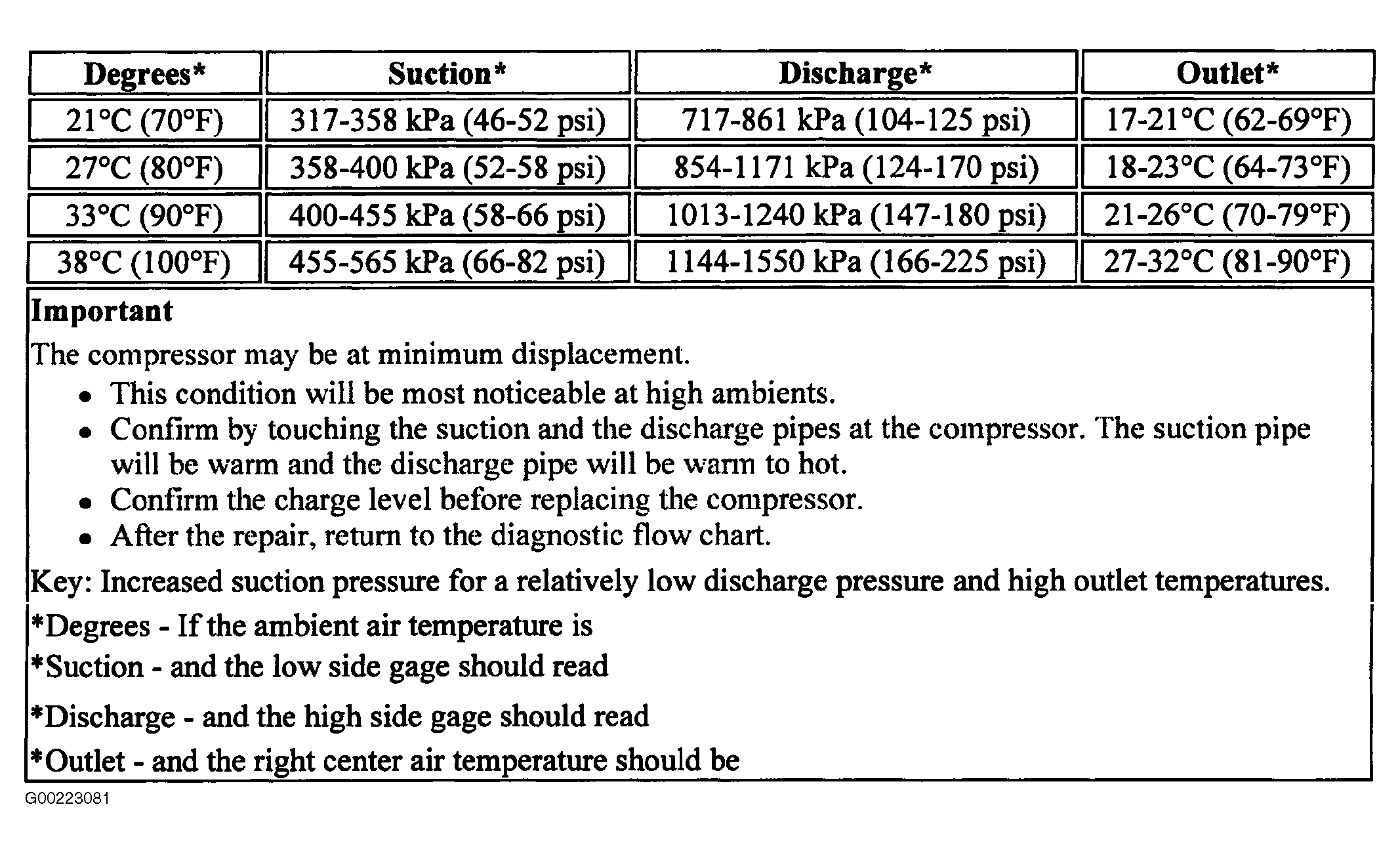

Fig 8: Compressor At Minimum Displacement Specifications - 3.0L

G00223081

Courtesy of GENERAL MOTORS CORP.

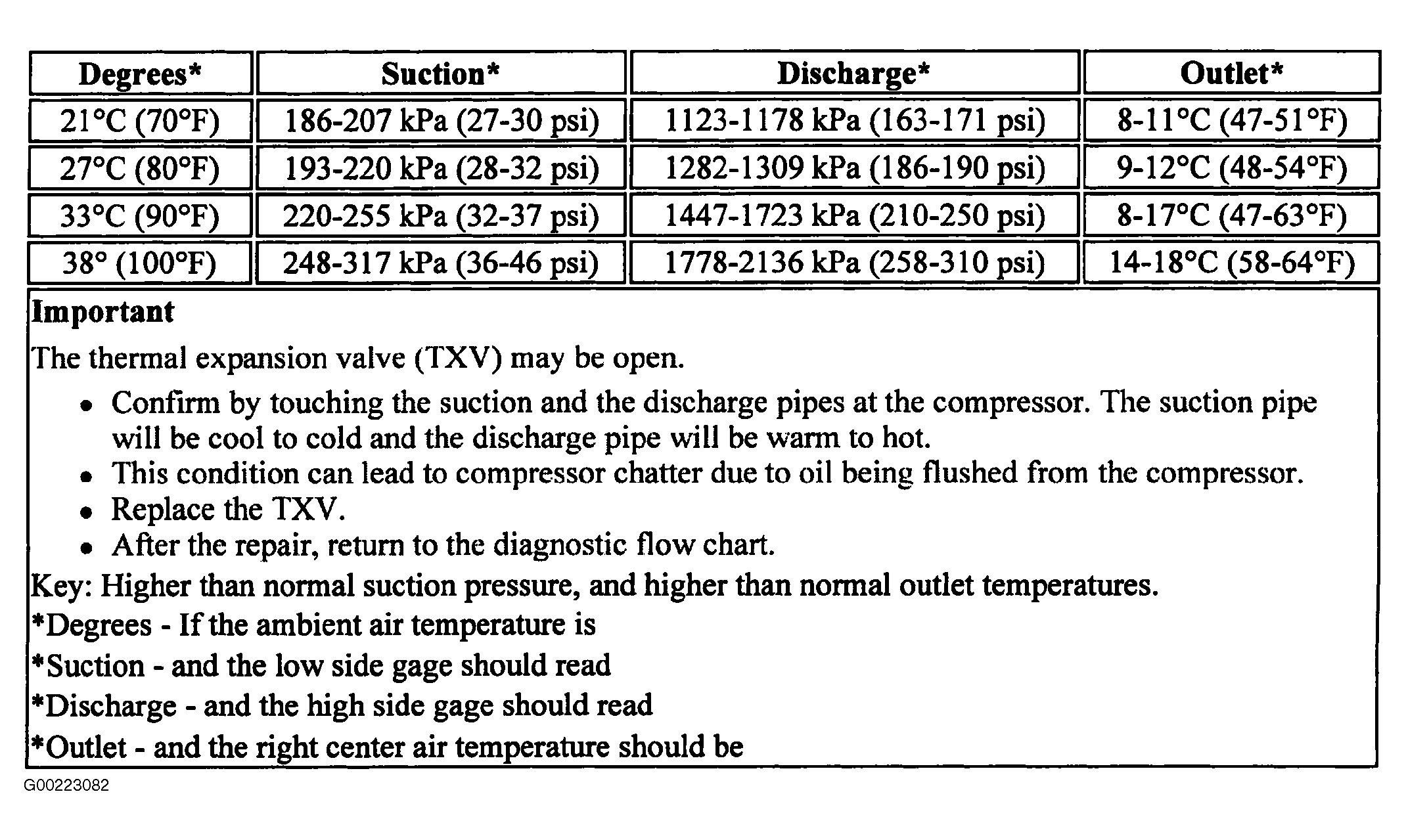

Fig 9: Thermal Expansion Valve Open Specifications - 3.0L

G00223082

Courtesy of GENERAL MOTORS CORP.

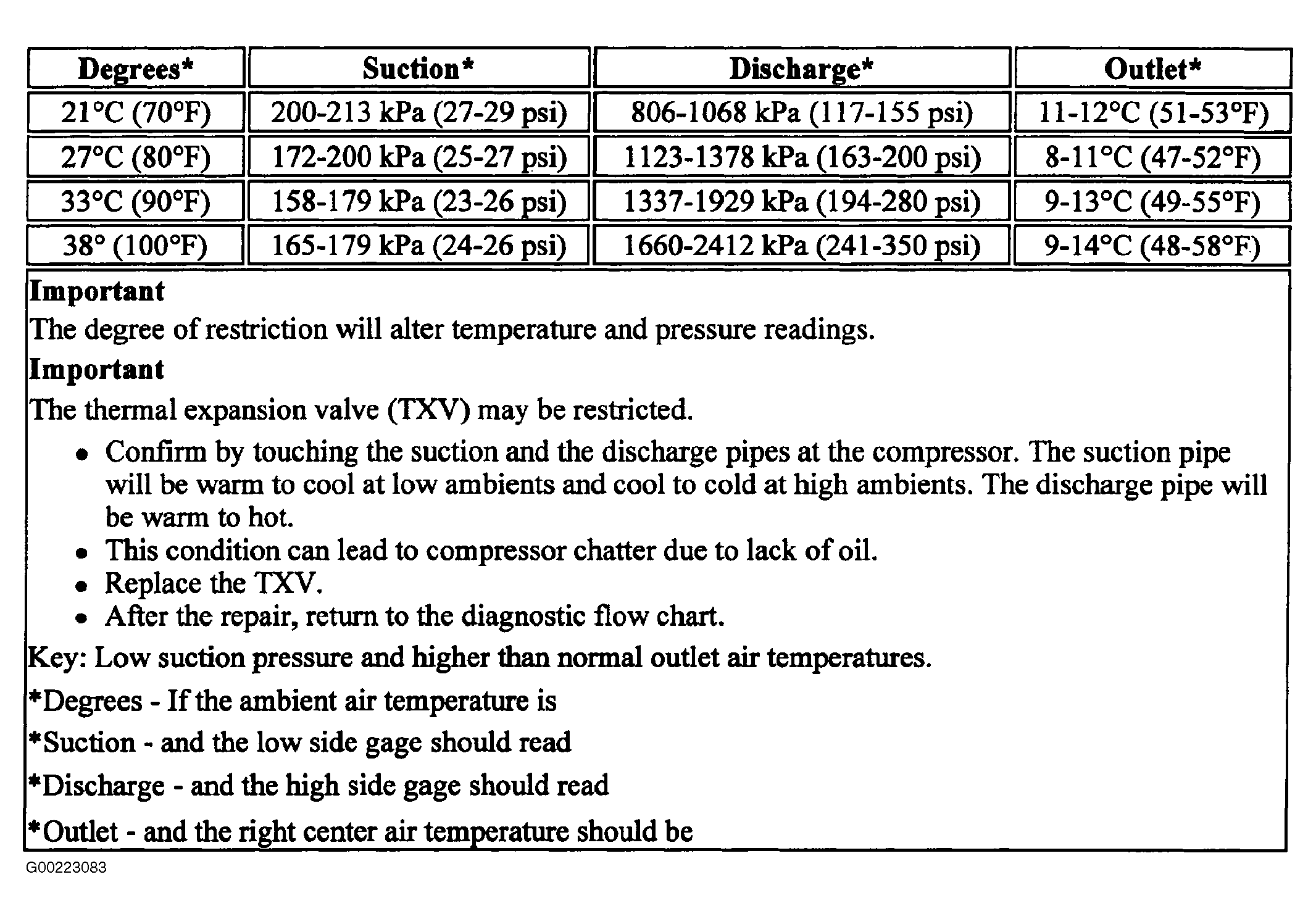

Fig 10: Thermal Expansion Valve Restricted Specifications - 3.0L

G00223083

Courtesy of GENERAL MOTORS CORP.
