Temperature Control Cable
WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

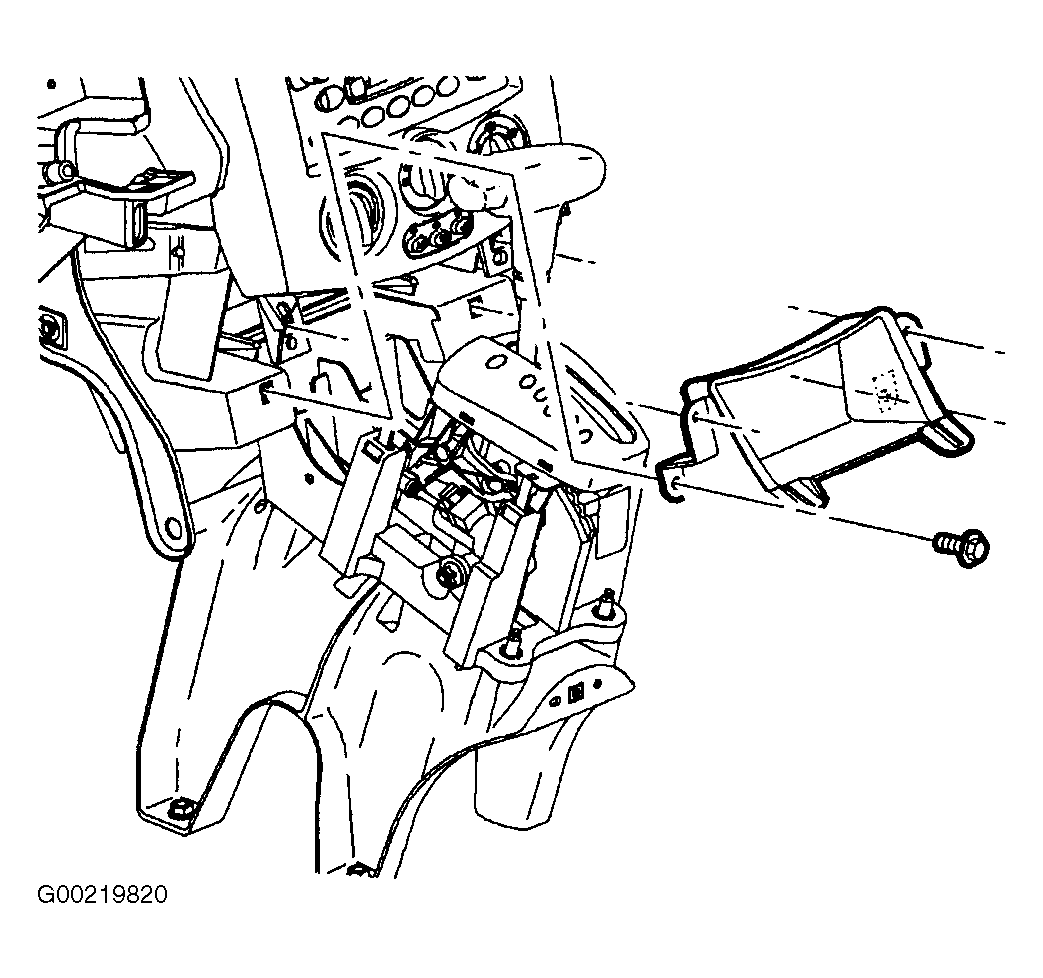

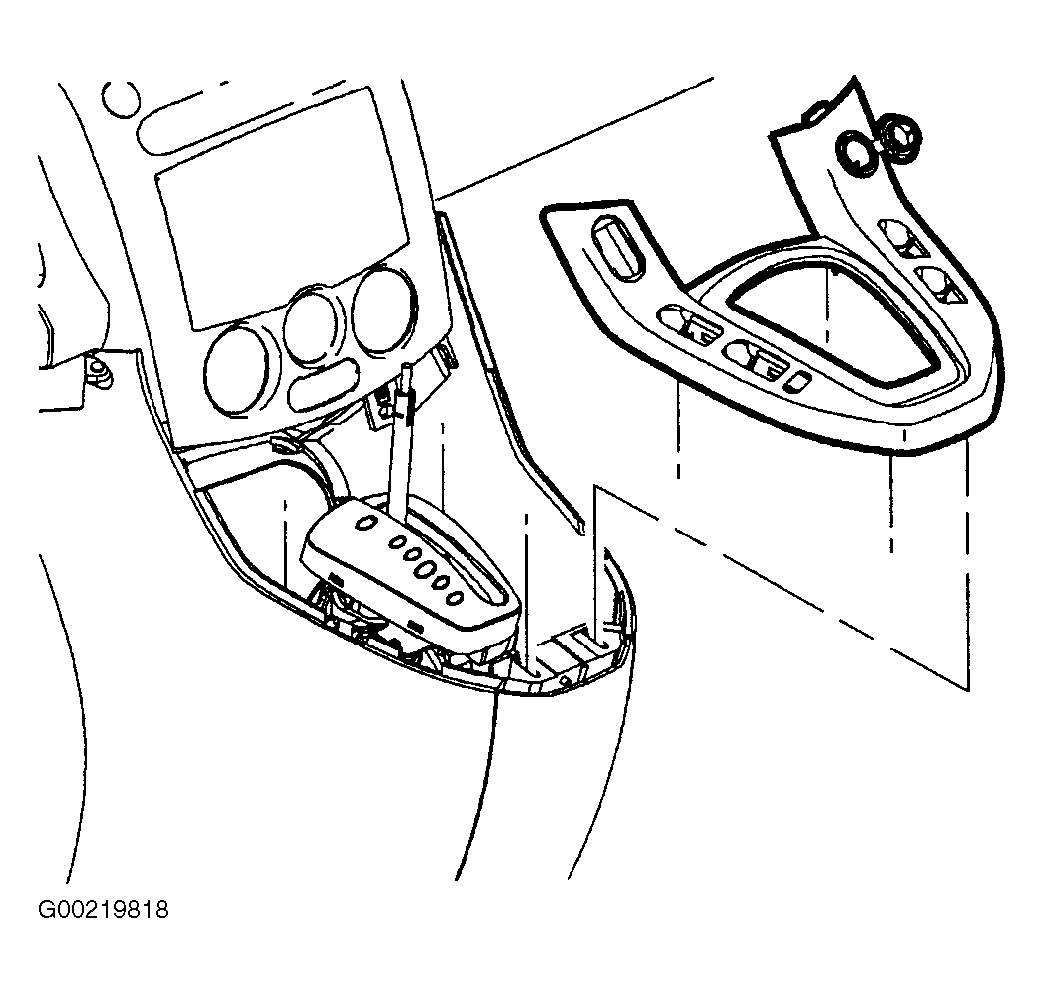

- Remove the console shift lever bezel. See Fig 1 . Remove the console storage compartment screws. See Fig 2 . Remove the storage compartment from the console.

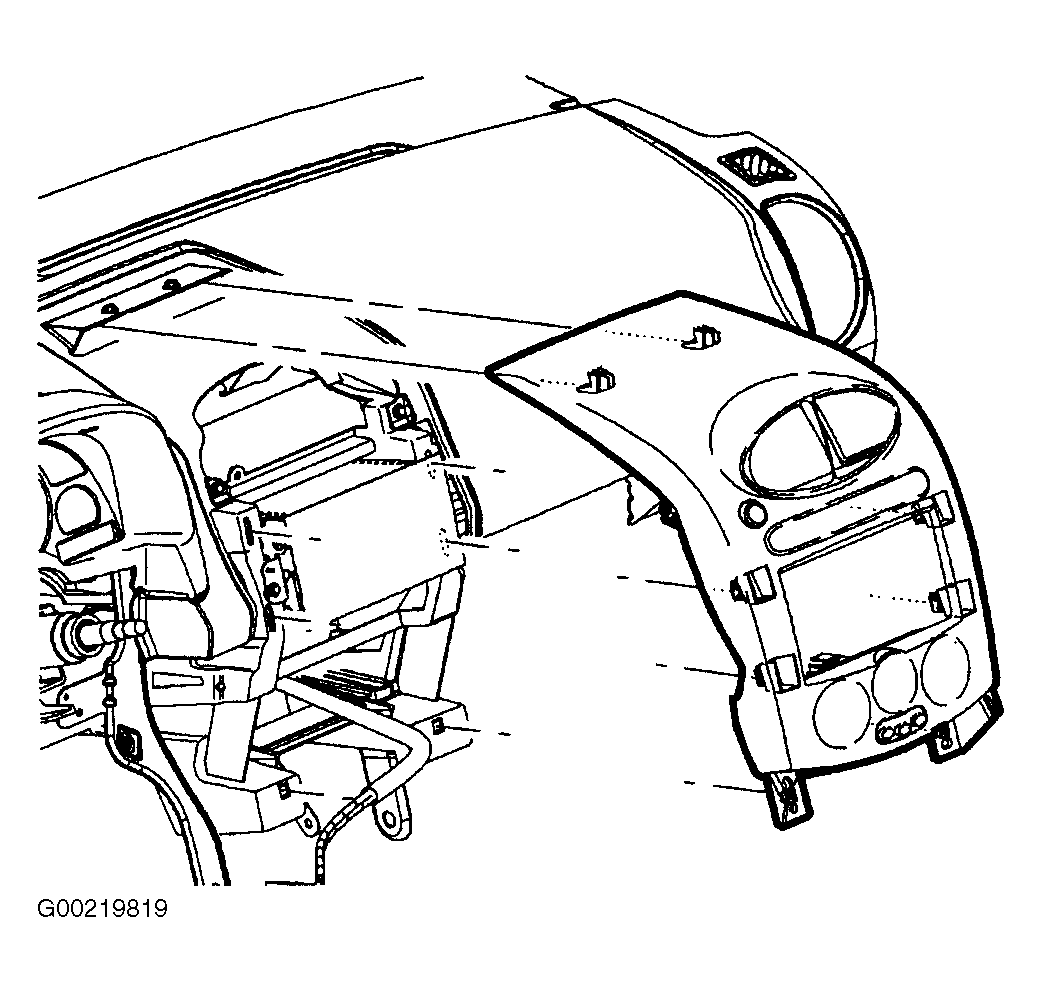

- Starting at the bottom, pull to disengage the radio trim bezel clips. See Fig 3 . Disconnect the HVAC control head connections. Disconnect the electrical connectors from the bezel mounted switches.

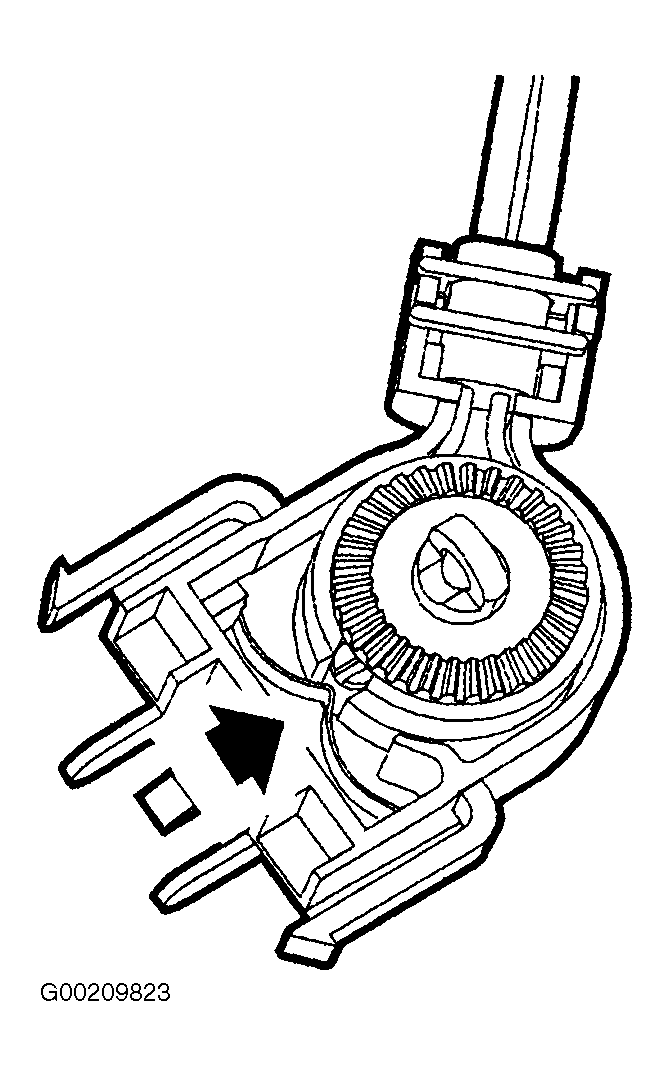

- Remove the temperature cable from the HVAC control. See Fig 4 .

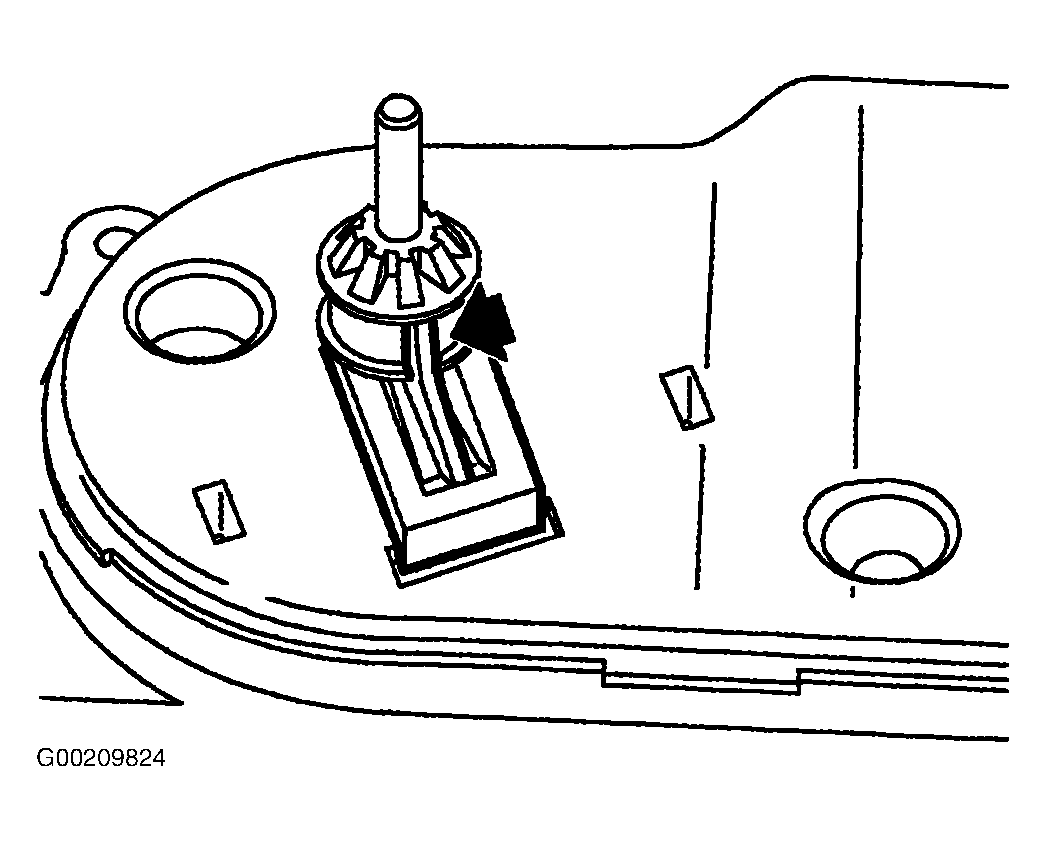

- Center the HVAC module temperature door by aligning the cable lug of the temperature control cable with the center point of the detent spring. See Fig 5 . Detent spring force should hold the temperature door in the desired position.
- Install the temperature cable to the HVAC control head by aligning the snap tabs to the knob shaft and by snapping into place.
- Connect the other control head connectors. Connect the electrical connectors to the bezel mounted switches.
- Starting at the top of the bezel, push to engage the trim clips.
- Position the I/P storage compartment. Install the console shift lever bezel.
