Neutral Drive Accumulator

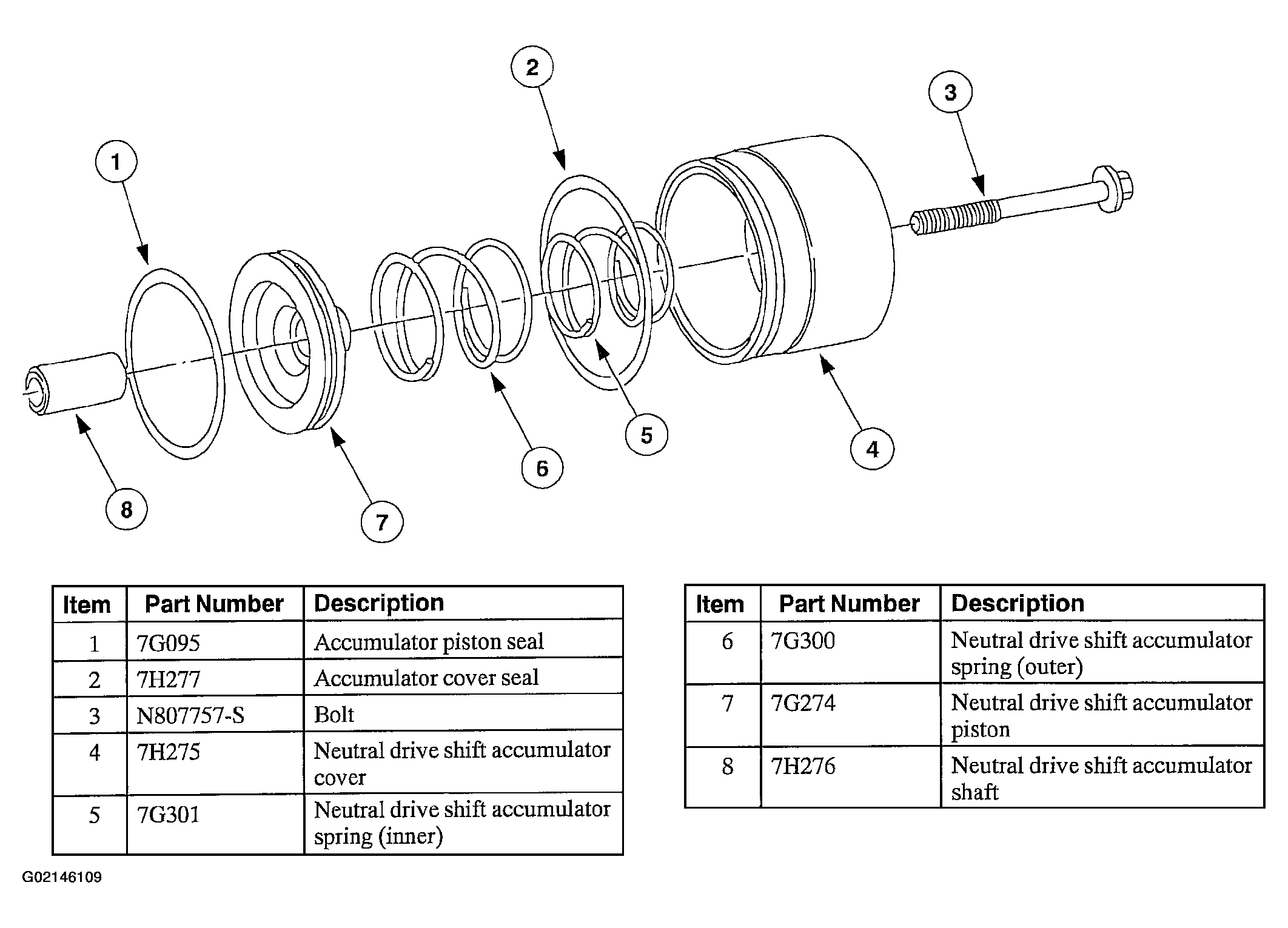

Fig 1: Exploded View Of Neutral Drive Accumulator
G02146109Courtesy of FORD MOTOR CO.
    NOTE: Lightly coat the seals with petroleum jelly prior to installation.

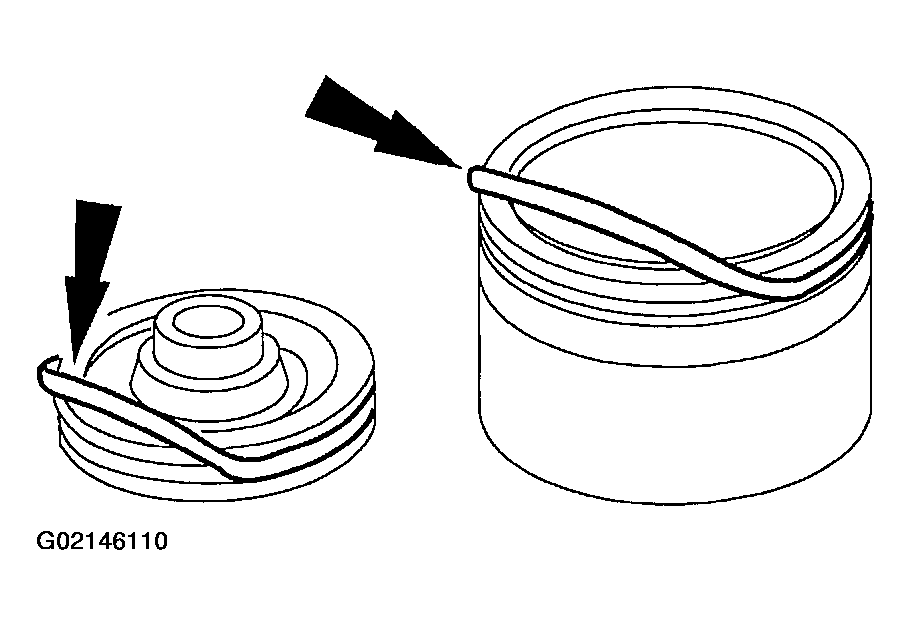

    Fig 2: Removing Neutral Drive Accumulator Seals
    G02146110Courtesy of FORD MOTOR CO.
    • Remove and install a new neutral drive accumulator piston seal.
    • Remove and install a new neutral drive accumulator cover seal.
