Symptom Chart

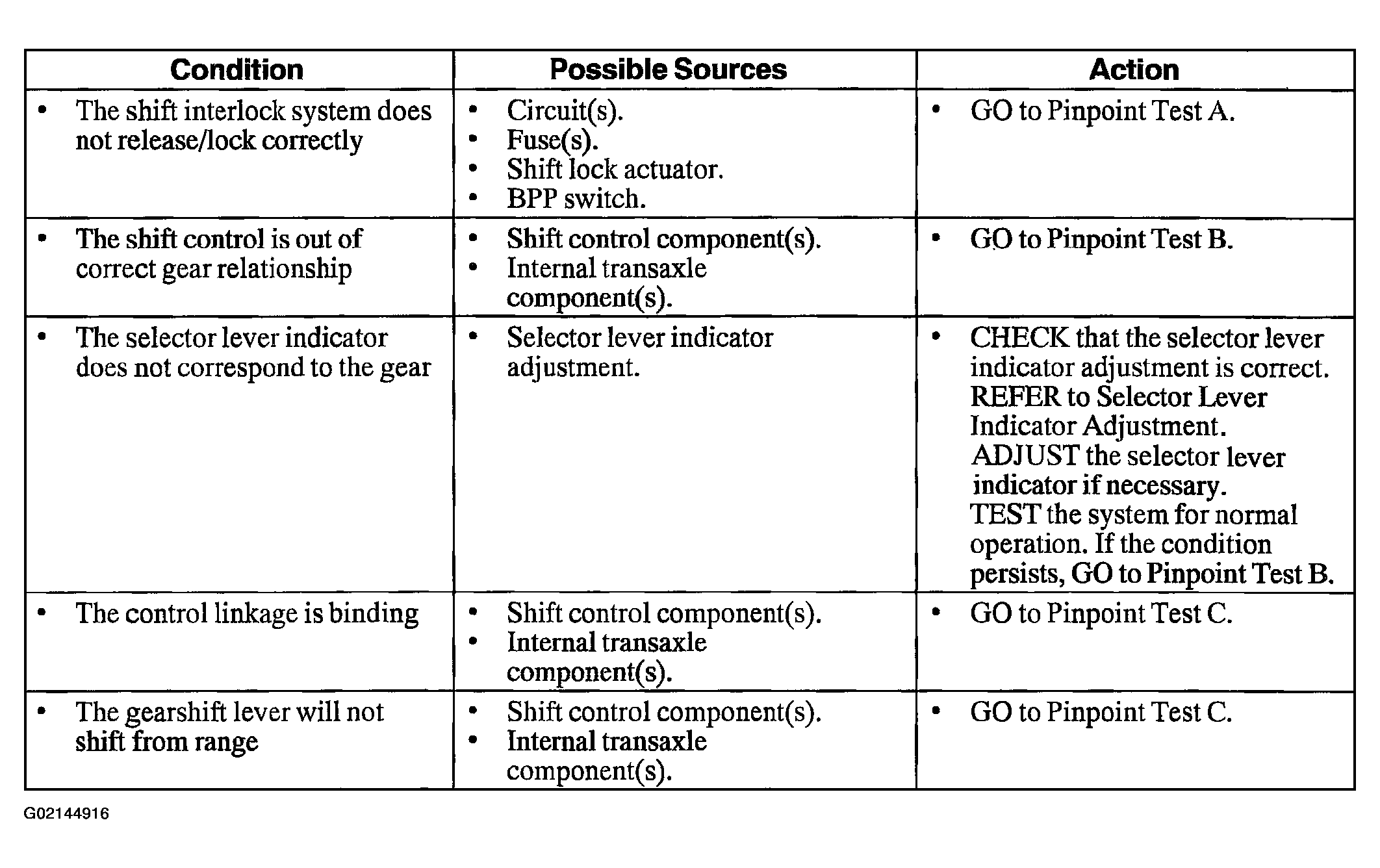

Fig 1: Symptom Chart (1 Of 2)
G02144916Courtesy of FORD MOTOR CO.

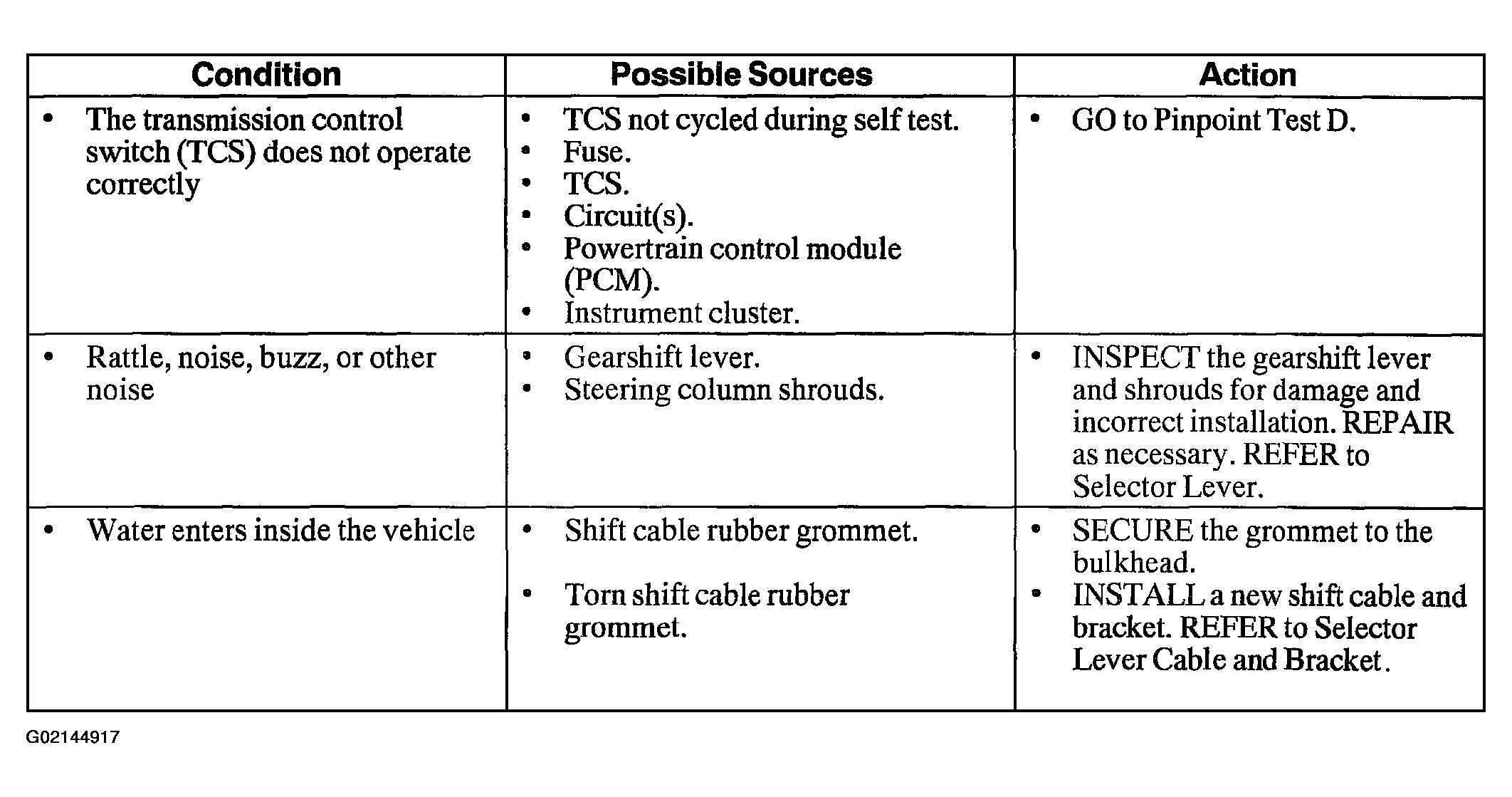

Fig 2: Symptom Chart (2 Of 2)
G02144917Courtesy of FORD MOTOR CO.
