Home >> Ford >> 2002 >> Windstar V6-3.8L VIN 4 >> Repair and Diagnosis >> Accessories and Optional Equipment >> General Module >> Testing and Inspection >> Pinpoint Tests >> Remote Keyless Entry Module (RKE)
April 5, 2026: LEMON Manuals is launched! Read the announcement.

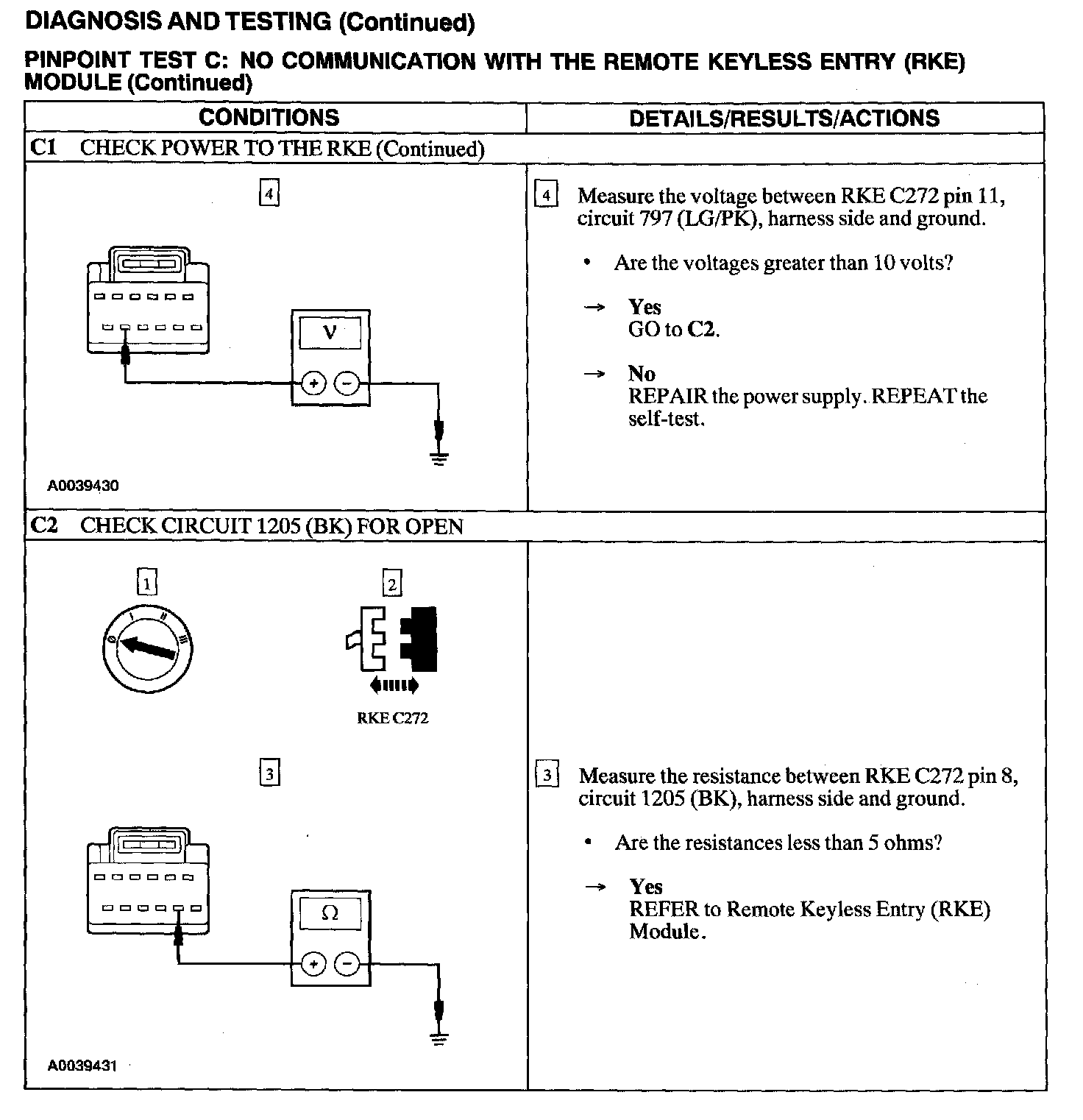

Remote Keyless Entry Module (RKE)

C1:



C1 - C2:
