Pinpoint Test E: DTC C1140 - Excessive Dump Time Fault

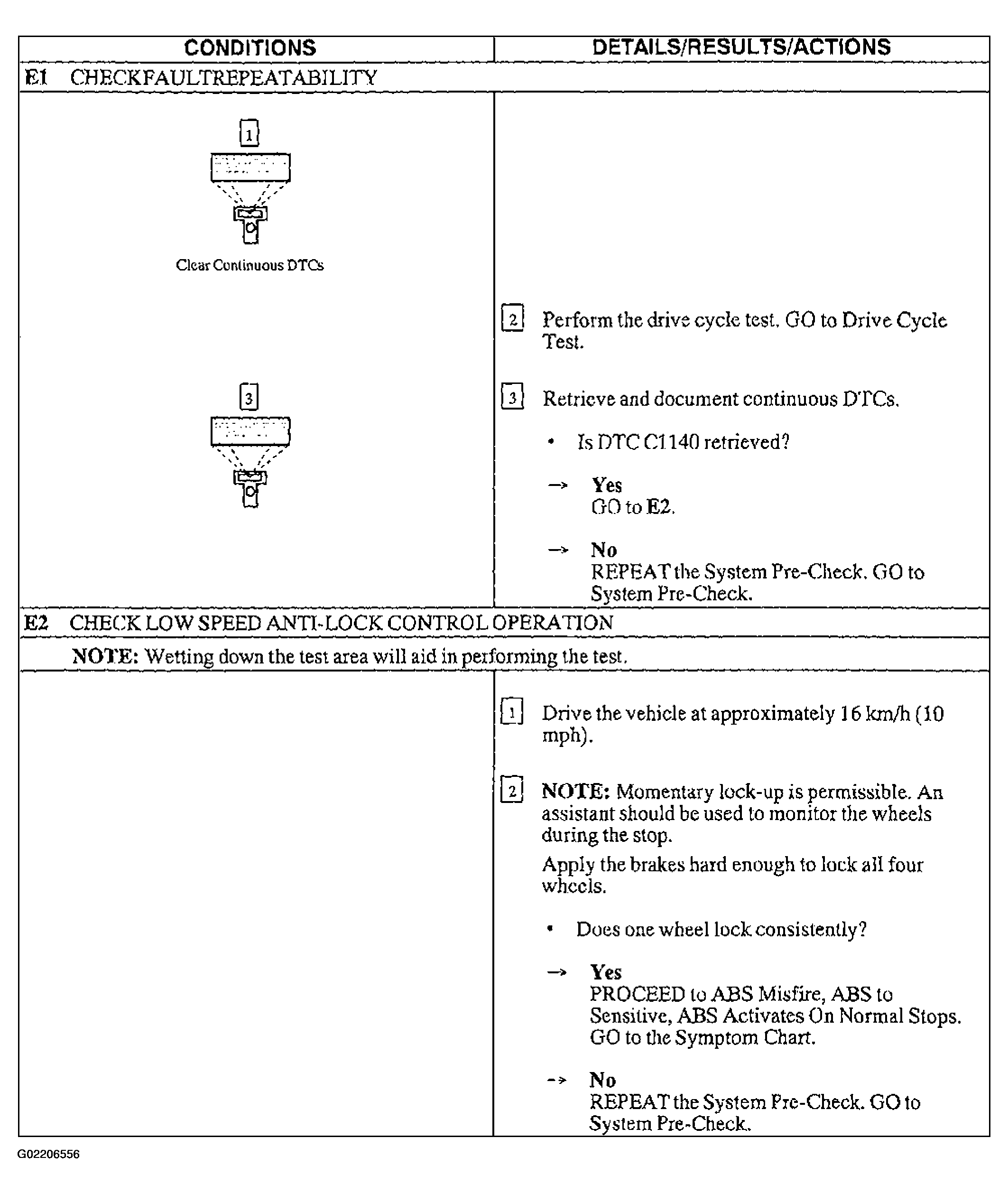

Fig 1: Pinpoint Test E: DTC C1140 - Excessive Dump Time Fault
G02206556Courtesy of FORD MOTOR CO.
