Pinpoint Test K: C1184/C1222 - Excessive ABS Isolation Wheel Speed Error

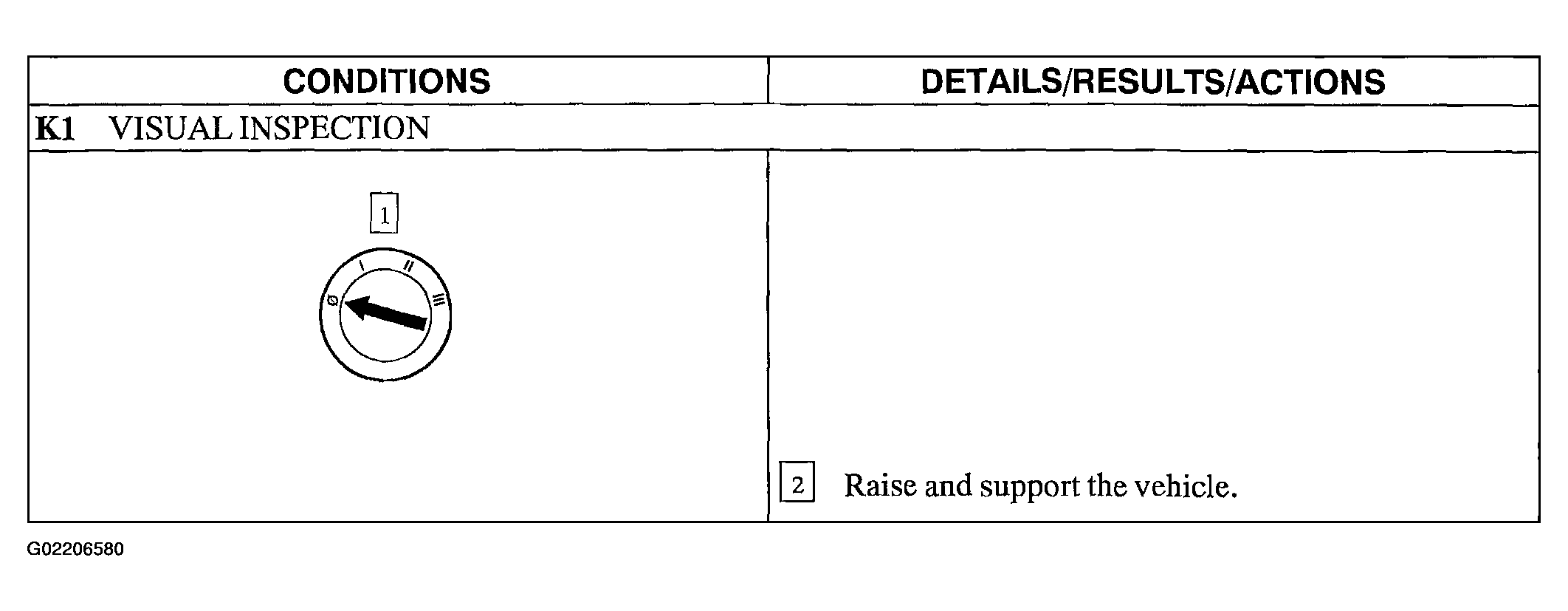

Fig 1: Pinpoint Test K: C1184/C1222 - Excessive ABS Isolation Wheel Speed Error (Step K1)

Courtesy of FORD MOTOR CO.

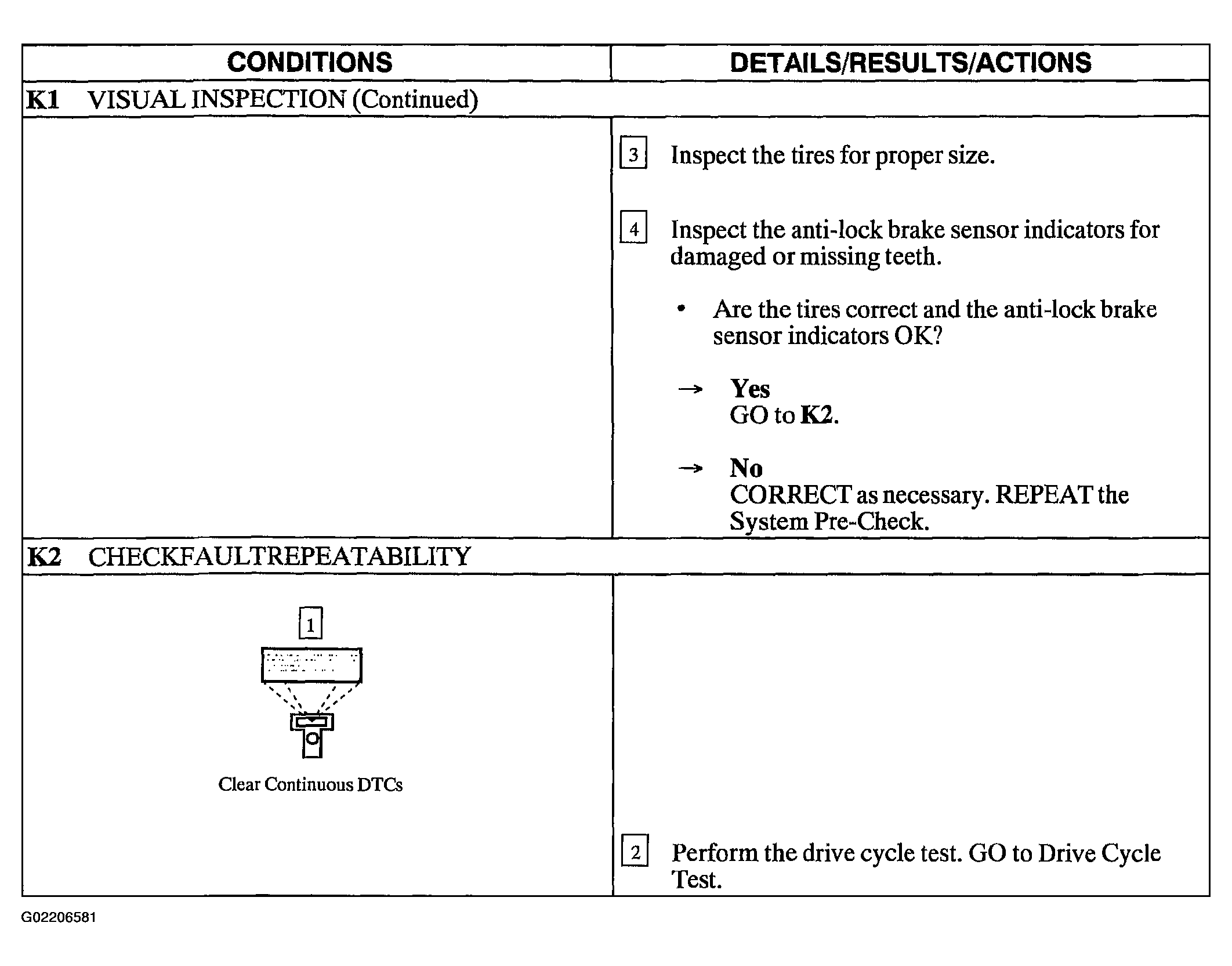

Fig 2: Pinpoint Test K: C1184/C1222 - Excessive ABS Isolation Wheel Speed Error (Steps K1 Cont & K2)

Courtesy of FORD MOTOR CO.

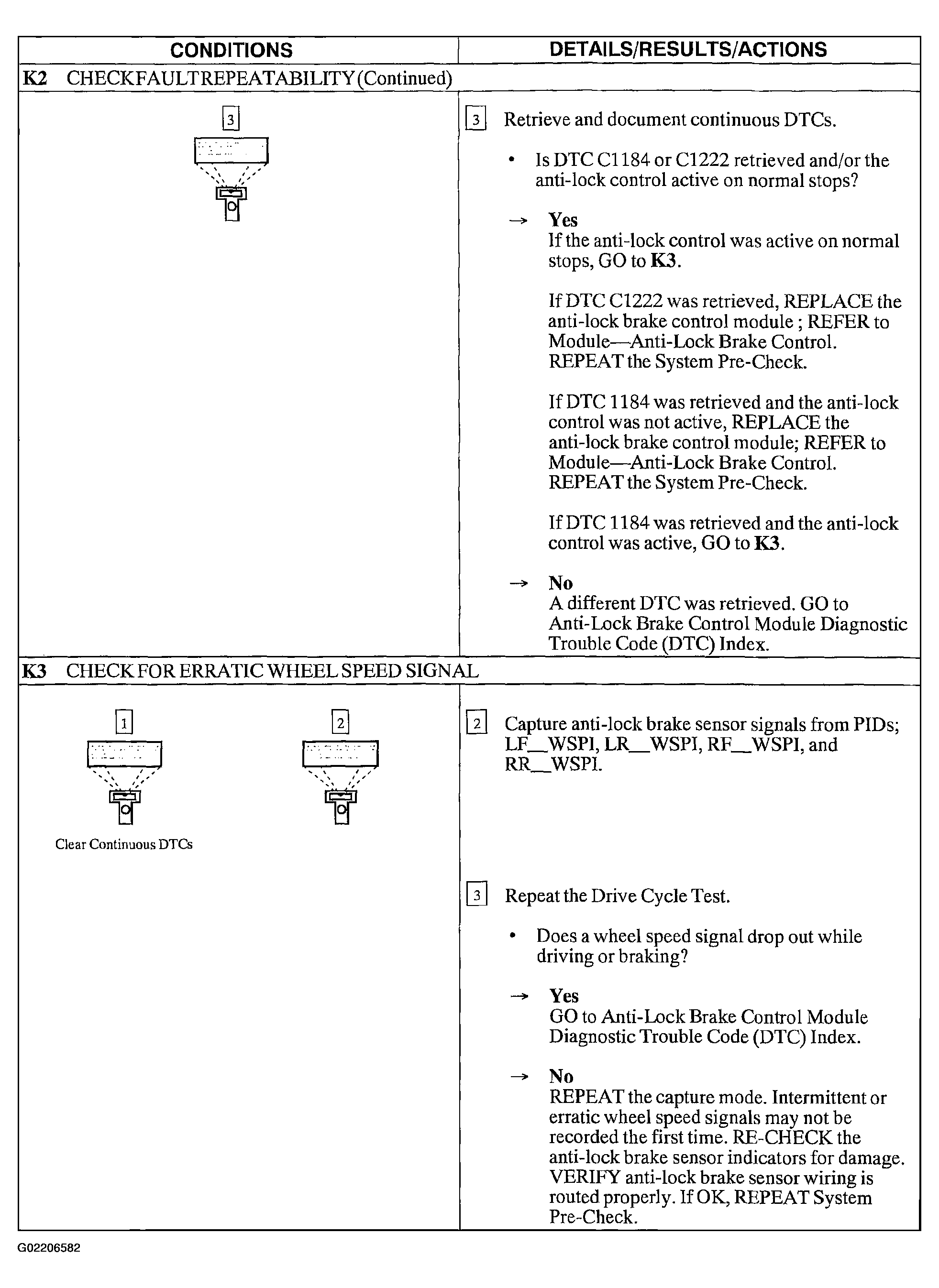

Fig 3: Pinpoint Test K: C1184/C1222 - Excessive ABS Isolation Wheel Speed Error (Steps K2 Cont & K3)

Courtesy of FORD MOTOR CO.
