Pinpoint Test P: C1220 - Yellow ABS Warning Indicator Shorted

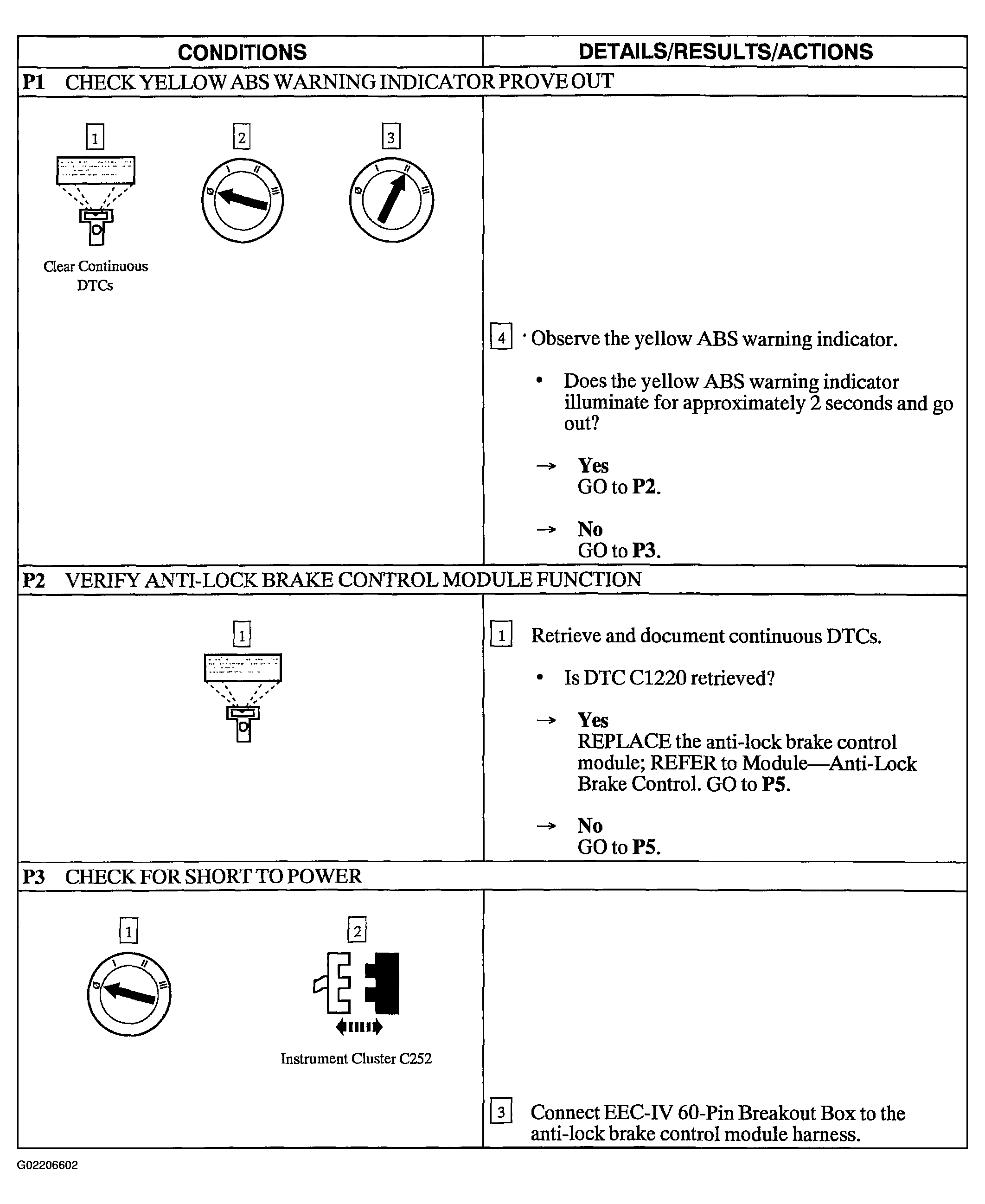

Fig 1: Pinpoint Test P: C1220 - Yellow ABS Warning Indicator Shorted (Steps P1-P3)

Courtesy of FORD MOTOR CO.

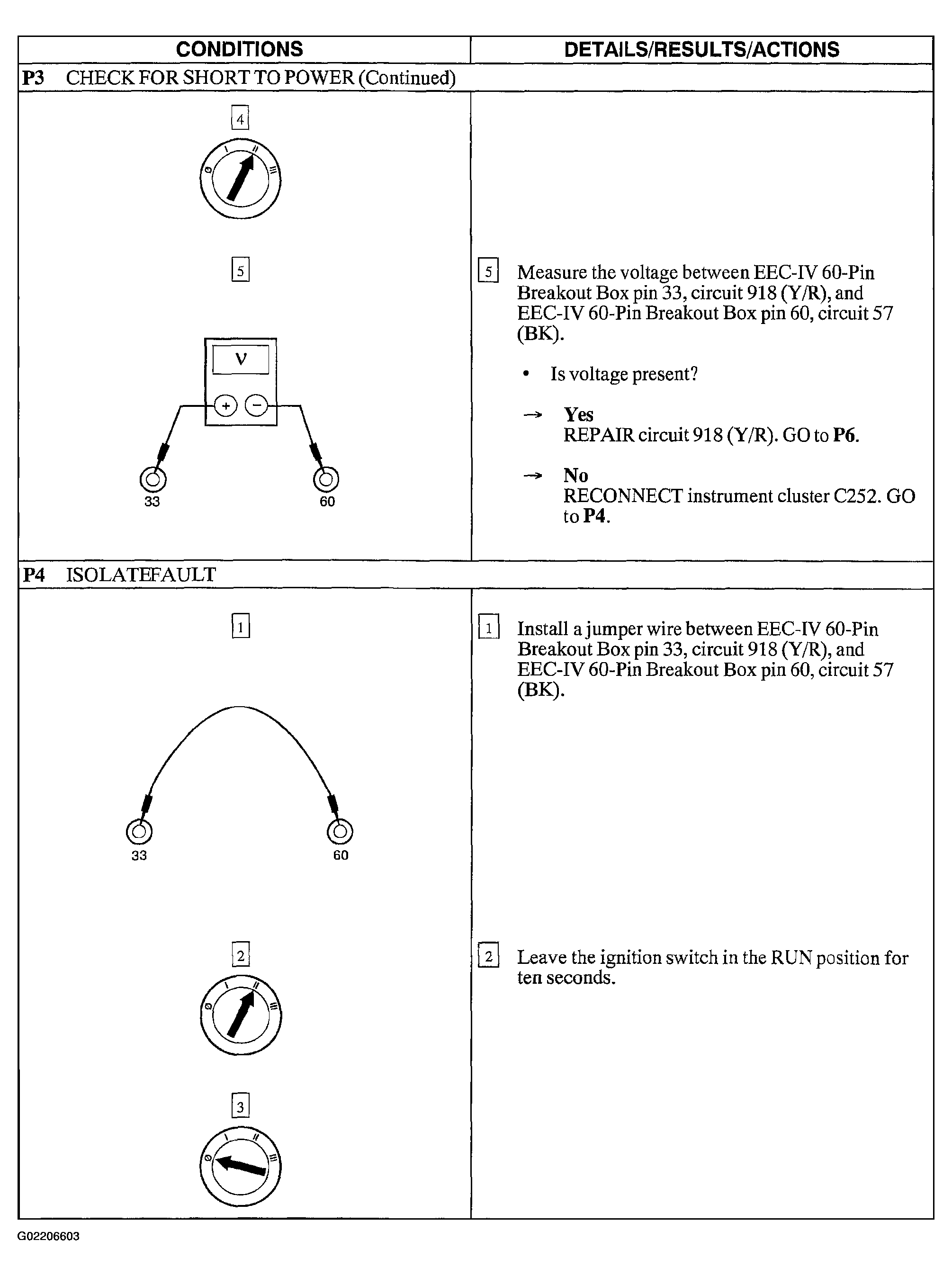

Fig 2: Pinpoint Test P: C1220 - Yellow ABS Warning Indicator Shorted (Steps P3 Cont & P4)

Courtesy of FORD MOTOR CO.

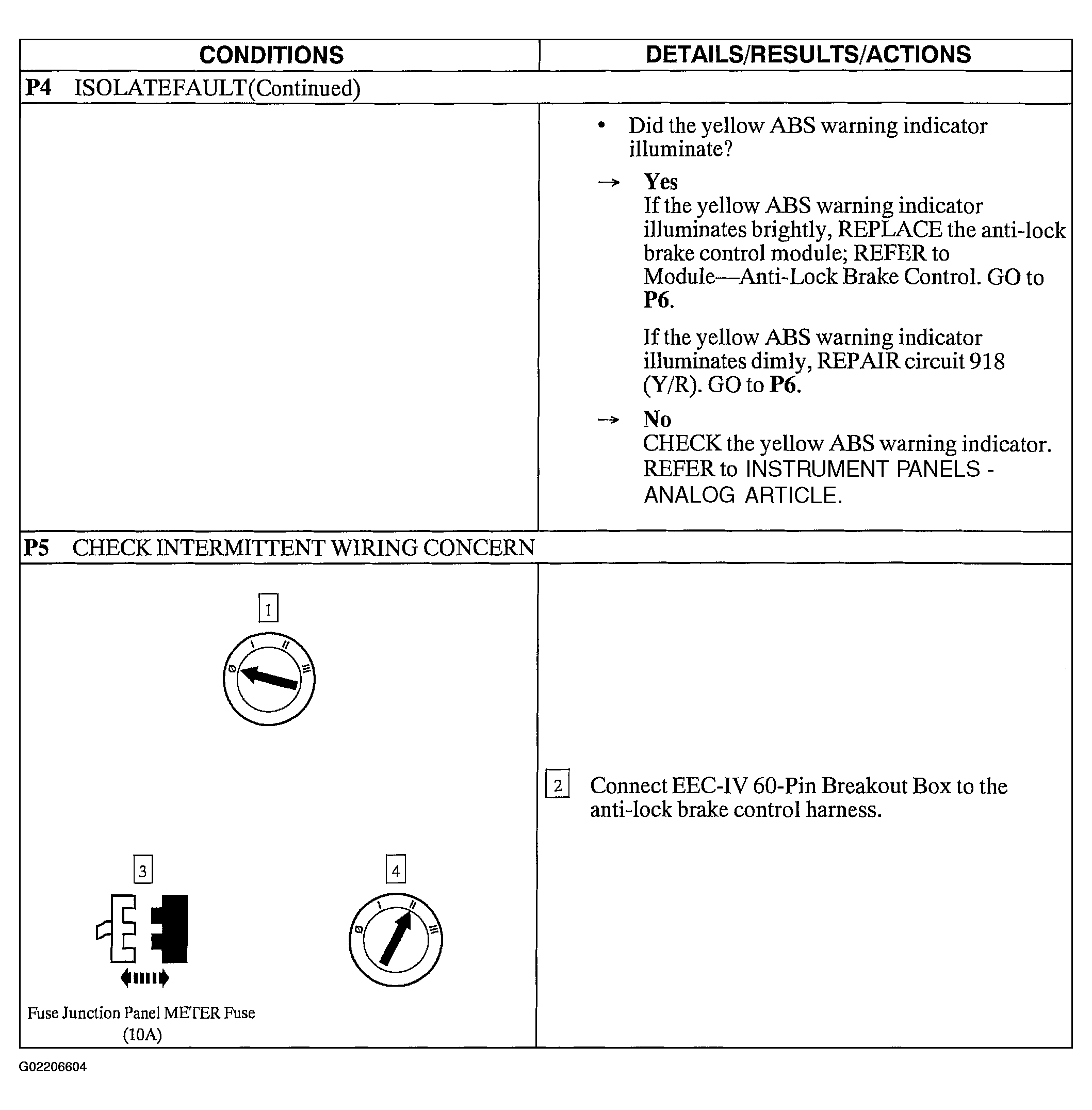

Fig 3: Pinpoint Test P: C1220 - Yellow ABS Warning Indicator Shorted (Steps P4 & P5)

Courtesy of FORD MOTOR CO.

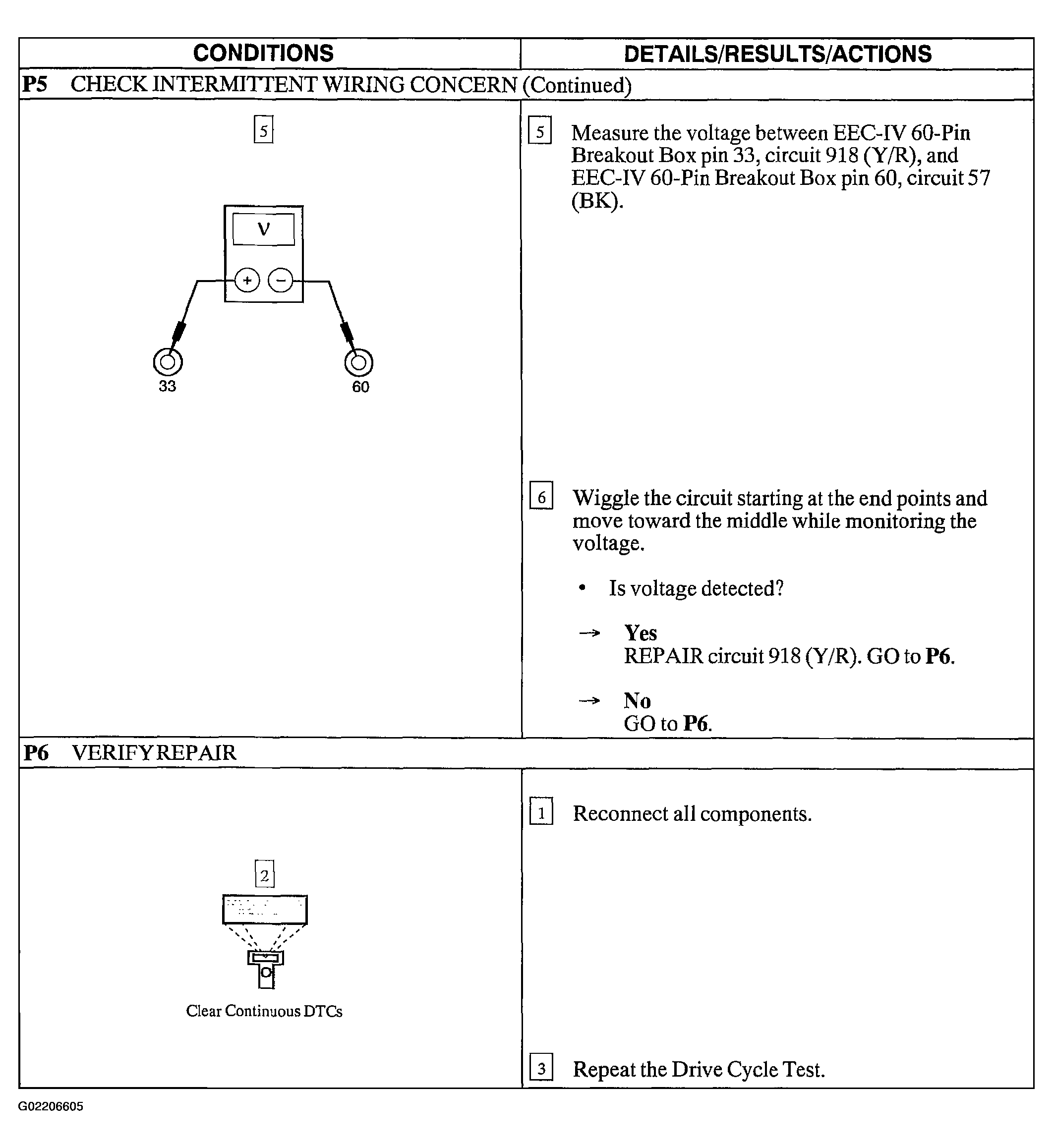

Fig 4: Pinpoint Test P: C1220 - Yellow ABS Warning Indicator Shorted (Steps P5 & P6)

Courtesy of FORD MOTOR CO.

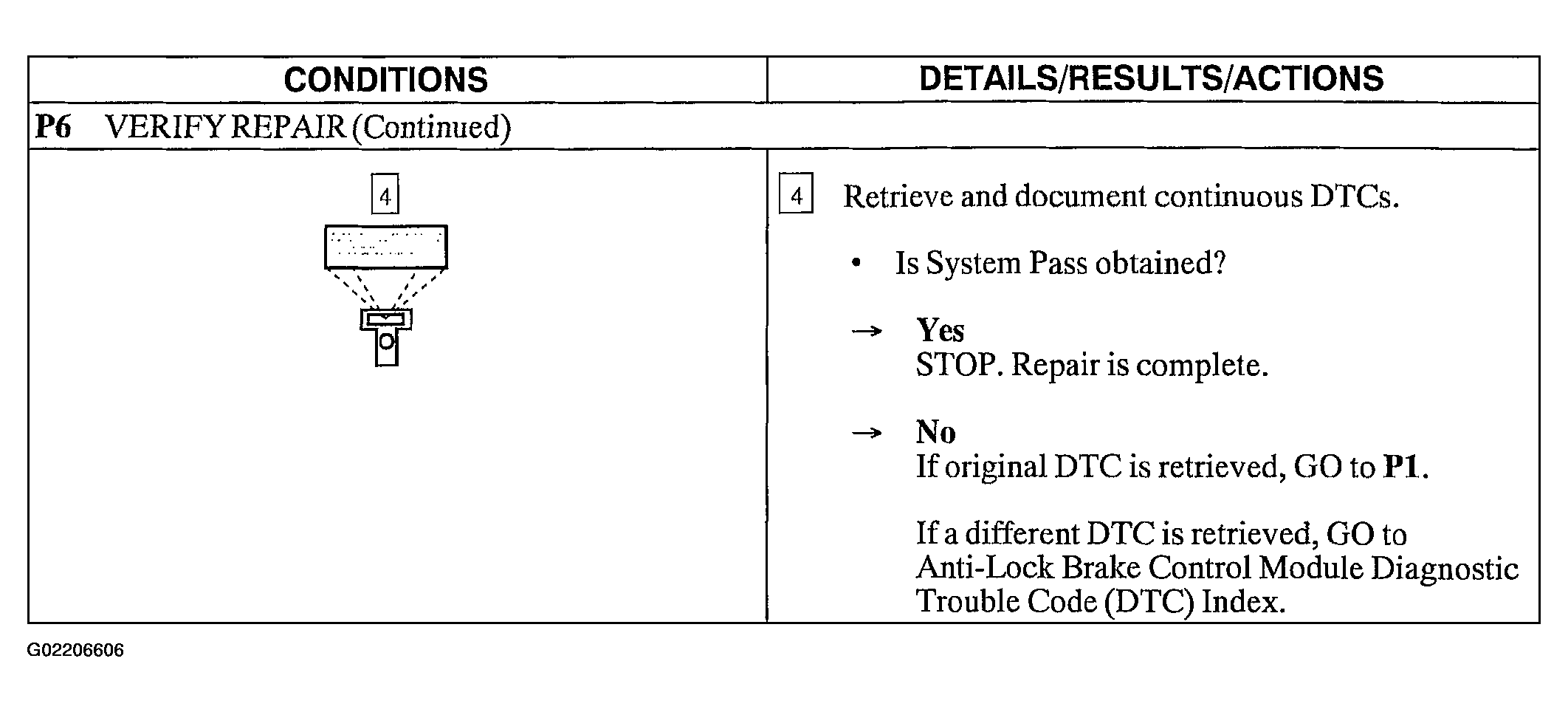

Fig 5: Pinpoint Test P: C1220 - Yellow ABS Warning Indicator Shorted (Step P6 Cont)

Courtesy of FORD MOTOR CO.
