Test H

PINPOINT TEST H: THE SMARTLOCK DOES NOT OPERATE CORRECTLY


Test H1:

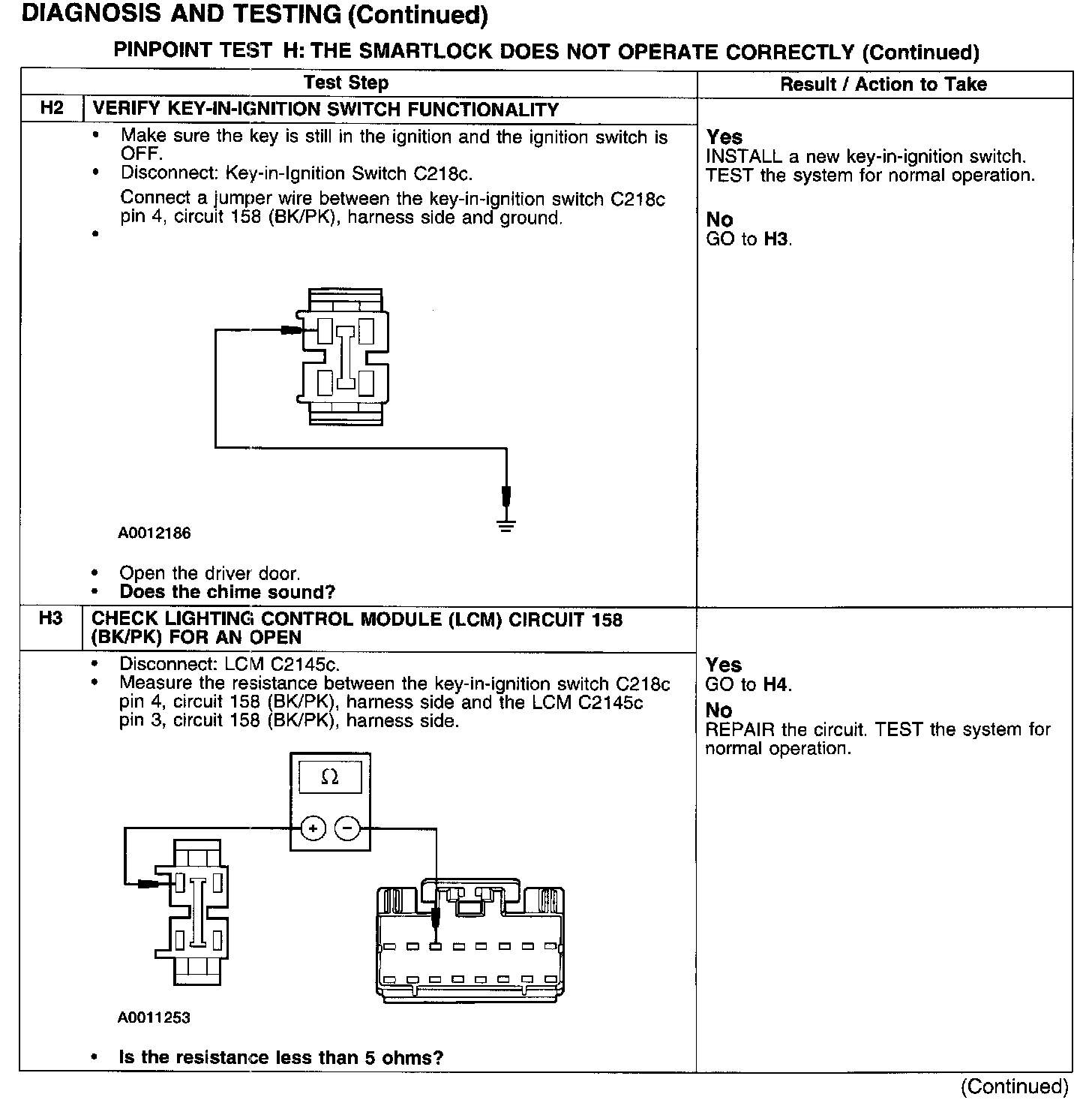

Test H2-H3:

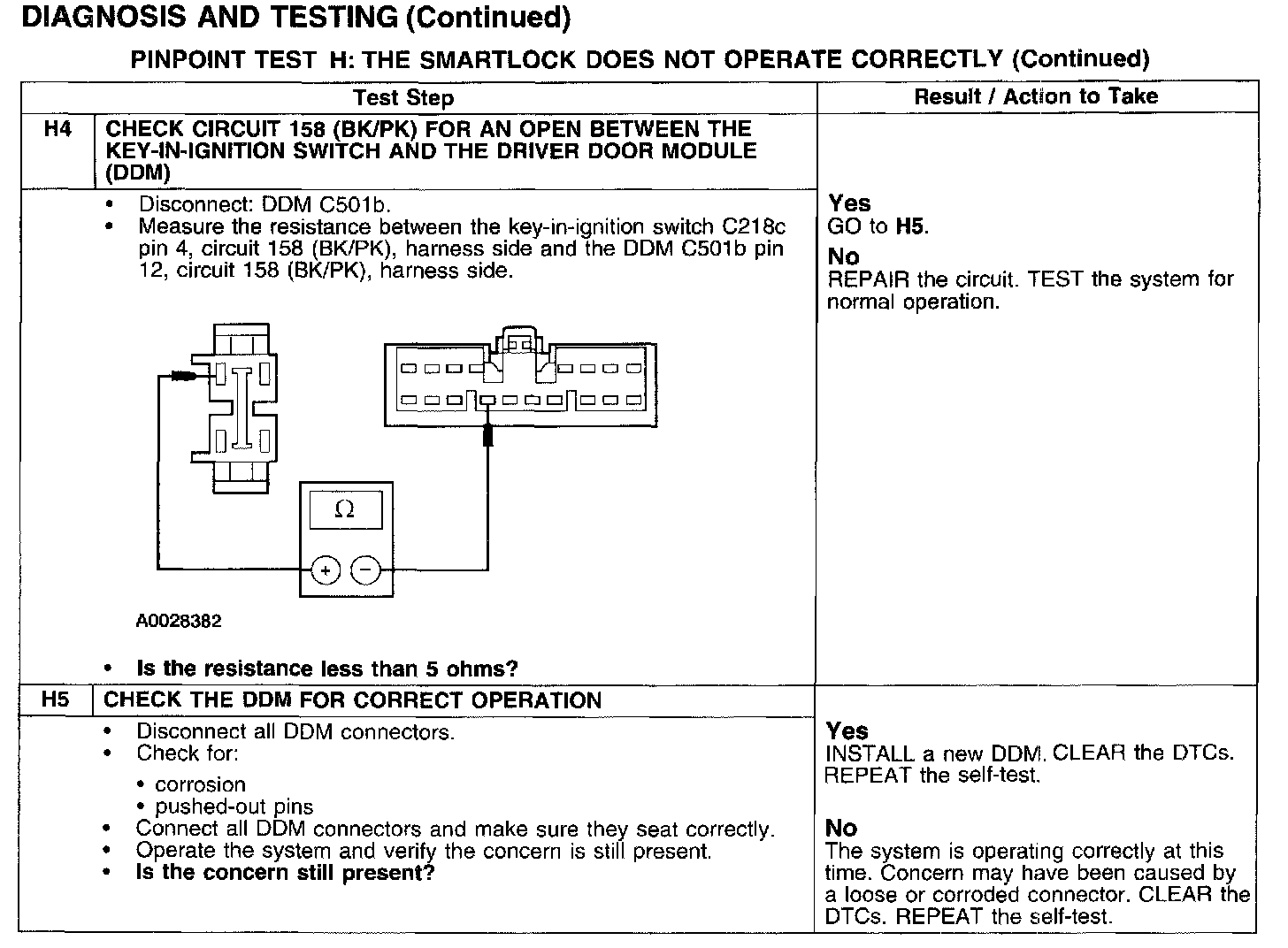

Test H4-H5:
