Master window control switch

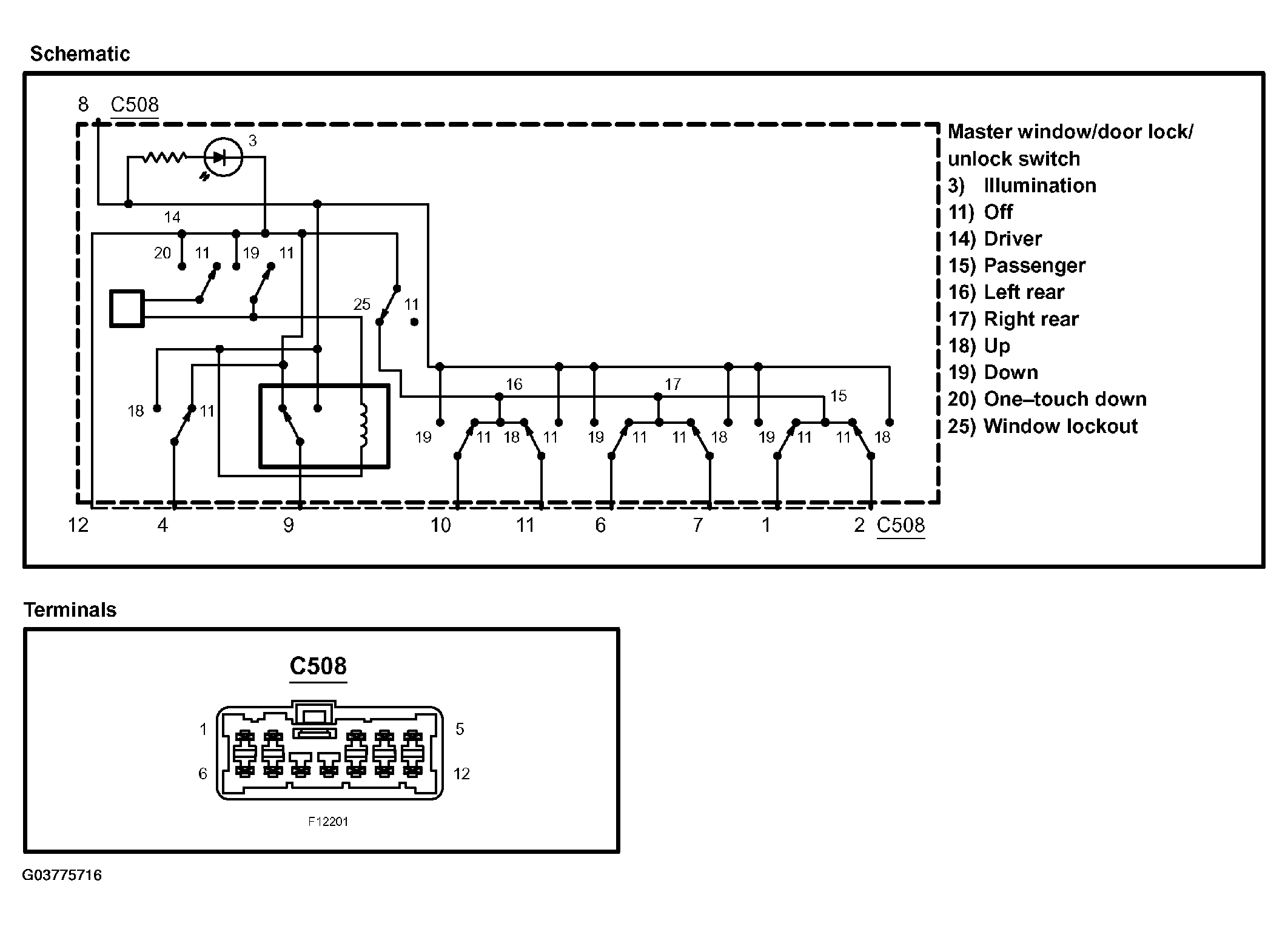

Fig 1: Testing Master Window Control Switch (1 Of 2)
G03775716Courtesy of FORD MOTOR CO.

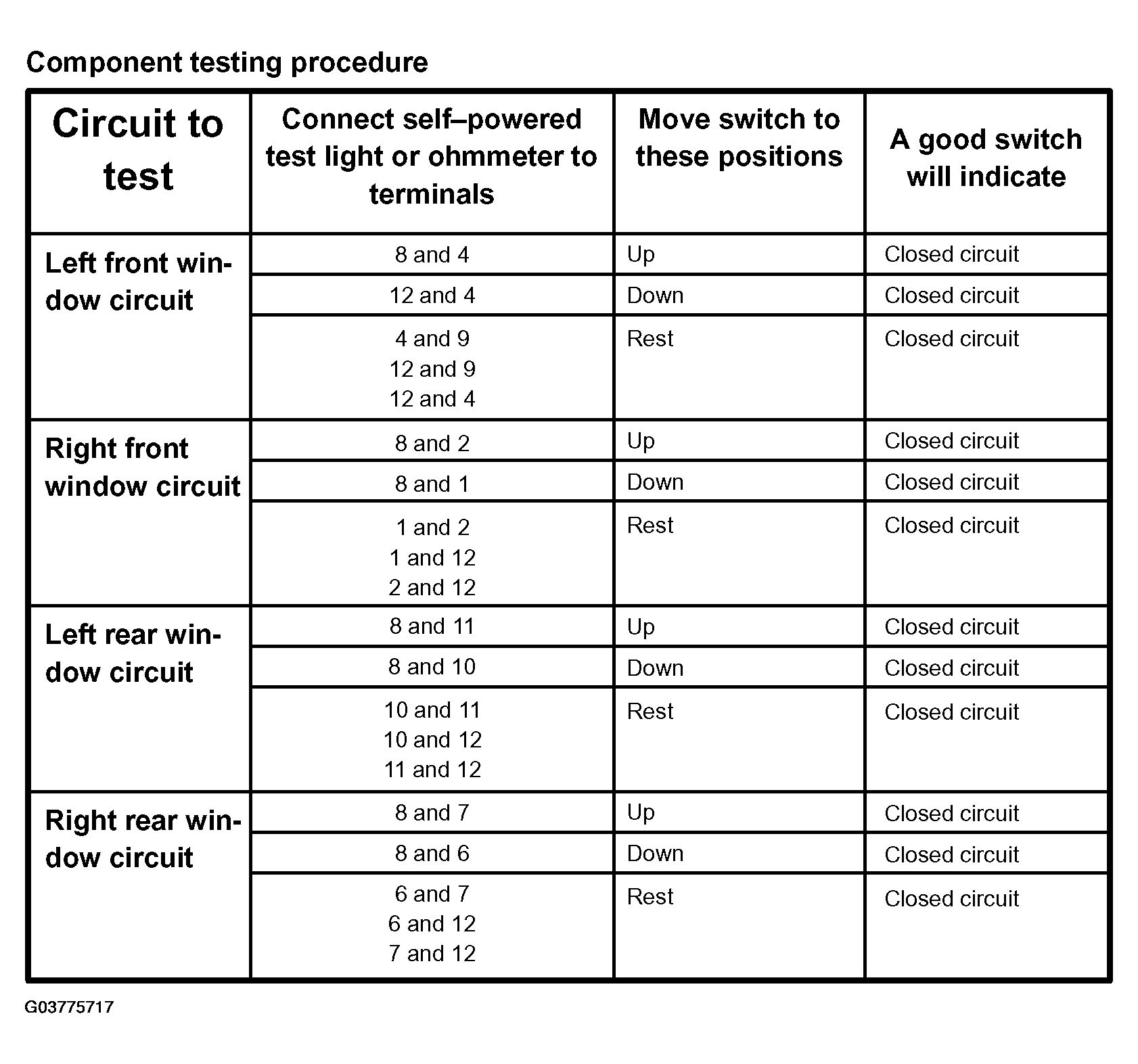

Fig 2: Testing Master Window Control Switch (2 Of 2)
G03775717Courtesy of FORD MOTOR CO.
