Removal & Installation

WARNING: Do not smoke or carry an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited, resulting in possible personal injury.

Release fuel pressure. See FUEL SYSTEM PRESSURE RELEASE .
Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Lift LH rear seat cushion.
Position the carpet aside.

Fig 1: Positioning Carpet Aside
Courtesy of FORD MOTOR CO.
Remove the screws and the fuel pump module access cover.

Fig 2: Removing Fuel Pump Module Screws
Courtesy of FORD MOTOR CO.
Disconnect the electrical connectors.

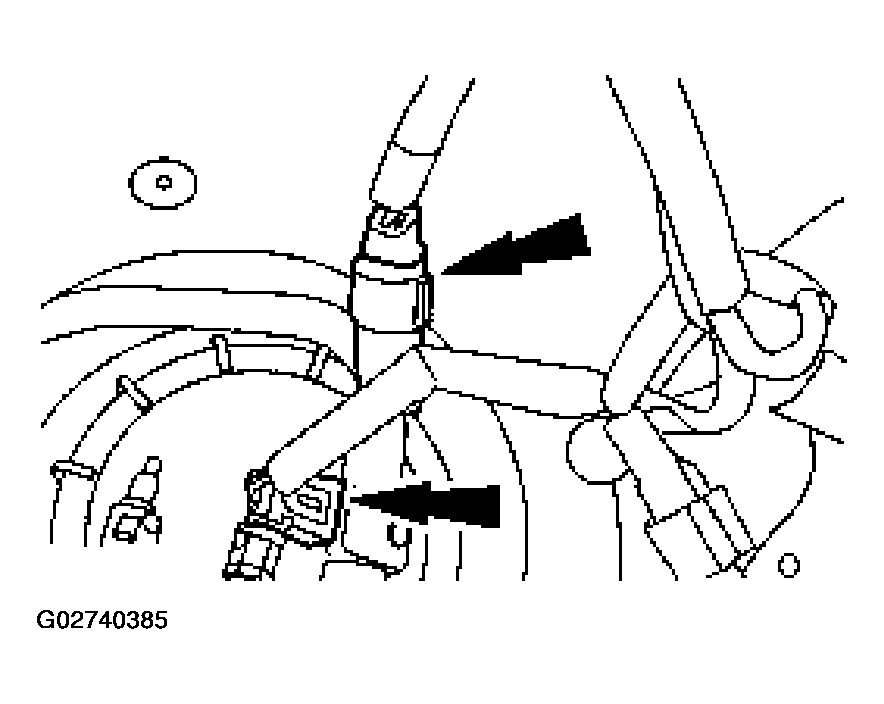

Fig 3: Disconnecting Electrical Connectors
Courtesy of FORD MOTOR CO.
Disconnect the fuel and vapor lines from the fuel tank. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .

WARNING: The fuel tank may be pressurized. Remove the fuel tank filler cap slowly. If a hissing sound is heard, wait until the condition stops before removing the fuel tank filler cap. If these precautions are not followed, fuel may spray and cause personal injury.

Fig 4: Removing Gas Cap

Courtesy of FORD MOTOR CO.

Remove the gas cap.
Using the special tool, remove the fuel pump module.

Fig 5: Removing Fuel Pump Module
Courtesy of FORD MOTOR CO.

NOTE: Install a new fuel pump mounting gasket.

To install, reverse the removal procedure.
- Start the engine and visually inspect for leaks.
- Tighten fasteners to specification. See TORQUE SPECIFICATIONS .
