Cylinder Block Distortion
WARNING: This page is about a different car, the 2004 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

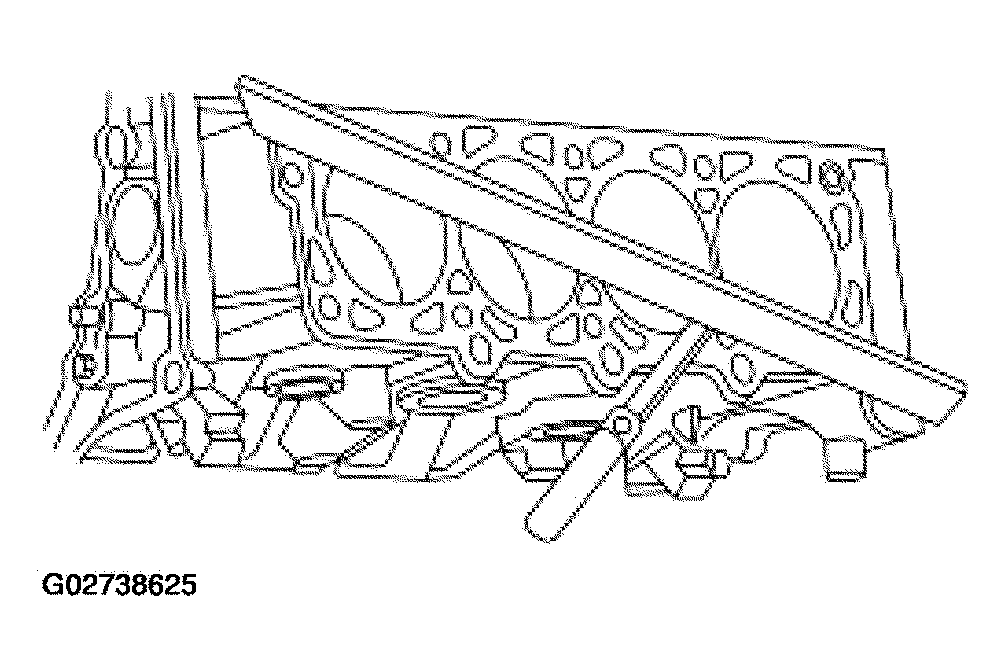

- Use a straight edge and a feeler gauge to inspect the cylinder block for flatness. If the cylinder block is distorted, install a new short block assembly.
Courtesy of FORD MOTOR CO.
