Pinout Values and Diagnostic Parameters

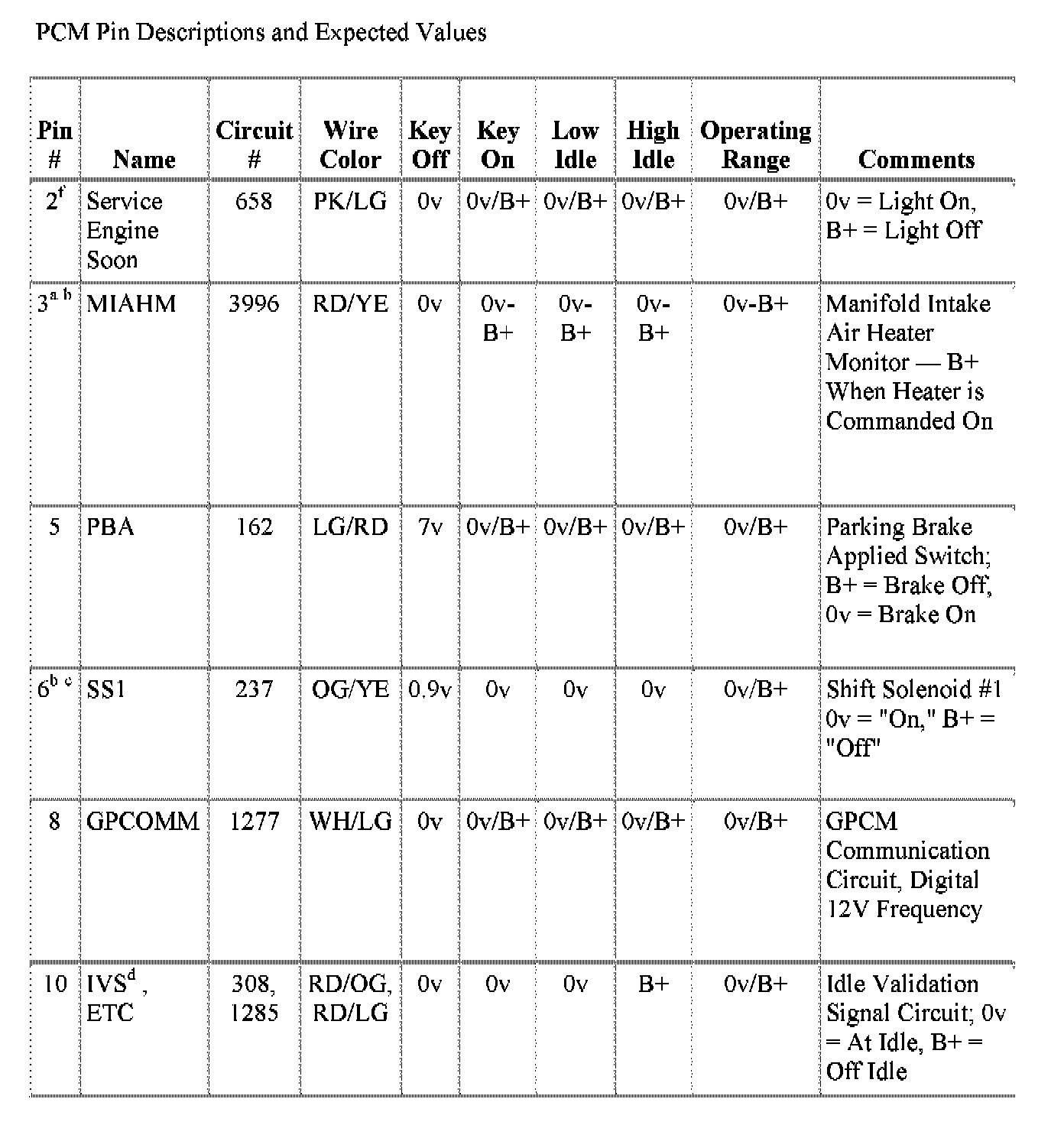

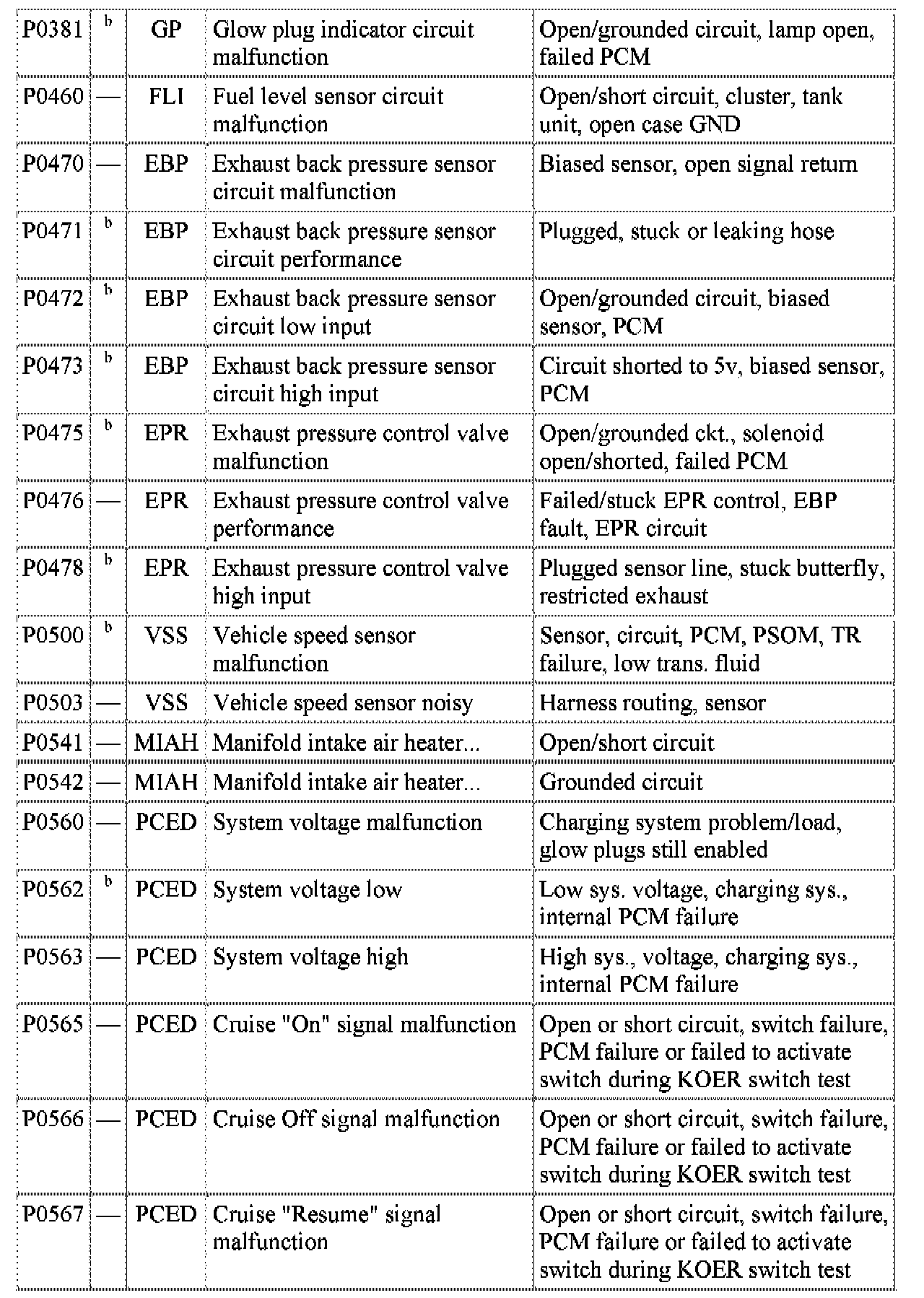

Control System Diagnostic Sheet Reference 1 Of 18:





Control System Diagnostic Sheet Reference 2 Of 18:





Control System Diagnostic Sheet Reference 3 Of 18:





Control System Diagnostic Sheet Reference 4 Of 18:





Control System Diagnostic Sheet Reference 5 Of 18:





Control System Diagnostic Sheet Reference 6 Of 18:





Control System Diagnostic Sheet Reference 7 Of 18:





Control System Diagnostic Sheet Reference 8 Of 18:





Control System Diagnostic Sheet Reference 9 Of 18:





Control System Diagnostic Sheet Reference 10 Of 18:





Control System Diagnostic Sheet Reference 11 Of 18:





Control System Diagnostic Sheet Reference 12 Of 18:





Control System Diagnostic Sheet Reference 13 Of 18:





Control System Diagnostic Sheet Reference 14 Of 18:





Control System Diagnostic Sheet Reference 15 Of 18:





Control System Diagnostic Sheet Reference 16 Of 18:





Control System Diagnostic Sheet Reference 17 Of 18:





Control System Diagnostic Sheet Reference 18 Of 18:
