Passenger Climate Controlled Seat Module C3036a

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Passenger Climate Controlled Seat Module C3036a Connector
G02239283Courtesy of FORD MOTOR CO.

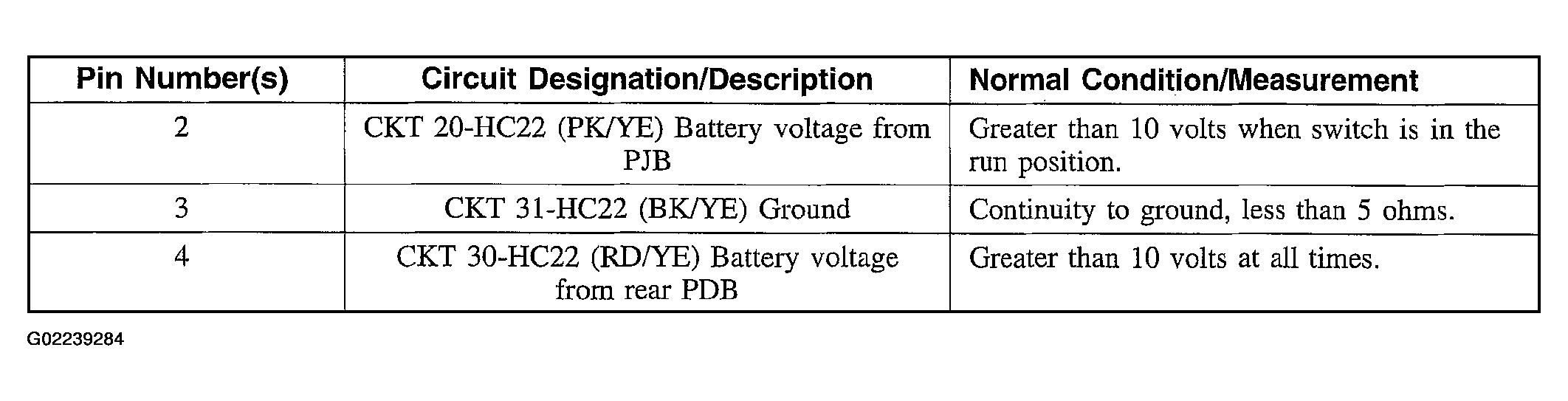

Fig 2: Measurement Specifications
G02239284Courtesy of FORD MOTOR CO.
