Disassembly And Assembly Of Subassemblies: Differential: Assembly

WARNING: This page is about a different car, the 2003 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Whenever a bearing has been removed, a new bearing must be installed.

Using the special tool and a press, install the speedometer drive gear and the differential bearing.

Fig 1: Pressing Speedometer Drive Gear And Differential Bearing Using SST
Courtesy of FORD MOTOR CO.
Using the special tool, install the differential bearing.

Fig 2: Installing Differential Bearing Using SST
Courtesy of FORD MOTOR CO.

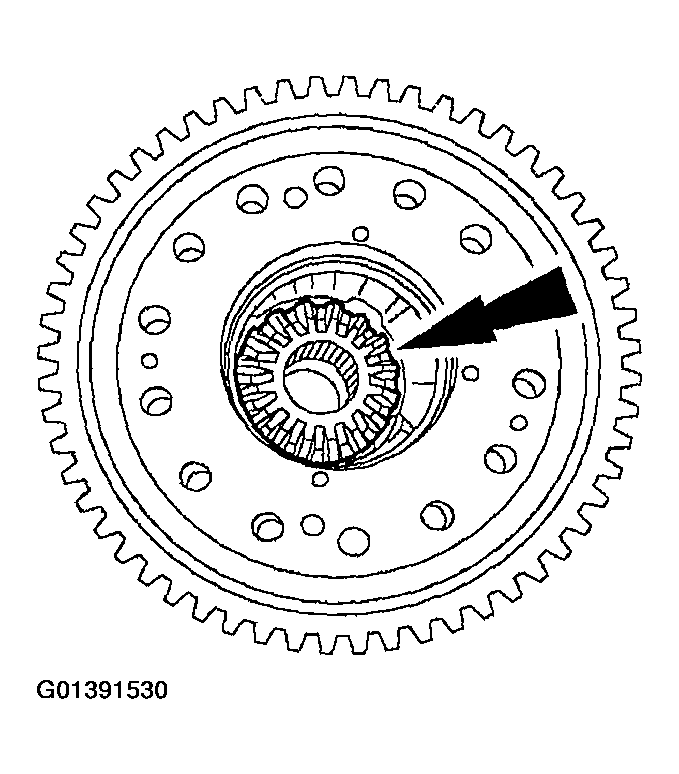

Install the differential side gear and thrust washer.

Fig 3: Locating Differential Side Gear And Thrust Washer
Courtesy of FORD MOTOR CO.

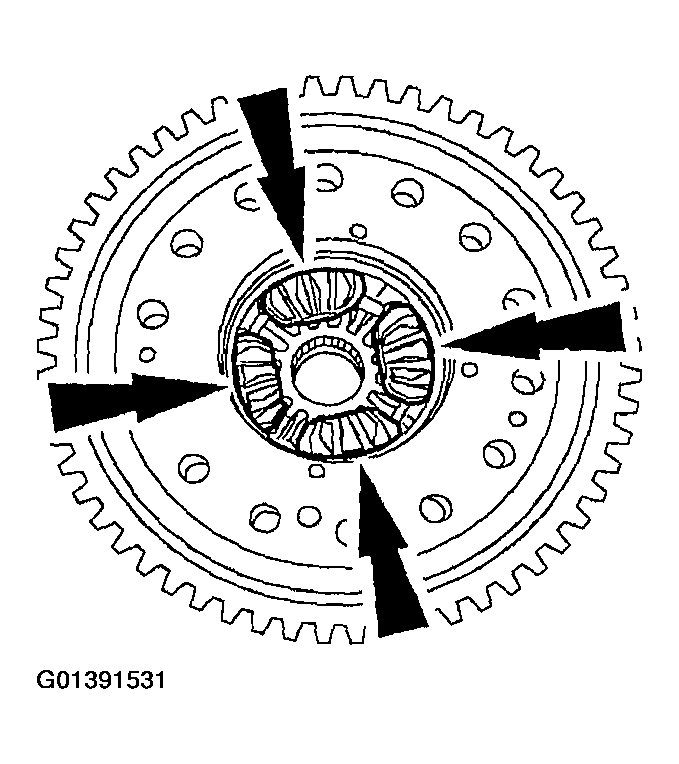

Install the differential pinion gears and thrust washers.

Fig 4: Locating Differential Pinion Gears And Thrust Washers
Courtesy of FORD MOTOR CO.

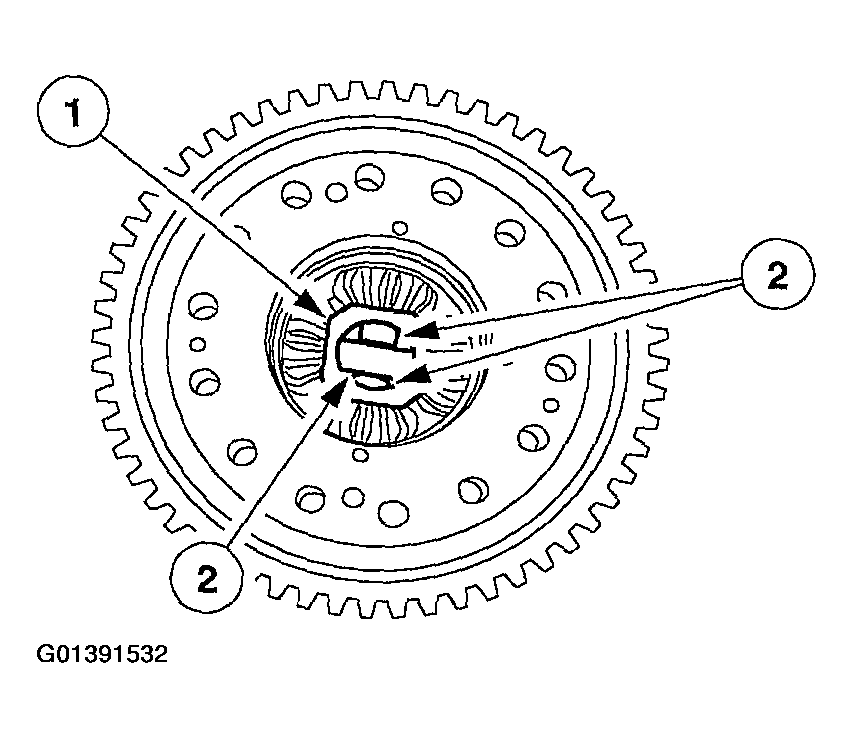

Install the differential pinion shaft cage.
1. Position the differential pinion shaft cage.
2. Install the differential pinion shafts.

  Fig 5: Installing Differential Pinion Shafts
  Courtesy of FORD MOTOR CO.

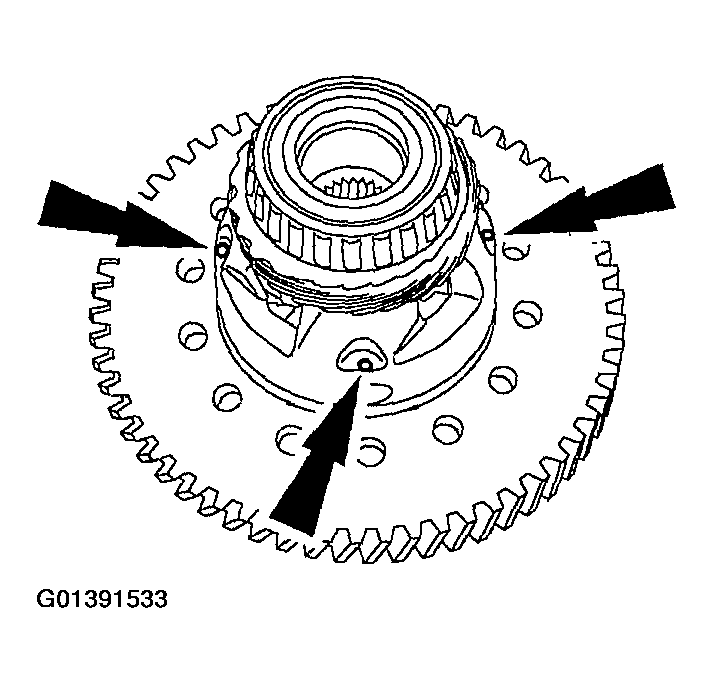

Install the differential pinion shaft lock pins.

Fig 6: Installing Differential Pinion Shaft Lock Pins
Courtesy of FORD MOTOR CO.

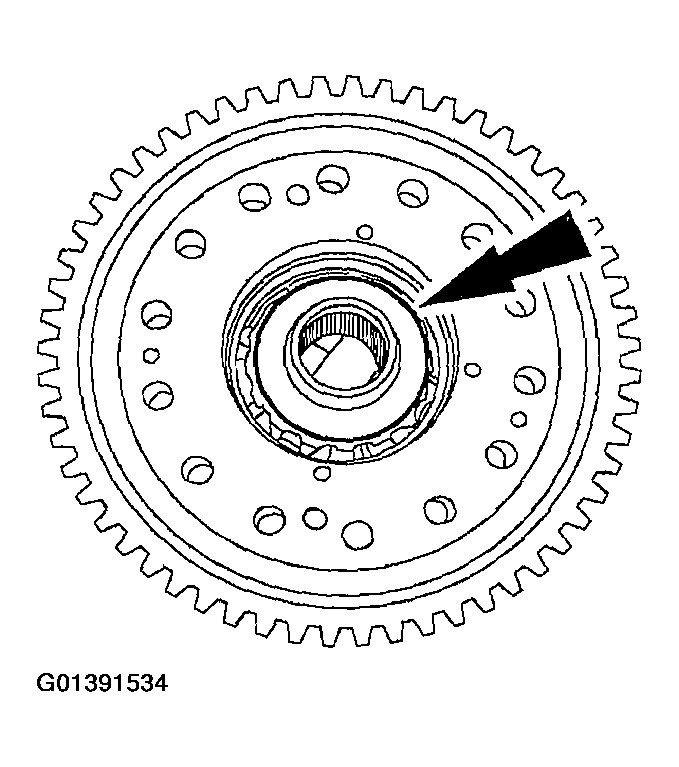

Install the differential side gear thrust washer and differential side gear.

Fig 7: Locating Differential Side Gear Thrust Washer And Differential Side Gear
Courtesy of FORD MOTOR CO.
Install the differential cover.

Position the differential cover.
Install the differential cover screws.
Install the differential cover bolts.

Fig 8: Installing Differential Cover Screws
Courtesy of FORD MOTOR CO.
