Engine Front Cover: Installation

WARNING: This page is about a different variant/trim than selected.
  1. If removed, install the front cover crankcase dowels into the cylinder block.
    Fig 1: Identifying Front Cover Crankcase Dowels
    G03887308Courtesy of FORD MOTOR CO.
  2. NOTE: Use guide studs to aid in installation. Studs must be fabricated locally.

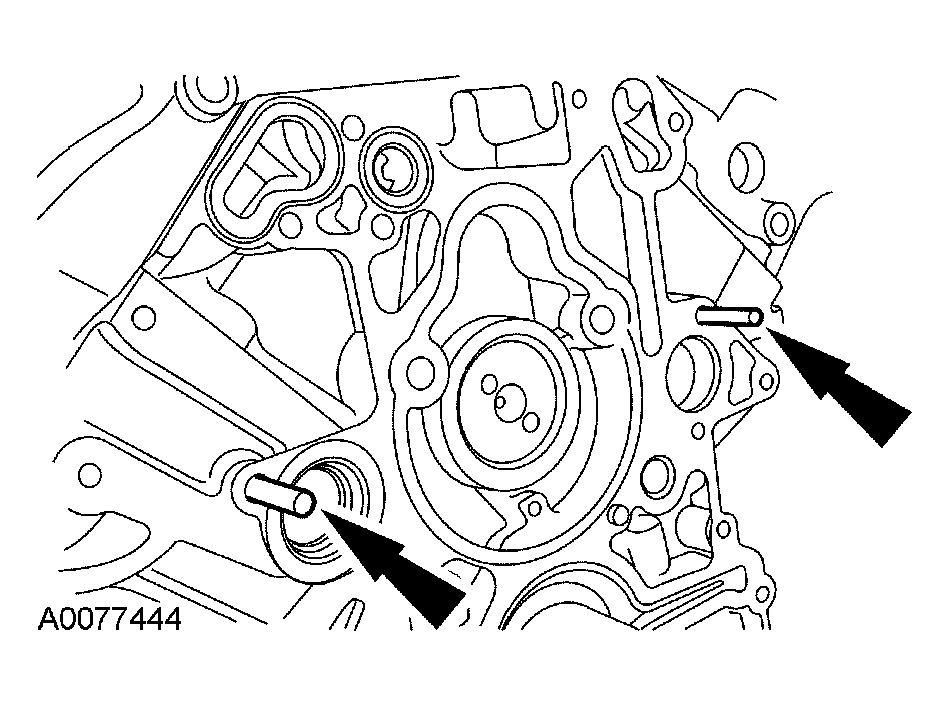

    Fig 2: Installing Guide Studs
    G03899219Courtesy of FORD MOTOR CO.
  3. Install the guide studs.
  4. Apply a bead of sealant at the seam where the crankcase and the lower crankcase meet.

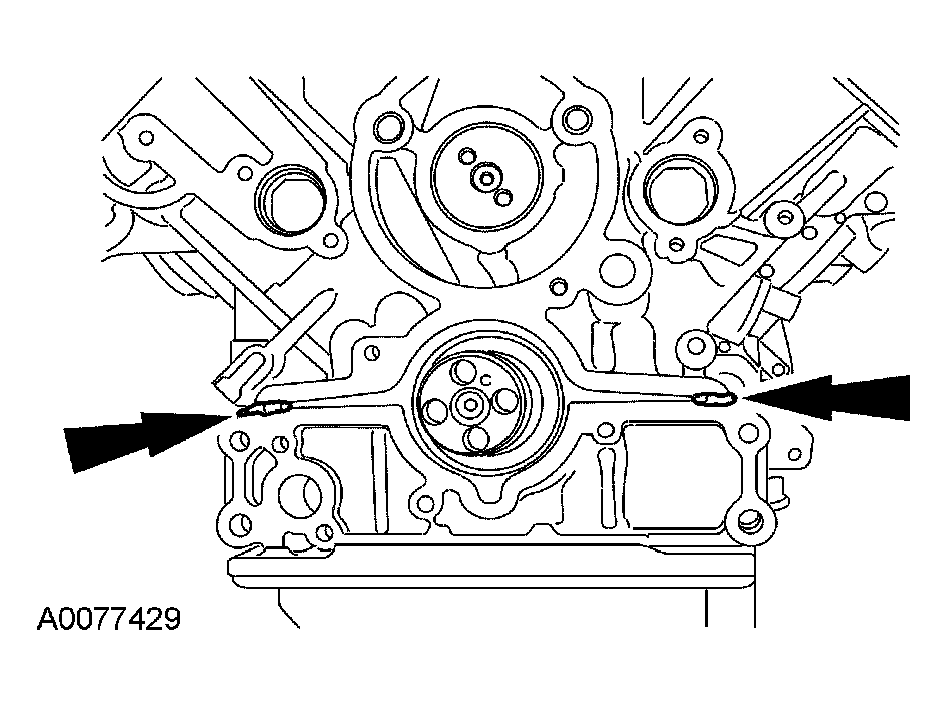

    Fig 3: Applying Bead Of Sealant
    G03899220Courtesy of FORD MOTOR CO.
  5. Install a new engine front cover gasket.

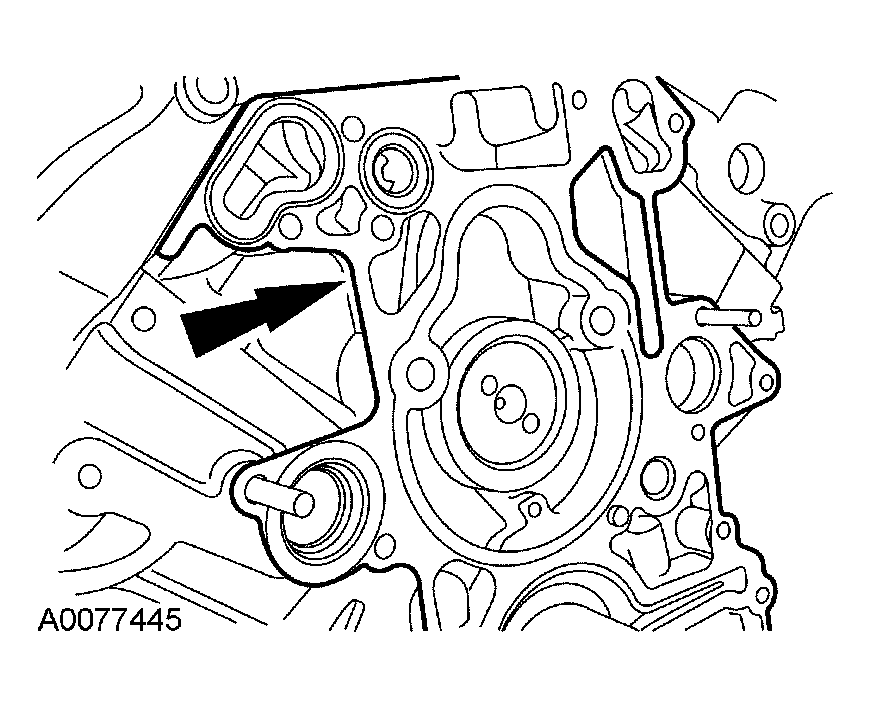

    Fig 4: Installing New Engine Front Cover Gasket
    G03899221Courtesy of FORD MOTOR CO.
  6. Install the engine front cover and bolts.

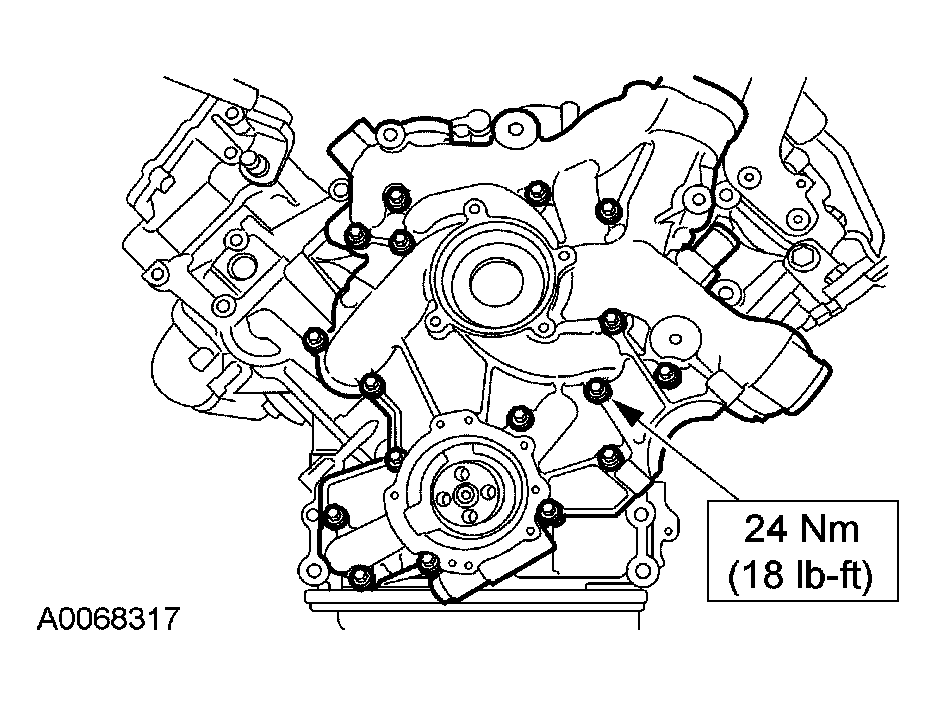

    Fig 5: Installing Engine Front Cover Bolts
    G03899222Courtesy of FORD MOTOR CO.
  7. Install the oil pump. For additional information, refer to OIL PUMP .
  8. Install the battery cable bracket and nut.

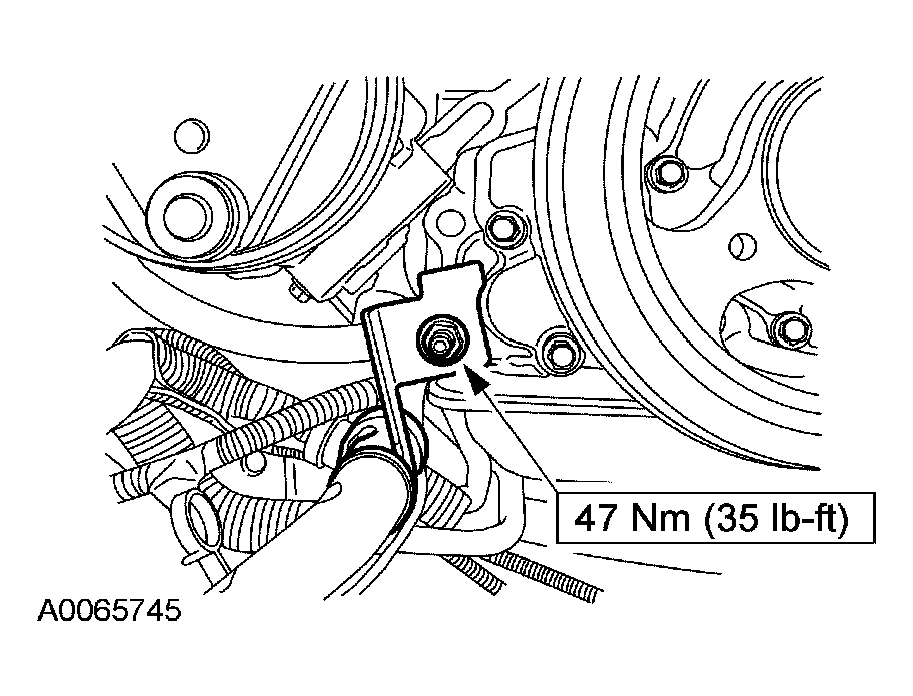

    Fig 6: Installing Battery Cable Bracket Nut
    G03899223Courtesy of FORD MOTOR CO.
  9. NOTE: Install a new O-ring on the coolant pump pulley.

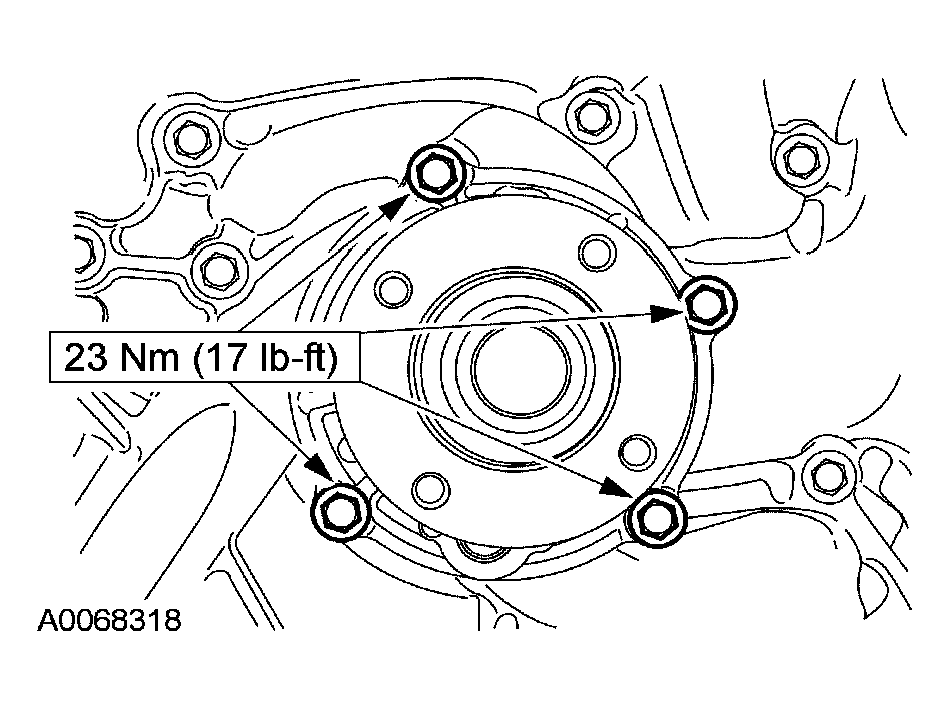

    Fig 7: Installing Coolant Pump Bolts
    G03899224Courtesy of FORD MOTOR CO.
  10. If removed, install the coolant pump and bolts.
  11. If removed, install the coolant pump pulley and bolts.

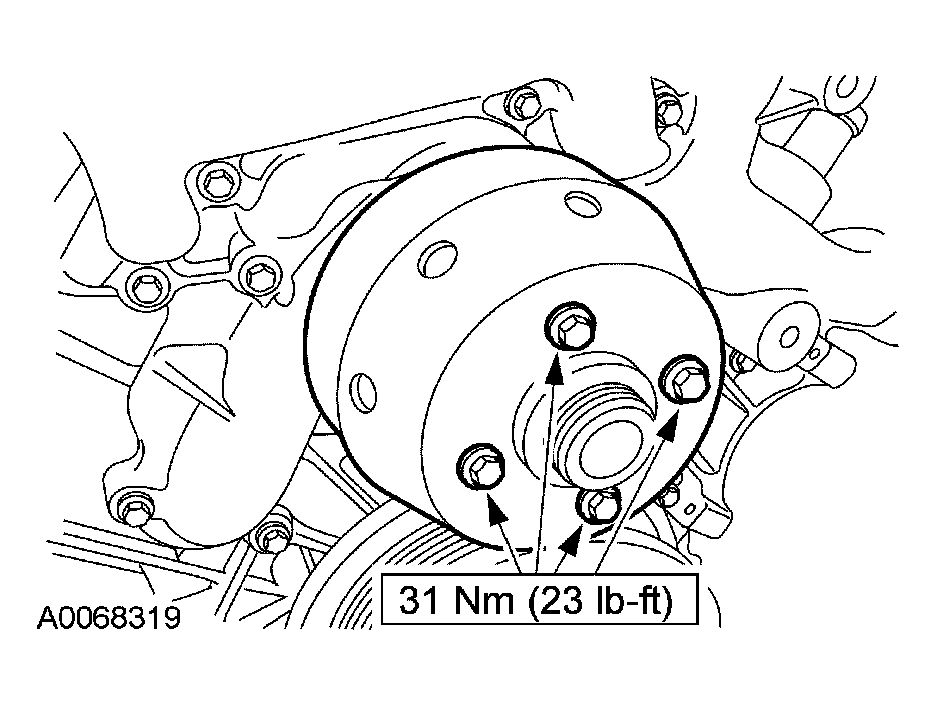

    Fig 8: Installing Coolant Pump Pulley Bolts
    G03899225Courtesy of FORD MOTOR CO.
  12. Install the accessory drive idler pulleys and bolts.

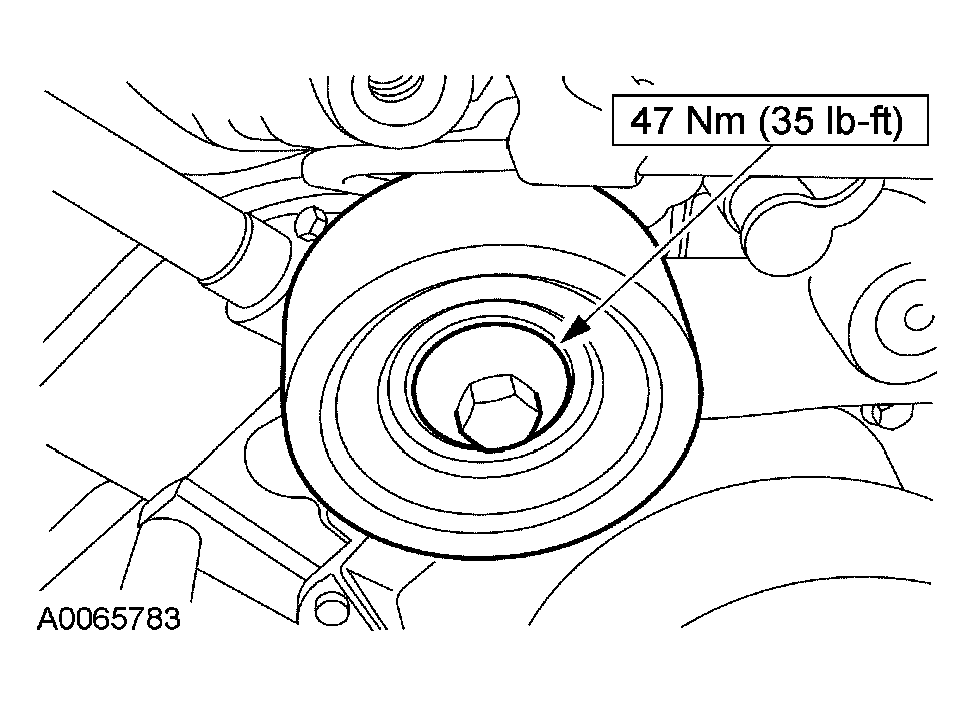

    Fig 9: Installing Accessory Drive Idler Pulleys Bolts
    G03899226Courtesy of FORD MOTOR CO.
  13. Install the accessory drive belt tensioner and bolts.

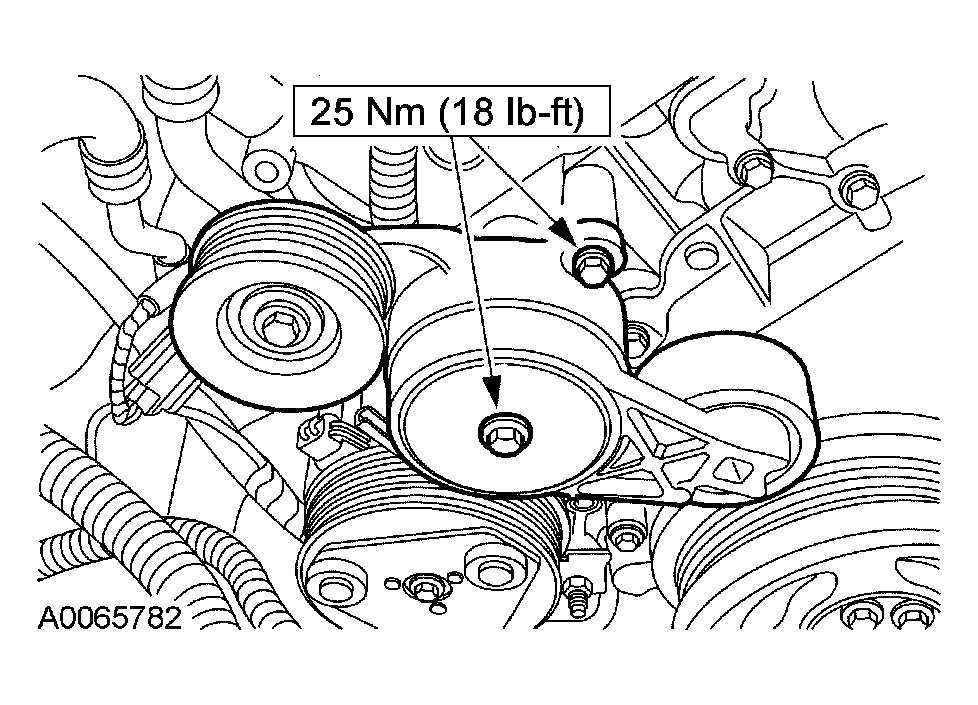

    Fig 10: Installing Accessory Drive Belt Tensioner Bolts
    G03899227Courtesy of FORD MOTOR CO.
  14. Position back the power steering pump and install the bolts.

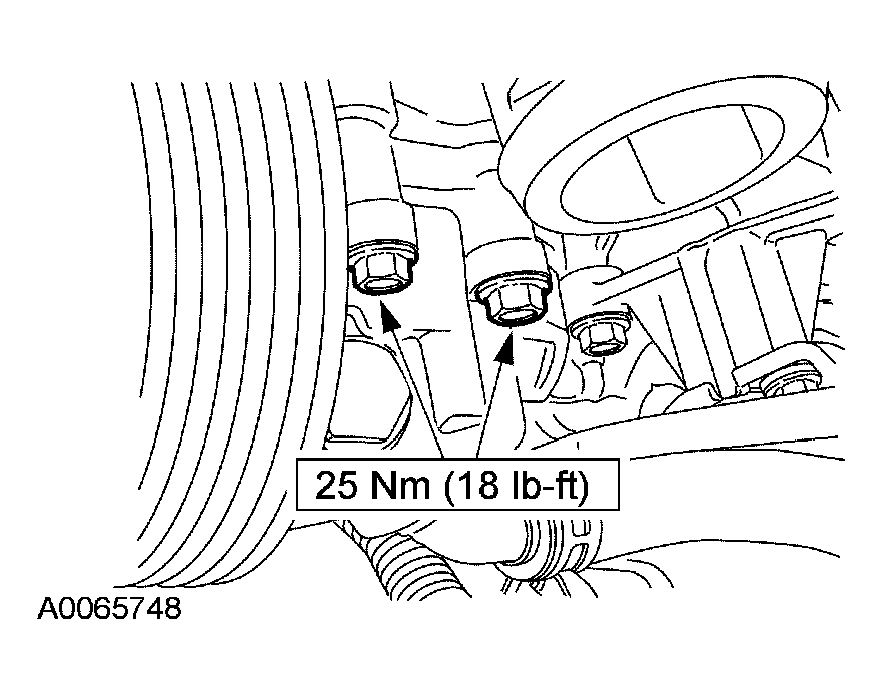

    Fig 11: Installing Power Steering Pump Bolts
    G03899228Courtesy of FORD MOTOR CO.
  15. Install the stator stand-off bolt.

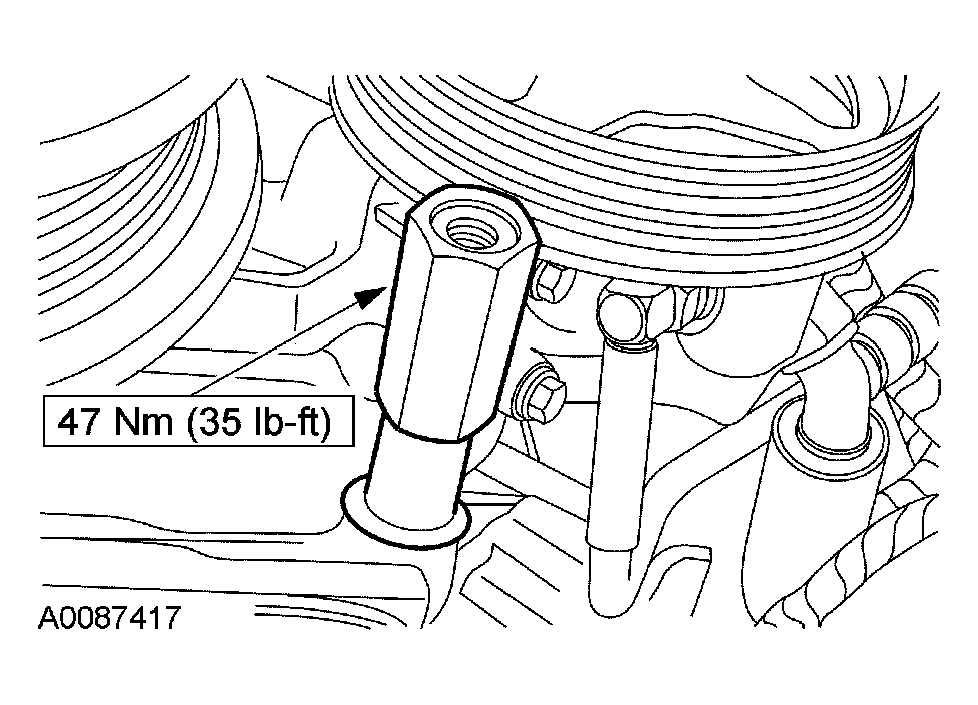

    Fig 12: Installing Stator Stand-Off Bolt
    G03899229Courtesy of FORD MOTOR CO.
  16. Connect the lower radiator coolant hose.

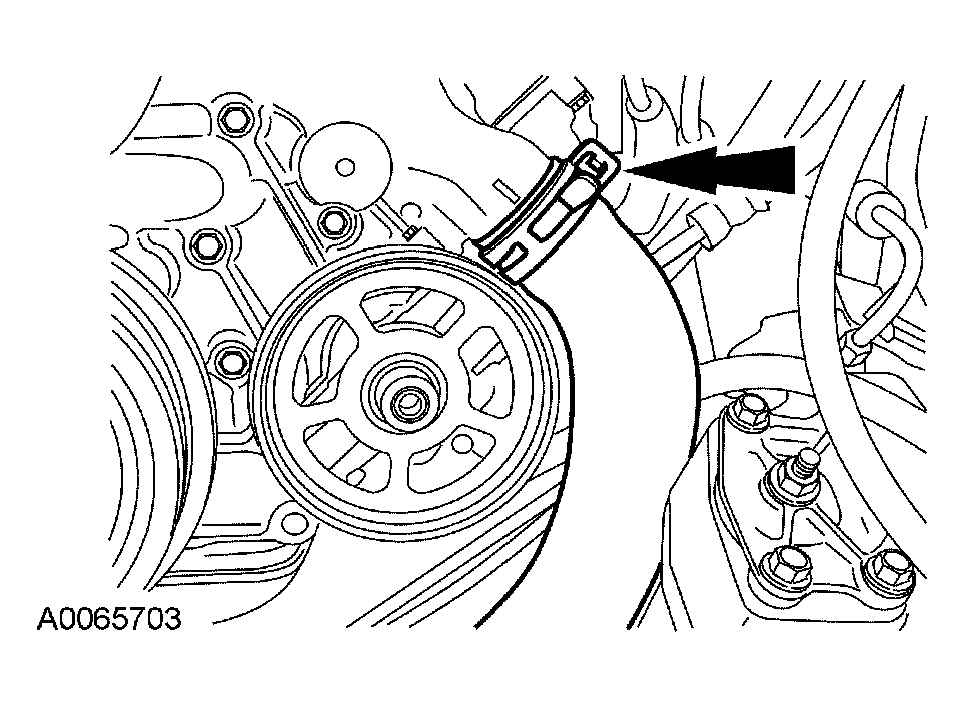

    Fig 13: Connecting Lower Radiator Coolant Hose
    G03899230Courtesy of FORD MOTOR CO.
  17. Connect the engine coolant hose.

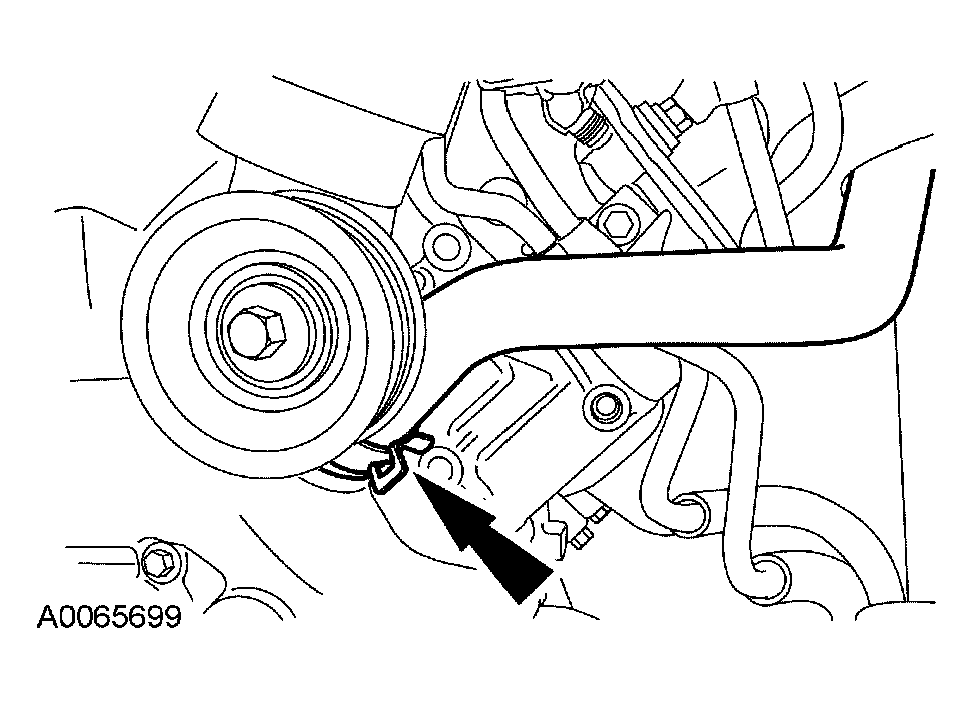

    Fig 14: Connecting Engine Coolant Hose
    G03899231Courtesy of FORD MOTOR CO.
  18. NOTE: Install a new O-ring.

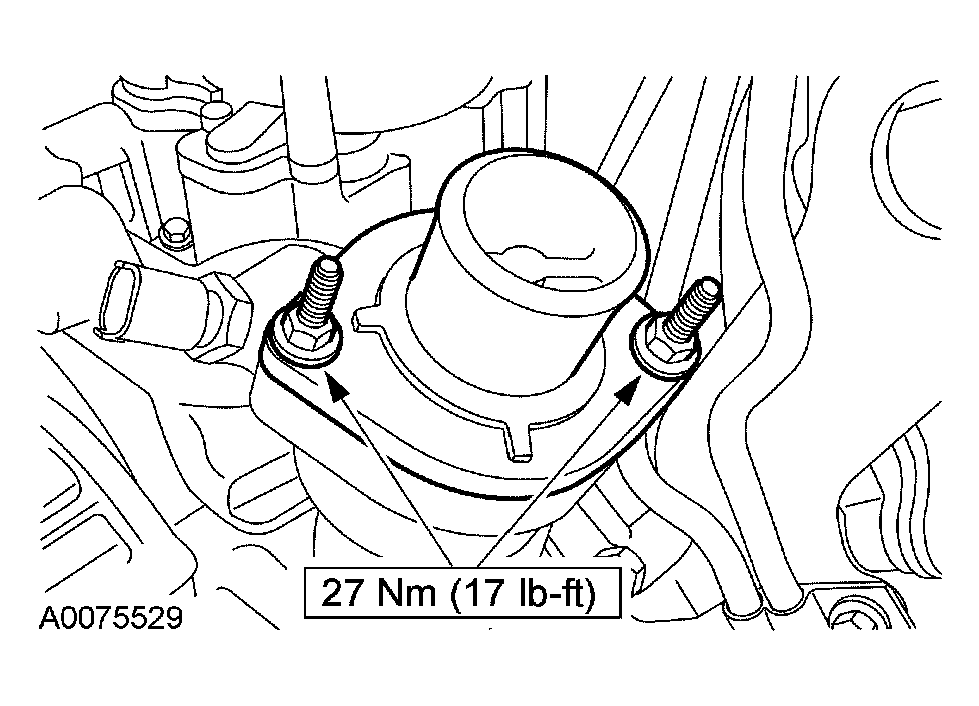

    Fig 15: Installing Thermostat Housing Stud Bolts
    G03899232Courtesy of FORD MOTOR CO.
  19. If removed, install the thermostat housing and stud bolts.
  20. Install the exhaust pressure bracket assembly and retaining nuts.

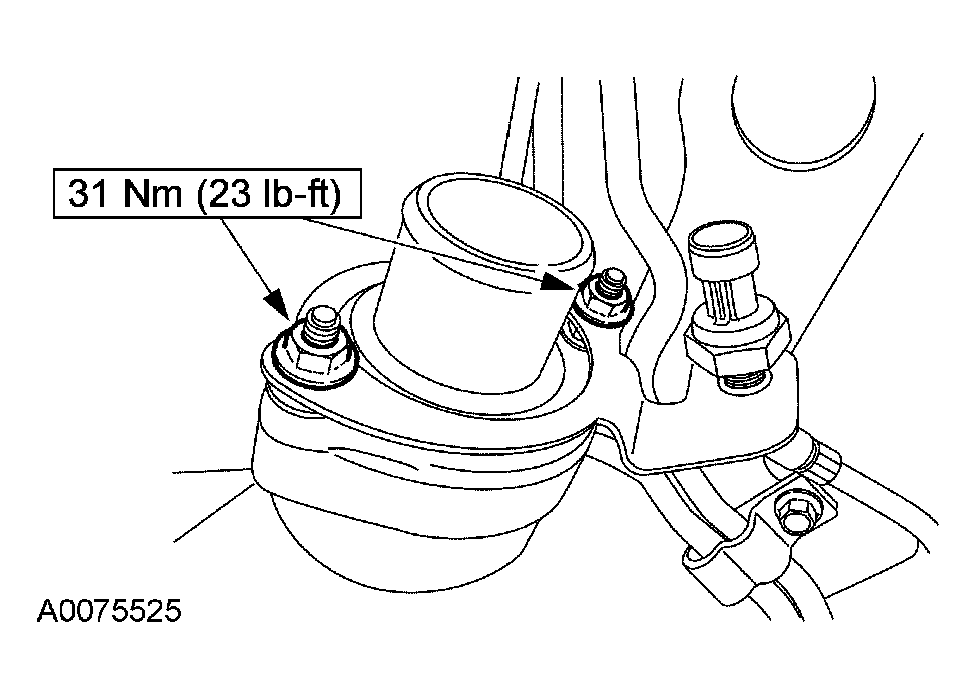

    Fig 16: Installing Exhaust Pressure Bracket Assembly Retaining Nuts
    G03899233Courtesy of FORD MOTOR CO.
  21. Connect the exhaust pressure tube fitting at the exhaust manifold.

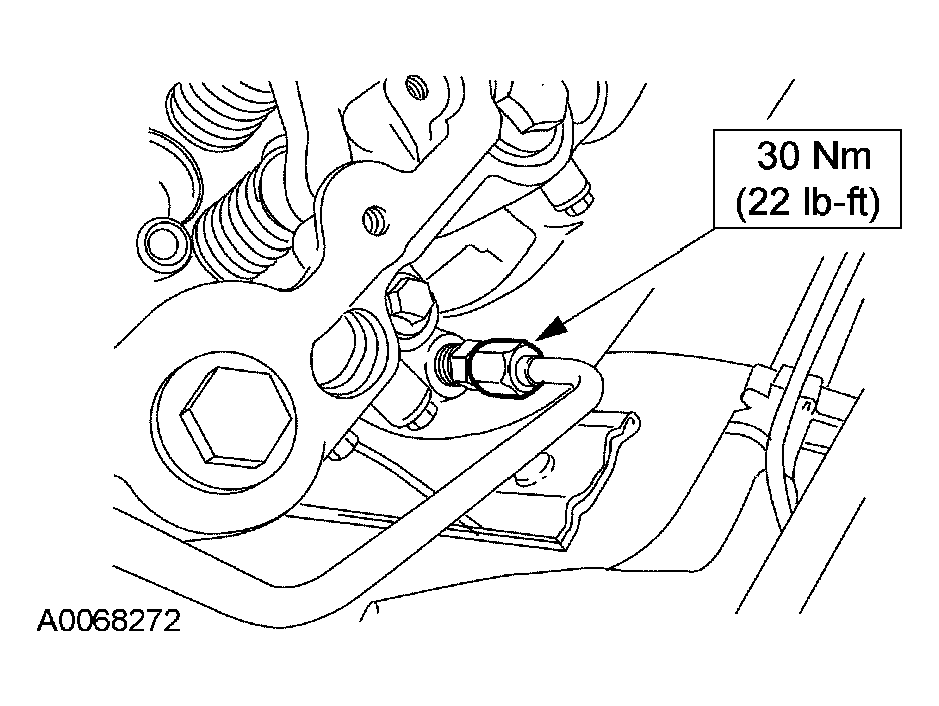

    Fig 17: Connecting Exhaust Pressure Tube Fitting At Exhaust Manifold
    G03899234Courtesy of FORD MOTOR CO.
  22. Install the intake manifold. For additional information, refer to INTAKE MANIFOLD .
