Rocker Arm: Installation

WARNING: This page is about a different variant/trim than selected.
    NOTE: Apply clean engine oil on the valve stems prior to installing the valve bridges.
    Fig 1: Identifying Valve Bridges
    G03887388Courtesy of FORD MOTOR CO.
  1. Install the new valve bridges.
  2. Install the special tool plate and bolt. Tighten the bolt until the plate contacts the top of the tool base.

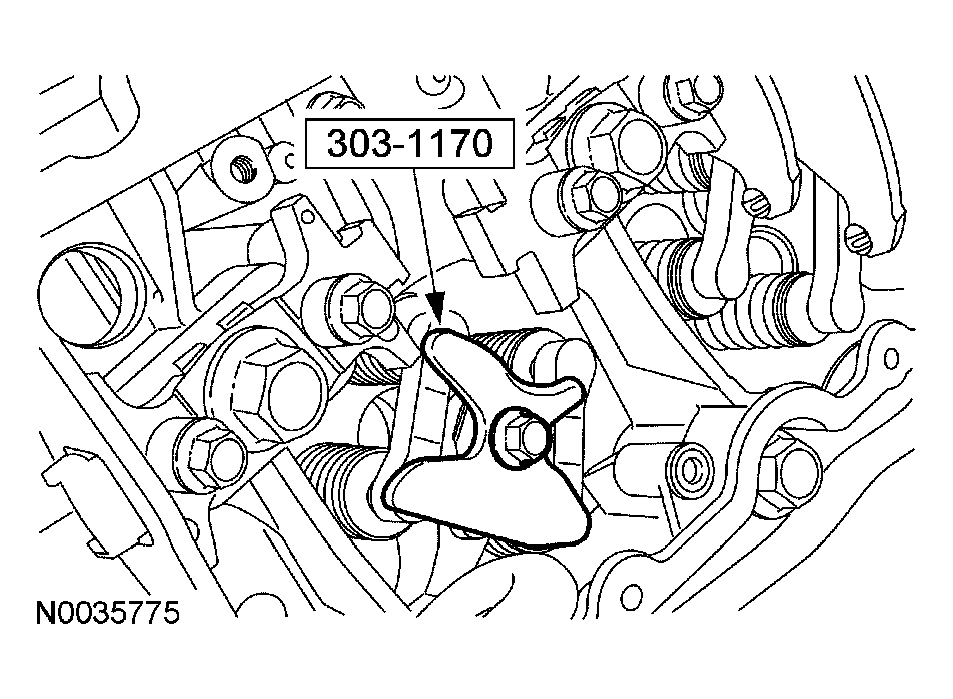

    Fig 2: Installing Special Tool
    G03899268Courtesy of FORD MOTOR CO.
  3. CAUTION: To prevent engine damage, keep the push rods in the order in which they were removed. Install all push rods back in their original positions.
    NOTE: Higher mileage engines require push rods to be cleaned so that the copper-colored end of the push rod can be identified.
    NOTE: If a push rod has been replaced, it may not have a copper-colored end and can be installed with either end up.
    Fig 3: Identifying Push Rods
    G03887392Courtesy of FORD MOTOR CO.
  4. Apply clean engine oil to each end of the push rods. Insert them into their respective positions with the copper-colored end up.
  5. Place a dab of multi-purpose grease in the fulcrum socket to hold the ball in place while installing the rocker arms.
    Fig 4: Placing Dab Of Multi-Purpose Grease In Fulcrum Socket
    G03899270Courtesy of FORD MOTOR CO.
  6. NOTE: Apply clean engine oil to the top center of the valve bridges prior to installing the rocker arms.
    NOTE: Always replace the rocker arm retaining clip with the same color clip.
    Fig 5: Locating Rocker Arm Retaining Clip
    G03887385Courtesy of FORD MOTOR CO.
  7. Insert the rocker arm under the fulcrum and ball, rotate the rocker arm into place and position onto the push rod. Install a new rocker arm retaining clip.
    • Repeat the step for the other rocker arm.
  8. Remove the special tool bolt and plate.
    • Make sure the rocker arms remain in place and the fulcrum ball has not fallen out.

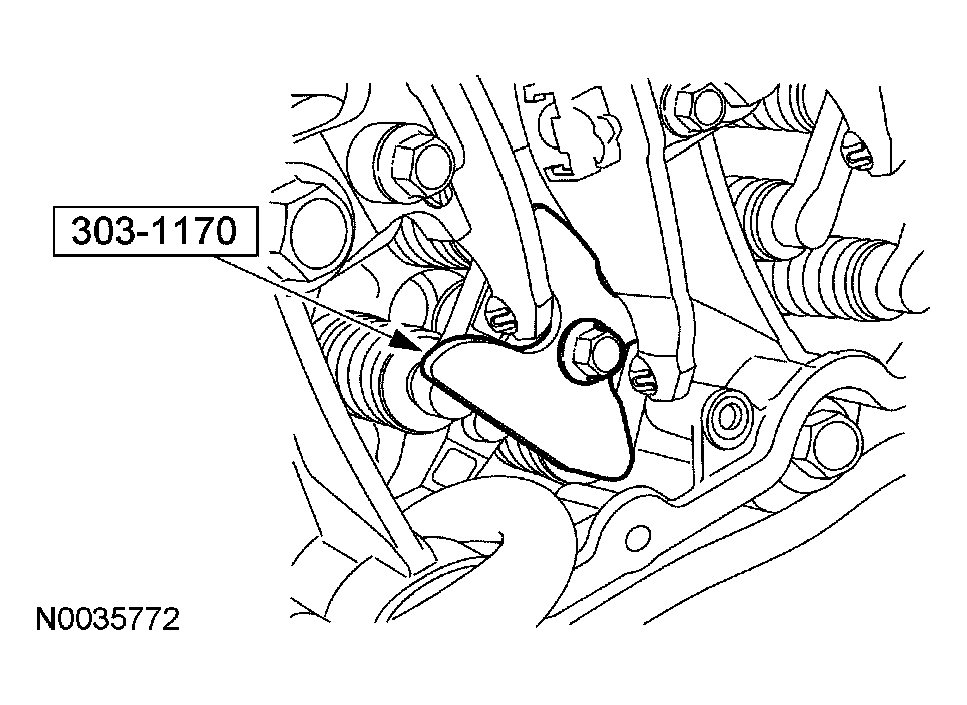

    Fig 6: Removing Special Tool Bolt And Plate
    G03899272Courtesy of FORD MOTOR CO.
  9. Remove the rubber hose from the oil drain holes.

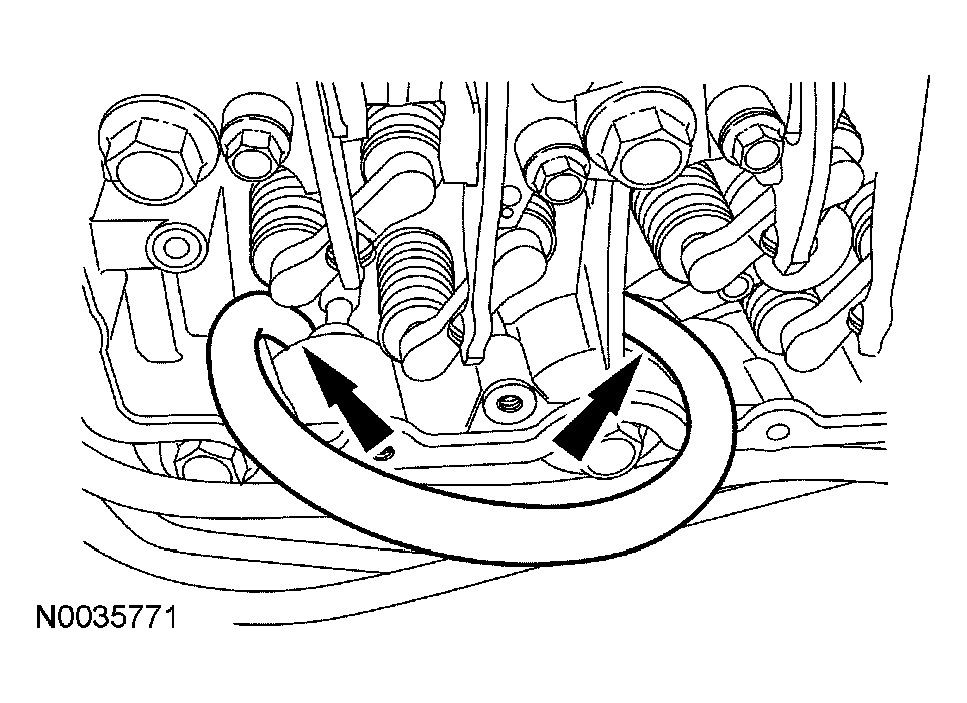

    Fig 7: Removing Rubber Hose From Oil Drain Holes
    G03899273Courtesy of FORD MOTOR CO.
  10. Remove the injector hold down and special tool base.

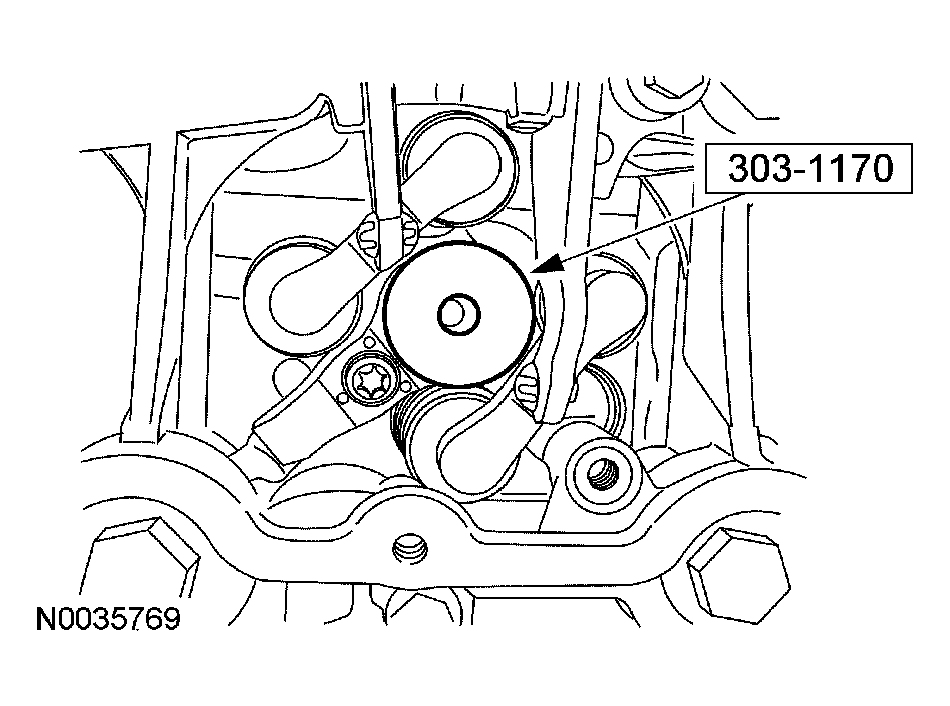

    Fig 8: Removing Injector Hold Down And Special Tool Base
    G03899274Courtesy of FORD MOTOR CO.
  11. Install the fuel injectors. For additional information, refer to FUEL INJECTORS .
