| Air Conditioning Compressor Bolts |
18 (25) |
| A/C Manifold Bolt |
15 (21) |
| Alternator Mounting Bracket Bolts (Dual Alternators) |
35 (47) |
| Banjo Fitting Bolt |
28 (38) |
| Battery Cable Nut |
9 (12) |
| Battery Crossover Cable Nut |
9 (12) |
| Battery Ground Cable-To-Engine Block Bolts |
35 (47) |
| Belt Idler Pulley Bolts |
35 (47) |
| Belt Tensioner Bolts |
18 (25) |
| Cam Follower Mounting Bolt |
10 (13) |
| Camshaft Thrust Plate Mounting Bolts |
23 (31) |
| Connecting Rod Bearing Bolts |
| Step 1 |
33 (45) |
| Step 2 |
50 (68) |
| Coolant Heater |
30 (40) |
| Coolant Pump Mounting Bolt |
17 (23) |
| Coolant Pump Pulley Bolts |
23 (31) |
| Cooling Fan Stator Bolts |
30 (40) |
| Crankshaft Pulley Bolts (Dual Alternators) |
35 (47) |

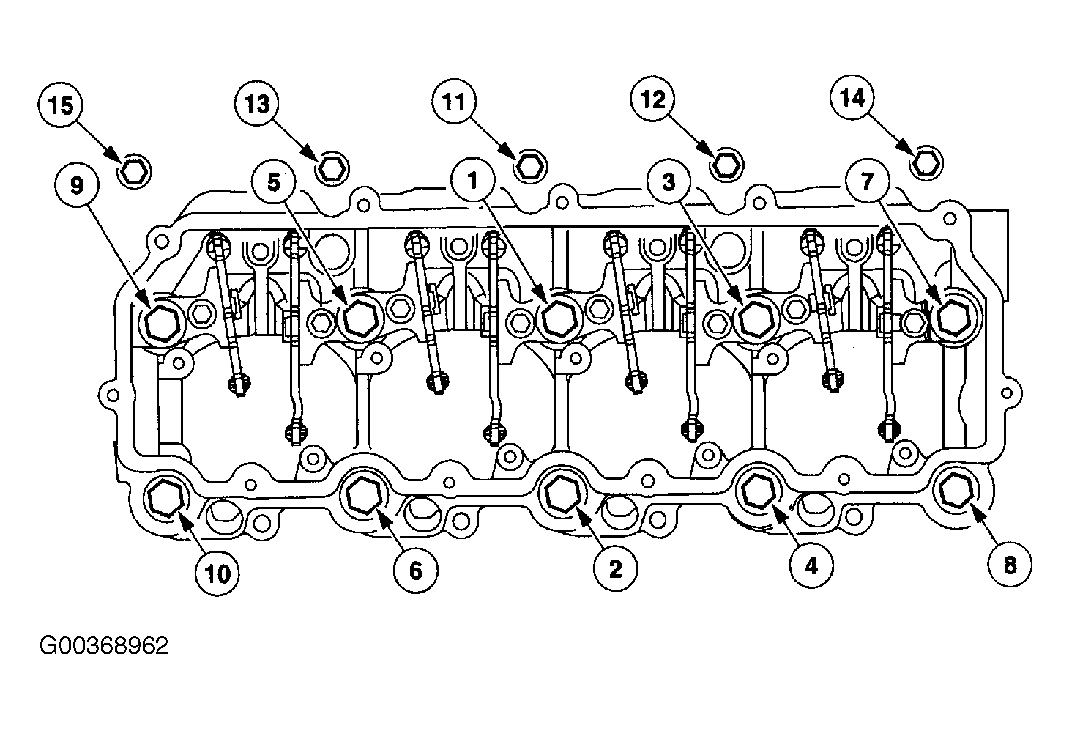

| Cylinder Head Bolt |
| Step 1: Bolts 1-10 |
65 (88) |
| Step 2: Bolts 1, 3, 5, 7 & 9 |
85 (115) |
| Step 3: Bolts 1-10 |
Additional 90 Degrees |
| Step 4: Bolts 1-10 |
Another 90 Degrees |
| Step 5: Bolts 1-10 |
Another 90 Degrees |
| Step 6: Bolts 11-15 |
18 (25) |
| Step 7: Bolts 11-15 |
23 (31) |
| EGR Cooler Bolts (M8 x 16) |
23 (31) |
| EGR Cooler Stud Bolts (M6 x 55 x 20) |
10 (13) |
| EGR Valve Mounting Bolts |
10 (13) |
| Engine Coolant Temperature Sensor |
9 (12) |
| Exhaust Back Pressure Sensor |
9 (12) |
| Exhaust Back Pressure Sensor Bracket |
9 (12) |
| Exhaust Back Pressure Tube Assembly |
22 (30) |
| Exhaust Manifold Flange Bolts |
28 (38) |
| Exhaust Tube-To-Exhaust Manifold Flange Bolts |
20 (27) |
| Fan Clutch Hub-To-Coolant Pump |
98 (133) |
| Flywheel/Flexplate Mounting Bolts |
69 (94) |
| Front Cover Module Bolts |
18 (25) |
| Front & Rear Lifting Eye |
30 (40) |
| Fuel Filter Plug Assembly (Back Of Head) |
20 (27) |
| Fuel Injector Hold-Down Bolt |
24 (33) |
| Fuel Supply & Return Tubes At Filter |
32 (43) |
| Glow Plug |
14 (19) |
| Head Supply Tubes At Filter |
19 (26) |
| High Pressure Oil Pump Mounting Bolts |
18 (24) |
| High Pressure Tube (Case-To-Head) |
33 (45) |
| ICP Sensor |
9 (12) |
| Injection Control Pressure Sensor |
9 (12) |
| Injection Pressure Regulator Valve |
37 (50) |

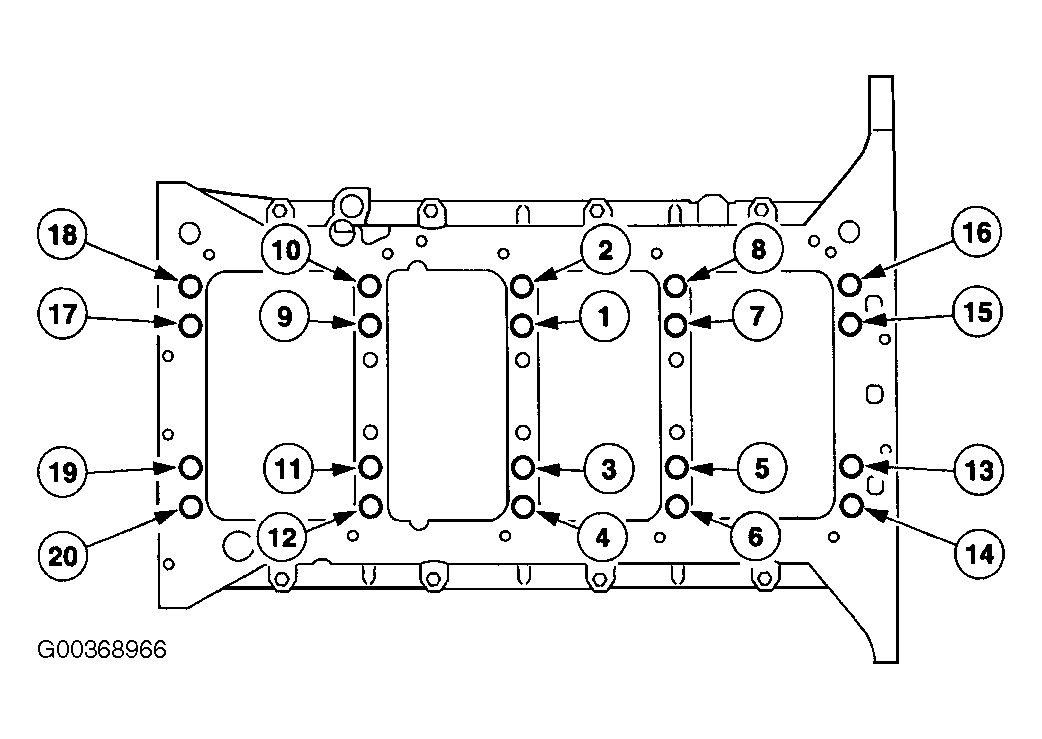

| Lower Crankcase Main Bearing Cap Bolts |
| Step 1 |
110 (149) |
| Step 2 |
130 (176) |
| Step 3 |
170 (231) |

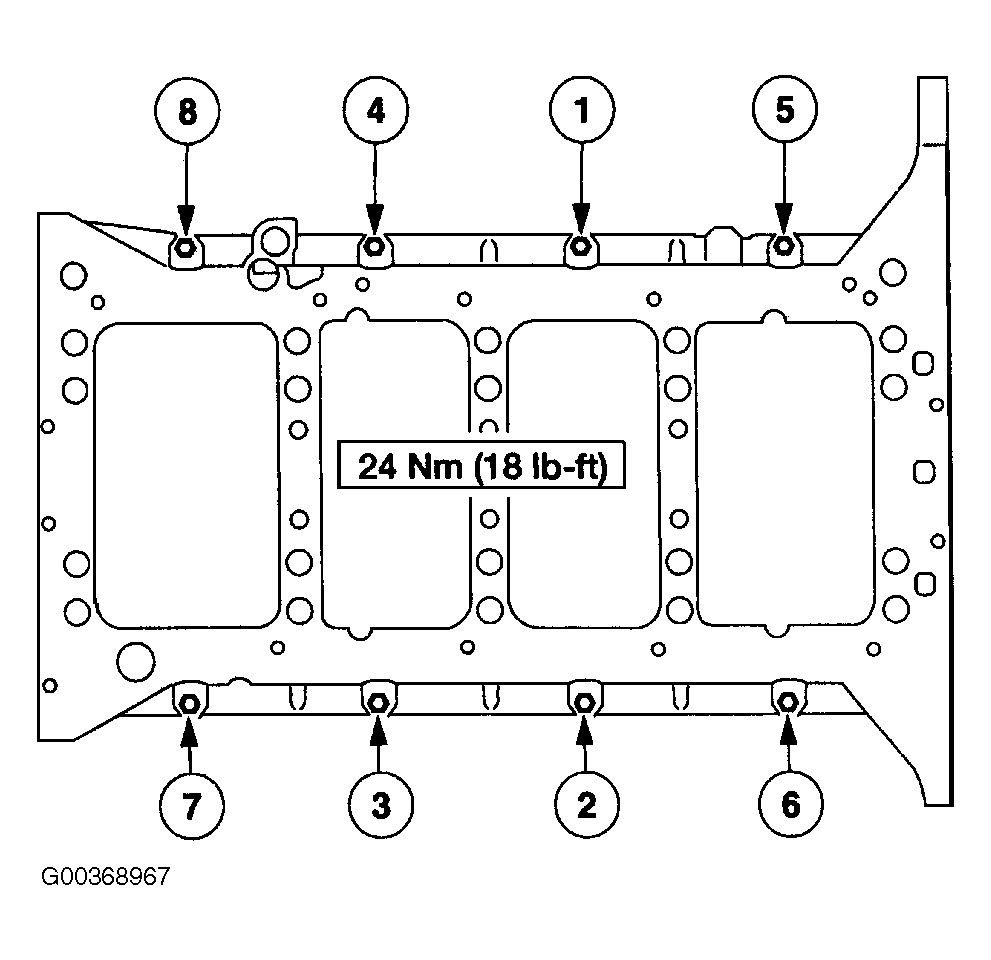

| Lower Crankcase Outer Bolts (M8 x 30) |
18 (25) |
| Lower Oil Pan Bolt |
10 (13) |
| Manifold Air Temperature Sensor |
13 (17) |
| Motor Mount Nuts |
83 (112) |
| Oil Cooler Mounting Bolts |
| 6 mm |
|
| 8 mm |
16 (22) |
| Oil Drain Pan Plug |
18 (25) |
| Oil Filter Housing Bolts (Torx) |
11 (15) |
| Oil Pickup Tube Flange Bolts |
10 (13) |
| Oil Rail Check Valve |
25 (34) |
| Piston Cooling Jet Mounting Bolt |
10 (13) |
| Power Steering Pump Bolt |
18 (25) |
| Rear Heat Shield |
| M6 x 1.0 x 12 |
|
| M10 x 1.5 x 16 |
36 (49) |
| Rocker Arm Fulcrum Plate |
23 (31) |
| Starter Mounting Bolts |
18 (25) |
| Starter Positive Cable Nut |
9 (12) |
| Thermostat Housing Retaining Bolts |
17 (23) |
| Torque Converter Nut |
26 (35) |
| Transmission-To-Engine Bolts |
35 (47) |
| Turbocharger Exhaust Adapter V-Clamp |
9 (12) |
| Turbocharger Flange-To-Exhaust/EGR Tube Bolts |
20 (27) |
| Turbocharger Mounting Bolts |
28 (38) |
| Turbocharger Oil Supply Tube Bolts |
18 (25) |
| Turbocharger Pedestal Bolts |
23 (31) |
| Turbo Down Pipe Bolts |
30 (40) |
| Upper Oil Pan Bolts (M6) |
10 (13) |
| Upper Oil Pan Bolts (M8) |
23 (31) |

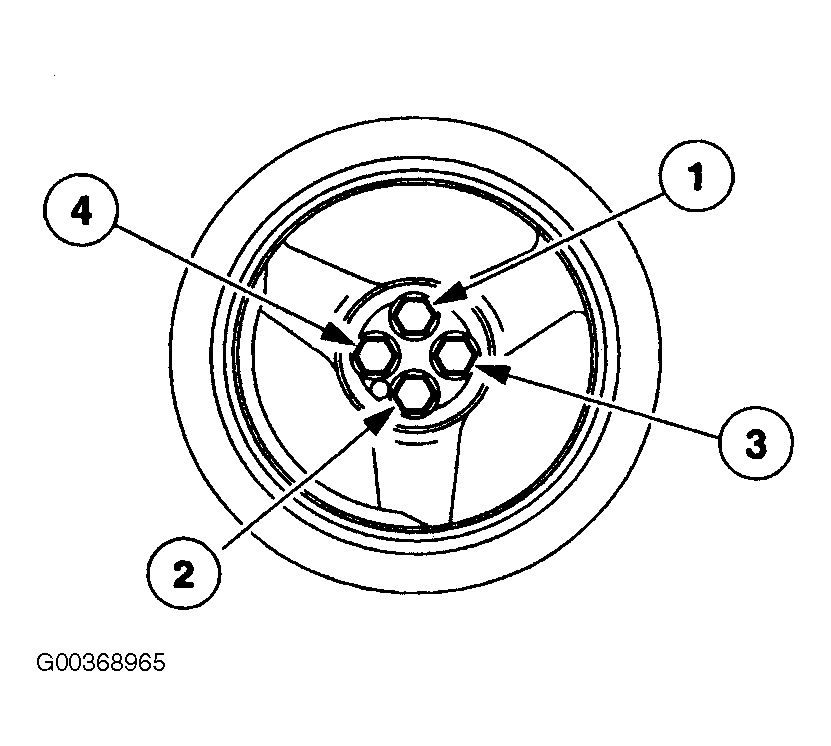

| Vibration Damper Mounting Bolts |
| Step 1 |
50 (68) |
| Step 2 |
Additional 90 Degrees |
| INCH Lbs. (N.m) |
| Air Inlet Duct Clamp |
44 (5) |
| Automatic Transmission Tube Nut |
71 (8) |
| Camshaft Position Sensor |
96 (11) |
| Crankcase Breather Nuts |
62 (7) |
| Crankshaft Position Sensor |
96 (11) |
| EGR Clamp (V-Band) |
53 (6) |
| EGR Cooler Coolant Supply Port Cover |
89 (10) |
| Engine Ground Strap Bolt |
89 (10) |
| Glow Plug Relay |
96 (11) |
| High Pressure Oil Pump Cover Bolts |
96 (11) |
| High Pressure Oil Pump Discharge Tube Mounting Bolts (Top Of Pipe) |
71 (8) |
| Intake Manifold Flange Bolts |
96 (11) |
| Intake Manifold Heat Shield |
96 (11) |
| Oil Filter Return Tube Bolt (New Base) |
44 (5) |
| Oil Filter Return Tube Bolt (Reinstallation) |
27 (3) |
| Oil Pump Housing Retaining Bolts |
71 (8) |
| Oil Rail Assembly |
96 (11) |
| Oil Rail Vent Plugs |
96 (11) |
| Power Steering Cooler Bolts |
96 (11) |
| Solenoid Wire Nut |
53 (6) |
| Starter Control Wire Nut |
53 (6) |
| Transmission Tubes Mounting Bracket Bolts |
89 (10) |
| Transmission Cooler Bolts |
71 (8) |
| Valve Cover Bolts & Studs |
71 (8) |
