Section 18 (Engine - 5.4L 2V): Assembly: Engine: Material(s)

WARNING: This page is about a different variant/trim than selected.
Fig 1: Identifying Materials (1 Of 2)
G01548734Courtesy of FORD MOTOR CO.

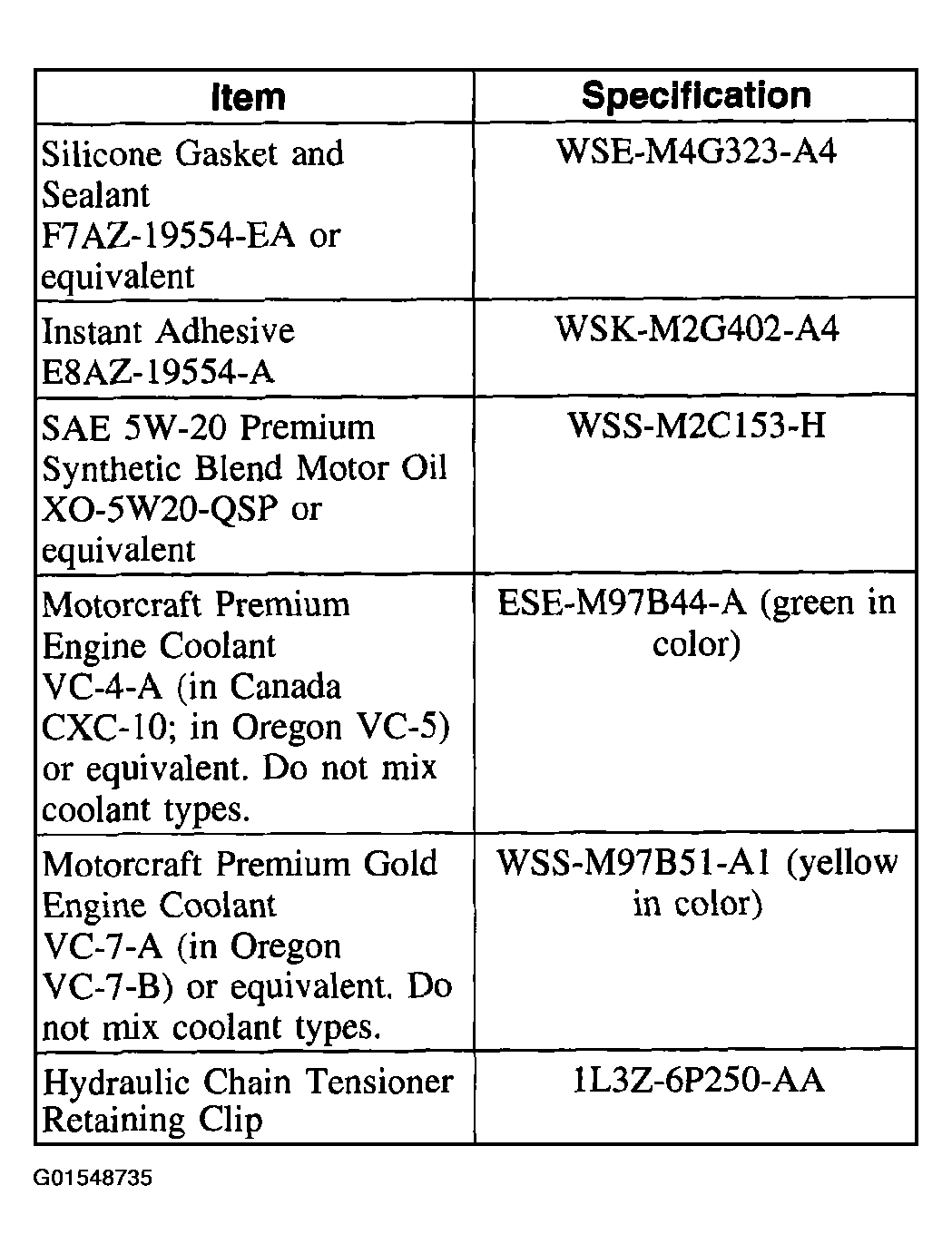

Fig 2: Identifying Materials (2 Of 2)
G01548735Courtesy of FORD MOTOR CO.
