Timing Drive Components: Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Since the engine is not free-wheeling, the timing procedures must be followed exactly or piston and valve damage can occur.

Remove the engine front cover. Refer to Engine Front Cover .

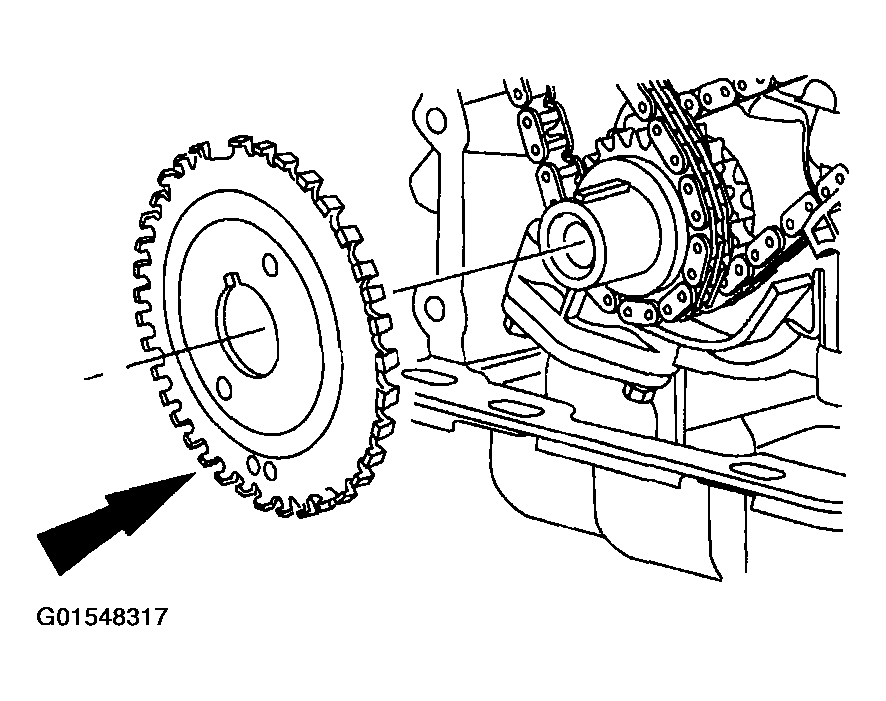

Remove the crankshaft sensor ring from the crankshaft.

Fig 1: Removing Crankshaft Sensor Ring From Crankshaft
Courtesy of FORD MOTOR CO.

CAUTION: Unless otherwise instructed, at no time when the timing chains are removed and the cylinder heads are installed is the crankshaft or camshaft to be rotated. Severe piston and valve damage will occur.

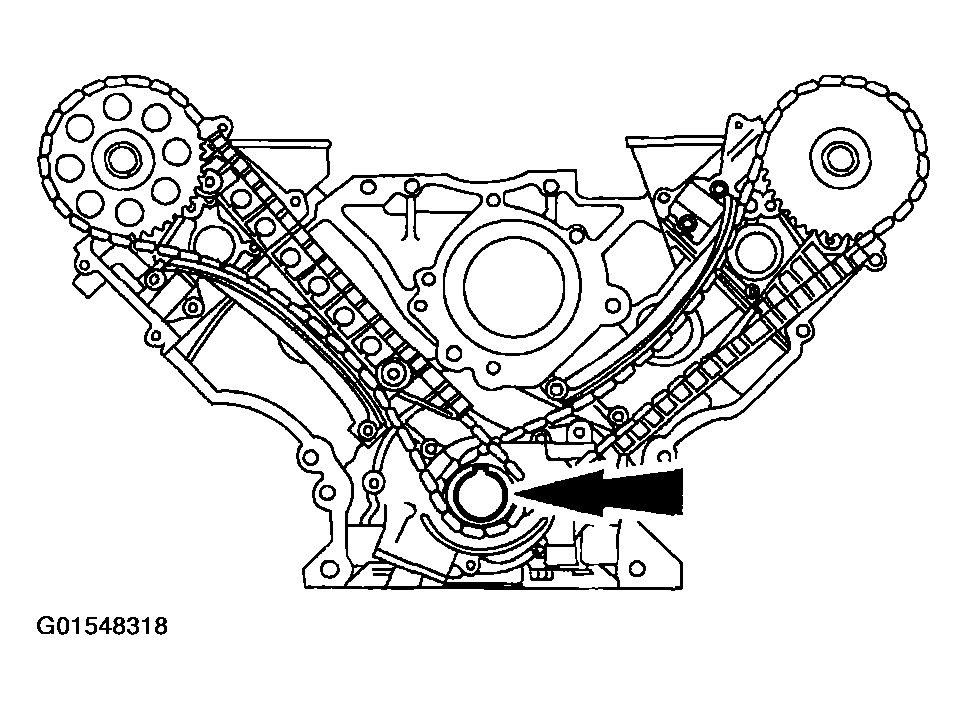

Fig 2: Positioning Crankshaft With Keyway At 12 O'Clock Position

Courtesy of FORD MOTOR CO.

Position the crankshaft with the keyway at the 12 o'clock position.

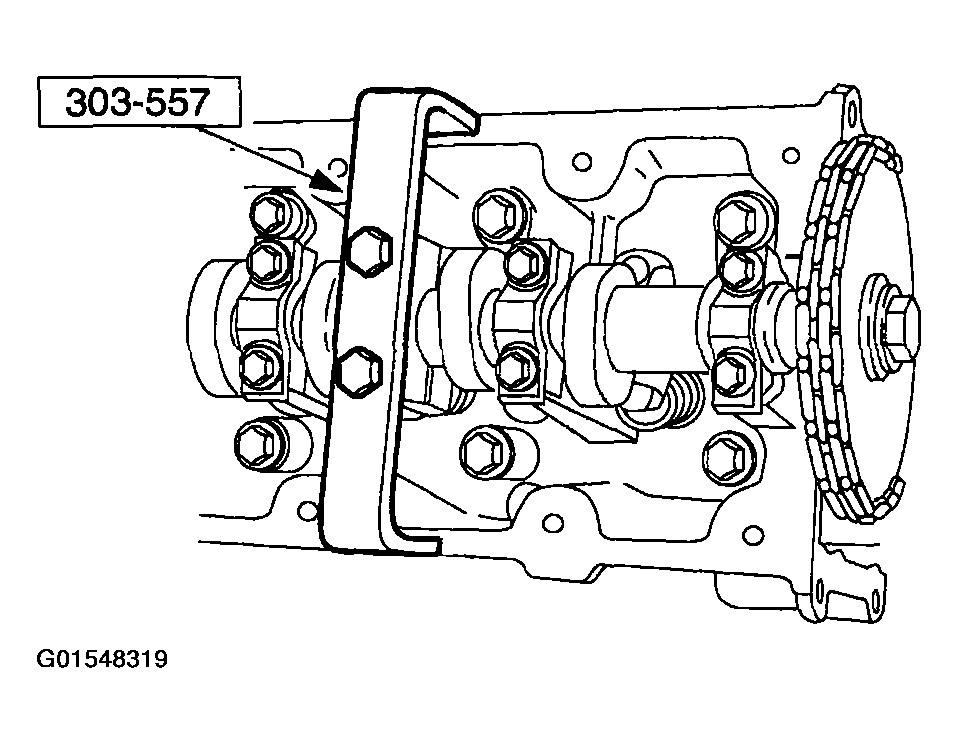

Install and fully tighten the special tools on both camshafts.

Fig 3: Tightening Special Tools On Both Camshafts
Courtesy of FORD MOTOR CO.

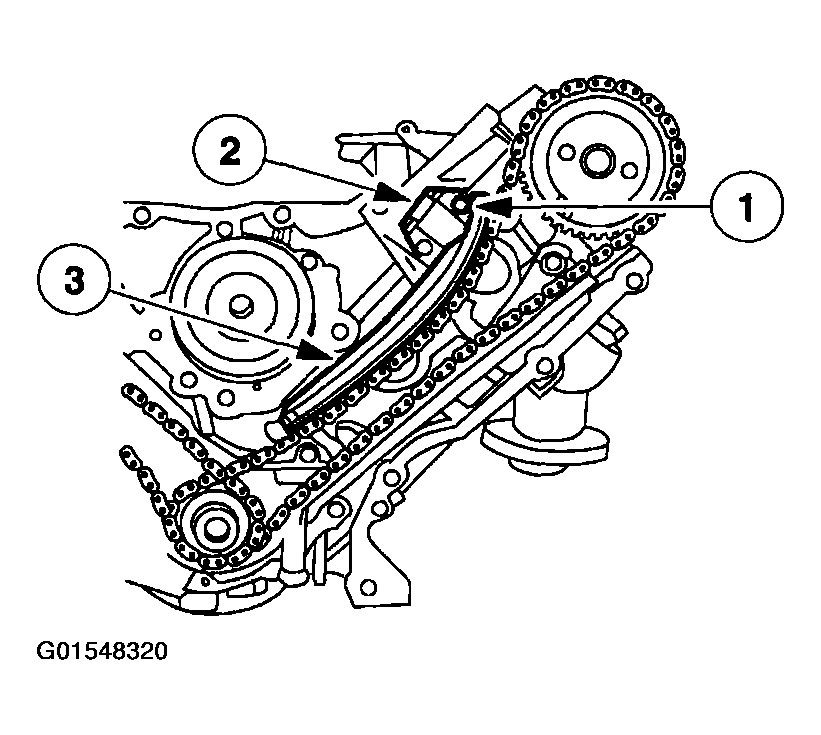

Remove the timing chain tensioning system from both timing chains.
1. Remove the bolts.
2. Remove the timing chain tensioners.
3. Remove the timing chain tensioner arms.
Fig 4: Removing Timing Chain Tensioner Arms
Courtesy of FORD MOTOR CO.

CAUTION: Unless otherwise instructed, at no time when the timing chains are removed and the cylinders heads are installed is the crankshaft or camshaft to be rotated. Severe piston and valve damage will occur.

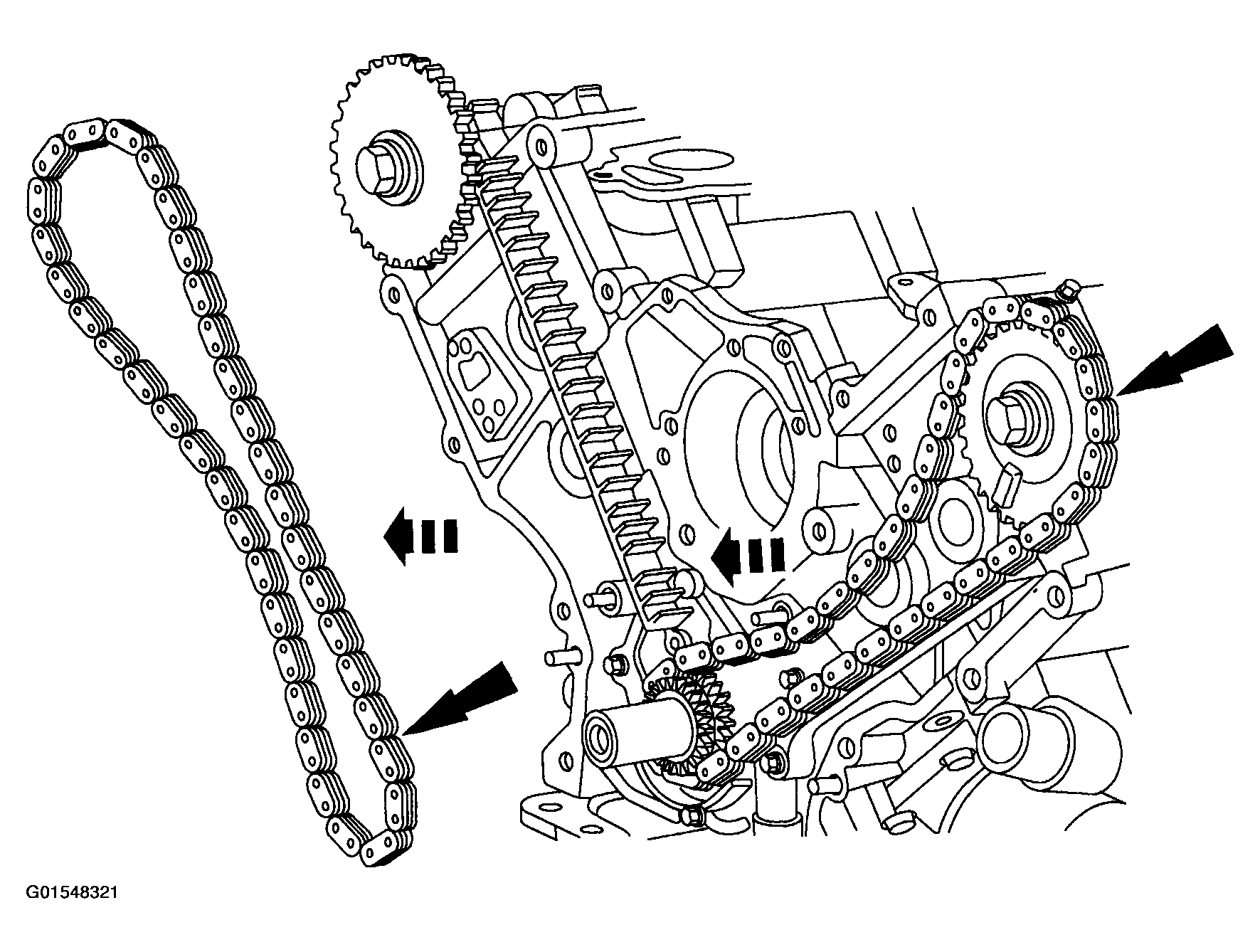

Fig 5: Removing RH And LH Timing Chains And Crankshaft Sprocket

Courtesy of FORD MOTOR CO.

Remove the RH and LH timing chains and the crankshaft sprocket.
- Remove the RH timing chain from the camshaft sprocket.
- Remove the RH timing chain and from the crankshaft sprocket.
- Remove the LH timing chain from the camshaft sprocket.
- Remove the LH timing chain and crankshaft sprocket.

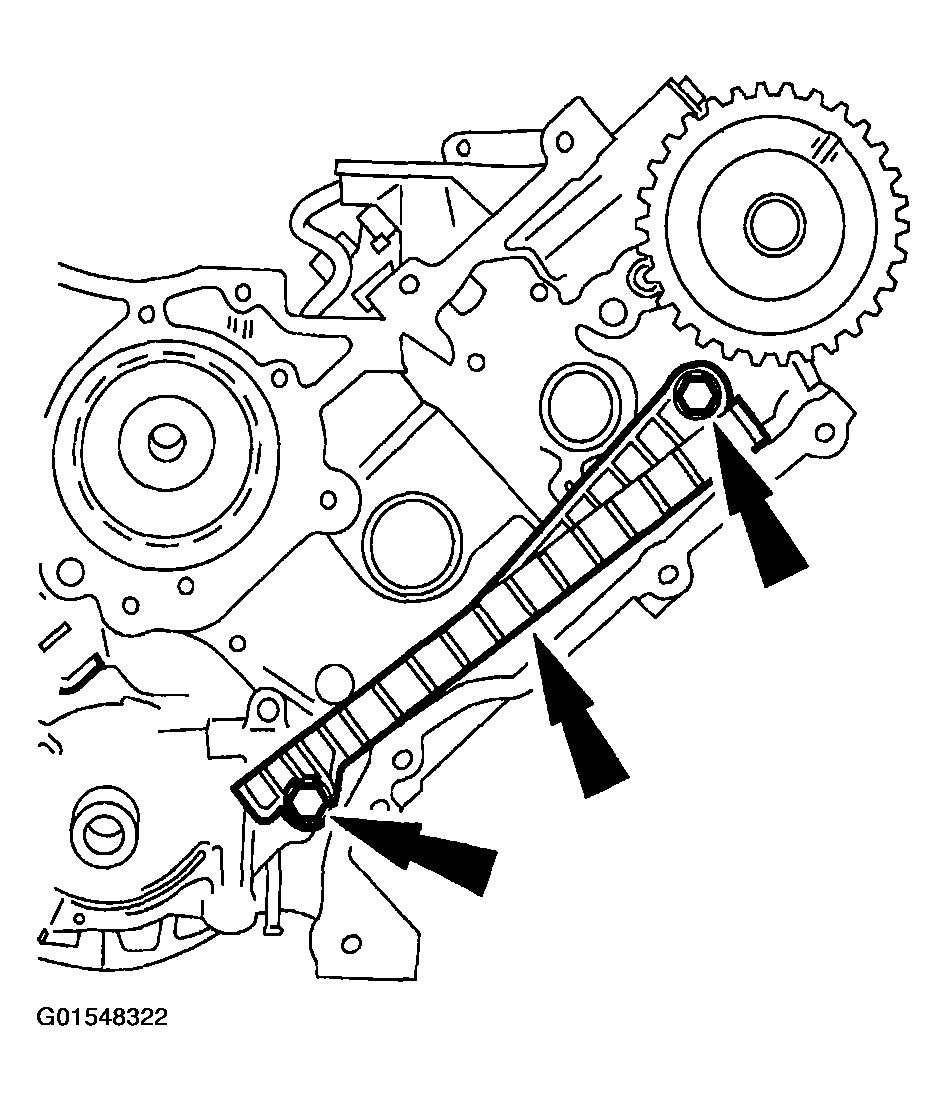

Remove both timing chain guides.
- Remove the bolts.
- Remove both timing chain guides.
Fig 6: Removing Both Timing Chain Guides
Courtesy of FORD MOTOR CO.
