Torque Converter End Play Check

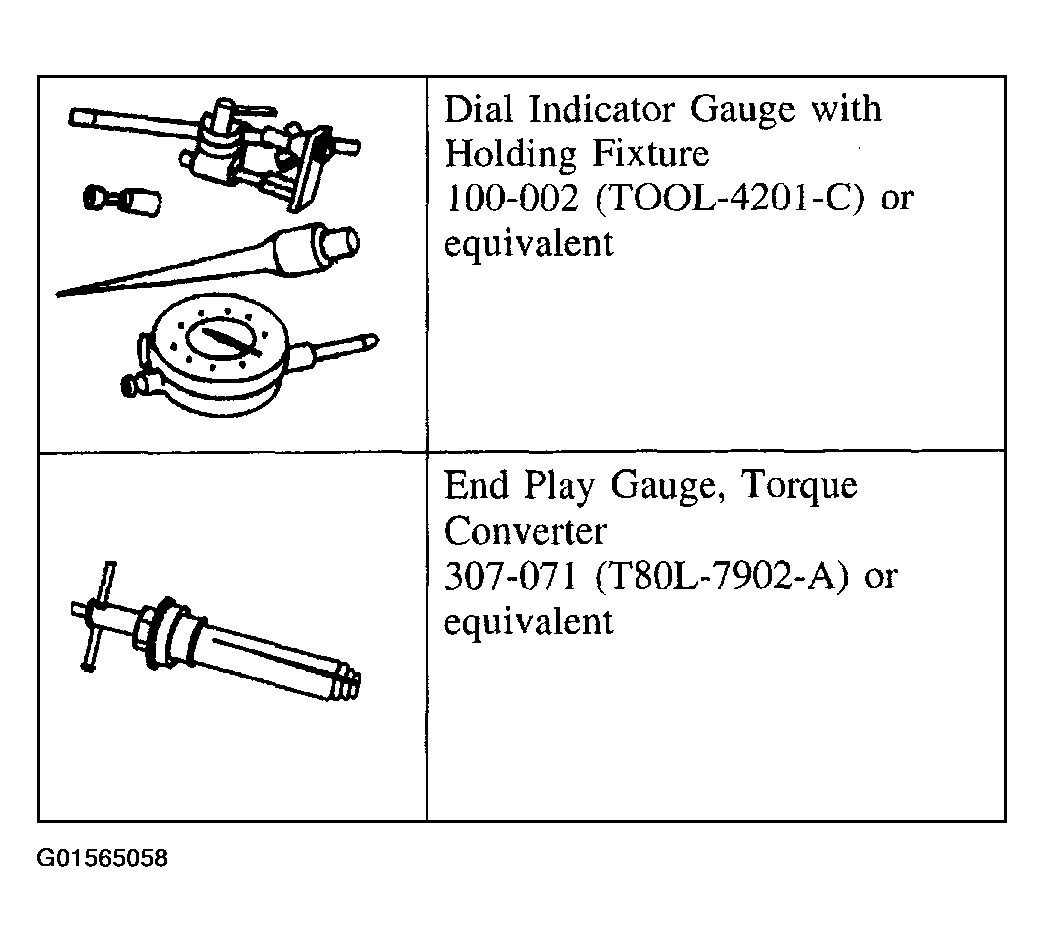

Fig 1: Identifying Special Tools

Courtesy of FORD MOTOR CO.

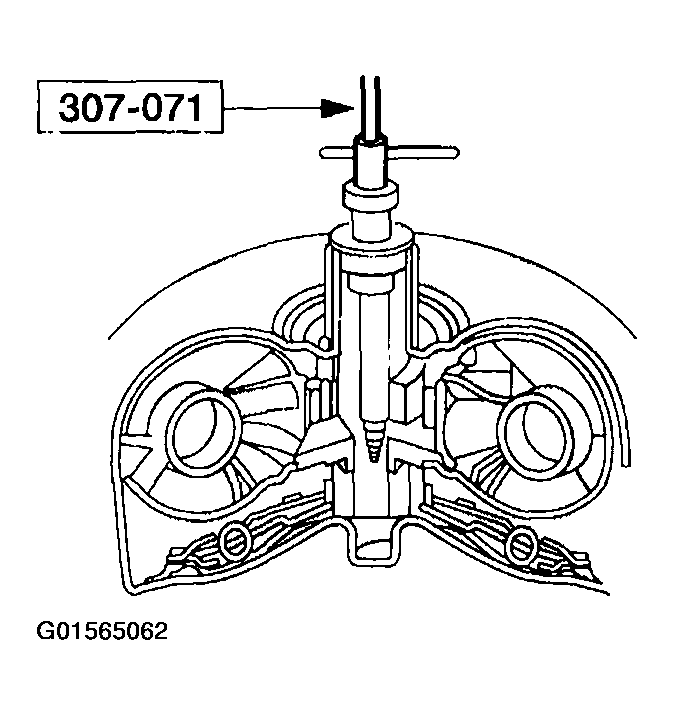

Install the special tool into the torque converter pump drive.
- Tighten the inner post until the tool is securely locked.

  Fig 2: Installing Special Tool Into The Torque Converter Pump Drive
  Courtesy of FORD MOTOR CO.

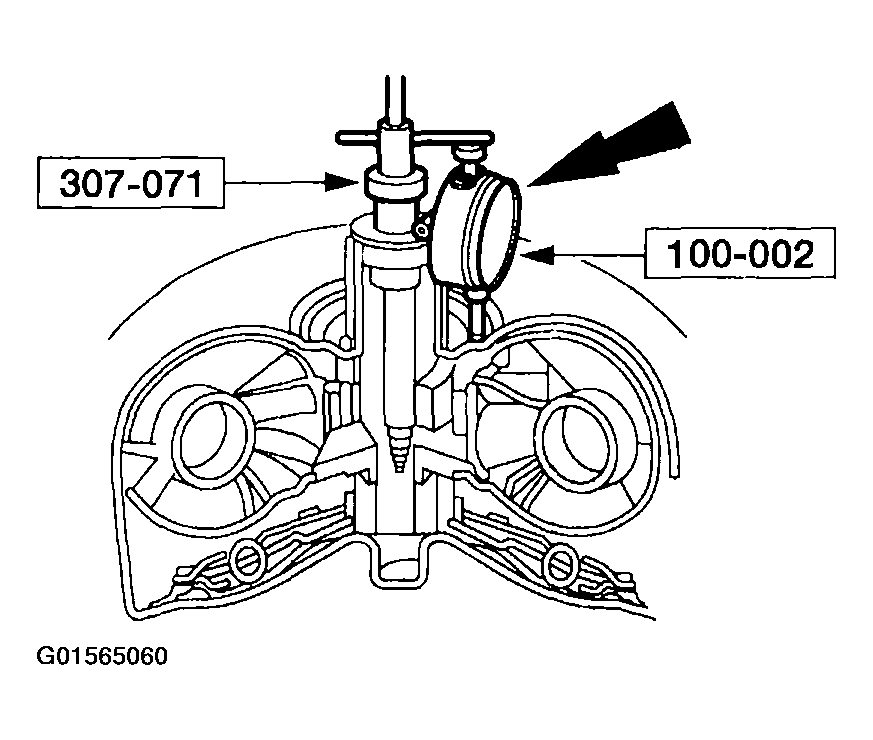

Install the special tool on the converter pump drive hub and zero the dial indicator.

Fig 3: Installing Special Tool On The Converter Pump Drive Hub
Courtesy of FORD MOTOR CO.
Lift up on the special tool and note the dial indicator reading.
- If the reading exceeds end play limits, install a new or remanufactured torque converter.

  Fig 4: Torque Converter End Play Specifications
  Courtesy of FORD MOTOR CO.

  Fig 5: Lifting Special Tool And Reading Dial Indicator Reading
  Courtesy of FORD MOTOR CO.
Remove the special tools.
