Diagnostic Flow Chart

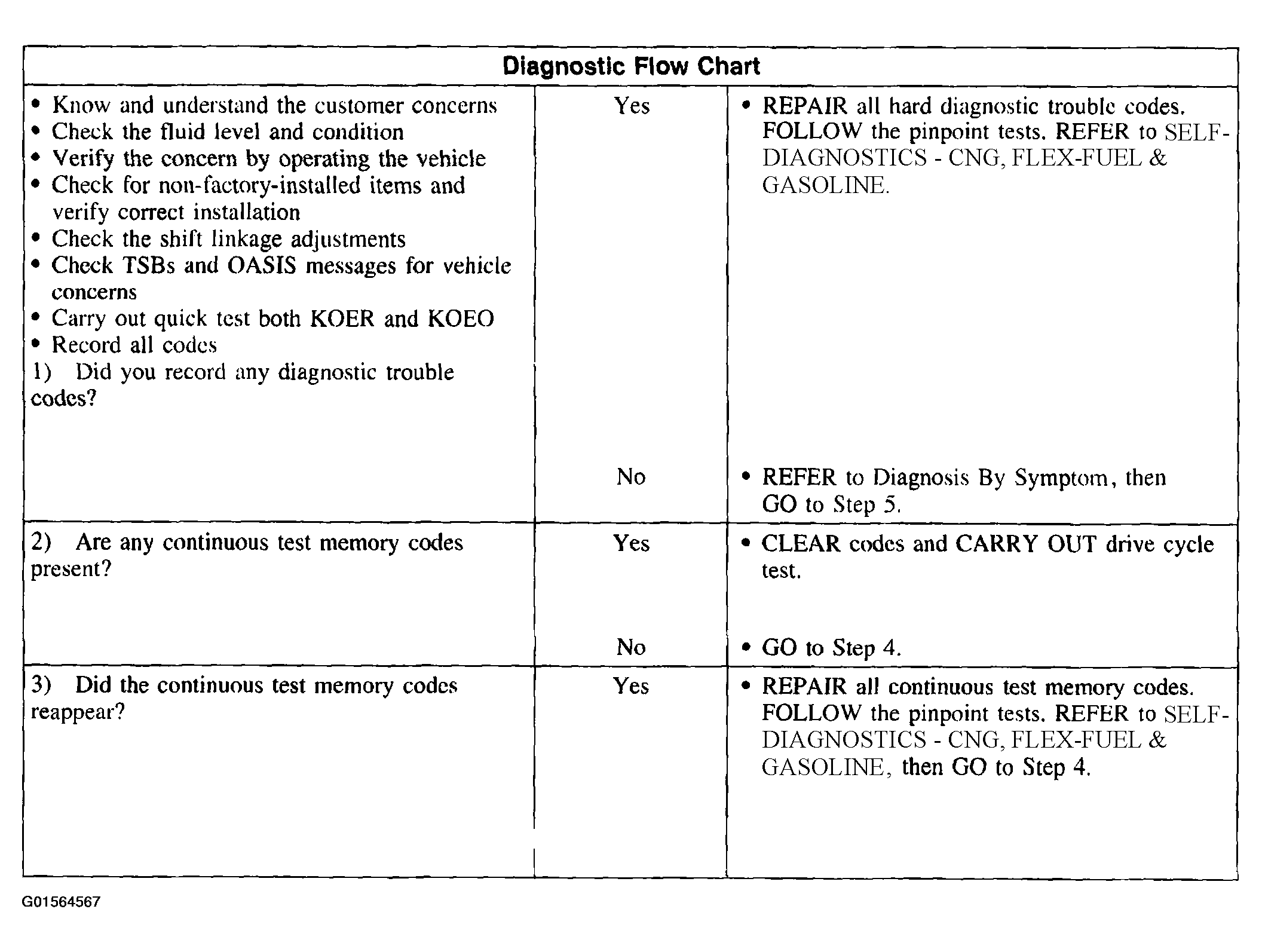

Fig 1: Identifying Diagnostic Flow Chart (1 Of 2)
G01564567Courtesy of FORD MOTOR CO.

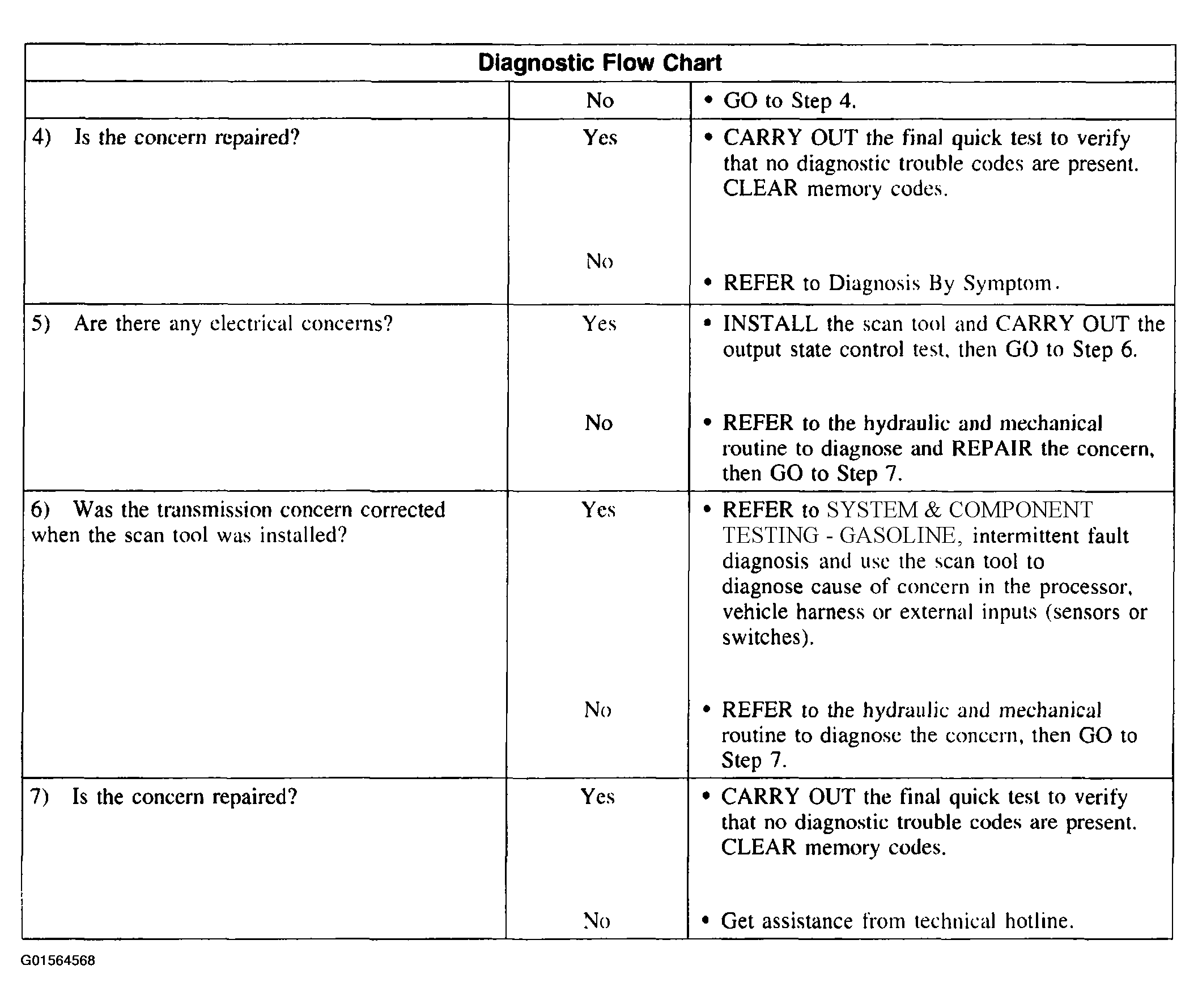

Fig 2: Identifying Diagnostic Flow Chart (2 Of 2)
G01564568Courtesy of FORD MOTOR CO.
