PCM C175b

Fig 1: Identifying PCM C175b And Terminal View
G01274193Courtesy of FORD MOTOR CO.

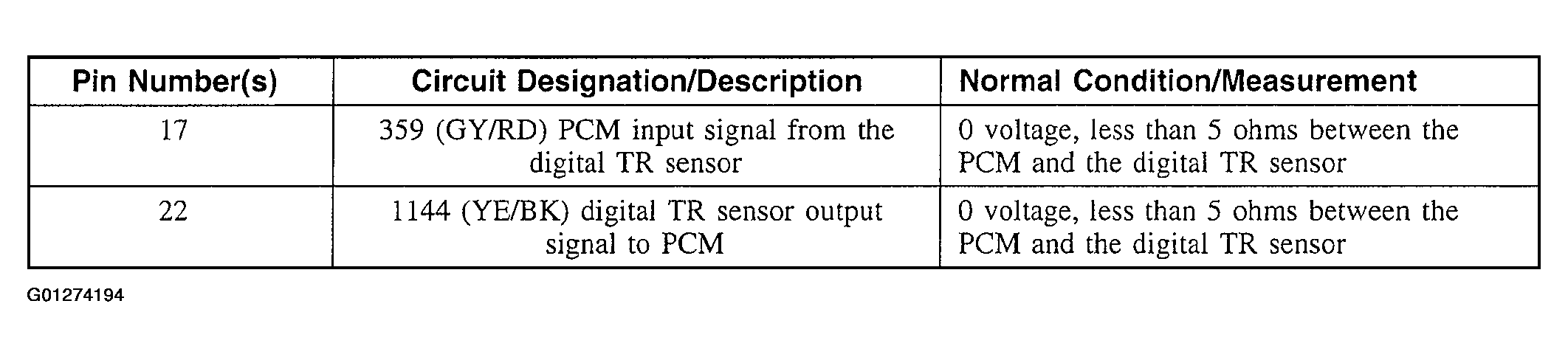

Fig 2: Identifying PCM C175b Circuit Reference Table
G01274194Courtesy of FORD MOTOR CO.
