DATC Module C228b

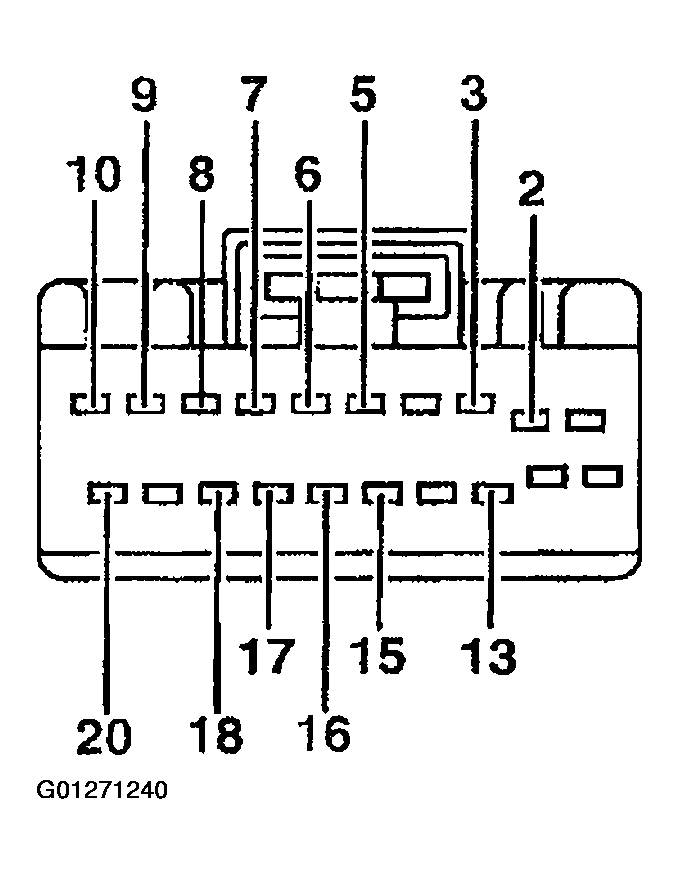

Fig 1: Identifying DATC Module C228b Terminal View (1 Of 3)
G01271240Courtesy of FORD MOTOR CO.

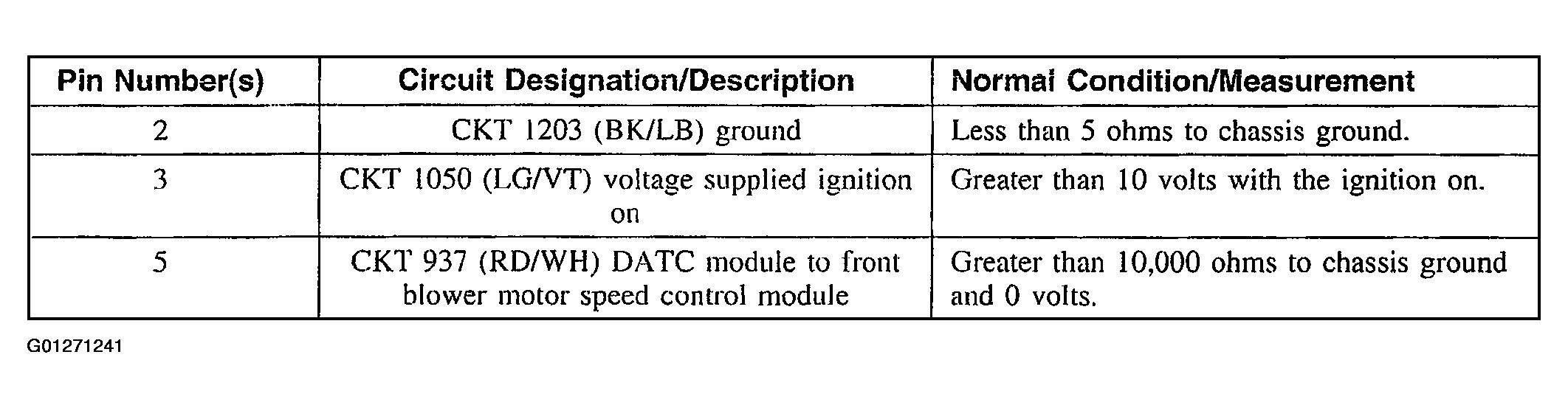

Fig 2: Identifying DATC Module C228B Terminal View (2 Of 3)
G01271241Courtesy of FORD MOTOR CO.

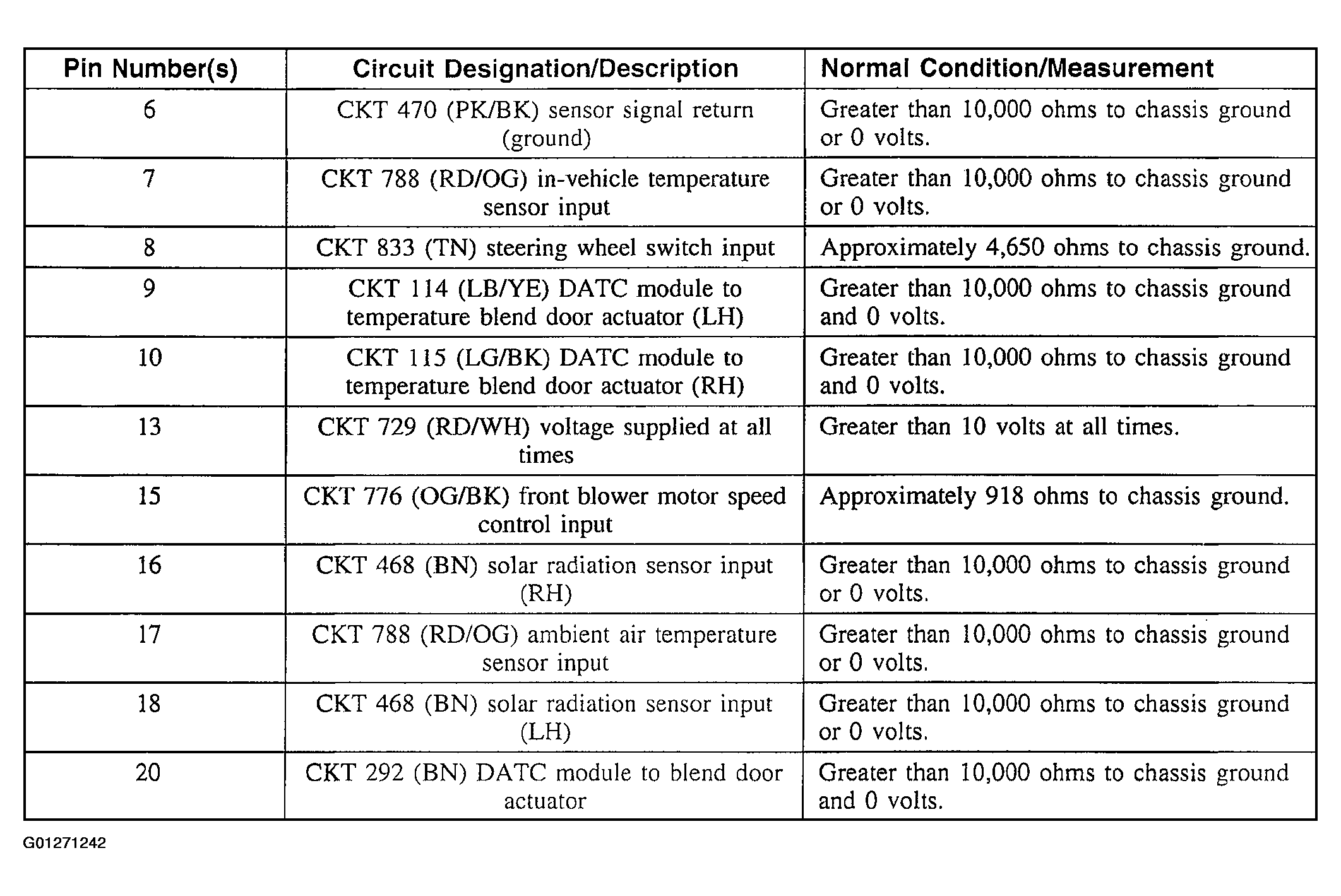

Fig 3: Identifying DATC Module C228B Terminal View (3 Of 3)
G01271242Courtesy of FORD MOTOR CO.
