Symptom Chart

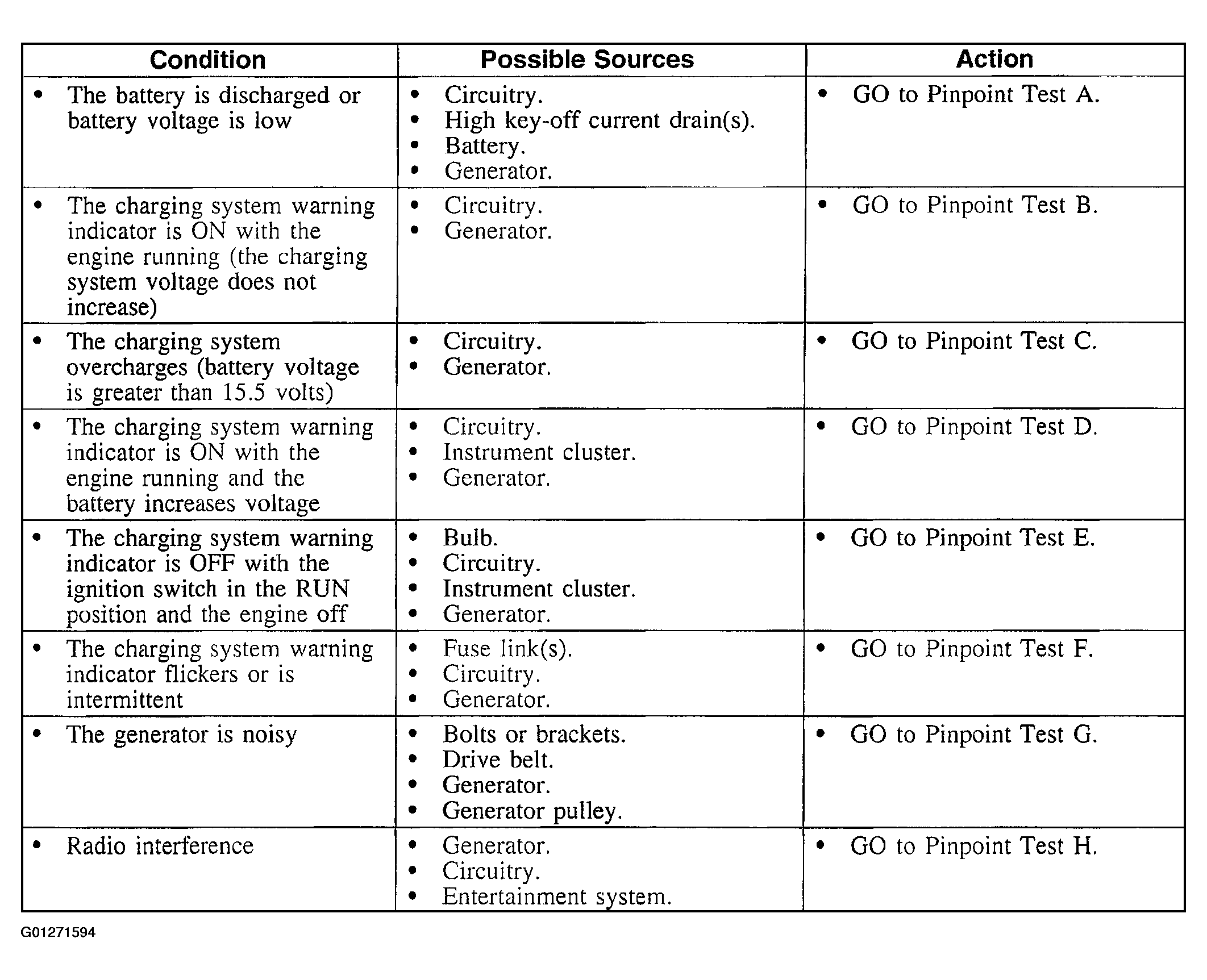

Fig 1: Identifying Symptom Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
