Home >> Ford >> 2003 >> Explorer 4WD V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transfer Case >> System Diagram >> Diagnostic Connector Views >> 4WD Control Module C28LB
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

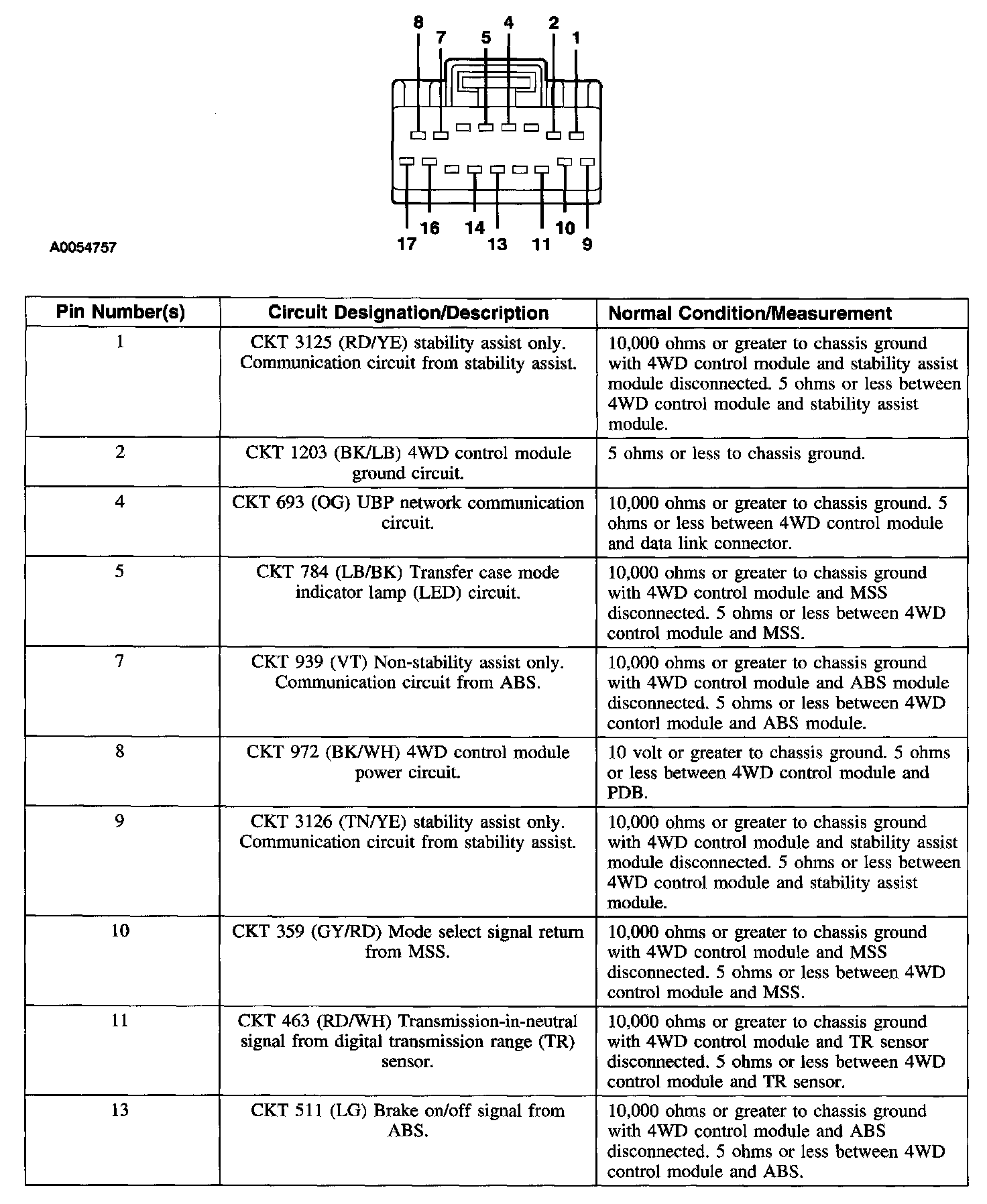

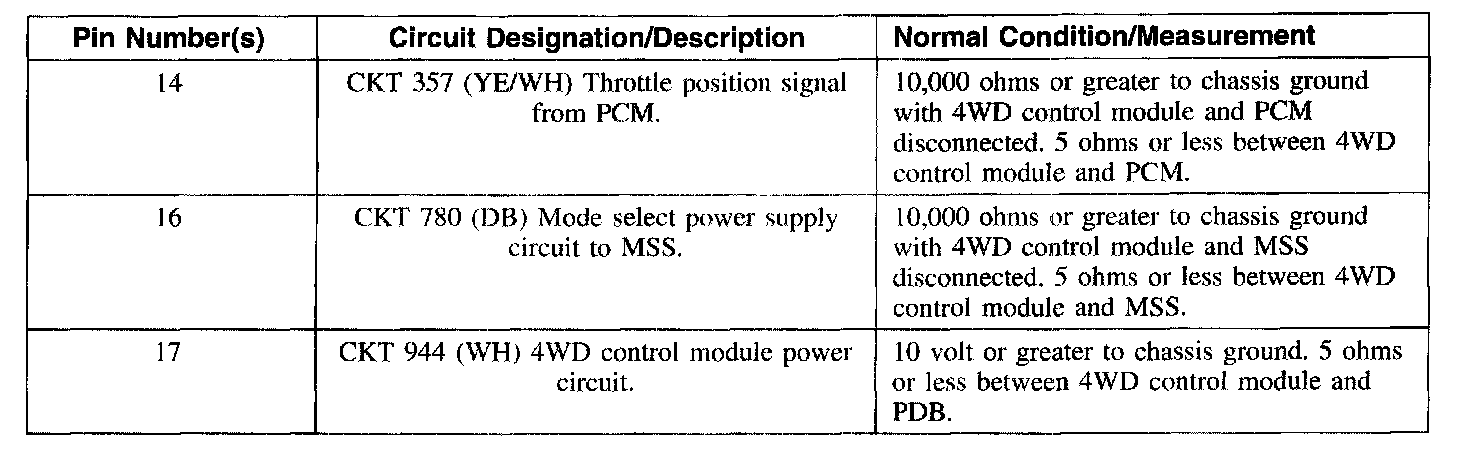

4WD Control Module C28LB





4WD Control Module C28lb
