Home >> Ford >> 2003 >> Focus L4-2.3L VIN Z >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Sensor/Switch >> Driver Seat Track Position Sensor

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

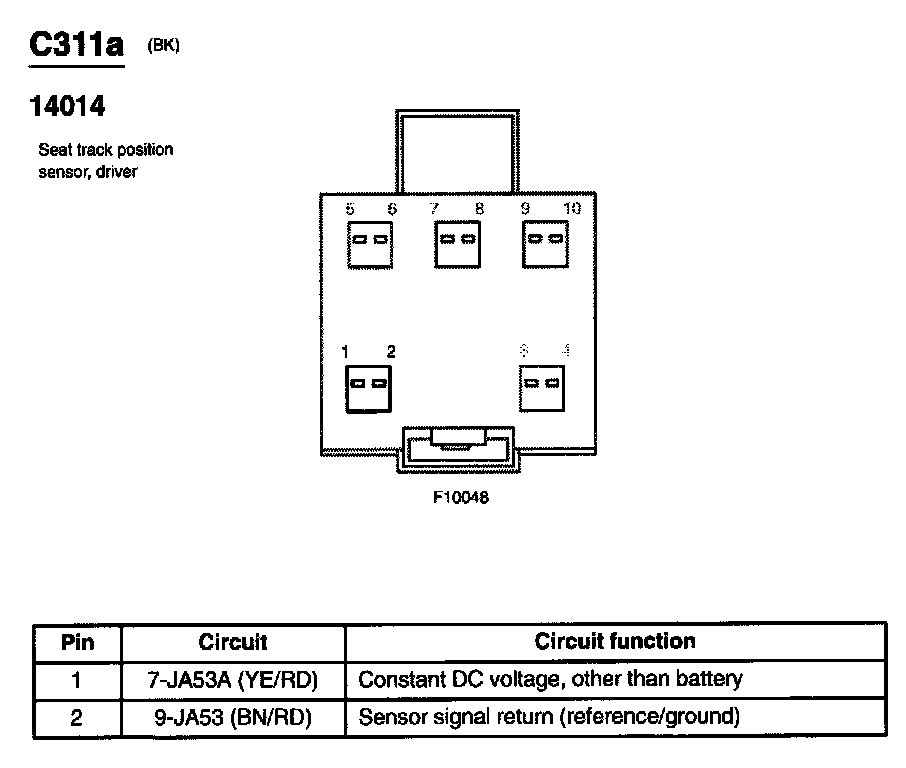

Driver Seat Track Position Sensor
