Rear

Rear Suspension

Part 1 Of 2:




Part 2 Of 2:

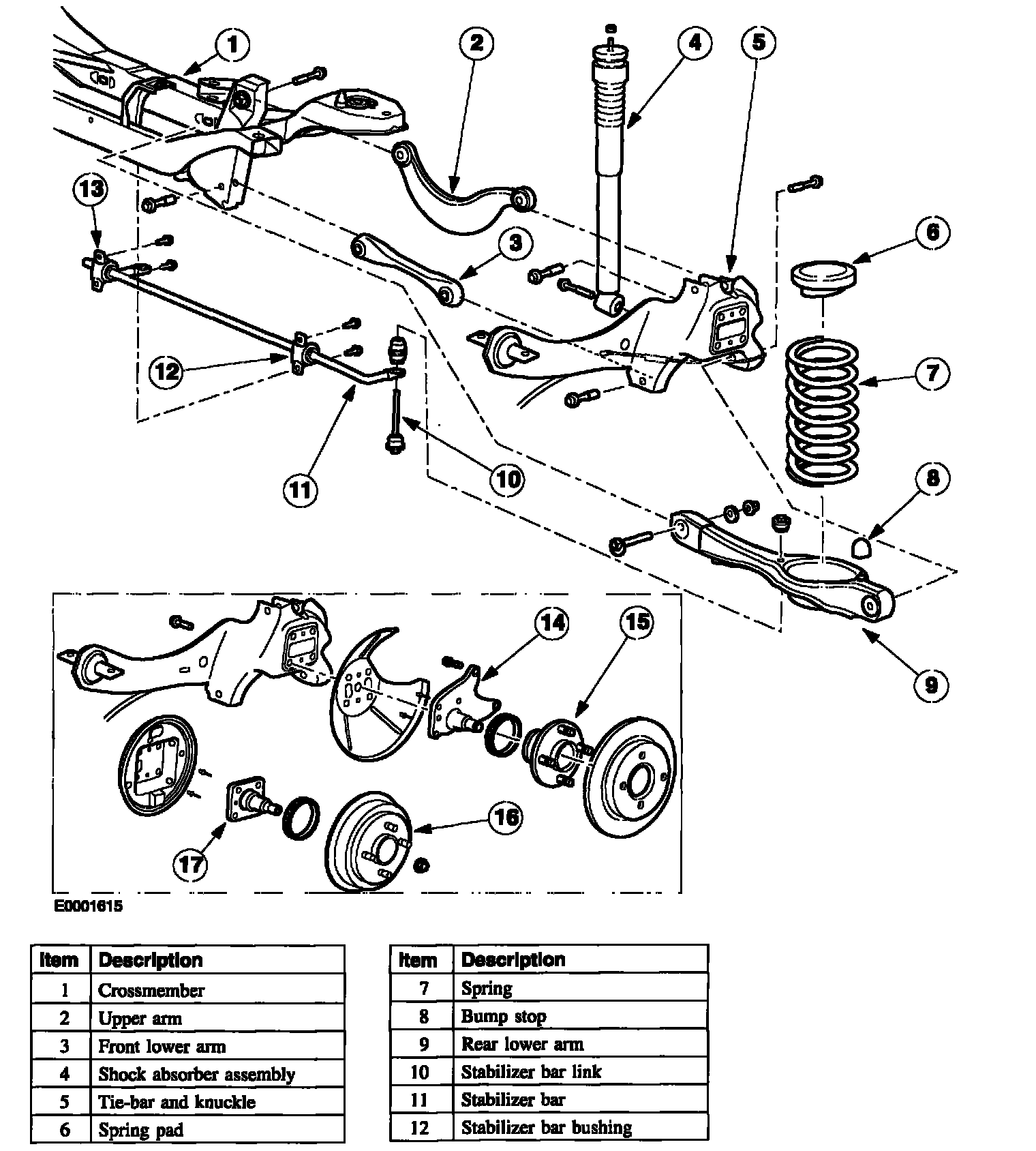

All Except Wagon


Part 1 Of 2:

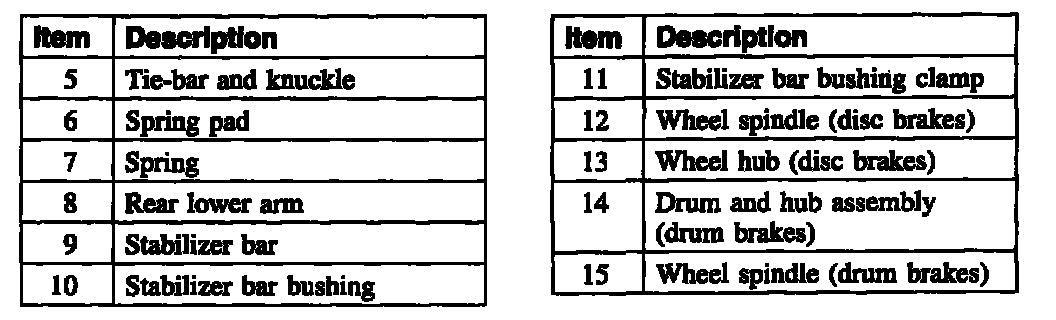

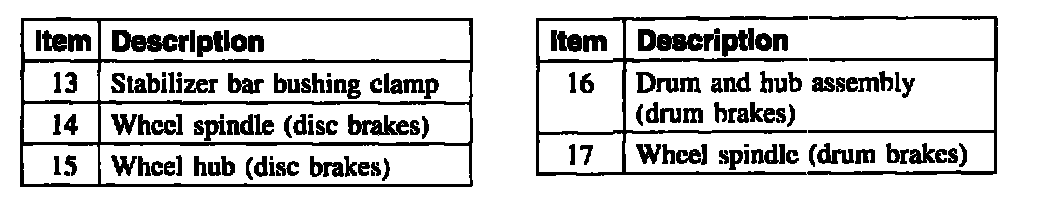

Part 2 Of 2:

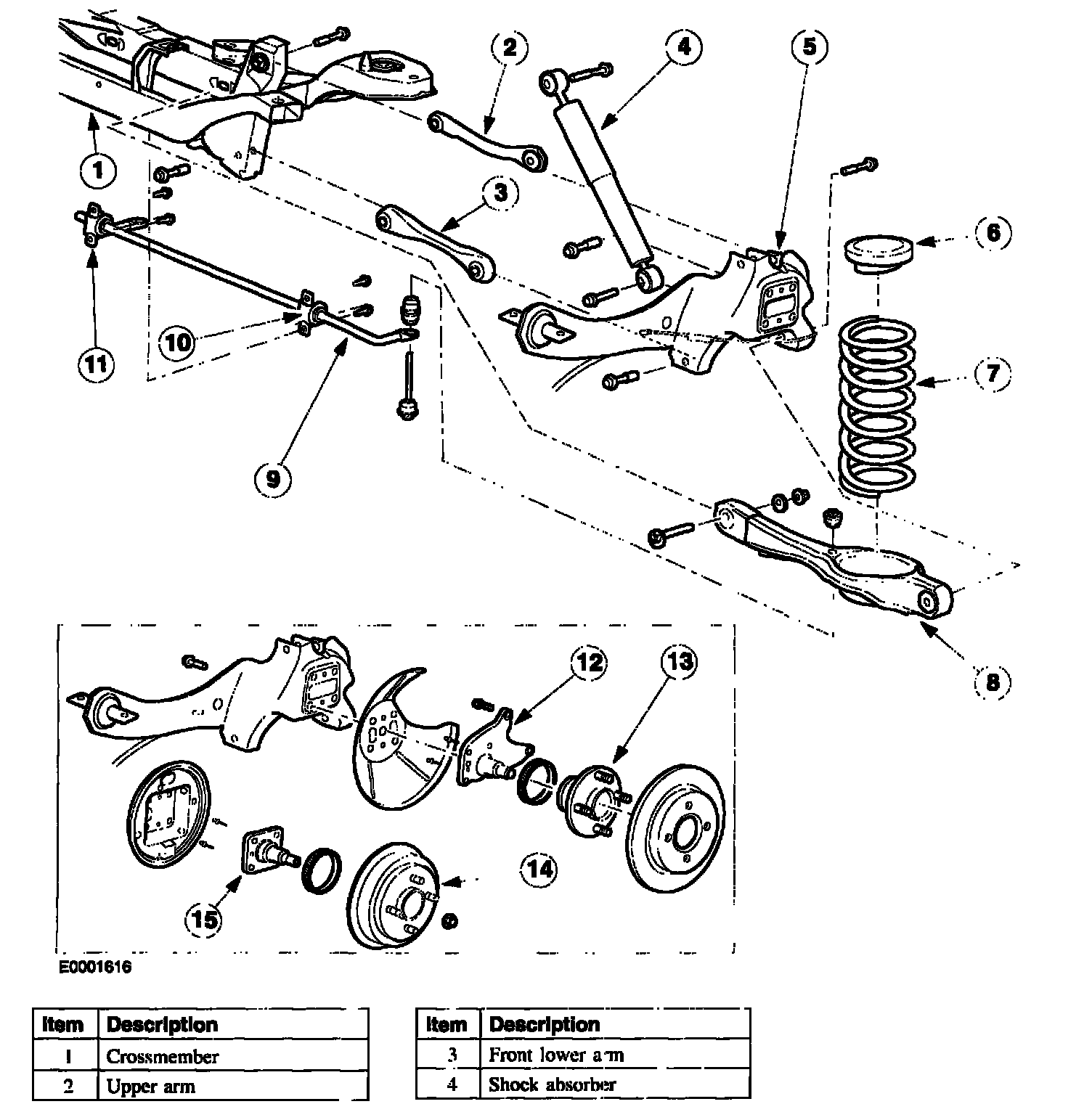

Wagon
