Test B

PINPOINT TEST B: A SINGLE POWER WINDOW IS INOPERATIVE - FRONT AND REAR POWER WINDOWS - DRIVER POWER WINDOW

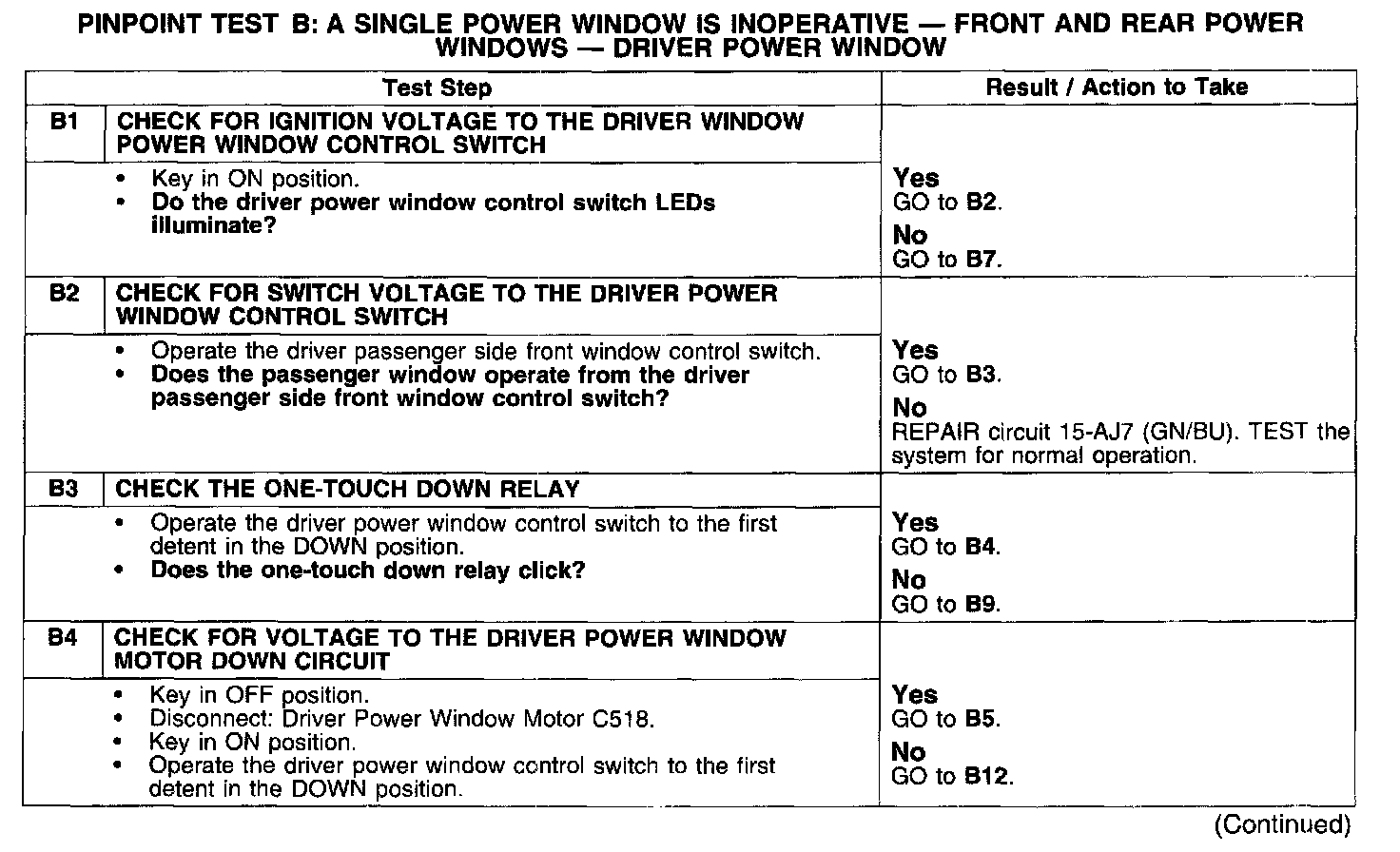

Test B1-B4:

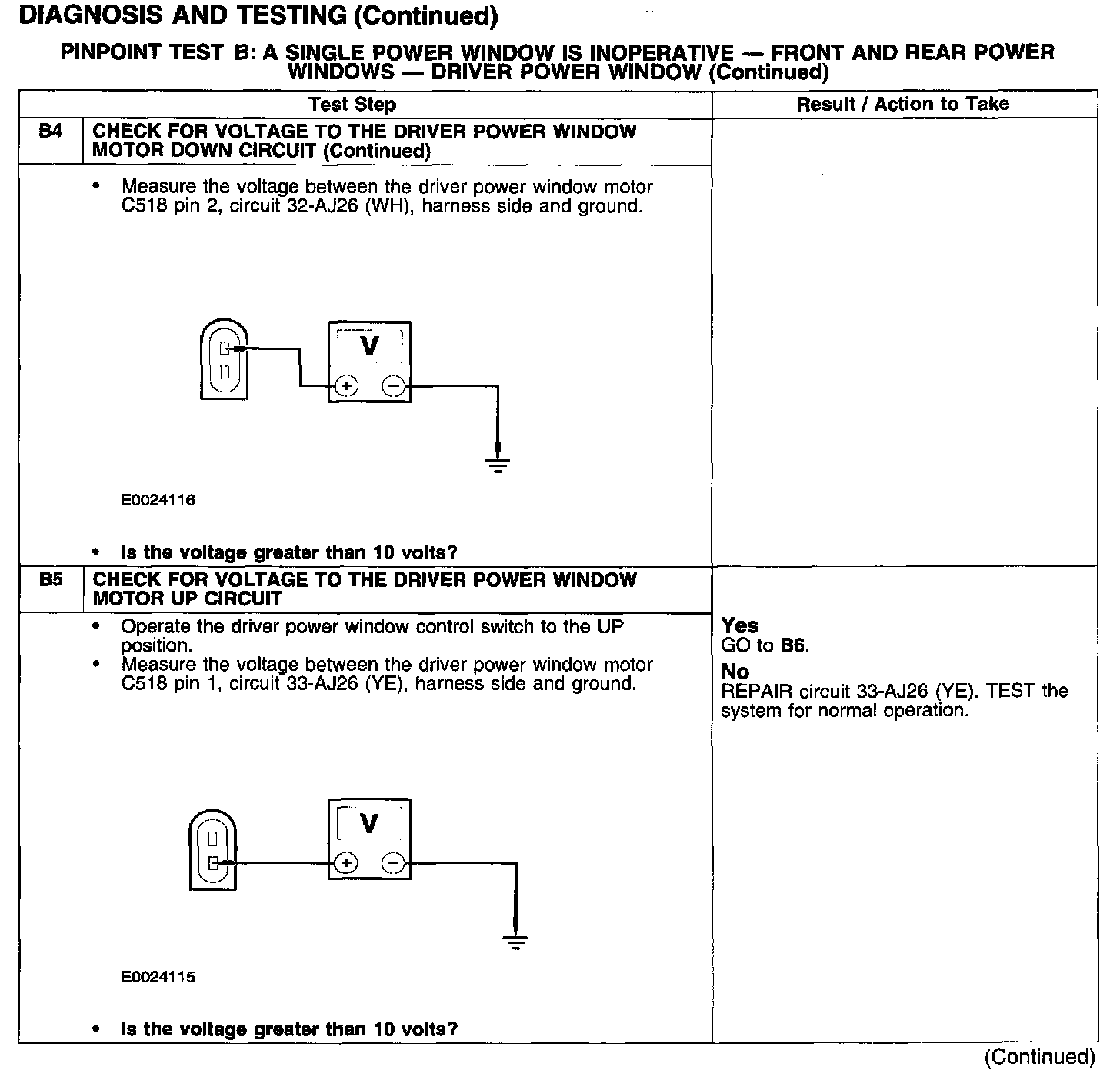

Test B4-B5:

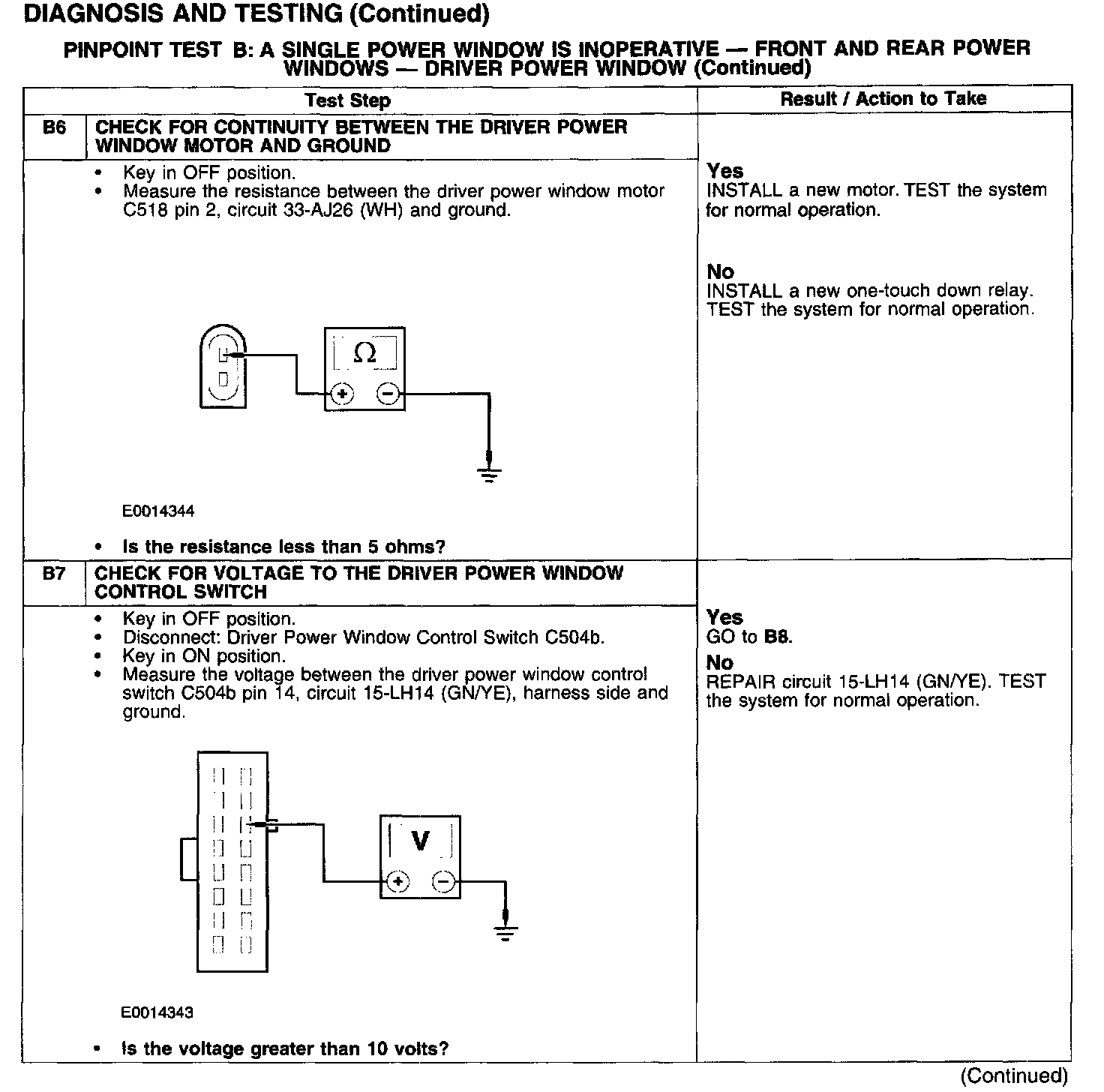

Test B6-B7:

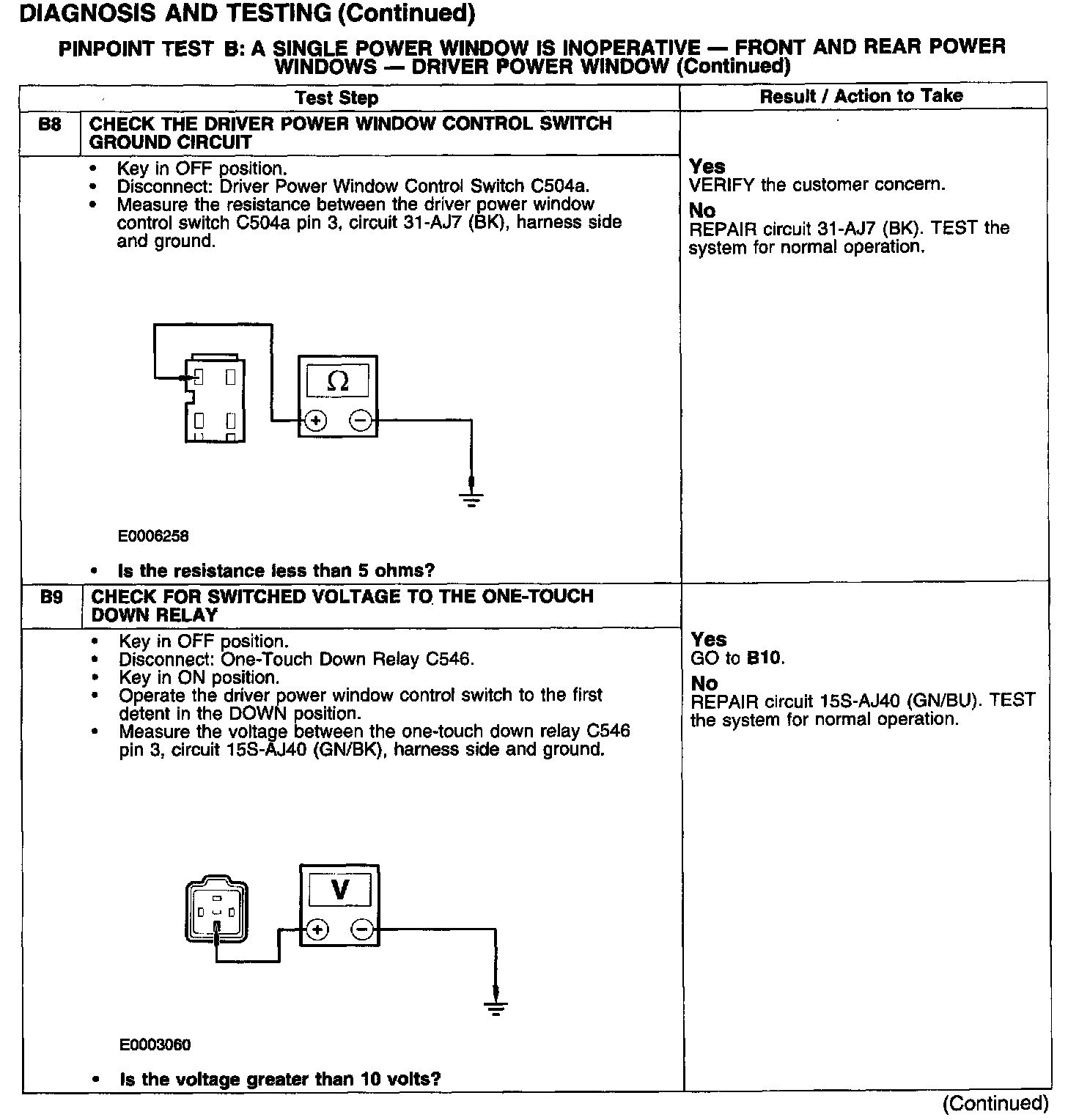

Test B8-B9:

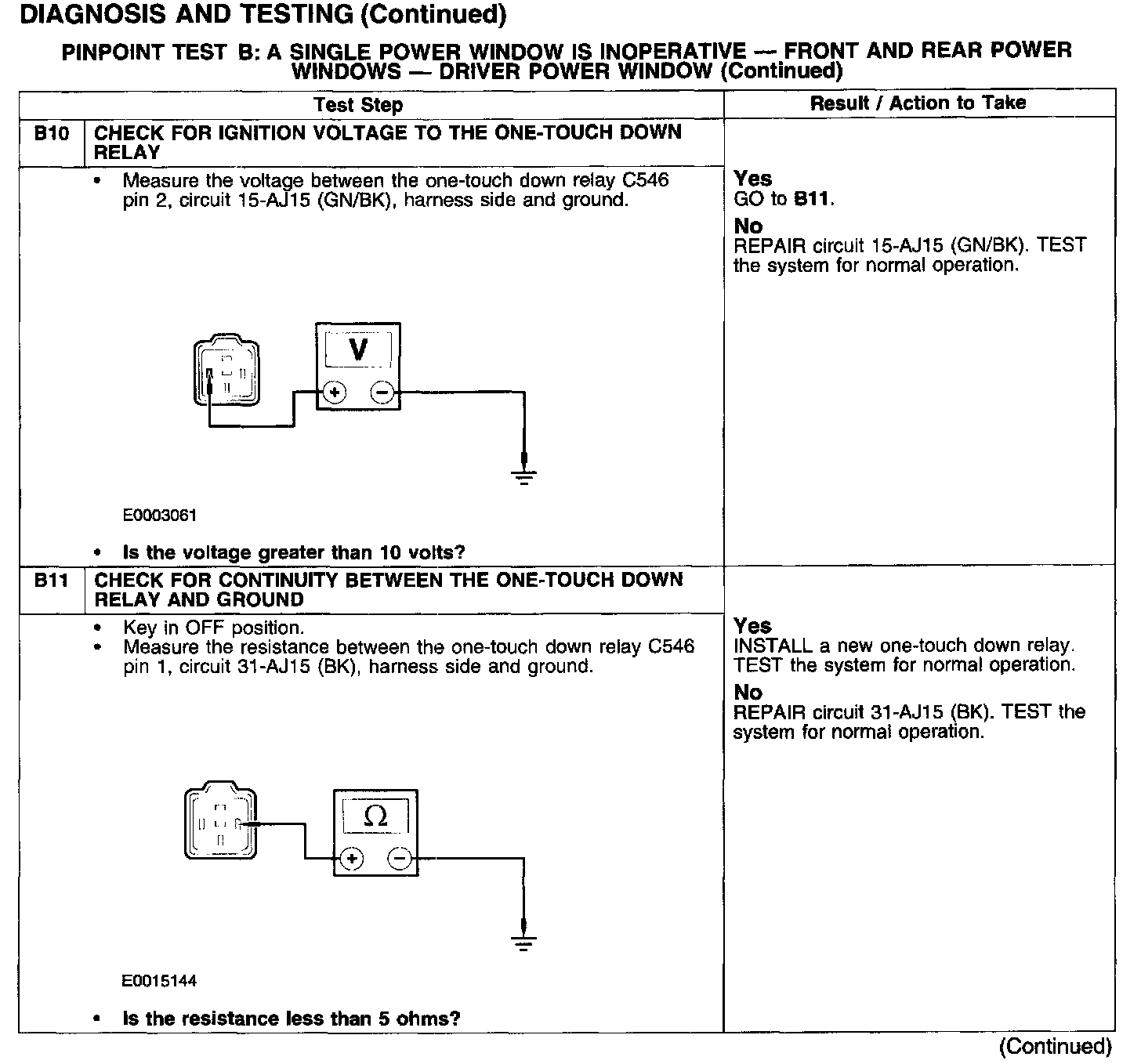

Test B10-B11:

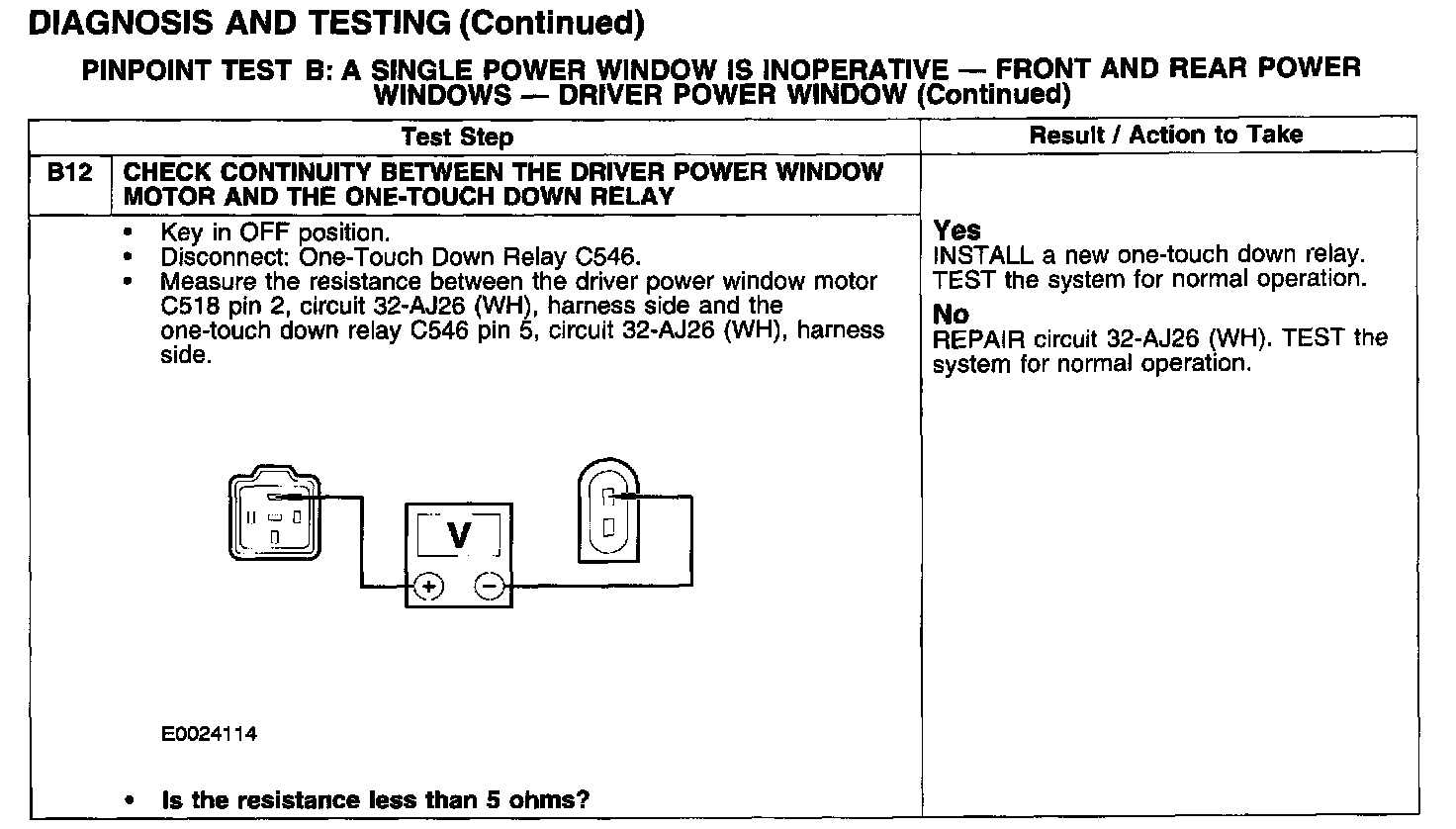

Test B12:
