Test C

PINPOINT TEST C: A SINGLE POWER WINDOW IS INOPERATIVE - FRONT AND REAR POWER WINDOWS - PASSENGER POWER WINDOW

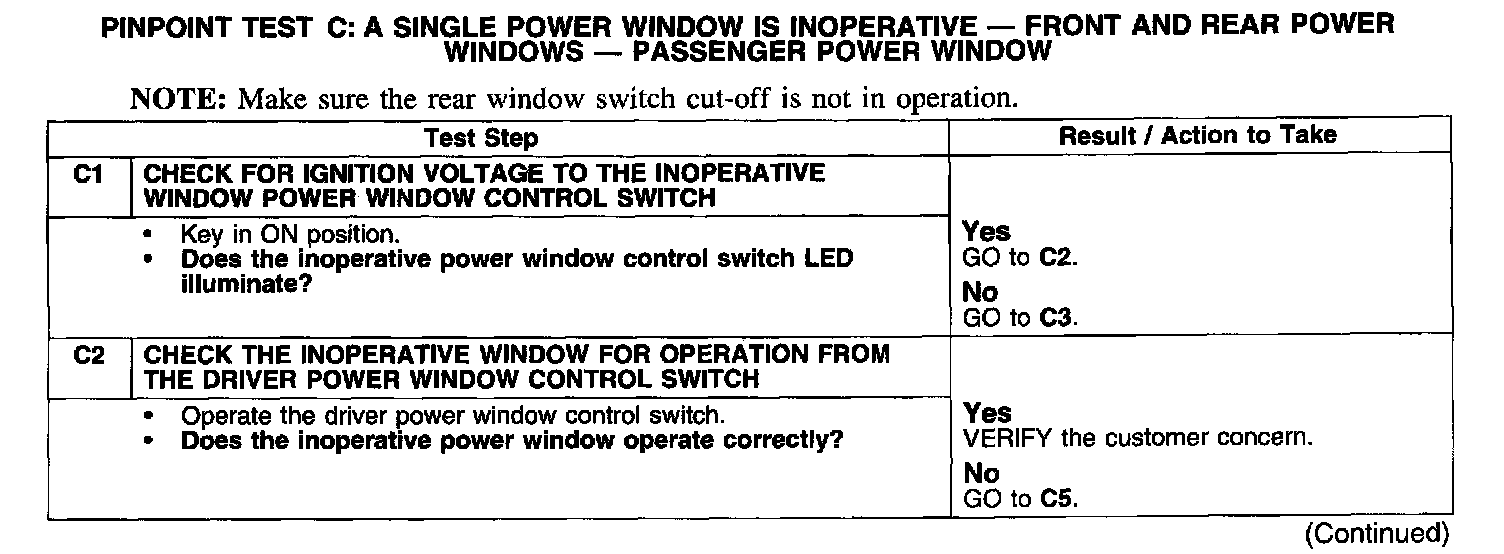

Test C1-C2:

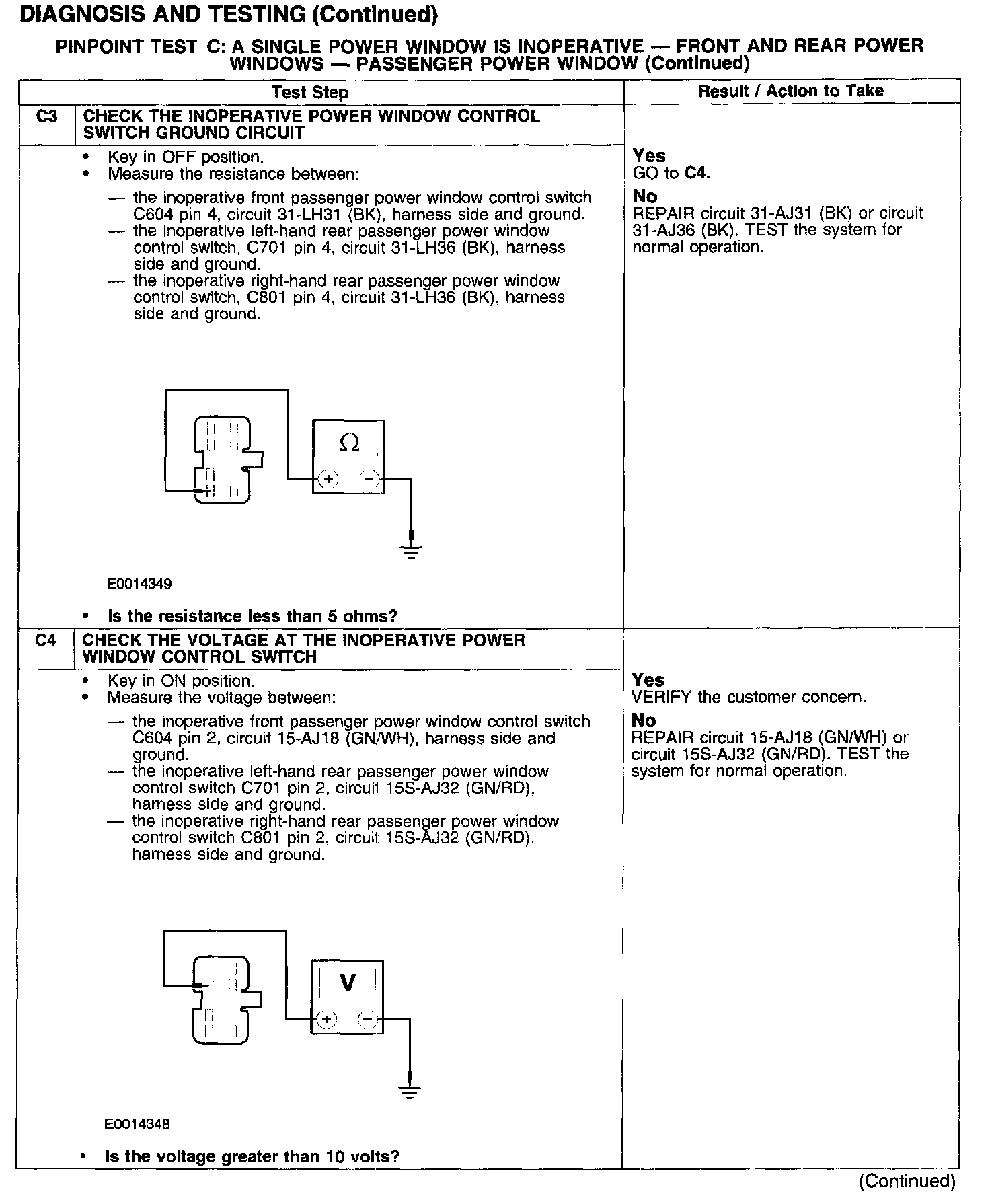

Test C3-C4:

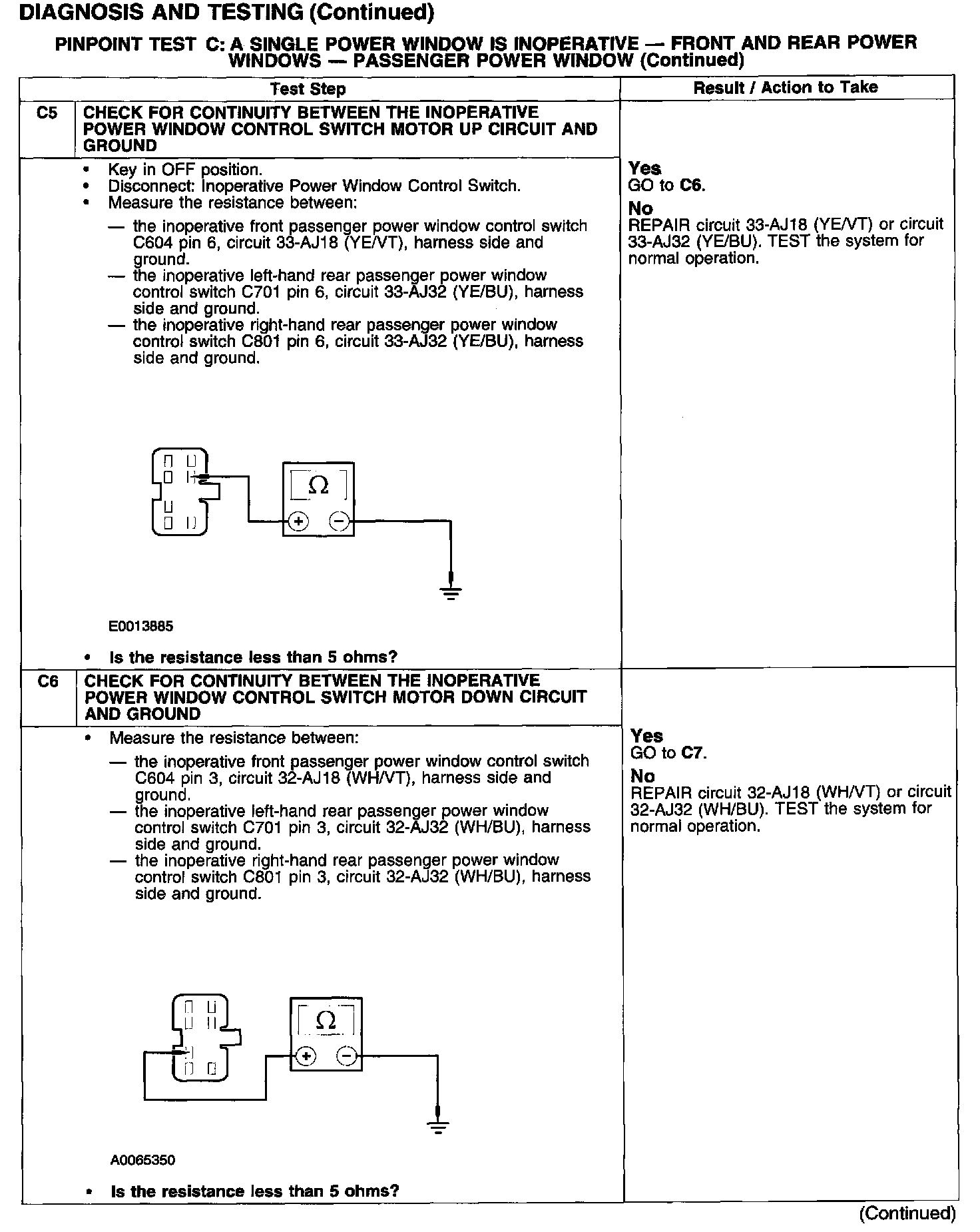

Test C5-C6:

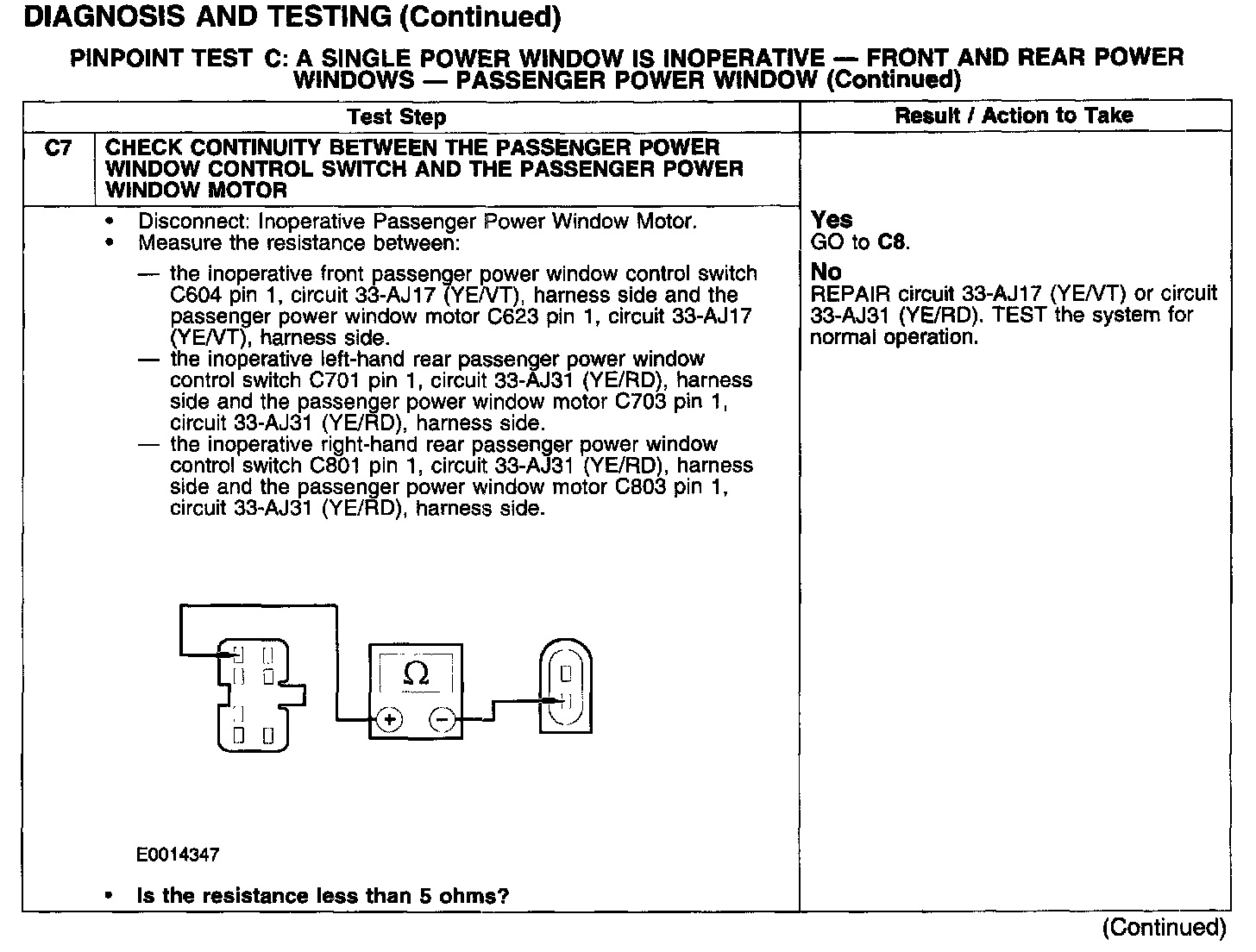

Test C7:

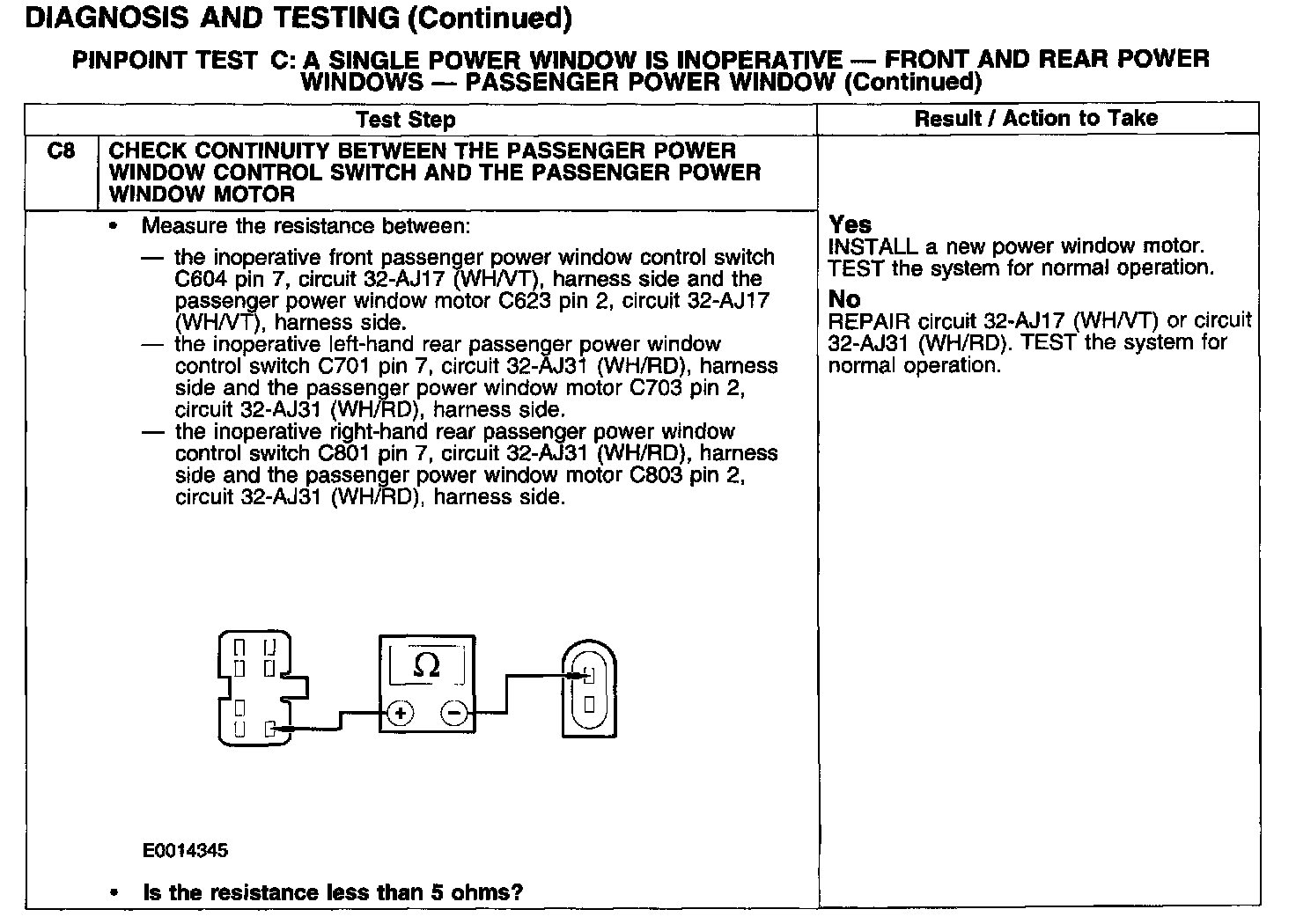

Test C8:
