Speed Control Cable-SVT: Removal

  1. Remove the dust cover from the throttle body.

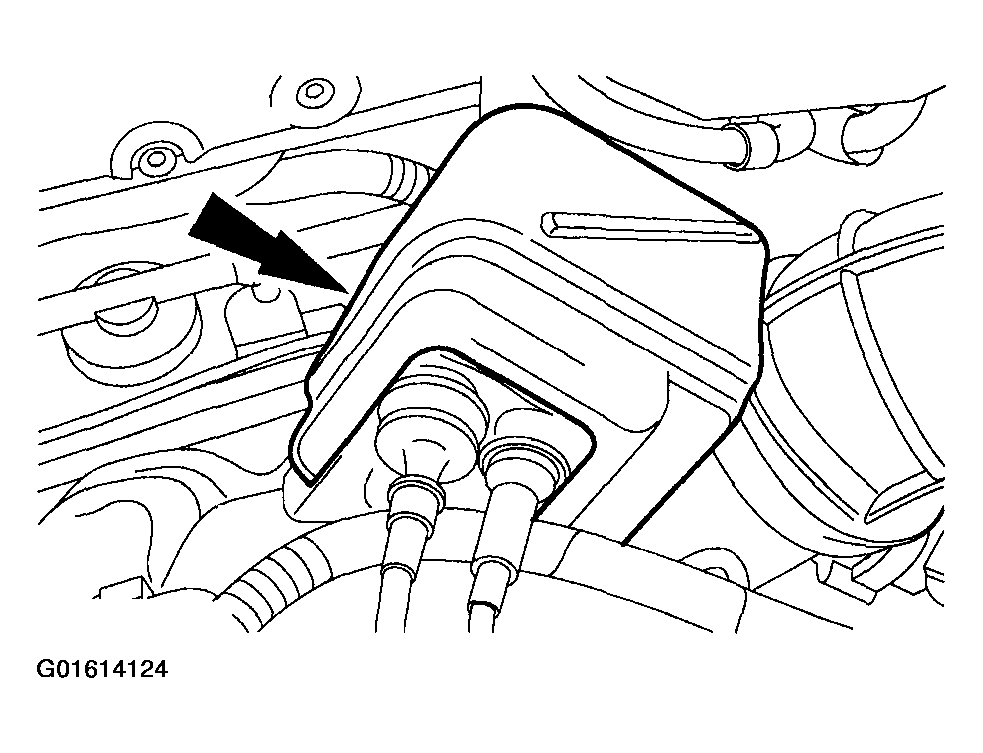

    Fig 1: Removing Dust Cover From Throttle Body
    G01614124Courtesy of FORD MOTOR CO.
  2. Remove the speed control cable.
    1. Disconnect the inner cable from the throttle body.
    2. Detach the speed control cable from the throttle body.

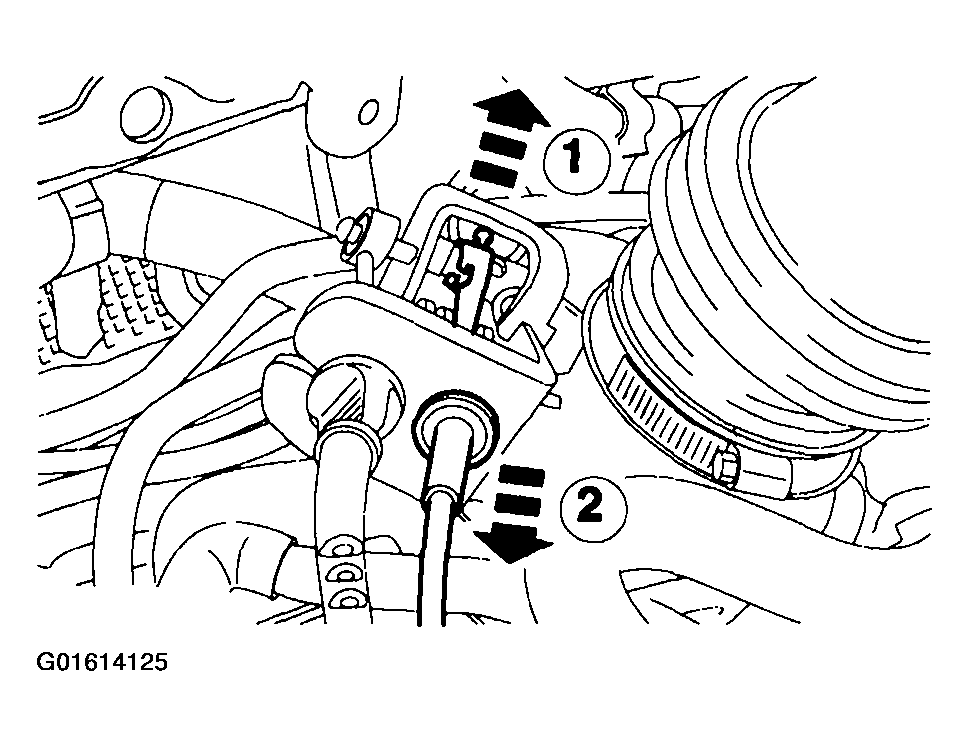

    Fig 2: Removing Speed Control Cable
    G01614125Courtesy of FORD MOTOR CO.
  3. Remove the speed control cable from the clip.
  4. Remove the speed control actuator cable cover.

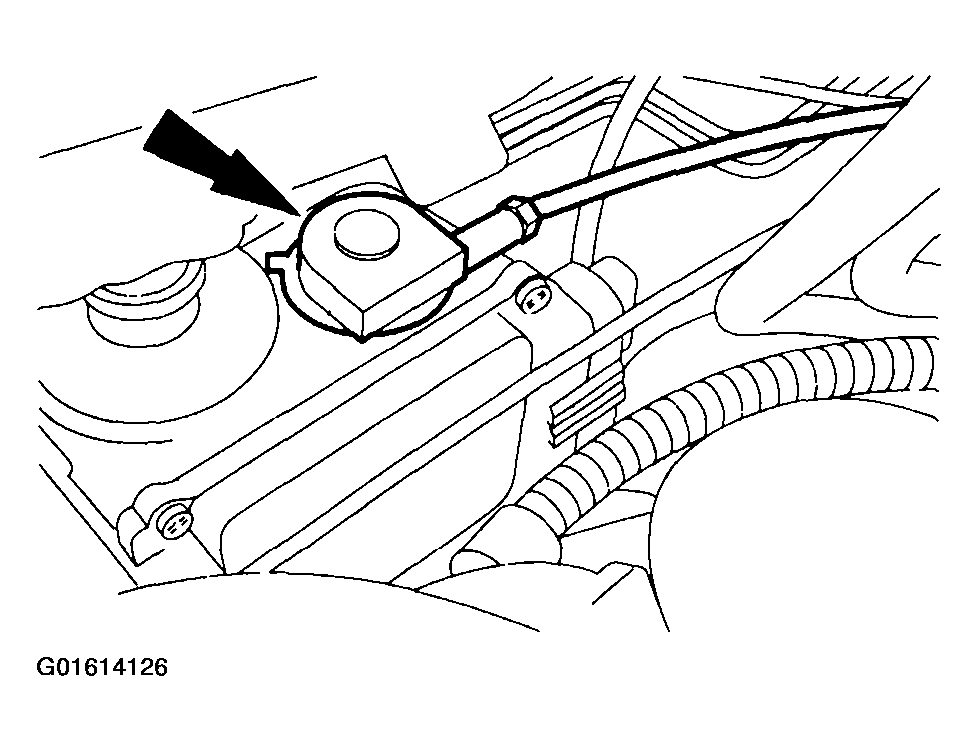

    Fig 3: Removing Speed Control Actuator Cable Cover
    G01614126Courtesy of FORD MOTOR CO.
  5. Disconnect the speed control cable from the speed control actuator pulley.

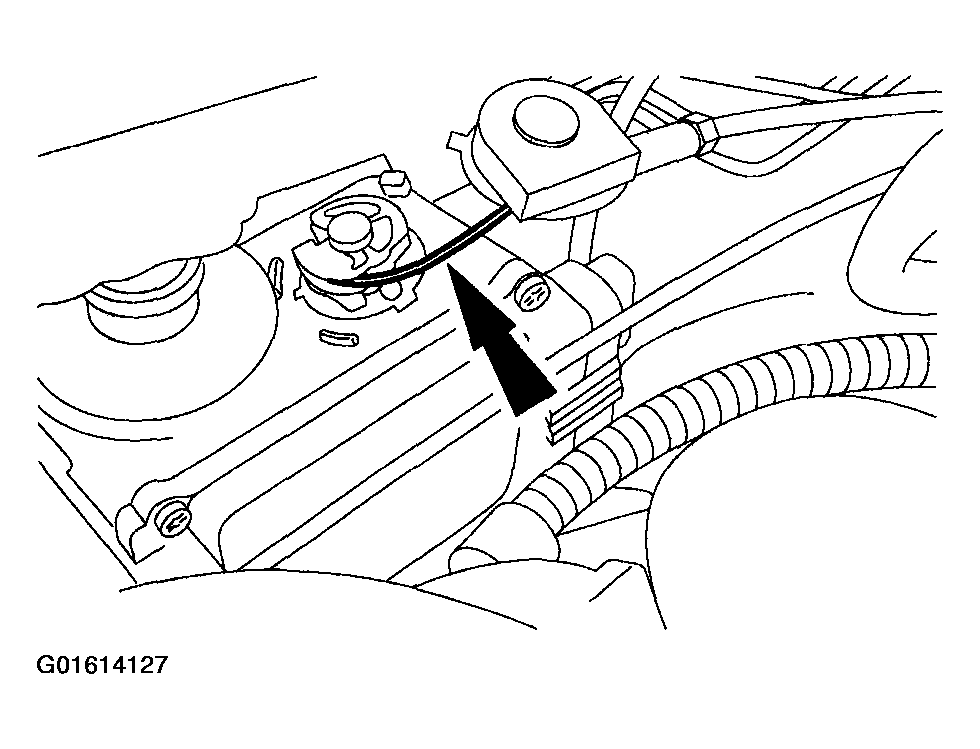

    Fig 4: Disconnecting Speed Control Cable From Speed Control Actuator Pulley
    G01614127Courtesy of FORD MOTOR CO.
