Valve Seals: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the valve springs. For additional information, refer to VALVE SPRINGS .
  2. Remove and discard the valve stem seal.

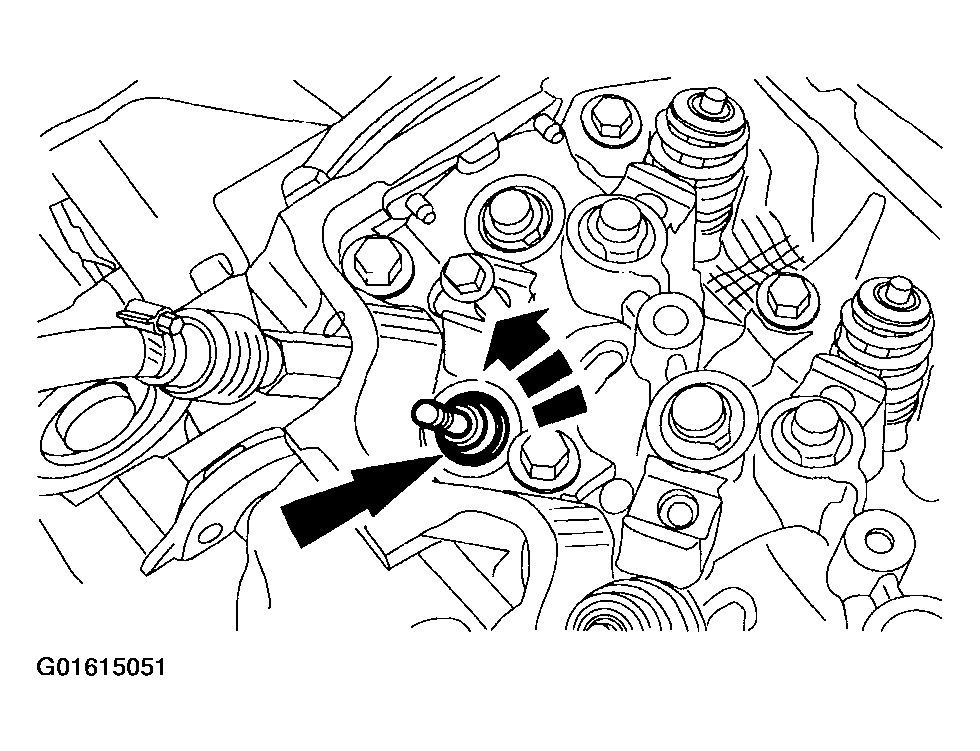

    Fig 1: Removing Valve Stem Seal
    G01615051Courtesy of FORD MOTOR CO.
