Symptom Chart

NOTE: Refer to the Wiring Diagrams for connector numbers stated in the Pinpoint tests.

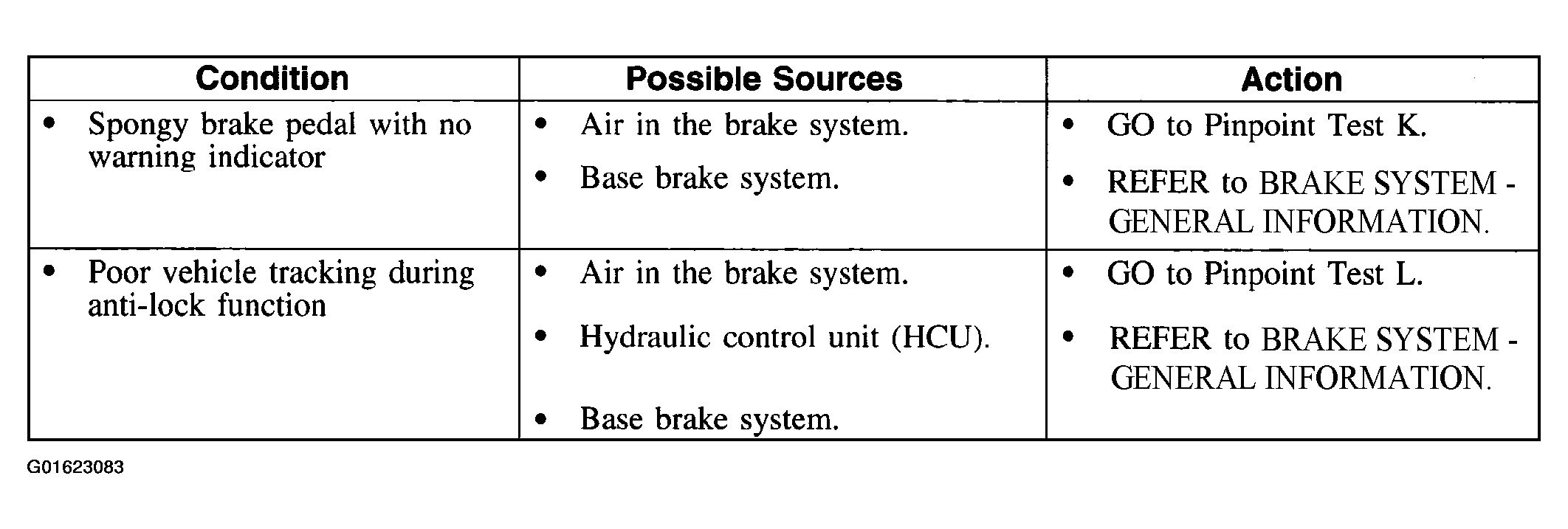

Fig 1: Anti-Lock Control - Rear Symptom Chart (1 Of 2)

Courtesy of FORD MOTOR CO.

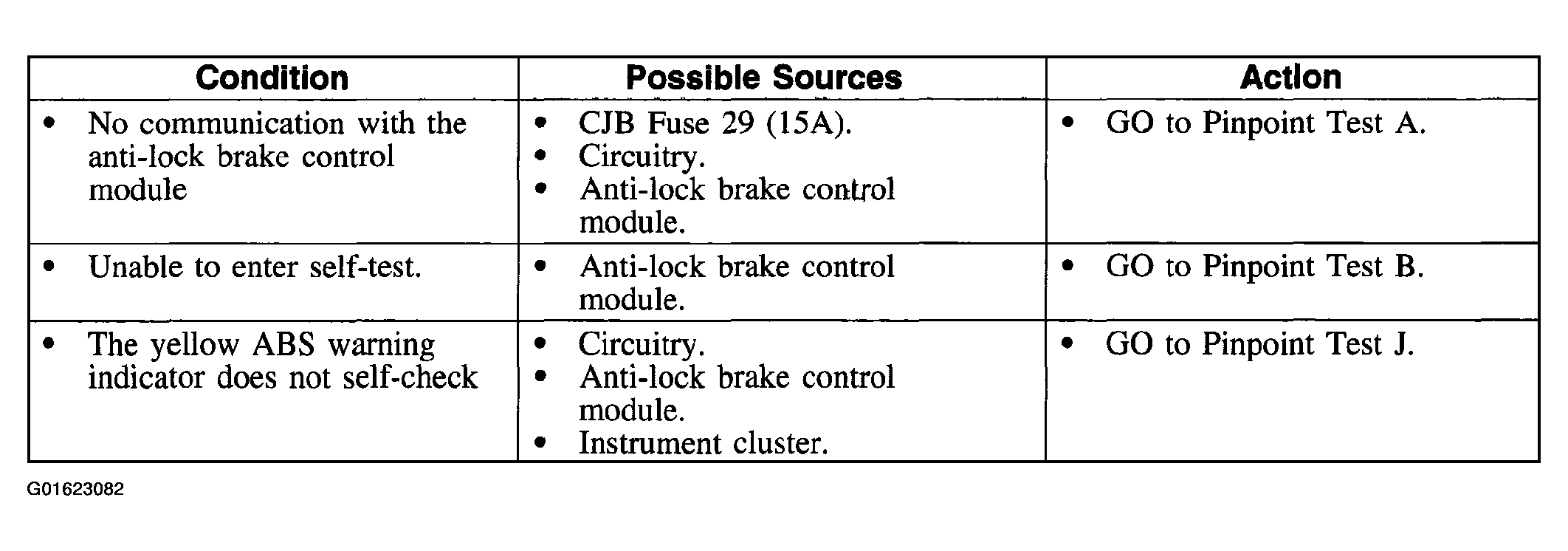

Fig 2: Anti-Lock Control - Rear Symptom Chart (2 Of 2)

Courtesy of FORD MOTOR CO.
