Removal And Installation: Module: Removal

  1. Remove the hydraulic control unit (HCU).

    Refer to HYDRAULIC CONTROL UNIT .

  2. Remove the pump motor electrical connector.

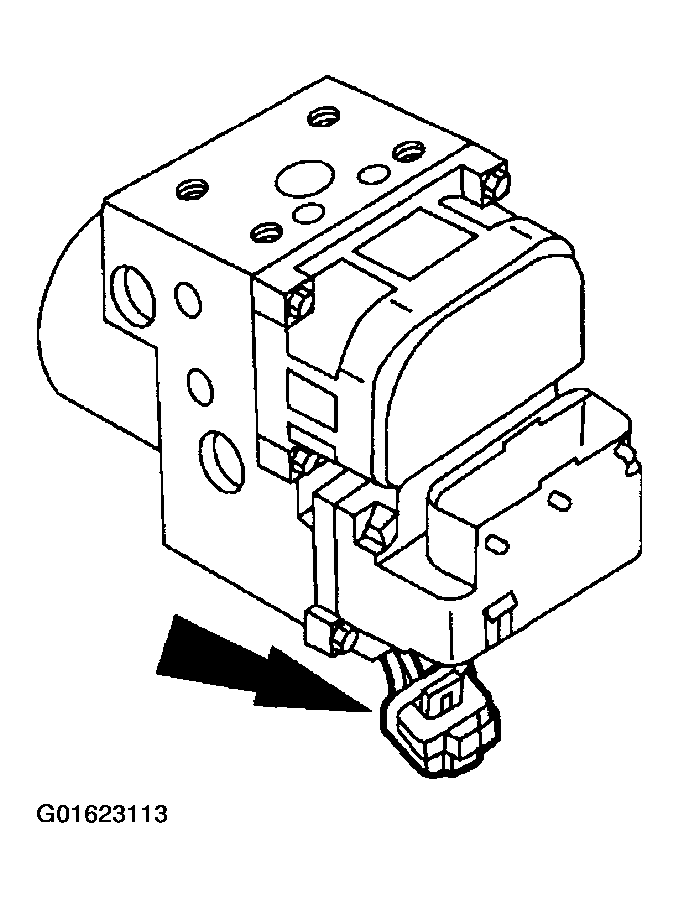

    Fig 1: Removing Pump Motor Electrical Connector
    G01623113Courtesy of FORD MOTOR CO.
  3. Remove the anti-lock-brake control module screws.
    Fig 2: Removing Anti-Lock-Brake Control Module Screws
    G01623114Courtesy of FORD MOTOR CO.
  4. Remove the anti-lock-brake control module from the HCU.
