Symptom Chart

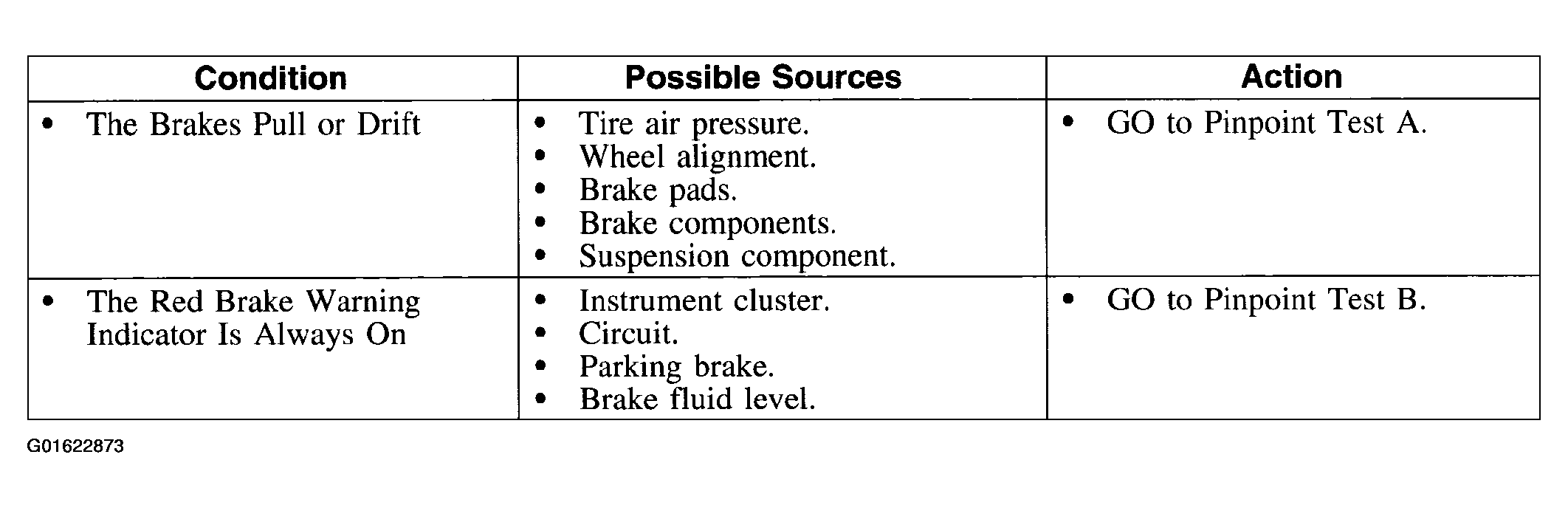

Fig 1: Brake System Symptom Chart (1 Of 3)
G01622873Courtesy of FORD MOTOR CO.

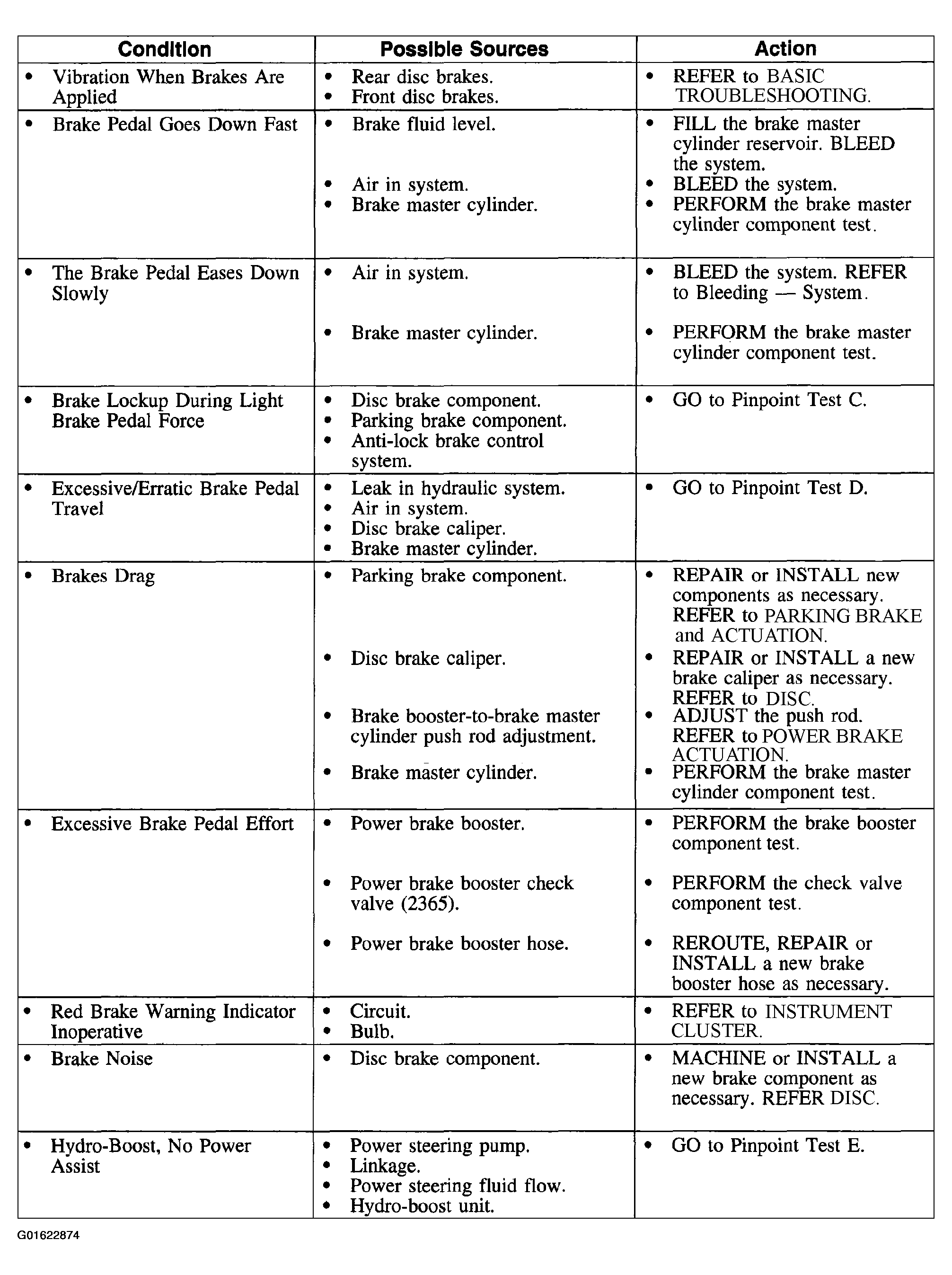

Fig 2: Brake System Symptom Chart (2 Of 3)
G01622874Courtesy of FORD MOTOR CO.

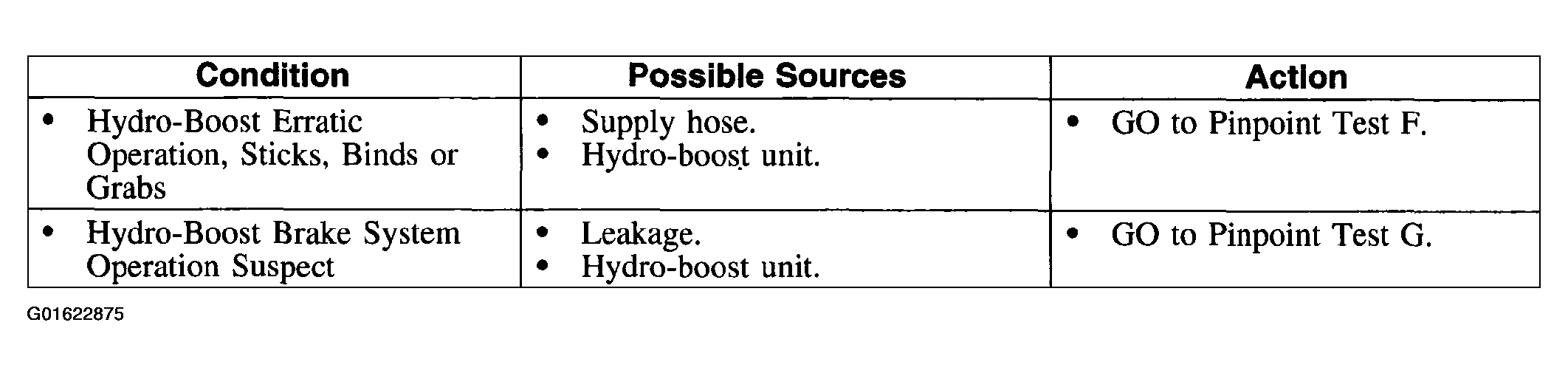

Fig 3: Brake System Symptom Chart (3 Of 3)
G01622875Courtesy of FORD MOTOR CO.
