Torque Converter One-Way Clutch Check

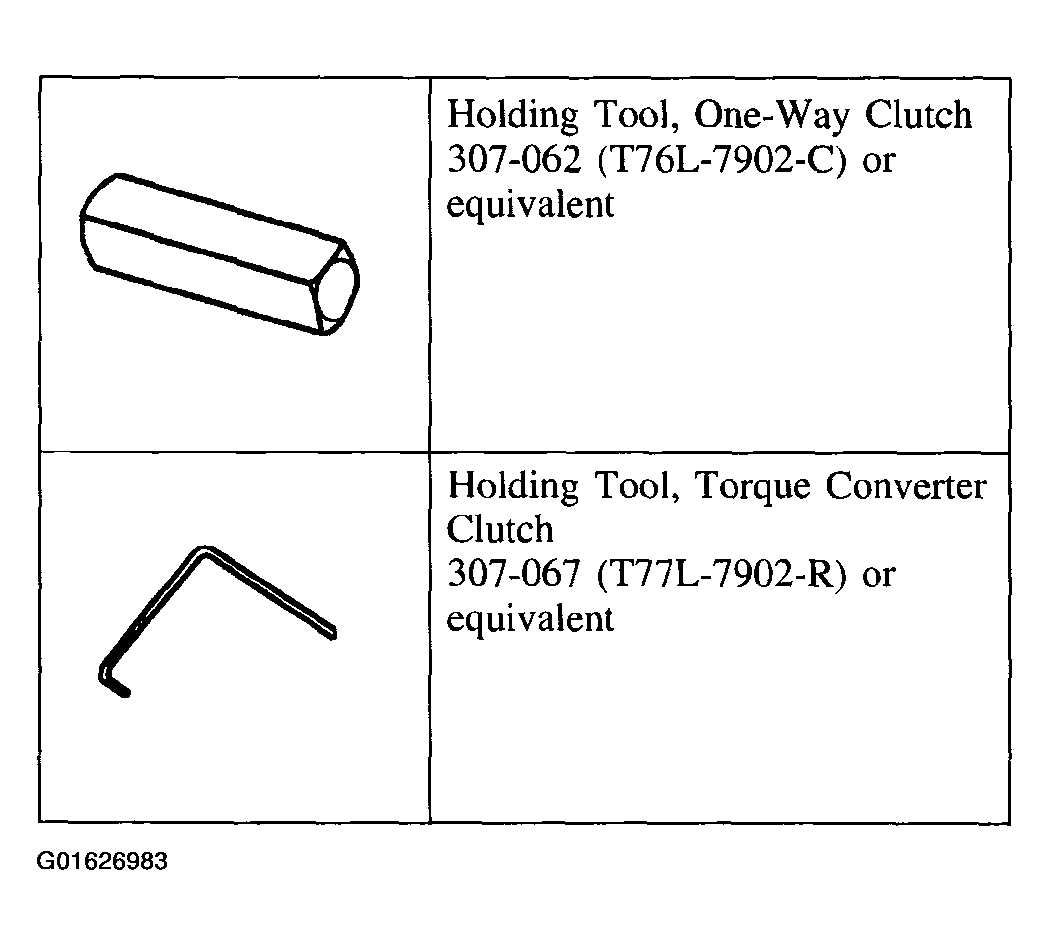

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

Install the special tool in one of the grooves in the stator thrust washer.

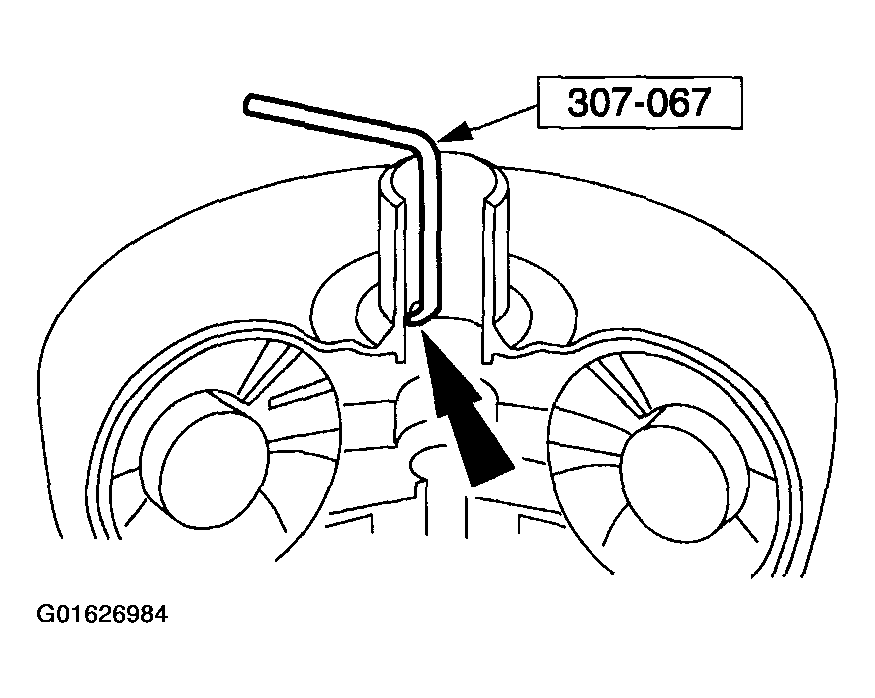

Fig 2: Installing Special Tool In One Of Grooves In Stator Thrust Washer
Courtesy of FORD MOTOR CO.
Install the special tool in the converter pump drive.

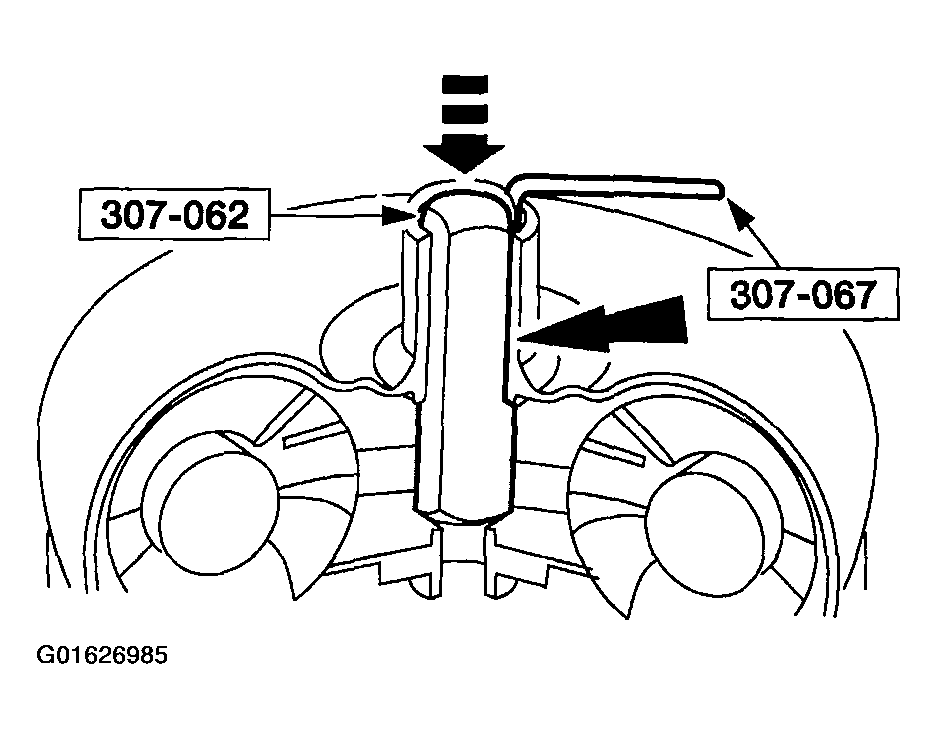

Fig 3: Installing Special Tool In Converter Pump Drive
Courtesy of FORD MOTOR CO.
Use a torque wrench to turn the special tool counterclockwise while holding the special tool stationary.
- The converter should lock up and hold torque.
- The torque converter one-way clutch should rotate freely in the clockwise direction.
- Try the clutch for lockup and hold in at least five positions.
- If the torque converter fails the lockup test torque, install a new or remanufactured torque converter.

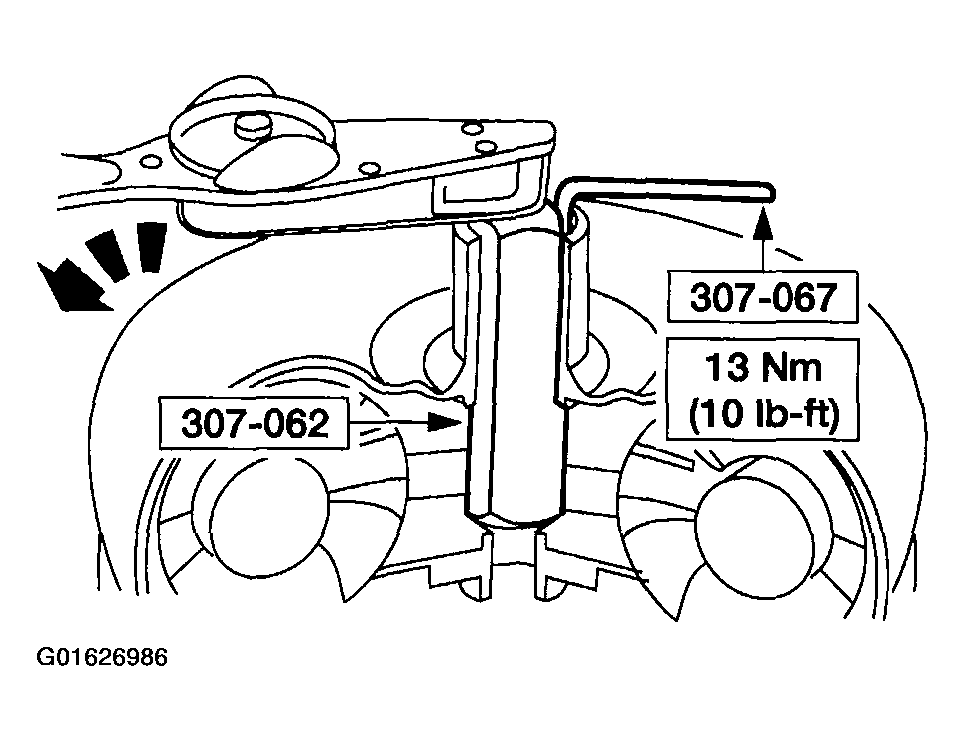

  Fig 4: Using A Torque Wrench To Turn Special Tool Counterclockwise
  Courtesy of FORD MOTOR CO.
