Torque Specifications

Fig 1: Identifying Torque Specifications Table (1 Of 2)
G01628347Courtesy of FORD MOTOR CO.

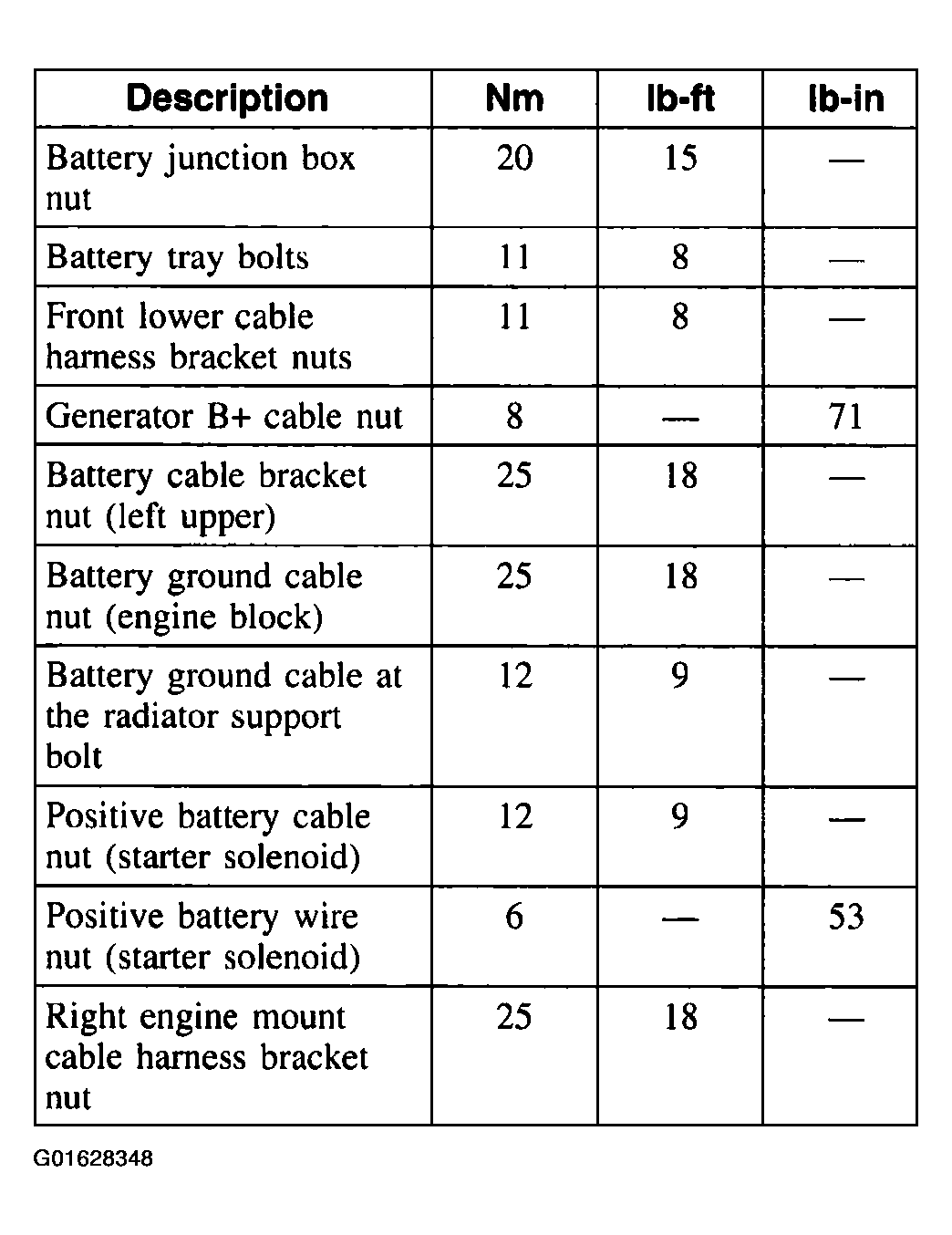

Fig 2: Torque Specifications Table (2 Of 2)
G01628348Courtesy of FORD MOTOR CO.
